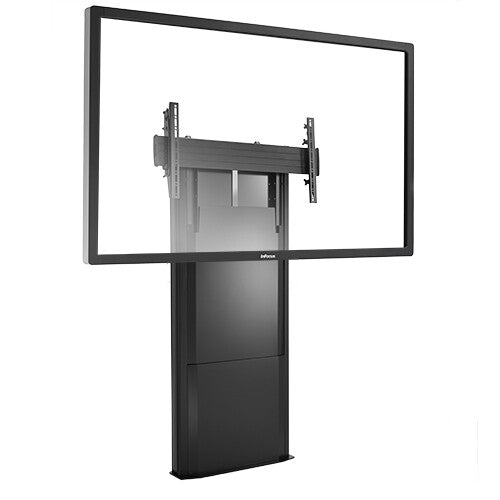

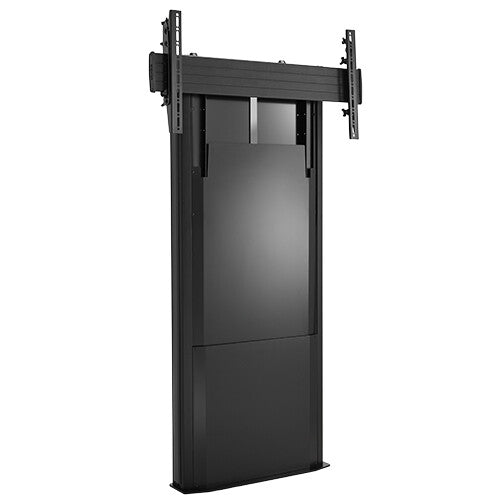

Chief Medium Fusion Dynamic Height Adjustable Floor Support

Chief  |  Varenummer: MFD1U
Stregkode: 0841872168173,841872168173

Beskrivelse

5.75” (400 mm), 200 x 200 - 800 x 400 mm

Ideal for interactive applications, Fusion mounts with dynamic height adjust capability create better accessibility to technology in the boardroom and the classroom. The height adjustable box provides ultra-smooth and fast vertical travel with almost no effort.

Easy to install. Easy to adjust.

This solution is especially helpful for applications where the wall structure can't carry the weight.

- Height adjustable box allows up to 15.75” (400 mm) of vertical adjustment instantly
- Starting height can be set at 3” (76 mm) intervals over a span of 12” (305 mm)
- ControlZone for post-installation fine-tuning of height and leveling
- ClickConnect offers an audible click when the screen safely engages with the mount
- A full line of accessories can be installed with the mount and the entire unit can be adjusted together
- Integrated security flag

Specifikationer

Mounting
Maximum VESA mount 800 x 400 mm
Minimum VESA mount 200 x 200 mm
Mounting type Floor
Maximum weight capacity 59 kg
Number of displays supported 1
Ergonomics
Height adjustment range 0 - 400 mm
Height adjustment Yes
Design
Certification UL Listed
Product colour Black
Type Fixed floor stand
Weight & dimensions
Height 1636 mm
Depth 160 mm
Width 935 mm
Packaging content
Quantity 1
Logistics data
Harmonized System (HS) code 85299097
