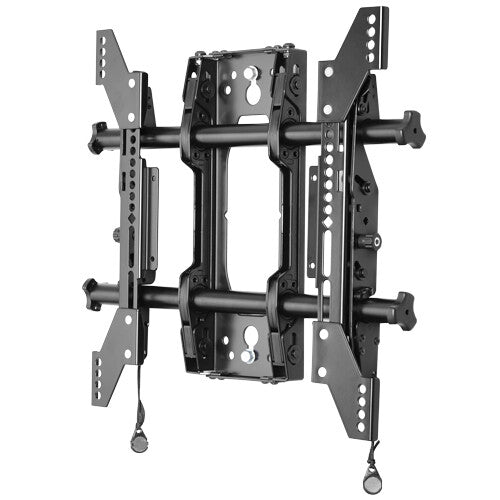

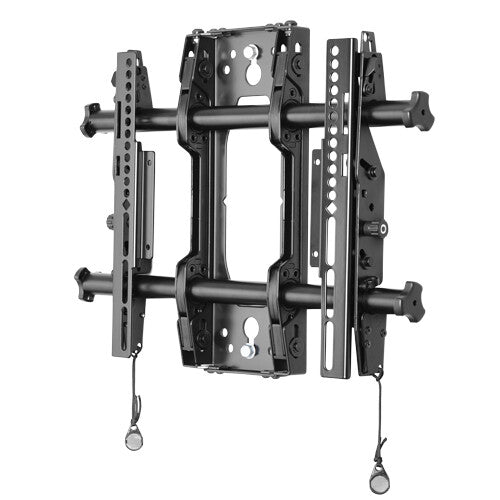

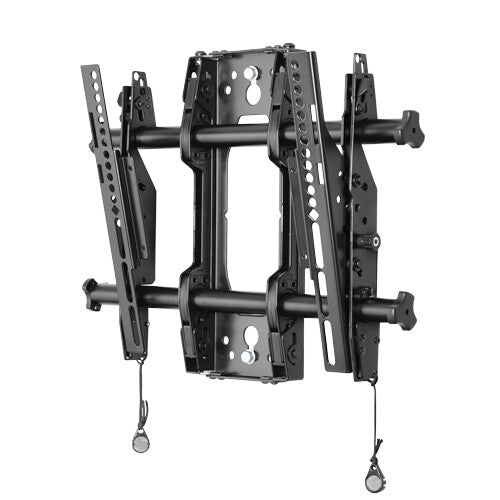

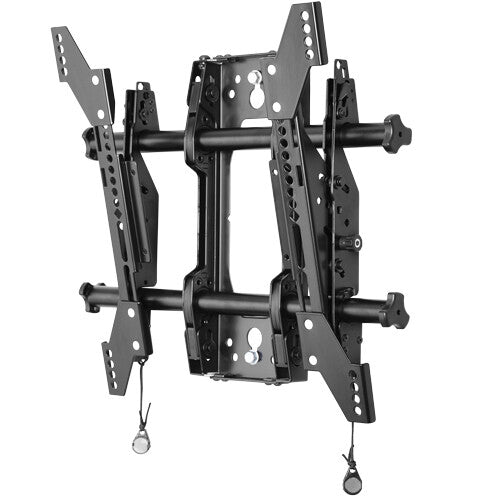

Medium Fusion® Micro-Adjustable Tilt Wall Mount, Single Stud
Installer-inspired Fusion® tilt mount solves top flat panel installation problems, offering flexible adjustments for medium displays with a low-profile display mounting solution.
This single stud Fusion® mount hides better behind smaller narrow bezel displays in the 32-65" range. Many installer-friendly features of Fusion in a smaller form to create superior aesthetic results.
The mount incorporates Fusion® favorites like Centris tilt, ControlZone leveling adjustment and ClickConnect Latching.
Diagram
See a simple setup of an interactive classroom that incorporates a Fusion® tilt wall mount into its design. See the diagram
Selection Guide
Ideal for digital signage, hospitality, transportation and corporate settings, find The Fusion® tilt wall mount that's perfect for you. See the guide
| Mounting |
|---|
| Number of displays supported |
1 |
| Maximum weight capacity |
34.02 kg |
| Minimum screen size |
81.3 cm (32") |
| Maximum screen size |
165.1 cm (65") |
| Mounting type |
Wall |
| Minimum VESA mount |
200 x 200 mm |
| Maximum VESA mount |
450 x 400 mm |
| Ergonomics |
|---|
| Height adjustment |
Yes |
| Height adjustment range |
0 - 25 mm |
| Tilt angle range |
-12 - 2° |
| Design |
|---|
| Product colour |
Black |
| Certification |
ULCERT |
| Weight & dimensions |
|---|
| Width |
463.6 mm |
| Depth |
50.8 mm |
| Height |
359.2 mm |
| Packaging data |
|---|
| Package weight |
7.45 kg |
| Logistics data |
|---|
| Harmonized System (HS) code |
85299097 |
