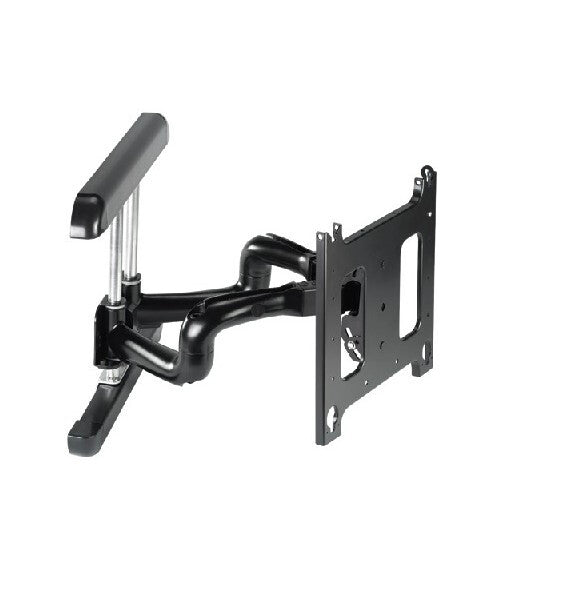

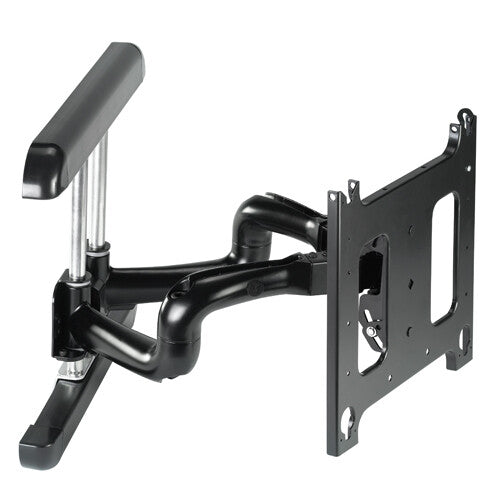

Chief PNRUB, Large Flat Panel Swing Arm Wall Display Mount - 25 Inch Extension
Beskrivelse
Beskrivelse

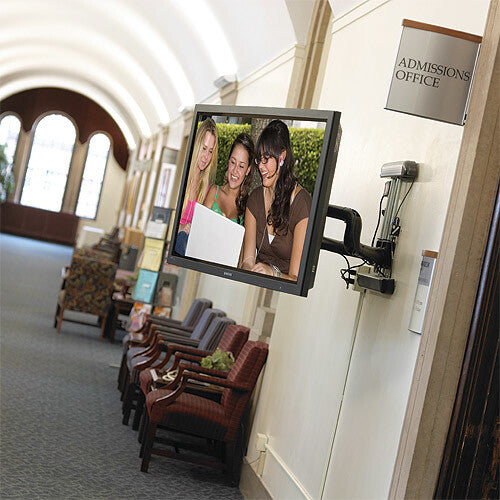

View large flat panel displays from any angle.

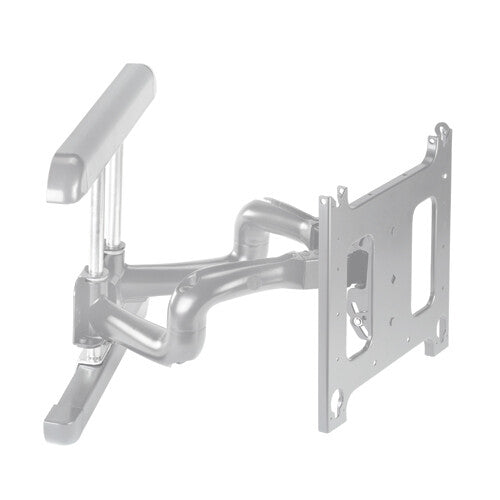

See PNRUB, PNRUS, PNR2000B and PNR2000S (PNR2000 mounts require PSB custom or universal interfaces purchased separately) still available.
Centris Fingertip Tilt allows you to select the perfect tension for your screens center of gravity
Post-installation height adjustment up to 1 (25 mm) for ultimate flexibility
Q-Latch Mounting System secures flat panel to mount with a latching flag
Easy connect/disconnect without tools
Extends up to 25 (635 mm) for viewing from any angle
CableTrac System provides channeled cable management for easy cable routing
Screen can be installed in portrait or landscape orientation (PAC400 accessory can be used to rotate without removing the screen)
Depth and Extension do not include interface bracket (adds 0.5 - 1.5")
Specifikationer
Specifikationer
| Mounting | |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 90.72 kg |
| Minimum screen size | 106.7 cm (42") |
| Maximum screen size | 2.18 m (86") |
| Mounting type | Wall |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 800 x 400 mm |
| Panel mounting interface | 200 x 200,300 x 300,400 x 200,400 x 400,600 x 400,700 x 400,800 x 400 |
| Ergonomics | |
|---|---|
| Height adjustment | Yes |
| Height adjustment range | 0 - 25 mm |
| Adjustable depth | Yes |
| Tilt angle range | -17 - 5° |
| Swivel angle | 90° |
| Cable management | Yes |
| Distance to the wall (min) | 8.2 cm |
| Distance to the wall (max) | 63.5 cm |
| Design | |
|---|---|
| Product colour | Black |
| Housing material | Steel |
| Certification | ULCERT |
| Packaging content | |
|---|---|
| Mounting kit | Yes |
| Weight & dimensions | |
|---|---|
| Width | 688.3 mm |
| Depth | 83.8 mm |
| Depth (min) | 8.4 cm |
| Depth (max) | 63.5 cm |
| Height | 538.5 mm |
| Weight | 30 kg |
| Packaging data | |
|---|---|
| Package weight | 32.2 kg |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85299097 |
