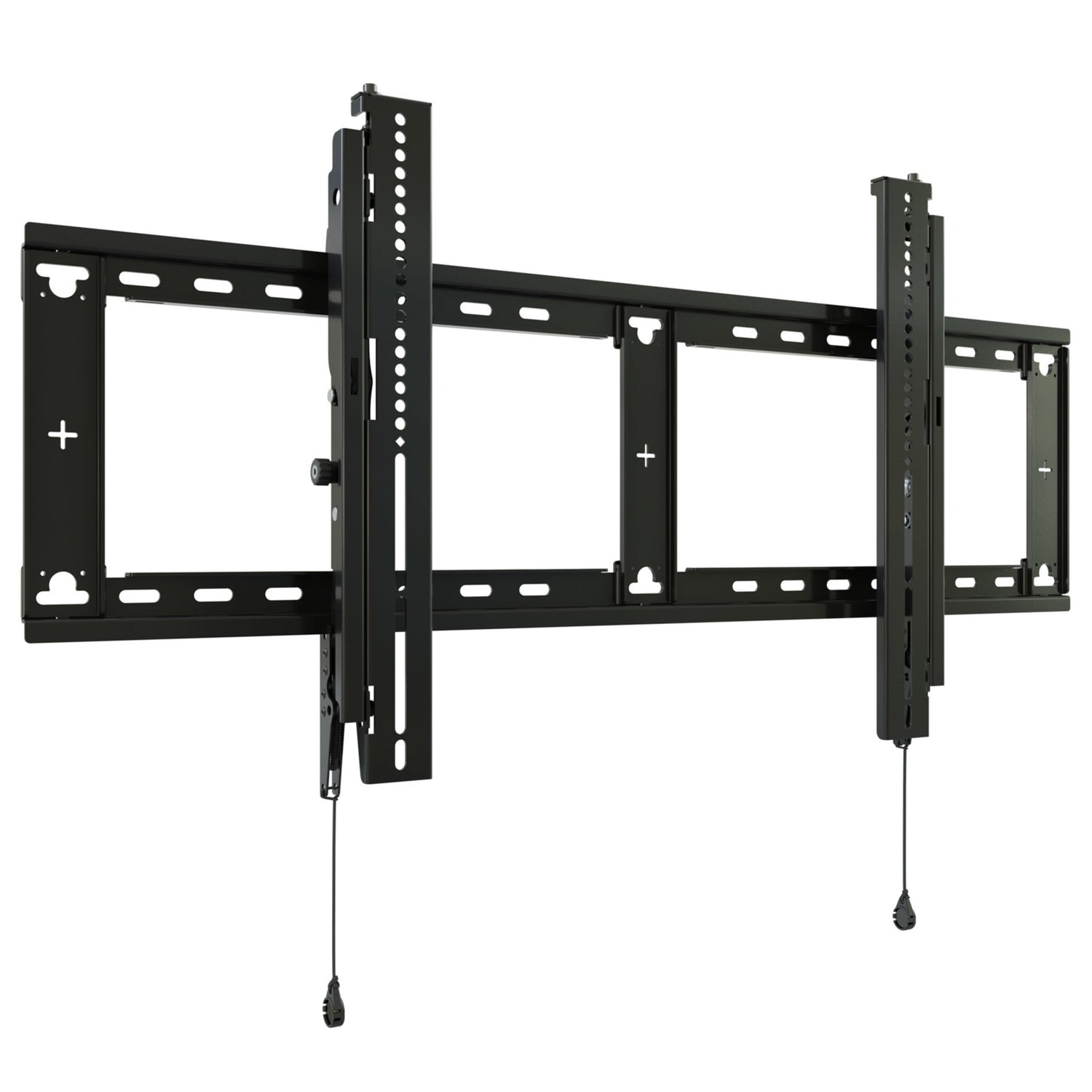

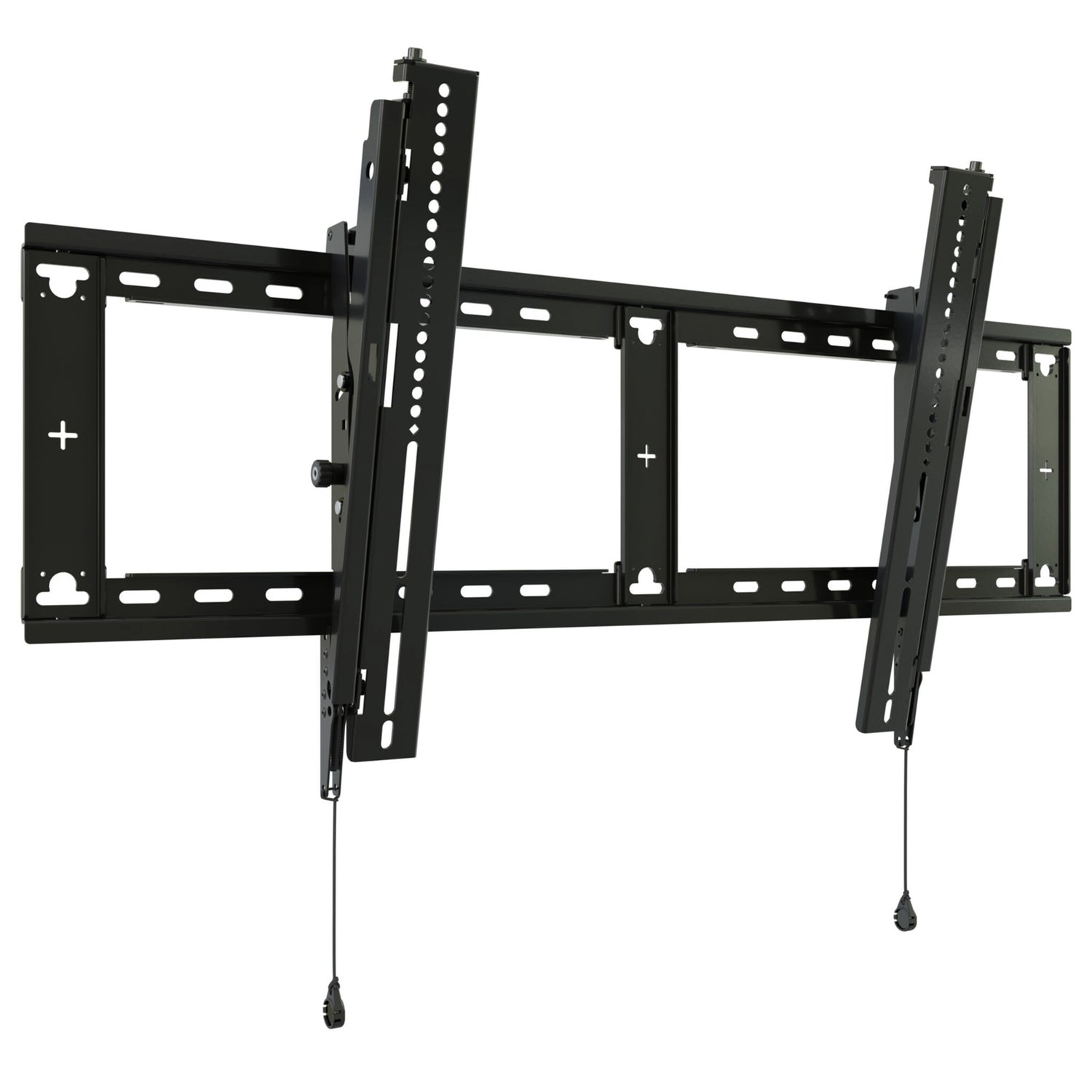

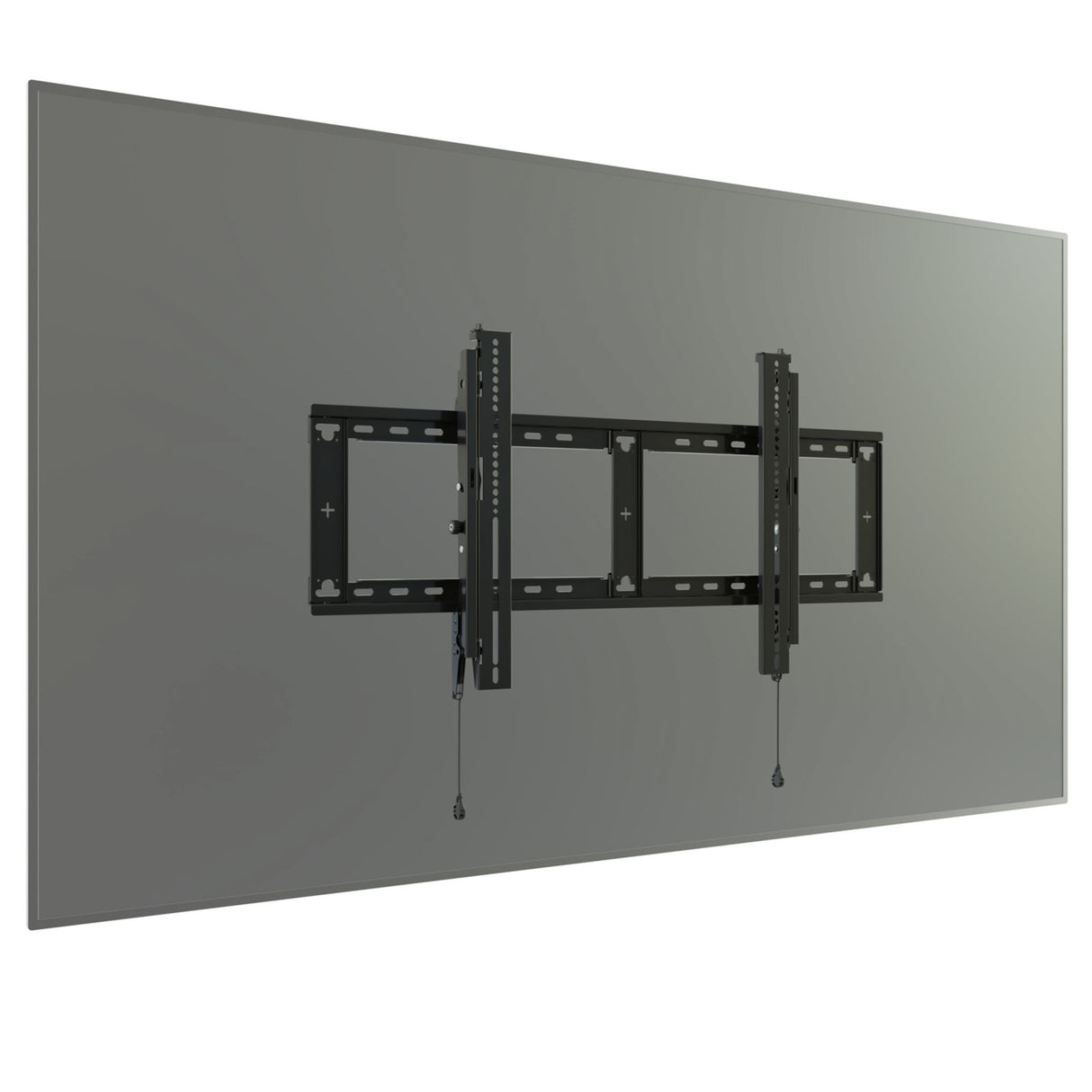

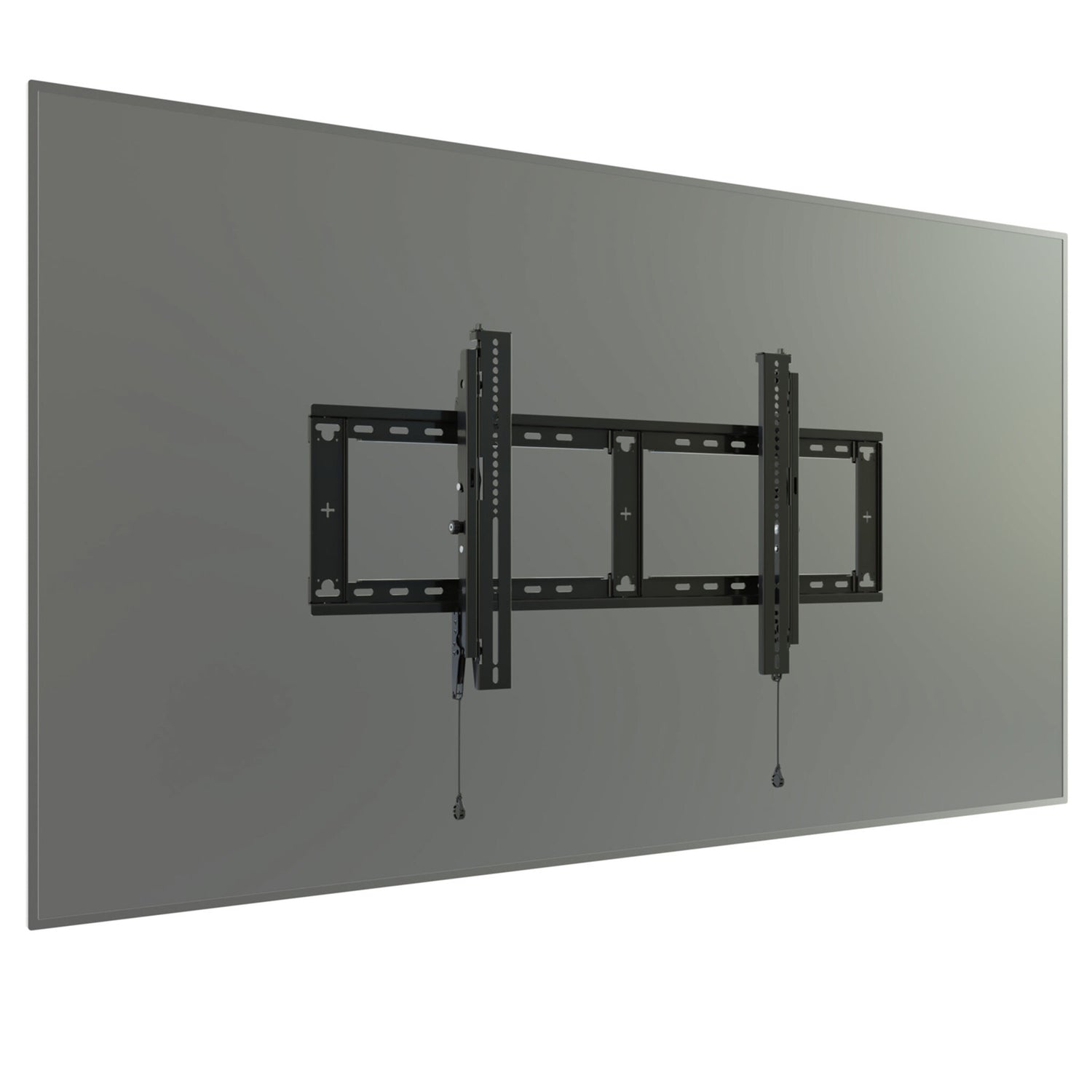

Chief Large FitTM Tilt Display Wall Mount
Chief | Varenummer:
RLT3
Beskrivelse
Beskrivelse
43" - 86", max. 90.7 kg, max. 915 x 450 mm, -12° Tilt, Black
The Fit series RLT3 is a large tilt display wall mount for 43” to 86” typical display sizes and supports mounting patterns up to 915 x 450 mm. This next-generation design features 0.75” (19 mm) post-installation leveling, robust wall plate design supporting up to 200 lbs (90.7 kg), 2” (51 mm) low-profile depth, up to 12° tilt, and UL and TUV safety standard approvals.
Specifikationer
Specifikationer
| Mounting | |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 90.7 kg |
| Minimum screen size | 109.2 cm (43") |
| Maximum screen size | 2.18 m (86") |
| Mounting type | Wall |
| Maximum VESA mount | 915 x 450 mm |
| Ergonomics | |
|---|---|
| Height adjustment | Yes |
| Height adjustment type | Manual |
| Tilt adjustment | Yes |
| Tilt angle range | -12 - 0° |
| Design | |
|---|---|
| Product colour | Black |
| Certification | TUV, UL Listed |
| Weight & dimensions | |
|---|---|
| Width | 965 mm |
| Depth (min) | 5.1 cm |
| Depth (max) | 5.1 cm |
| Height | 487 mm |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pair(s) |
| Package weight | 8.2 kg |
Download
Download
PDF download:
Chief Large FitTM Tilt Display Wall Mount
