Extra-Large Fit Fixed Display Wall Mount

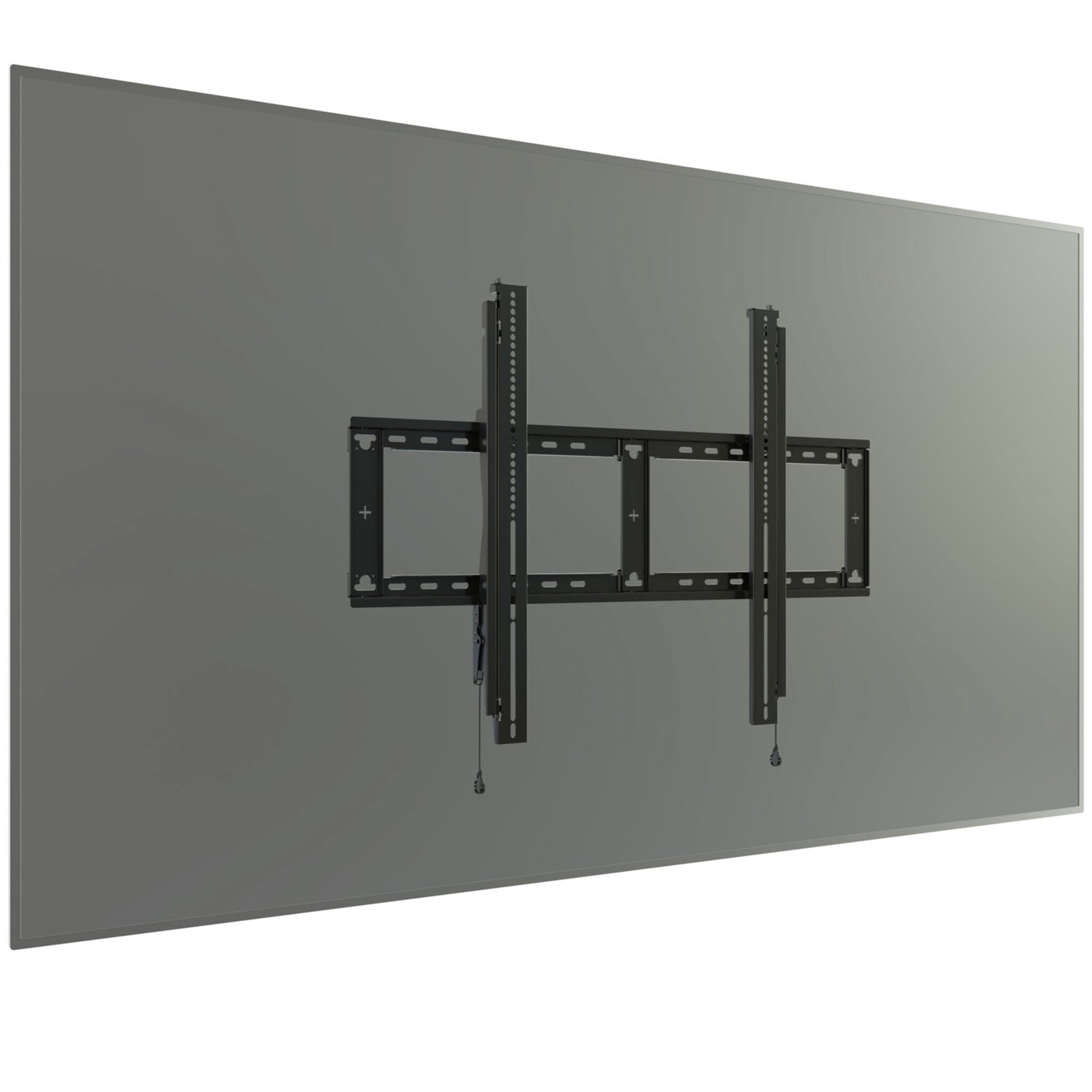

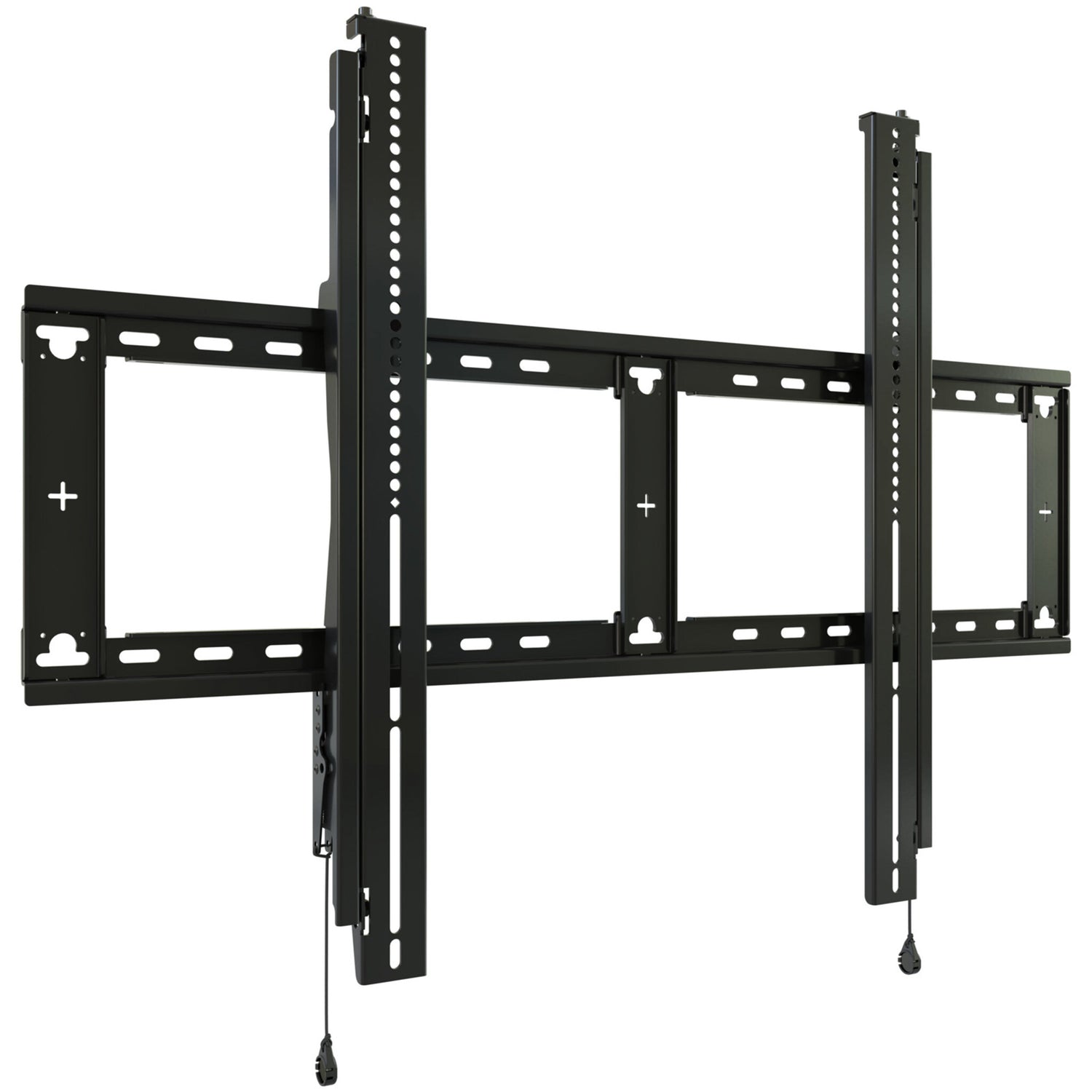

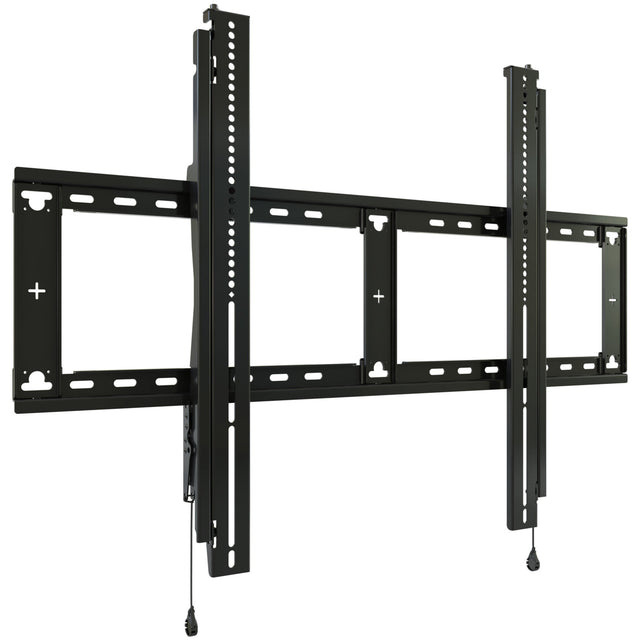

The Fit series RXF3 is an extra-large fixed display wall mount for 49” to 98” typical display sizes and supports mounting patterns up to 960 x 650 mm. This next-generation design features 0.75” (19 mm) post-installation leveling, robust wall plate design supporting up to 250 lbs (113.4 kg), 1.5” (38 mm) low-profile depth, and UL and TUV safety standard approvals.
Low profile 1.5” (38 mm) depth facilitates ADA compliance for typical AV design requirements
Easy to reach 0.75” (19 mm) post-installation leveling screw and 10” (254 mm) ball end hex-key included
Open wall plate allows for flexible positioning around power and data wall boxes
Supports display mounting patterns up to 960 x 650 mm
Re-designed rigid wall plate supports up to 250 lbs (113.4 kg) and additional mounting slots for improved installation experience
Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
Easy access magnetic quick-store release pullcords
Kickstand for easy access to power and signal connections
Theft deterrent security option (not included)
UL and TUV safety standards compliant
| Mounting |
|---|
| Number of displays supported |
1 |
| Maximum weight capacity |
113.4 kg |
| Minimum screen size |
124.5 cm (49") |
| Maximum screen size |
2.49 m (98") |
| Mounting type |
Wall |
| Maximum VESA mount |
960 x 650 mm |
| Ergonomics |
|---|
| Height adjustment |
Yes |
| Height adjustment type |
Manual |
| Design |
|---|
| Product colour |
Black |
| Certification |
ULCERT |
| Weight & dimensions |
|---|
| Width |
965.2 mm |
| Depth |
38.1 mm |
| Depth (min) |
3.8 cm |
| Depth (max) |
3.9 cm |
| Height |
687.1 mm |
| Packaging data |
|---|
| Quantity per pack |
1 pair(s) |
| Package weight |
8.18 kg |
