Chief Extra-Large FitTM Tilt Display Wall Mount
Chief | Varenummer:
RXT3
Specifikationer
Specifikationer
49" - 98", max. 113.4 kg, max. 915 x 650 mm, -12° Tilt, Black

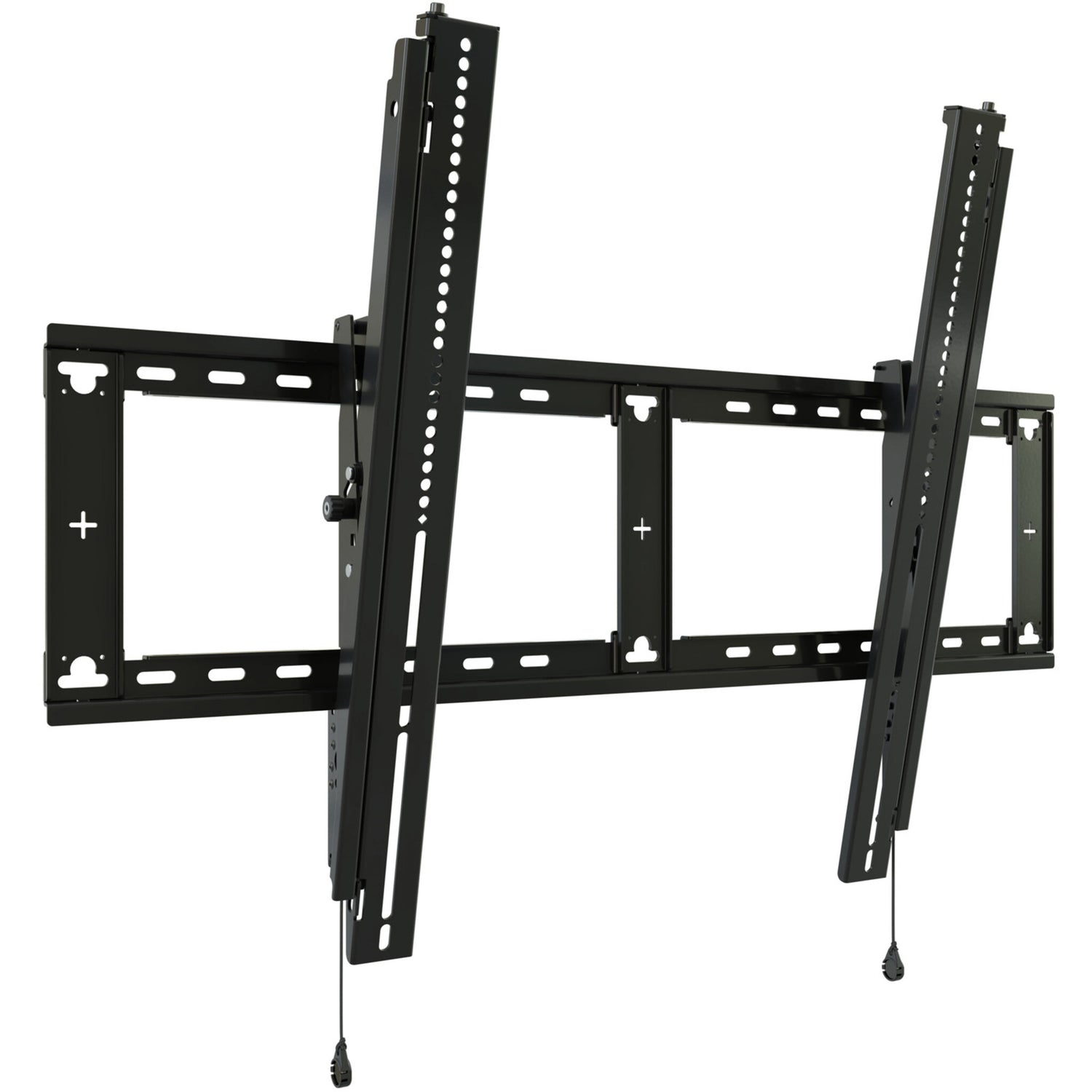

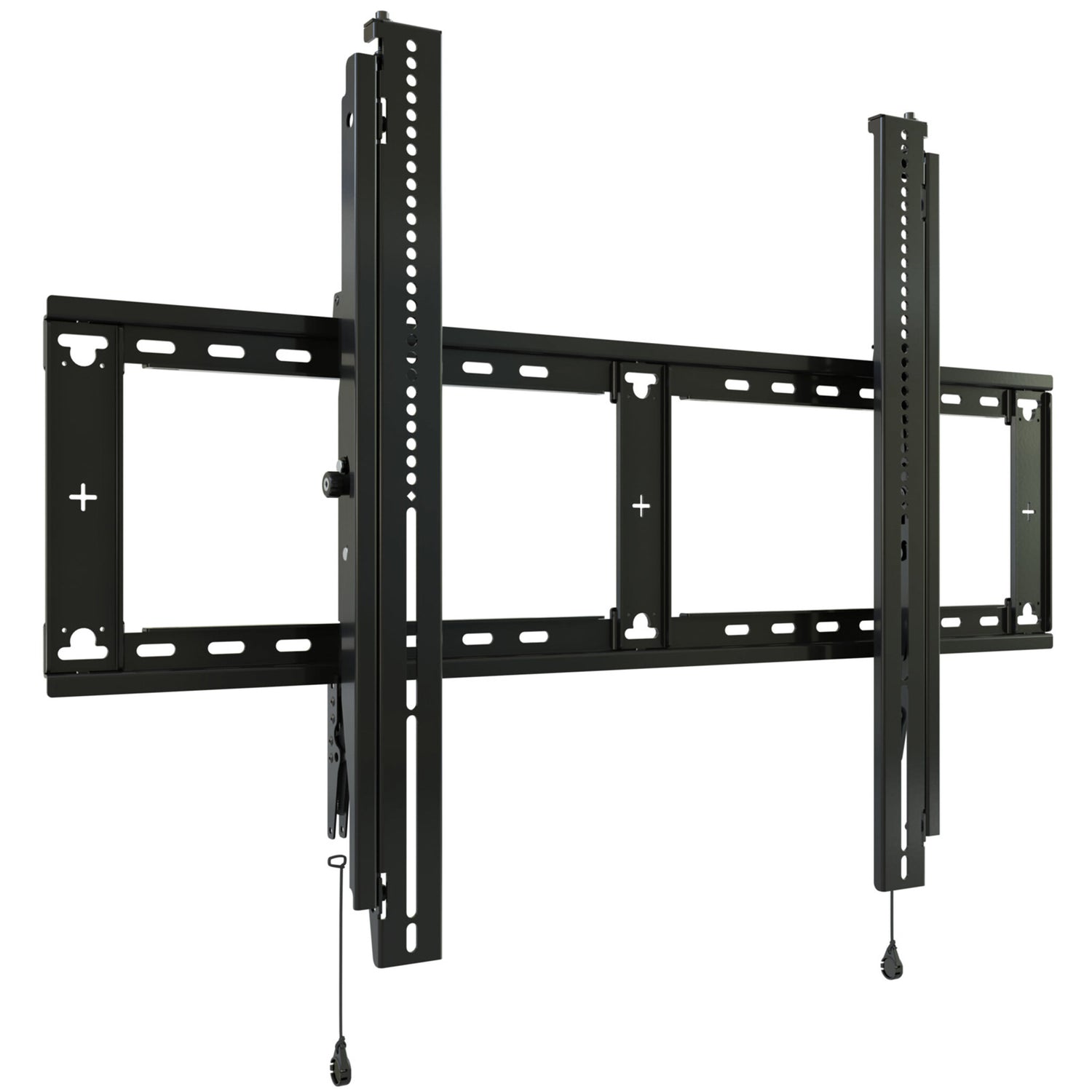

The Fit series RXT3 is an extra-large tilt display wall mount for 49” to 98” typical display sizes and supports mounting patterns up to 915 x 650 mm. This next-generation design features 0.75” (19 mm) post-installation leveling, robust wall plate design supporting up to 250 lbs (113.4 kg), 2.5” (64 mm) low-profile depth, up to 12° tilt, and UL and TUV safety standards approved.
| Mounting | |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 113.4 kg |
| Minimum screen size | 124.5 cm (49") |
| Maximum screen size | 2.49 m (98") |
| Mounting type | Wall |
| Maximum VESA mount | 915 x 650 mm |
| Ergonomics | |
|---|---|
| Height adjustment | Yes |
| Height adjustment type | Manual |
| Tilt adjustment | Yes |
| Tilt angle range | -12 - 0° |
| Design | |
|---|---|
| Product colour | Black |
| Certification | ULCERT |
| Weight & dimensions | |
|---|---|
| Width | 965.2 mm |
| Depth | 63.5 mm |
| Depth (min) | 6.4 cm |
| Depth (max) | 6.4 cm |
| Height | 687.1 mm |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pair(s) |
| Package weight | 9.25 kg |
