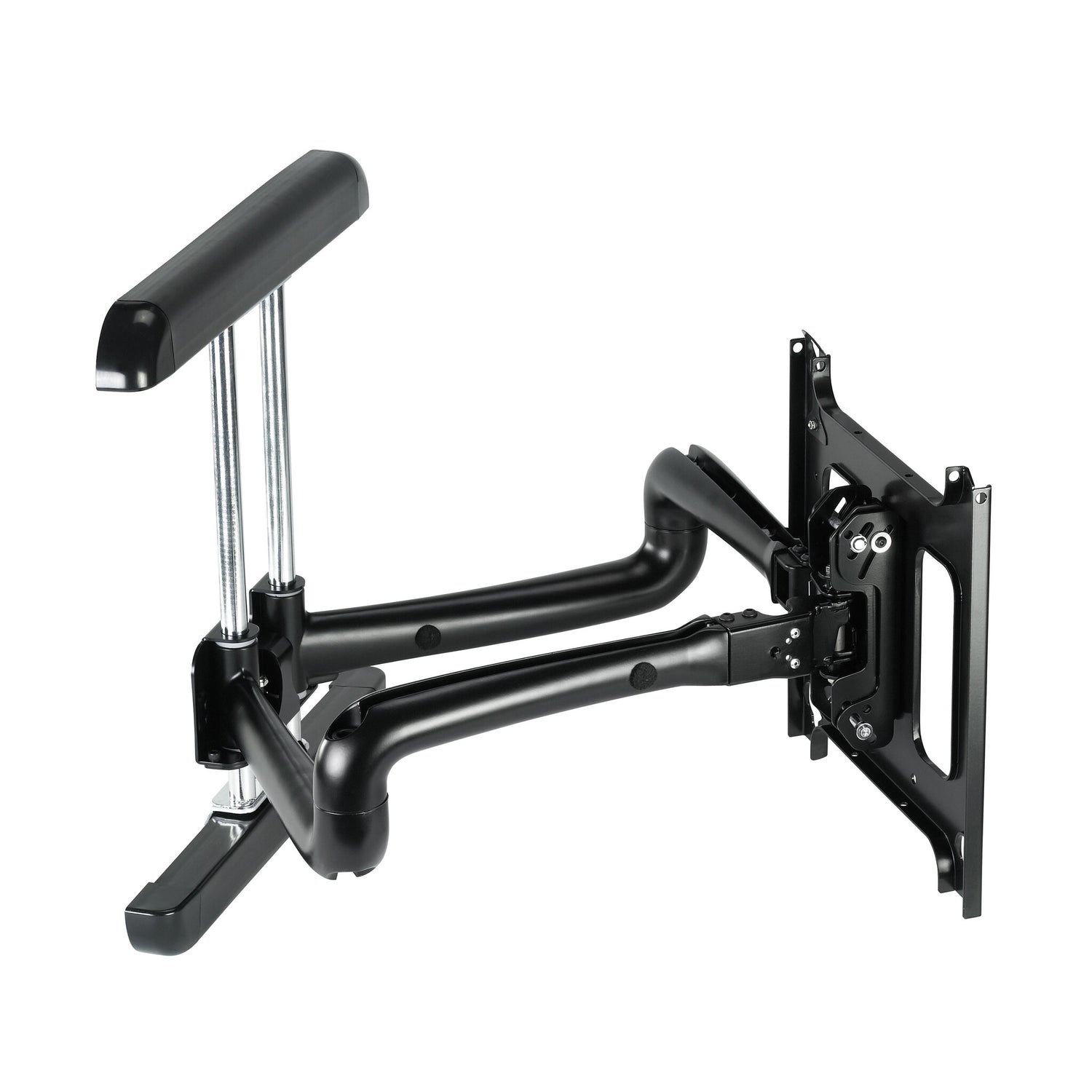

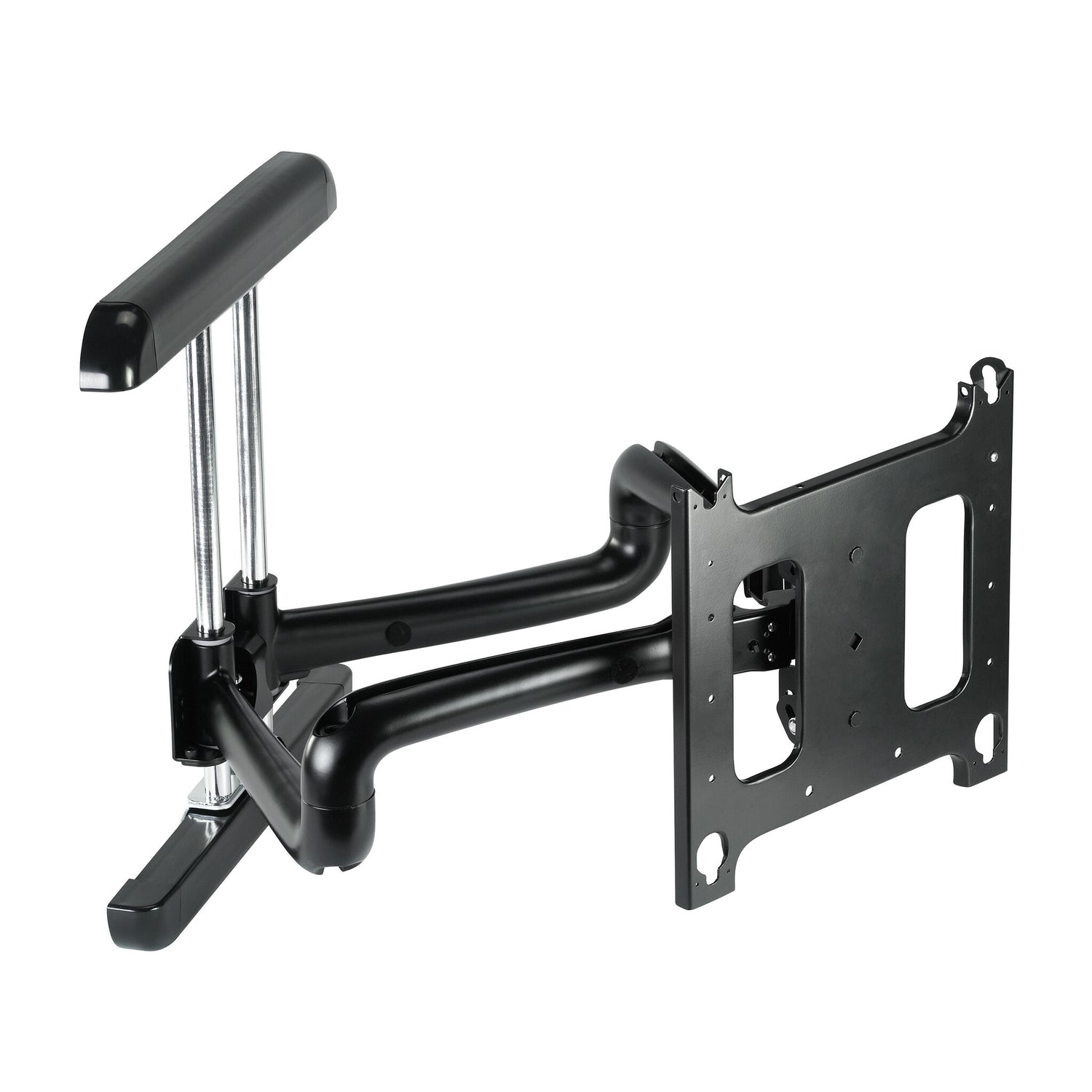

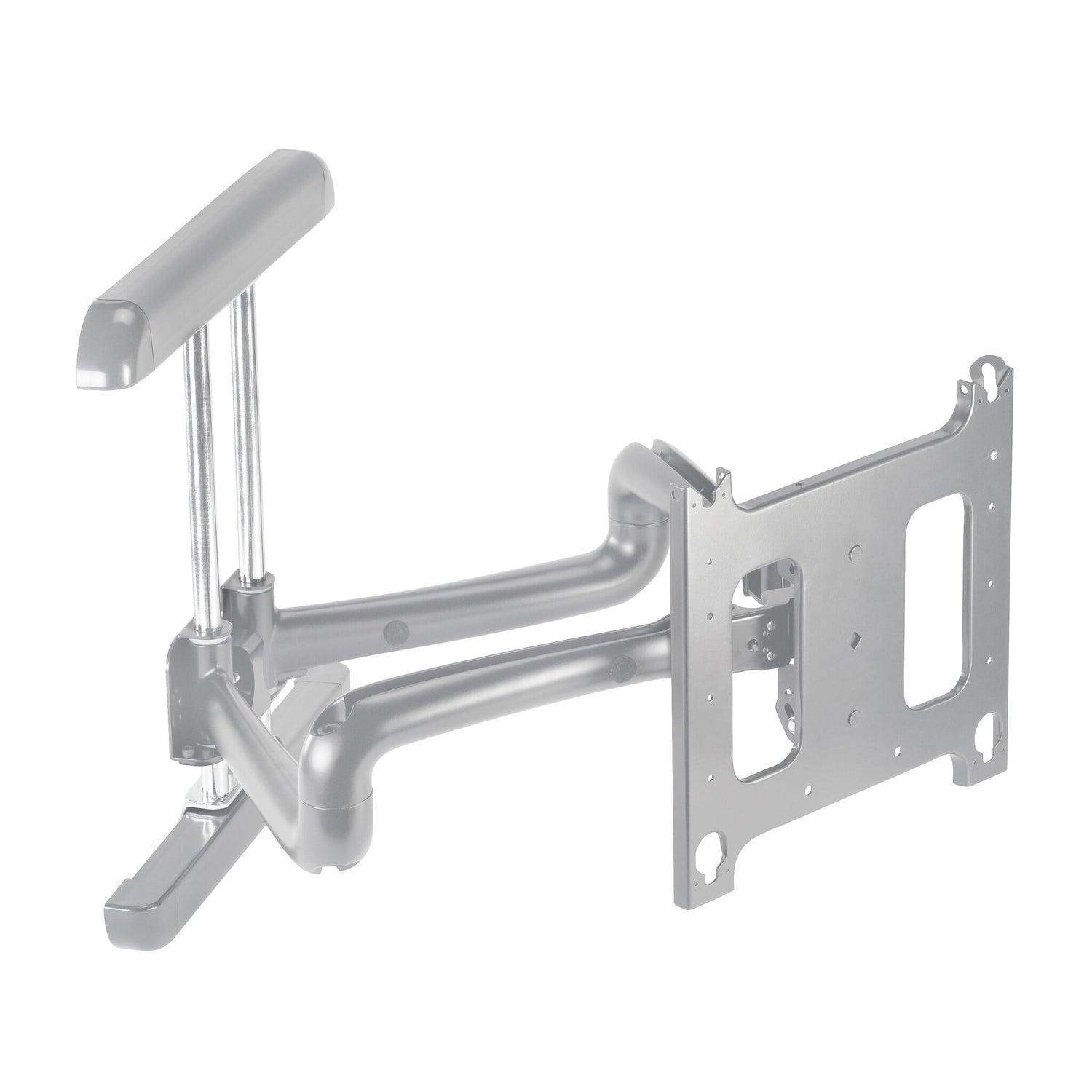

Large Flat Panel Swing Arm Wall Display Mount - 37 Inch Extension
This swing arm mount allows for perfect flat panel display placement and ensures ideal viewing from any angle.
All PDR2XXX custom versions discontinued June 1, 2014.
PDRUB, PDRUS, PDR2000B and PDR2000S (PDR2000 mounts require PSB custom or universal interfaces purchased separately) still available.
Centris Technology tilt mechanism adjusts to provide fingertip tilt with most flat panels
Post-installation height adjustment up to 1" (25 mm) for ultimate installation flexibility
Q-Latch Mounting System secures flat panel to mount with a latching flag
Extends 37" (93.98 cm) for viewing from any angle, and remains low-profile in home position
CableTrac System provides built-in cable management channels inside the arms for a clean installation
Screen can be installed in portrait or landscape orientation (PAC400 accessory can be used to rotate without removing the screen)
Depth and Extension do not include interface bracket (adds 0.5 - 1.5")
| Mounting |
|---|
| Maximum weight capacity |
90.72 kg |
| Minimum screen size |
106.7 cm (42") |
| Mounting type |
Wall |
| Ergonomics |
|---|
| Tilt angle range |
-17 - 5° |
| Design |
|---|
| Product colour |
Black |
| Certification |
ULCERT |
| Weight & dimensions |
|---|
| Width |
1003.3 mm |
| Depth |
86.4 mm |
| Height |
558.8 mm |
| Packaging data |
|---|
| Package weight |
36.2 kg |
| Logistics data |
|---|
| Harmonized System (HS) code |
85299097 |
