FUSION X-Large Single Pole Flat Panel Ceiling Mounts
Chiefs FUSION Flat Panel Ceiling Mounts are installer inspired and offer perfect TV positioning and flexible adjustments for X-large flat panel screens. Great for digital signage installations.

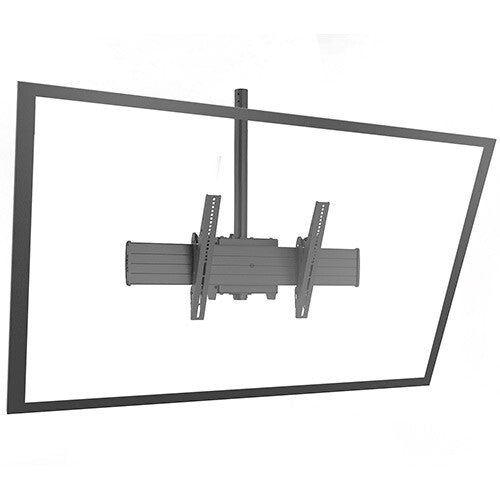

The XCM1U is a single pole drop ceiling mount perfect for XL displays 5" deep and thinner. For deeper and heavier displays, see Chief's XCM7000 for a dual drop solution.
- Ceiling Plate and extension column are required and must be ordered separately
- Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems
- See ceiling plates and extension columns (Adjustable and Fixed) for 1.5" NPT compatibility
- See CPA ceiling plates and CPA columns for pin connection compatibility
REPEATABILITY
- Continuous tilt ranges with four set locking points to eliminate guess work when adjusting multiple screens.
ACCESSIBILITY
- Simple on/off connection for ease of installation and service.
CENTRIS FINGERTIP TILT
- Effortlessly adjust display using Centris fingertip tilt technology.
SIMPLE & SECURE
- Tool free screen engagement with optional padlock security.
FLEXIBILITY
- Mount swivels to any preferred viewing angle.
| Mounting |
|---|
| Number of displays supported |
1 |
| Maximum weight capacity |
113.4 kg |
| Minimum screen size |
152.4 cm (60") |
| Maximum screen size |
2.29 m (90") |
| Mounting type |
Ceiling |
| Minimum VESA mount |
200 x 100 mm |
| Maximum VESA mount |
800 x 400 mm |
| Panel mounting interface |
800 x 400 mm |
| Ergonomics |
|---|
| Tilt angle range |
0 - 15° |
| Adjustable |
Yes |
| Design |
|---|
| Product colour |
Black |
| Housing material |
Steel |
| Certification |
ULCERT |
| Weight & dimensions |
|---|
| Width |
884.9 mm |
| Depth |
186.8 mm |
| Height |
425.5 mm |
| Weight |
12 kg |
| Packaging data |
|---|
| Package weight |
14 kg |
| Packaging content |
|---|
| Manual |
Yes |
| Mounting kit |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
85299097 |
