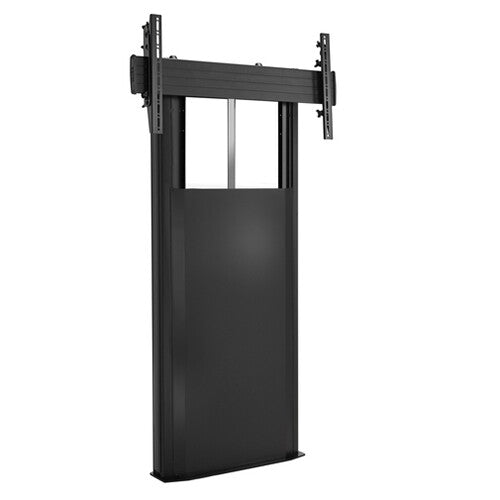

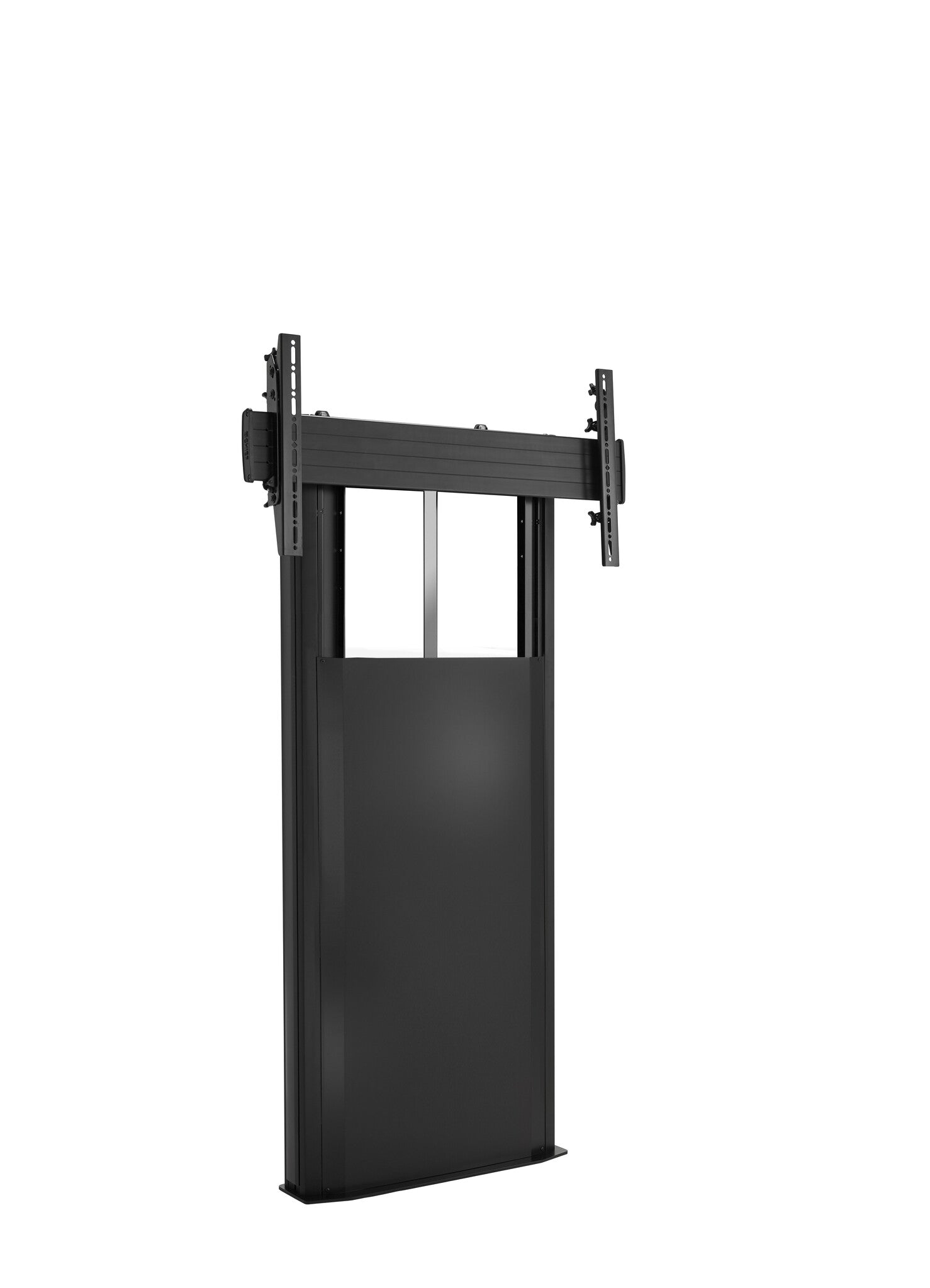

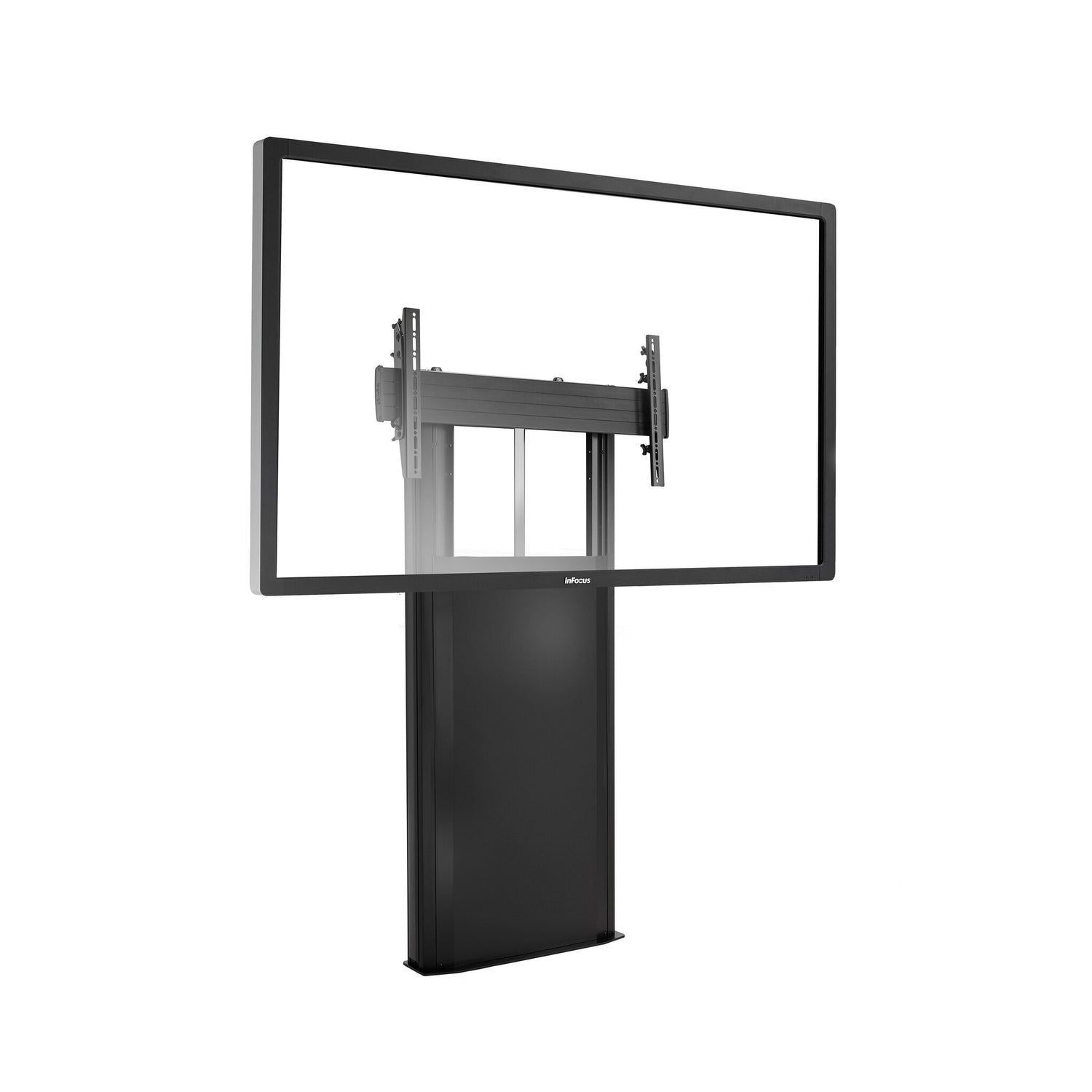

Chief X-Large Fusion Manual Height Adjustable Floor Support Mount

Chief  |  Varenummer: XFA1UB
Stregkode: 0841872168982,841872168982

Beskrivelse

X-Large Fusion Manual Height Adjustable Floor Support Mount, max 136.1kg, Black

This solution is especially helpful for applications where the wall structure can't carry the weight. This floor support solution incorporates rounded edges and sleek features to give the aesthetics a softer, professional feel that fits well in corporate and classroom environments. The height can be adjusted by one person via a 1/2" hex bit on a power drill without removing the screen.

- Sleek look suitable for multiple environments including education, corporate and digital signage
- Turn knob allows single user to easily adjust the screen height using a 1/2" hex drill bit to any height between 48 and 65 inches (122 - 165 cm)
- Flexible cable covers for lay in access down either side of the column to connect to external AV equipment
- Magnetic, removable front cover allows for easy cable routing to AV components stored inside the column
- Includes cable wrap hardware for cable management inside and outside
- Landscape screen orientation (portrait only if screen is at least 34" tall and has a mounting pattern 400 x 400mm or smaller)
- Ships pre-assembled

Specifikationer

Mounting
Maximum VESA mount 800 x 400 mm
Minimum VESA mount 200 x 200 mm
Mounting type Floor
Maximum screen size 151.4 cm (59.6")
Minimum screen size 106.7 cm (42")
Maximum weight capacity 136.1 kg
Number of displays supported 1
Ergonomics
Height adjustment range 122 - 165 mm
Height adjustment Yes
Design
Product colour Black
Type Fixed floor stand
Weight & dimensions
Height 1636 mm
Depth 160 mm
Width 935 mm
Packaging content
Quantity 1
Logistics data
Harmonized System (HS) code 85299097
