Chief Extra-Large Fusion® Video Conferencing Cart

Chief  |  Varenummer: XVAUB
Stregkode: 0841872159928,841872159928

Specifikationer

Extra-Large Fusion® Video Conferencing Cart

This mobile Fusion® AV Cart incorporates rounded edges and sleek features to give the cart a softer professional feel that fits well in corporate and classroom environments. The height can be adjusted by one person via a 1/2" hex bit on a power drill without removing the screen.
Features:
Sleek, two-toned look suitable for multiple environments including education, corporate and digital signage
Turn knob allows single user to easily adjust the screen height using a 1/2" hex drill bit to any height between 41.9 to 50.4" (106.4 to 128.0 cm)
Internal storage rack mountable (pre-installed rack rail) and non-rack mountable AV components
Includes hardware to vertically mount 11 RUs of AV gear (inside dimension H x W x D: 24 x 19 x 15" (60.9 x 48.2 x 38.1 cm)
Removable side, rear and front panels for easy component access and cable routing
Reversible front door with smoked glass for access to IR controlled components.
Includes hooks in back for cable bundling during transport
Includes 14" wide above component shelf (FCA501)

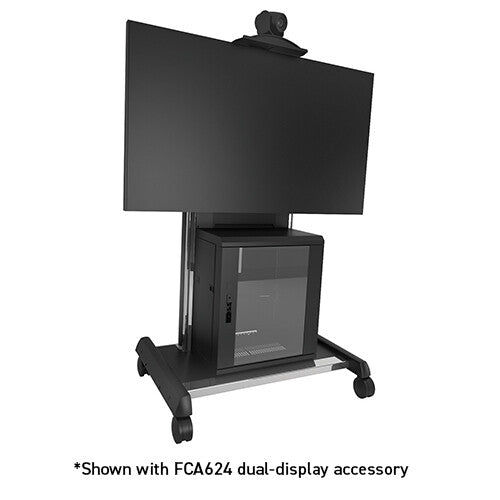

For dual display applications add the Dual-Display accessory - FCA624B
Ships fully assembled, on a pallet, with heavy-duty casters (front two casters are lockable)

Mounting
Number of displays supported 1
Maximum weight capacity 113.4 kg
Minimum screen size 139.7 cm (55")
Maximum screen size 177.8 cm (70")
Mounting type Wall
Panel mounting interface 200 x 200,800 x 400 mm
Ergonomics
Tilt angle range -2.5 - 2.5°
Number of wheels 4 wheel(s)
Design
Product colour Black
Certification TAA
Technical details
Compliance certificates TAA
Weight & dimensions
Width 986 mm
Depth 737 mm
Height 1395 mm
Packaging data
Package weight 88.9 kg
Logistics data
Harmonized System (HS) code 94031098
