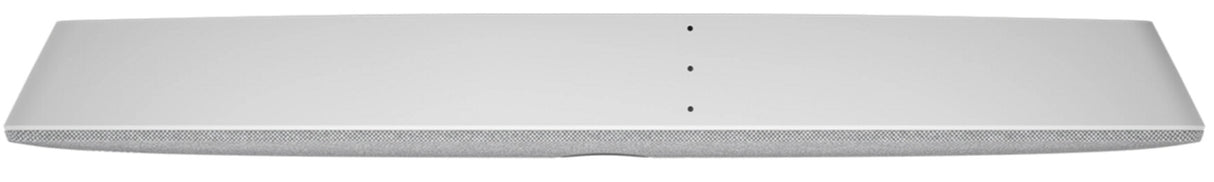

Cisco CS-BAR-L-UK9 video conferencing system 12 MP Ethernet LAN Group video conferencing system
Cisco | Varenummer:
CS-BAR-L-UK9
Beskrivelse
Beskrivelse

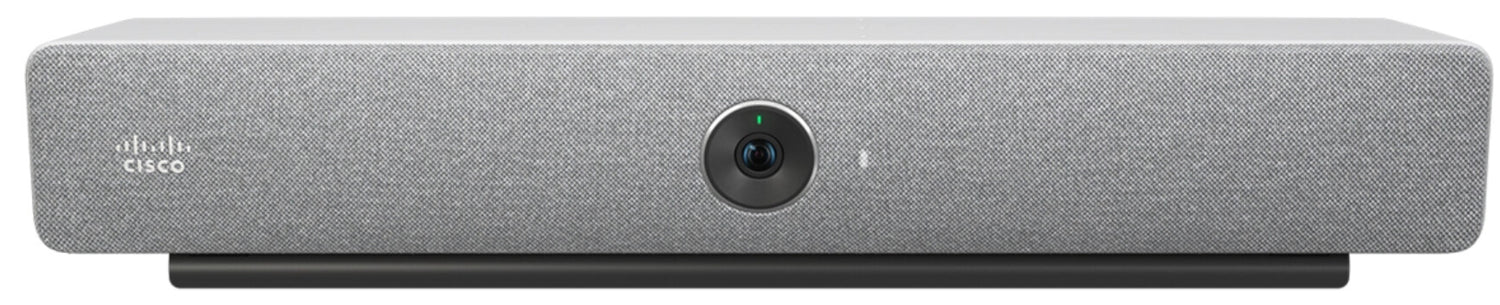

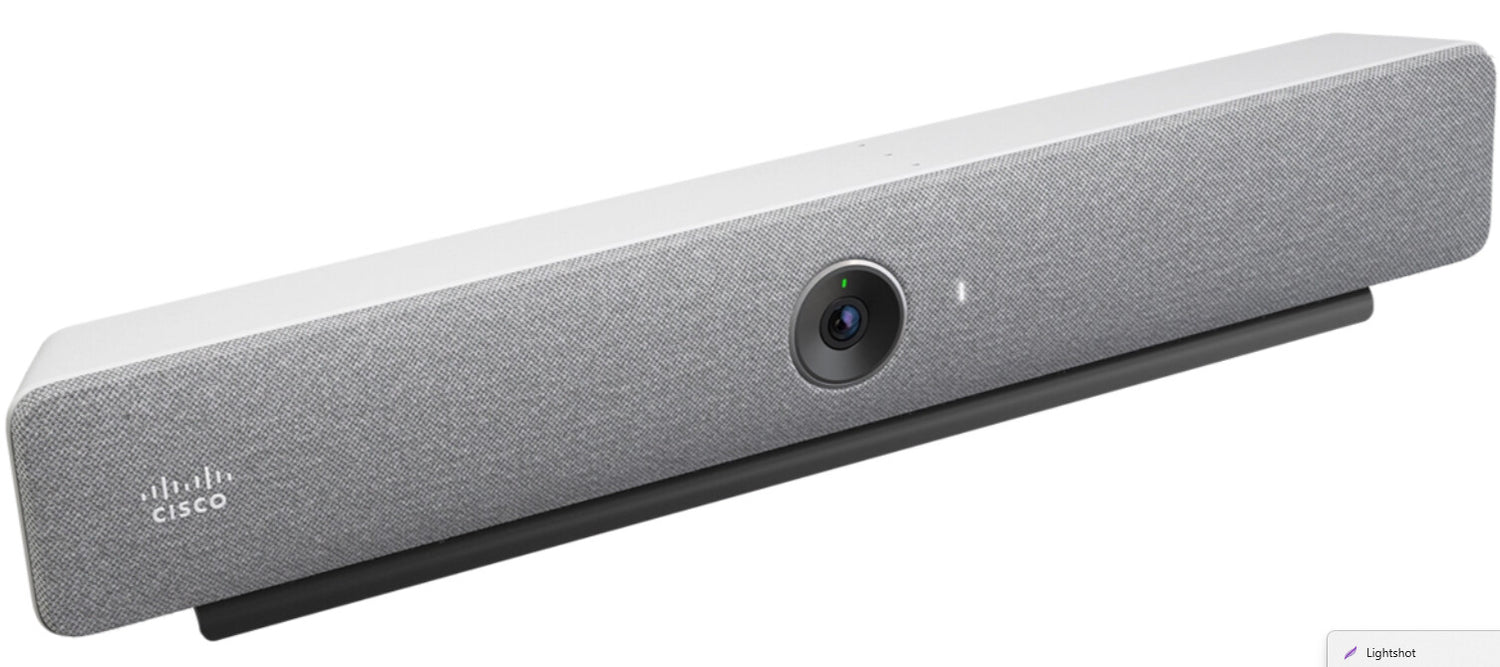

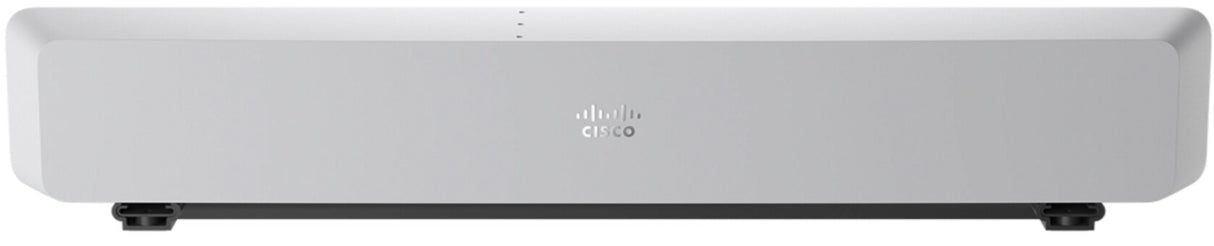

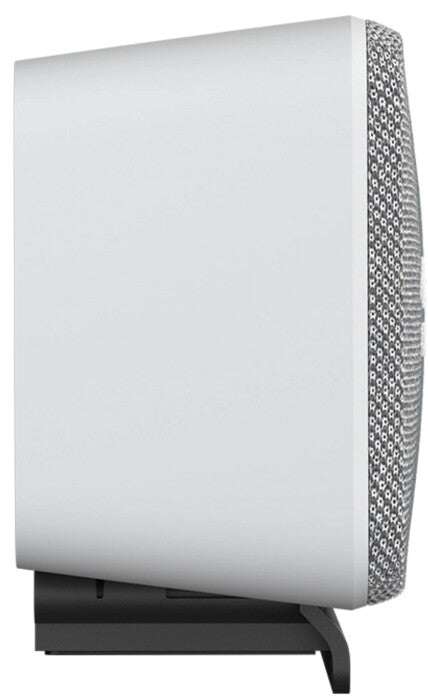

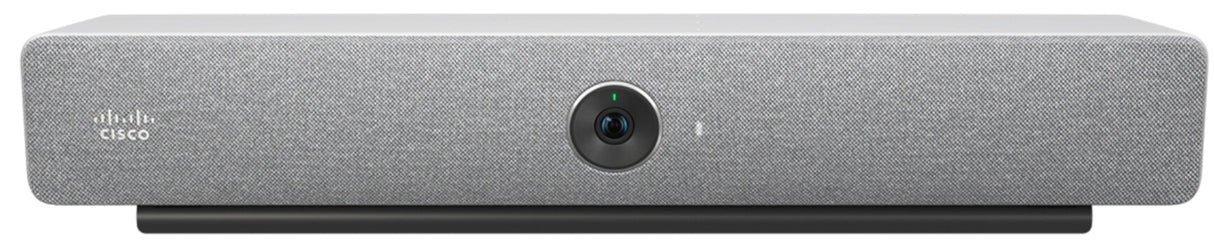

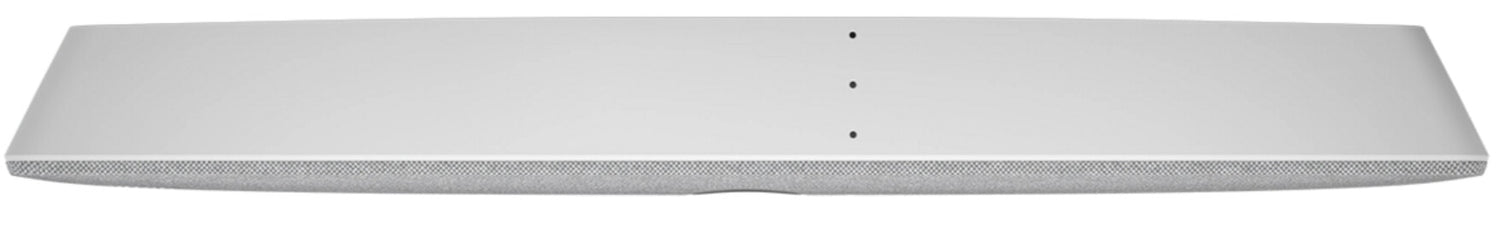

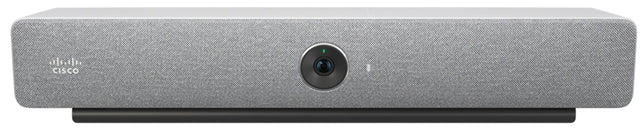

Cisco Room Bar BYOD, First Light
The Cisco Room Bar BYOD in First Light (white) is a sleek, high-performance video conferencing bar designed specifically for small to medium-sized meeting and huddle rooms.

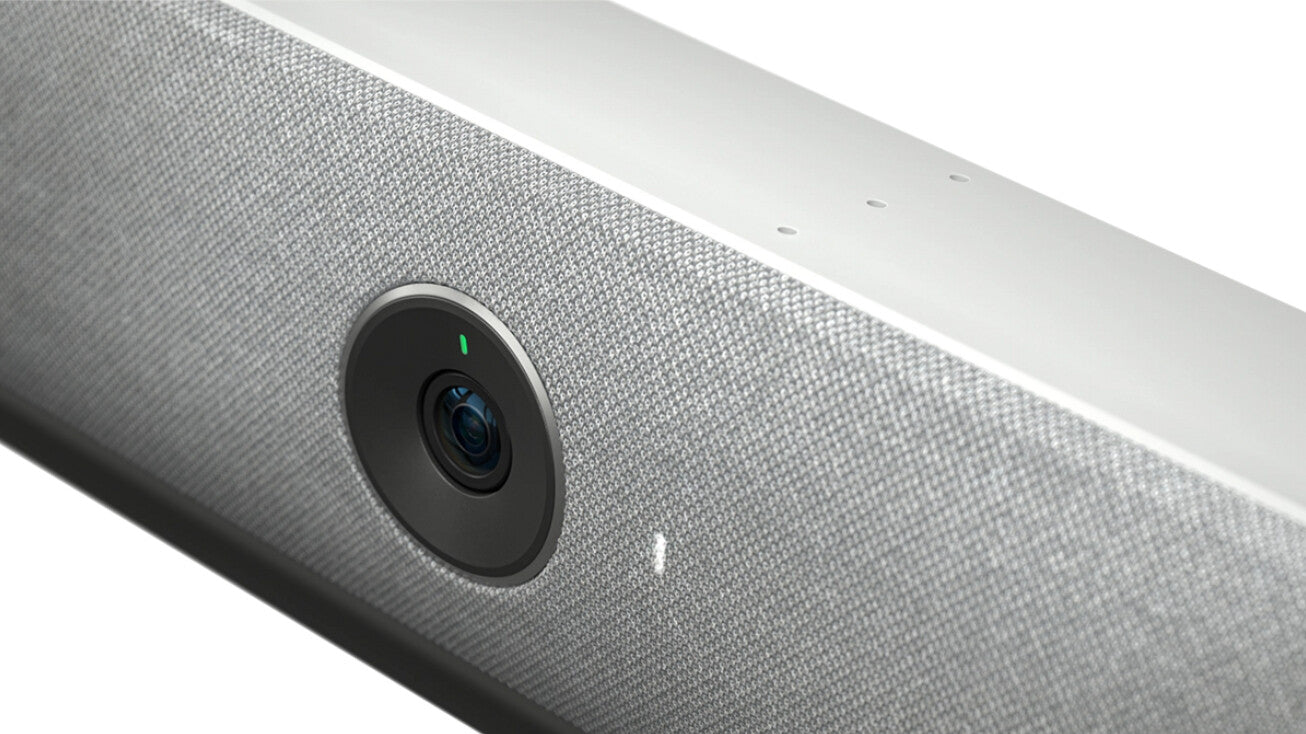

It combines a high-resolution camera, beamforming microphones and integrated speakers in a single device that connects easily to laptops via USB-C.
This makes the Room Bar ideal for BYOD scenarios: participants bring their own device, connect via cable and start the meeting without complex setup. The hardware delivers clear audio and a wide field of view for displaying multiple participants at once.
Specifikationer
Specifikationer
| Performance | |
|---|---|
| Auto framing | Yes |
| Product colour | Grey |
| Product type | Group video conferencing system |
| Video | |
|---|---|
| Video formats supported | AV1, H.263, H.264 |
| Total megapixels | 12 MP |
| Maximum video resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| Audio | |
|---|---|
| Automatic gain control | Yes |
| Echo cancellation | Yes |
| Audio formats supported | AAC-LD, G.711, G.722, G.722.1, G.729, OPUS |
| Audio beamforming | Yes |
| Audio system full duplex | Yes |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |

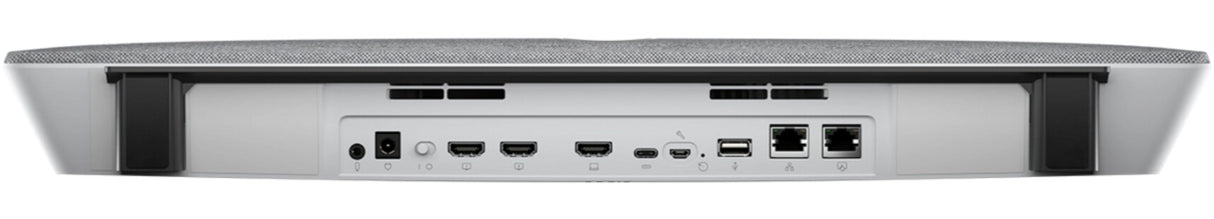

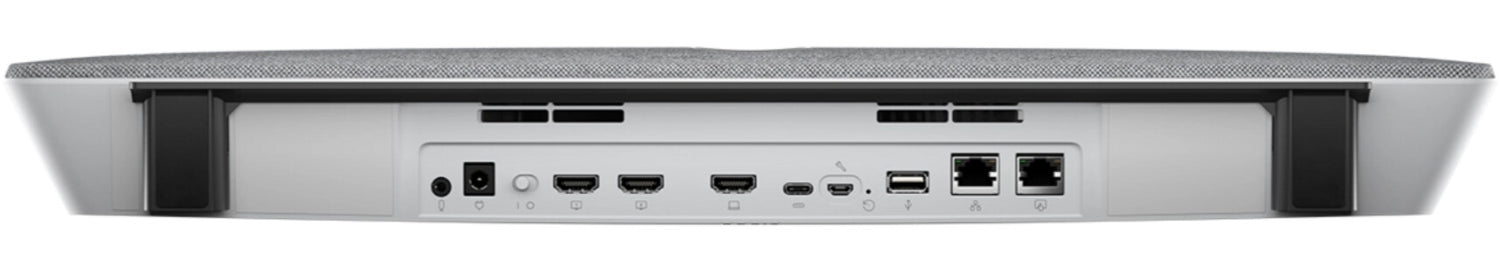

| Ports & interfaces | |
|---|---|
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB connector type | Micro-USB, USB Type-A, USB Type-C |
| HDMI output ports quantity | 2 |
| HDMI input ports quantity | 1 |
| Interface module | |
|---|---|
| Interface module Power over Ethernet (PoE) ports quantity | 1 |
| Network | |
|---|---|
| Password protection | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Camera | |
|---|---|
| Privacy type | Privacy cover |
| White balance | Auto |
| Vertical field of view | 95° |
| Image sensor size | 1/2.3" |
| Sensor type | CMOS |
| Digital zoom | 5x |
| Zoom capability | Yes |
| Camera type | Single camera |
| Megapixel (approx.) | 12 MP |
| Weight & dimensions | |
|---|---|
| Weight | 1.5 kg |
| Height | 82 mm |
| Depth | 64 mm |
| Width | 534 mm |
