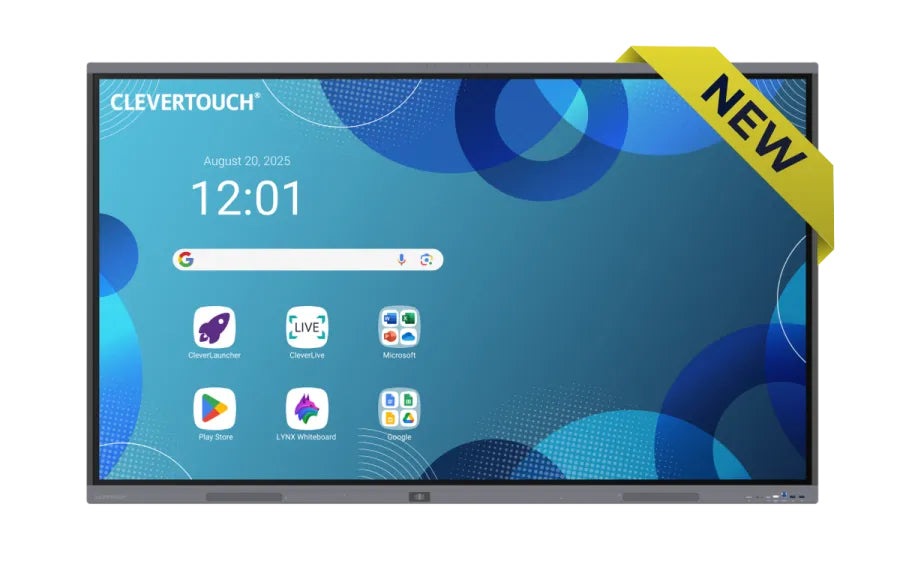

Clevertouch Pro Series 3 interactive whiteboard 190.5 cm (75") 3840 x 2160 pixels Touchscreen Black

Clevertouch  |  Varenummer: 1541351
Stregkode: 5055067331142

Beskrivelse

75", 3840x2160 60Hz 4k UHD, VA, 450cd/m2, 5500:1, 6000:1, Touchscreen, Quad Core A72 + Quad Core A53, Mali G52 MC3, 16GB Ram, 128GB Storage, Wi-Fi 6, BT 5.2, NFC, 2x 25W Speaker, 1x 20W Subwoofer, 4x HDMI, 1x DisplayPort, 1x USB 2.0 Type-A, 2x USB 3.2 Type-B, 4x USB 3.2 Type-A, 2x USB 3.0 Type-C, 2x RJ-45, 1x RS-232, 2x 3.5mm Audio, 1x SPDIF, 72.86W, 100-240V 50/60Hz 4A AC In, VESA, Android 14, 1863x225x1155mm, 46.7kg

Pro Series 3
Everything You Need For Everyday Teaching

The Pro Series 3 is an EDLA-certified touchscreen display built for seamless collaboration and superior connectivity, engineered for efficiency and sustainability. It delivers 20% greater power savings than previous models and features ultra-responsive 50-point touch precision for smooth, accurate interaction. Designed for modern workspaces and classrooms, it includes advanced digital whiteboarding, effortless wireless casting, and centralised device management software.

More features. Better performance. Less cost.

Google EDLA Certified Display
Full access to Google Play, Google Classroom, and Microsoft apps.

True 4K UHD with Anti-Glare
Crisp visuals in any lighting, classroom, or conference room.

Optimised for Collaboration
50-point touch, dual stylus support, and real-time whiteboarding.

Fanless Quiet Design
No disruption during meetings or lessons.

20% More Energy Efficient
Sustainable design with ultra-low power standby mode.

High Precision Touch Frame
Accurate and responsive touch detection

Memory Expansion Slot
SD card player for expandable storage up to 640GB

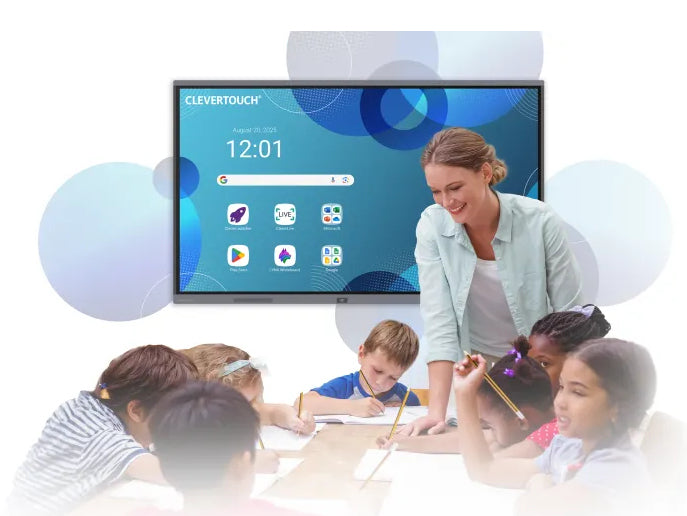

Built for classrooms, priced for schools

Transform every lesson into an engaging, interactive experience.
From dynamic whiteboarding and timers to spinners and live voting, LYNX is designed to keep students focused and involved. Teachers can record lessons with a tap for easy sharing or revision, and built-in math tools bring complex concepts to life visually. LYNX features powerful, ready-to-go tools that elevate classroom teaching from day one.

Instant Cloud Drive Access
The Pro Series 3 gives teachers instant access to lesson plans, presentations, and resources with built-in support for OneDrive and Google Drive. Whether prepping at home or teaching in the classroom, everything is right where they need it. It’s a simple, secure way to keep lessons flowing smoothly.

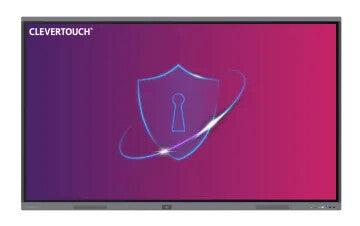

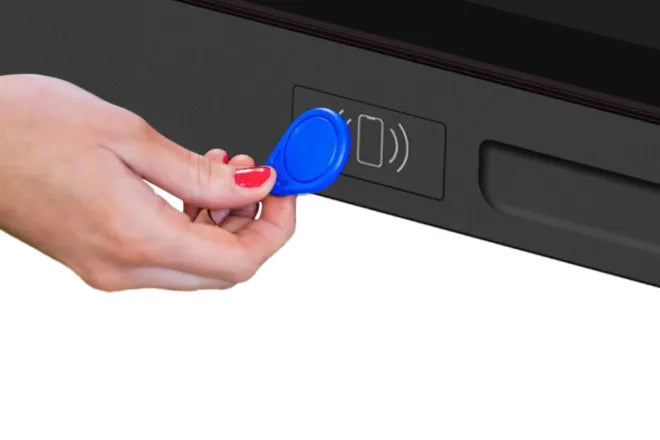

Integrated NFC Technology
Secure logins are essential in shared classroom settings, and the Pro Series 3 makes them effortless with integrated NFC card support. Teachers can simply tap their NFC card or tag to instantly access their personalised settings, apps, and cloud files. It’s an innovative, secure solution that saves time and supports smooth classroom handovers.

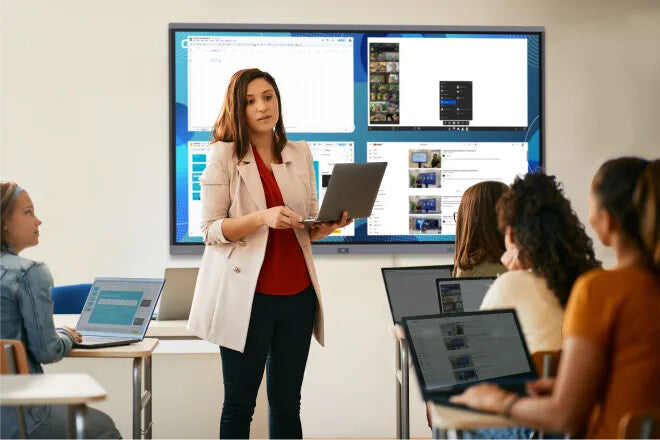

Wireless Casting for the Classroom
Clevershare transforms the way you share and present. Wirelessly connect up to 50 devices to your Clevertouch display and share content in seconds—images, videos, audio, and more. Display up to 9 screens at once to spark real collaboration and keep everyone involved.

With powerful touch-back control, presenters can navigate and annotate shared content right from the screen—no need to switch devices. It’s fast, interactive, and built to make every lesson or meeting more dynamic and engaging.

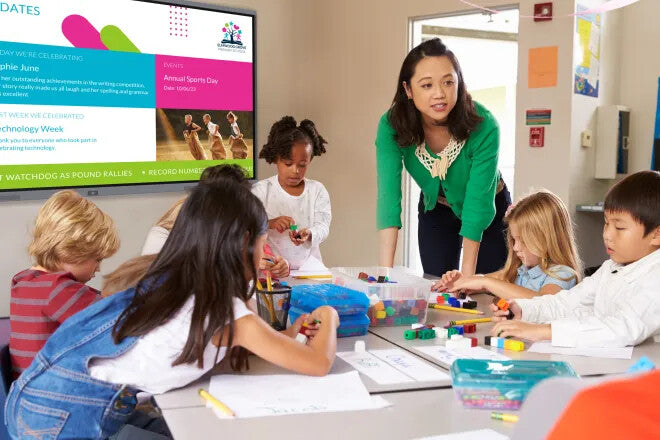

More Than a Display
The Pro Series 3 is part of the broader Clevertouch ecosystem, built to streamline the modern learning environment. It integrates seamlessly with room booking systems like MS Exchange and Outlook 365, syncing calendars and displaying real-time room availability on the screen. When not in use, the display doubles as digital signage, displaying school announcements, emergency information and timetabled full-screen messages via CleverLive

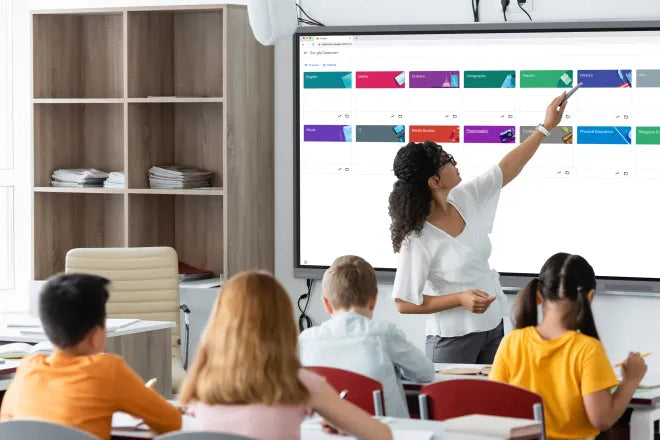

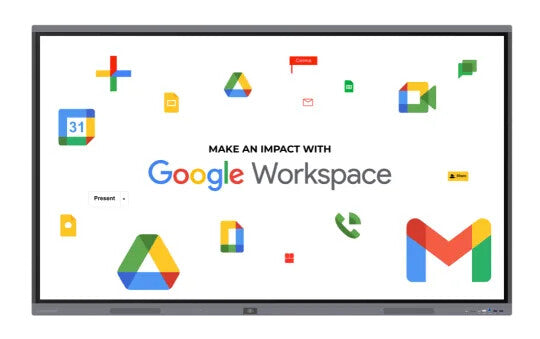

Google EDLA Certified Interactive Display
With the full Google Education Licence experience, your favourite Google apps are preloaded and available directly from your display. Seamlessly incorporate digital resources and tools into your lessons to make accessing, editing, sharing and collaborating easy.

Specifikationer

Display
Technology Infrared (IR)
Accuracy touch 1 mm
Pen & touch differentiation Yes
Hardness 7H
Surface material Tempered glass
Screen glass thickness 3.2 mm
Colour gamut 72%
Viewing angle, horizontal 178°
Viewing angle, vertical 178°
Touch object size (min) 2 mm
Touch system response time 2.5 ms
Touch resolution 32768 x 32768 pixels
Number of simultaneous touchpoints 50
Touchscreen type Infrared
Touch technology Multi-touch
Touchscreen Yes
Maximum refresh rate 60 Hz
Contrast ratio (dynamic) 6000:1
Contrast ratio (typical) 5500:1
Native aspect ratio 16:9
LED backlighting type Direct-LED
Panel type VA
LED backlight Yes
HD type 4K Ultra HD
Anti-glare screen Yes
Display resolution 3840 x 2160 pixels
Display number of colours 1.07 billion colours
Display brightness 450 cd/m²
Display diagonal 190.5 cm (75")
Computer system
Graphics card Mali-G52
Graphics card family ARM
RAM capacity 16 GB
Maximum internal memory 128 GB
Processor cores 4
Processor architecture ARM Cortex A72 + ARM Cortex A53
Built-in processor Yes
Operating system version 14
Operating system installed Android
Audio
Built-in microphone Yes
Number of microphone arrays 8
Subwoofer RMS power 20 W
Built-in subwoofer Yes
Speaker power 50 W
Number of built-in speakers 3
Built-in speaker(s) Yes
Network
Near Field Communication (NFC) Yes
Wake-on-LAN ready Yes
Ethernet LAN Yes
Bluetooth version 5.2
Bluetooth Yes
Antenna type 2x2
Wi-Fi standards Wi-Fi 6E (802.11ax)
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
Wi-Fi Yes
Ports & interfaces
RS-232 ports 1
Audio output 1
S/PDIF out port Yes
OPS slot 1
Line-out Yes
Line-in Yes
Ethernet LAN (RJ-45) ports 2
DisplayPorts quantity 1
USB Power Delivery (USB PD) Yes
USB Power Delivery up to 65 W
USB Type-C DisplayPort Alternate Mode Yes
HDMI version 2.1
HDMI output ports quantity 4
USB Type-C ports quantity 2
USB connector type USB Type-A, USB Type-B, USB Type-C
USB 2.0 ports quantity 1
Interface module USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
Ergonomics
Power cable length 3 m
Mean time between failures (MTBF) 50000 h
Wall mountable Yes
Panel mounting interface 800 x 400 mm
VESA mounting Yes
Product colour Black
Performance
Proximity sensor Yes
Power
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Power consumption (standby) 0.5 W
Power consumption (max) 72.86 W
System requirements
Linux operating systems supported Yes
Mac operating systems supported Yes
Windows operating systems supported Yes
Mac compatibility Yes
Operational conditions
Storage relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Weight 46.8 kg
Height 1155 mm
Depth 225 mm
Width 1863 mm
Packaging data
Package weight 56.5 kg
Package height 1155 mm
Package depth 225 mm
Package width 1863 mm
Packaging content
Number of stylus pens 2
Stylus included Yes
Remote control included Yes
Batteries included Yes
Quick start guide Yes
Cables included HDMI, Power, USB Type-A to USB Type-B, USB Type-C
USB cable length 3 m
Manual Yes
Sustainability
Compliance certificates CE, Federal Communications Commission (FCC), UL
