Crestron C2N-IO digital/analogue I/O module Analog Relay channel
Beskrivelse
Beskrivelse

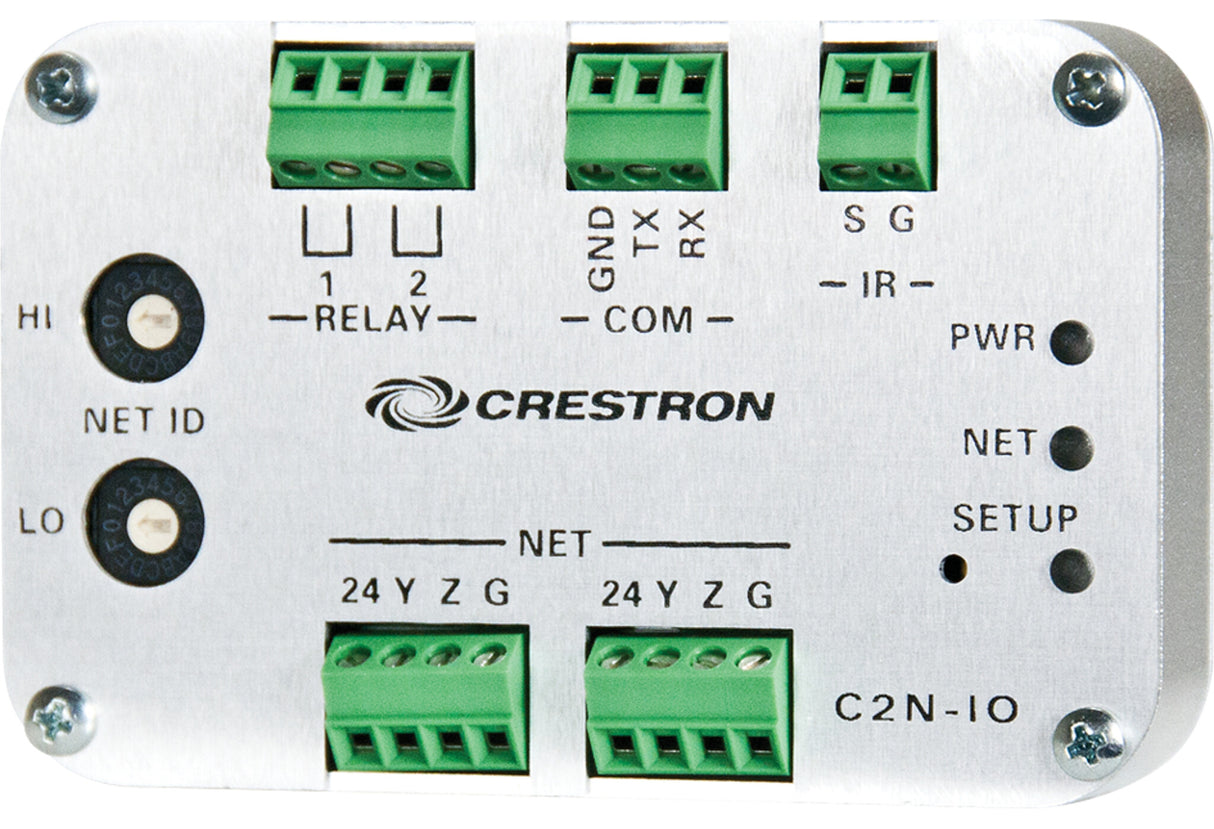

The C2N-IO is a very compact device that adds control ports to any Crestron® 2-Series or 3-Series® control system. It connects via the Cresnet® control network and provides one RS-232, one IR, and two relay control ports.[1] It can be mounted to any flat surface using two screws or adhesive reclosable fastener (3M® Dual Lock® included).
The C2N-IO is ideally designed for use with a Crestron touch screen control system ( TPCS-4SM, TPCS-4SMD, or TSCW-730), providing an advanced wall mount control package that fits in a 2-gang US or UK electrical box. The C2N-IO can be mounted inside the electrical box behind the touch screen, or it can be installed remotely requiring just one Cresnet control cable for power and communications.
Specifikationer
Specifikationer
| Features | |
|---|---|
| Module type | Analog |
| Signal direction | Input/output |
| Channel type | Relay channel |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | 10 - 90 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Width | 89 mm |
| Depth | 112 mm |
| Height | 58 mm |
| Weight | 75 g |
