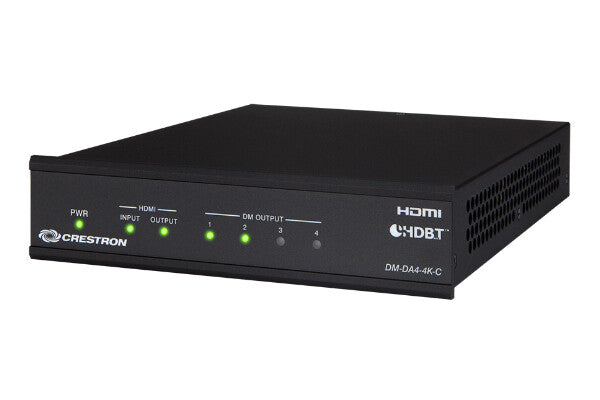

Crestron DM-DA4-4K-C video splitter

The DM-DA4-4K-C is a DigitalMedia accessory that converts and splits a single 4K60 HDMI signal to feed four separate DM 8G+ or HDBaseT receivers. A single HDMI output is included to pass the input through to a local display, audio processor, switcher, or another DM-DA4-4K-C. Video and audio are passed from the input to all five outputs simultaneously without any change or degradation.

PoDM+ and HDBaseT PoE+ power sourcing is enabled at all four DM ports by adding a PoDM power supply (model PW-4830DUS or DM-PSU-3X8-RPS, sold separately). This enables certain DM receivers and HDBaseT devices to receive power through the CATx cable, eliminating the need for a separate power supply at each endpoint location.

A Gigabit Ethernet port is included to provide a single-point LAN connection for all connected devices, including DM receivers and HDBaseT devices. Gigabit connectivity at the DM-DA4-4K-C ensures a full 100 megabit connection for each connected device.

HDCP is globally selectable on the DM-DA4-4K-C to support version 2.2, 1.4, or none. EDID functionality is configurable to either pass EDID to the input from the device connected to the first DM output port, or to use a pre-fined default EDID optimized for 1080p60. CEC signals are not passed through the DM-DA4-4K-C, although most DM receivers can support CEC through integration with a control system via Ethernet.

One or two DM-DA4-4K-C units can be rack-mounted in a single rack space using the ST-RMK rack mount kit. Installation beneath a table or counter is enabled using the UTK-1U-HALF under-table mounting kit. Both mounting kits are sold separately.
