4K60 4:4:4, 4096x2160, HDR10+, HDCP 2.3, 60 Hz, 12 bit, 100-240 V, White, 106 x 105 x 27 mm, 0.338 kg

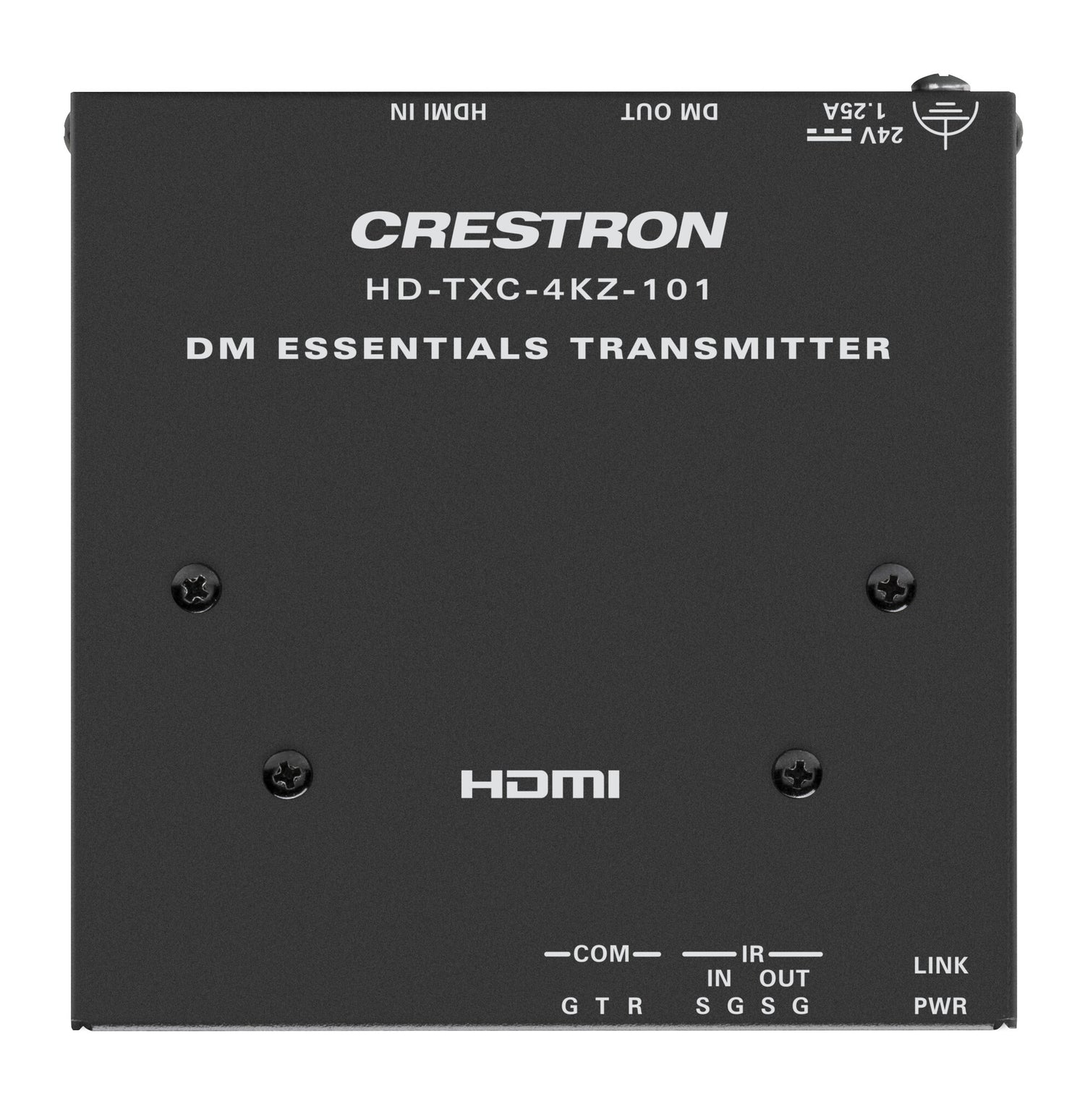

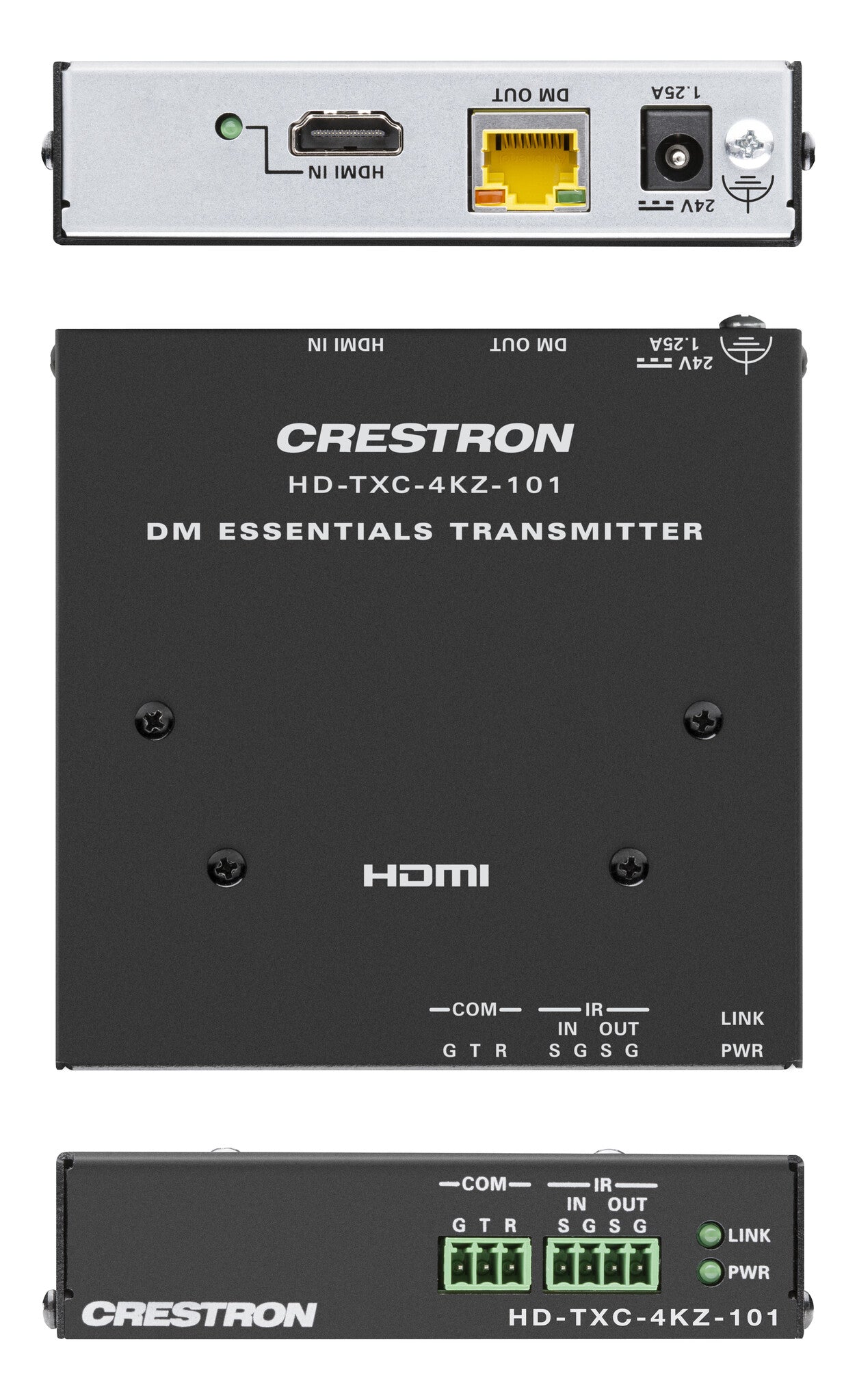

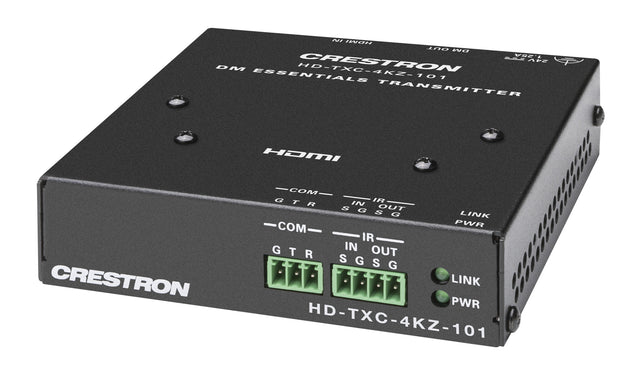

The HD‑TXC‑4KZ‑101 is a DM® Essentials 4K60 4:4:4 transmitter designed to interoperate with a DM® Essentials receiver or DMPS Essentials switcher for the transmission of HDMI®, RS-232, and IR signals. A CAT5e or higher twisted pair cable (Crestron DM‑CBL‑8G or DM‑CBL‑ULTRA sold separately) is needed to connect the HD‑TXC‑4KZ‑101 to the DM Essentials receiver or DMPS Essentials switcher. For 1080p, WUXGA, and 2K signals, a cable length of up to 230 ft (70 m) is supported. For UHD and 4K signals, a cable length of up to 130 ft (40 m) is supported.
Interoperability with a DM Essentials Receiver or DMPS Essentials Switcher

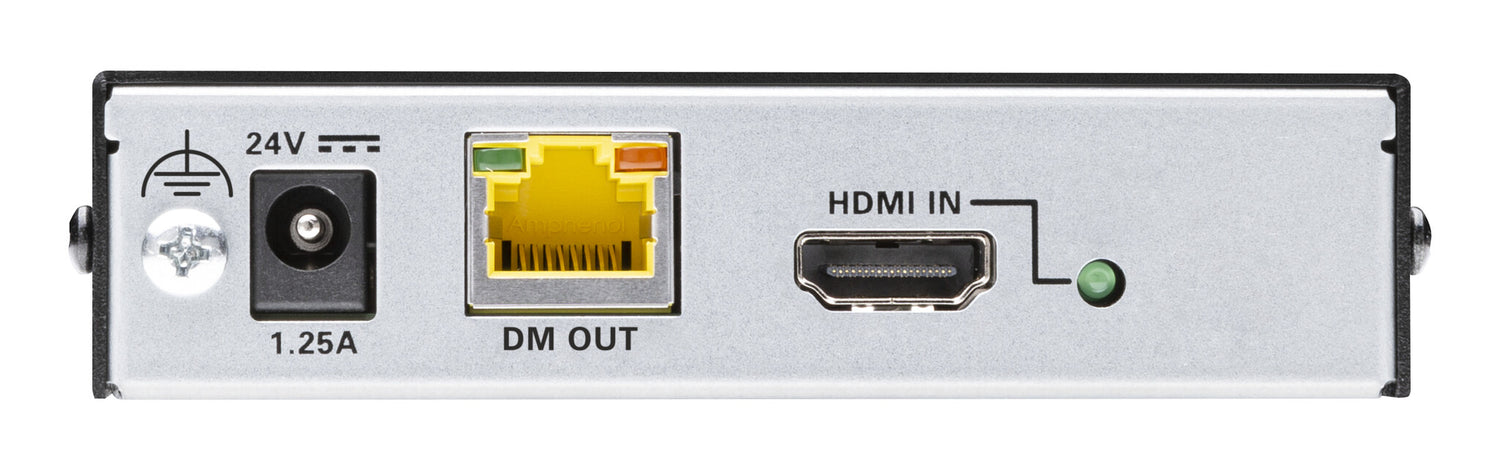

The DM Essentials output port of the HD‑TXC‑4KZ‑101 must be connected to a DM Essentials input port of a DM Essentials receiver or DMPS Essentials switcher. Examples of supported DM Essentials 4K60 4:4:4 receivers are the HD‑RXC‑4KZ‑101 and HD‑RXCA‑4KZ‑101. Supported DMPS Essentials switchers are the HD‑PS622, HD‑PS621, HD‑PS402, HD‑PS401, and HD‑RX‑4K‑210‑C‑E.
Note: When paired with an HD-RX-4K-210-C-E(-POE), the transmitter cannot provide power to the receiver. Power must be connected to the HD-RX-4K-210-C-E(-POE) only.
The HD‑TXC‑4KZ‑101 can be configured and controlled only when it is used with a DMPS Essentials switcher. The web interface of the switcher can be used to configure the HD‑TXC‑4KZ‑101. In addition, control system programming and .AV Framework™ software support of the HD‑TXC‑4KZ‑101 is hosted by the switcher.
4K60 4:4:4 and HDR Support
The HD‑TXC‑4KZ‑101 supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.
Compact, Surface‑Mountable Design
Compact in design, the HD‑TXC‑4KZ‑101 can be mounted onto a flat surface such as the underside of a table, behind a credenza, or inside a podium. It can also be attached to a single rack rail in the back of an equipment cabinet. The HD‑TXC‑4KZ‑101 can receive power from the included power pack or from the remote DM Essentials receiver or DMPS Essentials switcher.
| Features |
|---|
| Product colour |
White |
| HDCP version |
2.3 |
| Audio formats supported |
DTS, LPCM |
| Material |
Metal, Polycarbonate (PC) |
| LED indicators |
Activity, Link, Power |
| HDCP |
Yes |
| Rack mounting |
Yes |
| Supported graphics resolutions |
1920 x 1080 (HD 1080), 2560 x 1600 (WQXGA), 3840 x 2160, 4096 x 2160 |
| Colour depth |
12 bit |
| Frame rate |
60 fps |
| RS-232 pass-through |
Yes |
| HDCP pass-through |
Yes |
| IR pass-through |
Yes |
| Maximum refresh rate |
60 Hz |
| High Dynamic Range (HDR) technology |
Dolby Vision, High Dynamic Range 10 (HDR10), High Dynamic Range 10+ (HDR10 Plus) |
| High Dynamic Range (HDR) supported |
Yes |
| Maximum transfer distance |
70 m |
| Cable types supported |
Cat5e |
| Maximum resolution |
4096 x 2160 pixels |
| Type |
AV receiver |
| Ports & interfaces |
|---|
| Number of HDMI outputs |
1 |
| RJ-45 input ports |
1 |
| Ethernet LAN |
Yes |
| Connectivity technology |
Wired |
| Power |
|---|
| Current |
2.5 A |
| AC input voltage |
100 - 240 V |
| Power source type |
AC |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
20 - 90% |
| Weight & dimensions |
|---|
| Weight |
338 g |
| Height |
106 mm |
| Depth |
27 mm |
| Width |
106 mm |
| Packaging content |
|---|
| Mounting brackets included |
Yes |
| IR extender included |
Yes |
| IR emitter included |
Yes |
| Cables included |
UTP |
| Technical details |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC) |
