Crestron TTK-MP/MPC/IPAC-W touch control panel

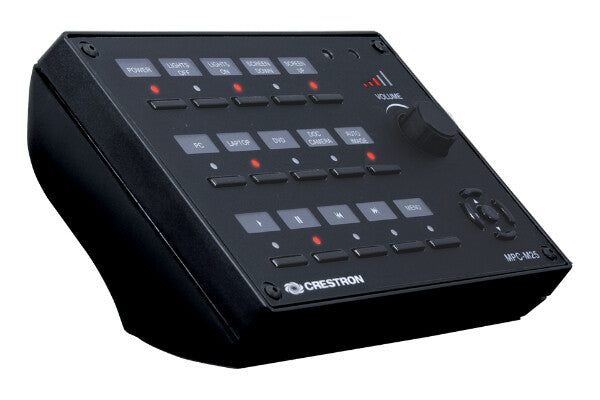

A TTK-MP/MPC/IPAC Series Tabletop Kit provides a stylish and convenient tabletop enclosure for an MPC3-302 Series 3-Series Media Presentation Controller or MP-B10/B20 Series Media Presentation Button Panel. The device's front panel is angled at 45 degrees when installed in the enclosure. The complete assembly may be placed on any flat, level surface, with the option to attach it permanently to the surface using screws.

An optional swivel mount accessory is also available separately to provide a means for permanently mounting the enclosure while retaining the ability to rotate it for optimal positioning. The swivel range can be customized using optional limit screws, with a maximum of 330-degree rotation allowed. The swivel mount may be installed on any flat table, desk, or counter top surface with a thickness of 1 inch (25 mm) minimum to 1 3/8 inch (35 mm) maximum.

Wiring may be passed out the rear of the enclosure through a grommet and strain relief, or routed through the bottom for a very clean, cordless appearance. The rear wire opening can accommodate a single cable up to 1/4 inch (6.4 mm) diameter such as Crestron Cresnet or CAT5e. The bottom opening measures 29/32 inch (23 mm) diameter, while the optional swivel mount can accommodate a bundle of wires up to 11/16 inch (17 mm) diameter.
