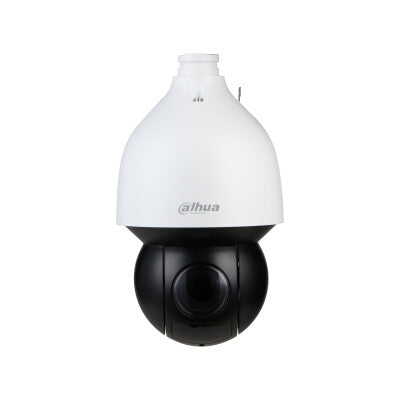

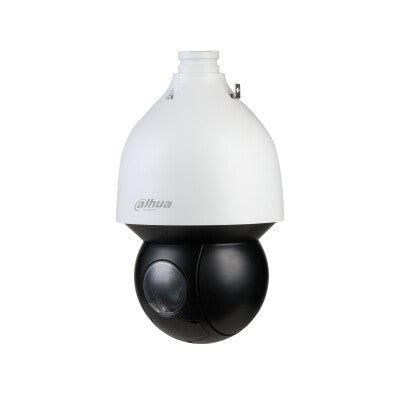

Dahua Technology DH-SD5A425GB-HNR security camera Dome IP security camera Outdoor 2560 x 1440 pixels Ceiling/wall

Dahua Europe  |  Varenummer: SD5A425GB-HNR
Stregkode: 6923172599735

Beskrivelse

4 MP, 1/2.8" CMOS, 2560 x 1440, 5 -125 mm, IR, RJ-45, Micro SD, AC 24V, PoE+, IP67, 190 x 332 mm

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

System Overview
Unique and elegant, the black semicircular sphere discreetly monitorsfrom a distance without drawing undue attention to itself. It has a powerful optical zoom, and accurate pan, tilt and zoom capabilities, providing an all in-one solution for long distance video surveillance of outdoor scenes. Together with infrared illumination and Starlight Technology, the camera is a great solution for dark, low light conditions. The series combines a day and night mechanical IR cut filter to produce high quality images in variable lighting conditions during the day, and True WDR for locations with direct sunlight and glare.

Starlight Technology
With advanced image processing technology and optical technology, Dahua Starlight technology can provide clear colorful video in the environment of low illuminance. It widely applies to various environments of low illuminance.

Perimeter Protection
Automatically filters out false alarms caused by animals, rustling leaves, bright lights, and more, and uses secondary recognition during target detection to improve alarm accuracy.

PFA Technology
PFA technology has introduced new methods of judgment that ensure the accuracy and predictability of the direction of subject distance adjustment. The result is a set of advanced focusing algorithms that ensure image clarity when zooming and that shorten focus time. This makes the camera highly advanced in its functions, substantially improving the quality of your experienceю

Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage
and transmission.

Face Detection
Supports 6 attributes and 8 expressions: Gender, age, glasses, face mask, beard and expressions (anger, sadness, disgust, fear, surprise, calm, happiness, and confusion). It also supports face cutout settings: Face, and single inch photo. Three snapshot methods are also featured: Real-time snapshot, priority snapshot, and quality priority.

Auto-tracking
This feature controls the pan/tilt/zoom actions of the camera to automatically track an object in motion and to keep it in the scene. The tracking action can be triggered manually or automatically by defined rules. Once a rule is triggered, the camera can zoom in and track the defined target automatically.

Protection (IP67, TVS 6000 V)
IP67, TVS 6000 V lightning proof, surge protection, and voltage transient protection.

SMD 4.0
Dahua Smart Motion Detection technology works with intelligent algorithms to classify targets that trigger motion detection alarms. It filters out objects that are not targets, such as small and large animals, to avoid triggering false alarms. With an AI NVR, Quick Pick technology becomes available, allowing you to easily search for and pick out human and vehicle targets from SMD event videos, prioritizing the highest matches.

Specifikationer

Performance
Certification CE: EN55032/EN55024/EN50130-4FCC: 15 B,ANSI C63.4- 2014
Alarm input/output Yes
Day/night mode Yes
Wide Dynamic Range (WDR) Yes
PTZ modes 8 Tour, Preset point
PTZ control Yes
Connectivity technology Wired
Placement supported Outdoor
Type IP security camera
Design
IK code IK10
International Protection (IP) code IP67
Housing material Metal
Product colour White
Mounting type Ceiling/wall
Form factor Dome
Camera
White balance Auto, Indoor, Manual, Natural, Outdoor, Sodium lamp
Pan preset speed 400 °/sec
Pan speed 300 °/sec
Pan range 0 - 360°
Tilt speed 200 °/sec
Tilt angle range -15 - 90°
Lens viewing angle, diagonal 63.3°
Lens viewing angle, vertical 33.7°
Lens viewing angle, horizontal 59.8°
Minimum illumination 0 lx
Camera tilt control Yes
Camera pan control Yes
Image sensor
Progressive scan Yes
Optical sensor size 25.4 / 1.8 mm (1 / 1.8")
Number of sensors 1
Sensor type CMOS
Lens system
Closest focusing distance 0.1 m
Identify distance 172 m
Maximum aperture number 4
Minimum aperture number 1.6
Focus Motorized/Manual
Focal length range 5.8 - 145 mm
Recognize distance 344 m
Observe distance 689 m
Detect distance 1724 m
Digital zoom 16x
Optical zoom 25x
Zoom capability Yes
Number of lenses 1
Night vision
Number of illumination LEDs 4
LED type IR
Night vision distance 150 m
Night vision Yes
Video
Back Light Compensation (BLC) Yes
Privacy masking Yes
Highlight Compensation (HLC) Yes
Image stabilizer Yes
Bit rate control Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate 32- 8192Kbps
Gain control type Auto/Manual
Noise reduction technology 3D noise reduction
Noise reduction Yes
Video streaming Yes
Frame rate 30 fps
Supported graphics resolutions 352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2560 x 1440
Video compression formats H.264, H.264+, H.265, H.265+, M-JPEG
Total megapixels 4 MP
Maximum resolution 2560 x 1440 pixels
Audio
Voice codecs G.711Mu, G.711a, G.722.1, G.723, G.726, G.729
Audio formats supported AAC, PCM
Network
Streaming method Multicast, Unicast
Quality of Service (QoS) support Yes
Number of users 20 user(s)
Supported network protocols IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3(MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP
Networking standards IEEE 802.1x
Ethernet interface type Fast Ethernet
Bluetooth No
Wi-Fi No
Ethernet LAN Yes
Storage
ROM capacity 4000 MB
Internal memory 1024 MB
Maximum memory card size 256 GB
Compatible memory cards MicroSD (TransFlash)
Card reader integrated Yes
Built-in HDD No
Ports & interfaces
Headphone outputs 1
Microphone in Yes
Ethernet LAN (RJ-45) ports 1
Security
Video motion detection Yes
Intelligent Video Surveillance (IVS) system features Abandoned object, Intrusion, Missing object, Scene change, Tripwire
Management features
Web browser Yes
Web-based management Yes
Power
Power consumption (max) 20 W
AC input voltage 24 V
Power source type AC, PoE
Operational conditions
Operating relative humidity (H-H) 0 - 95%
Operating temperature (T-T) -40 - 70 °C
Weight & dimensions
Weight 4.7 kg
Diameter 19 cm
Height 332 mm
Packaging data
Package weight 8 kg
Packaging content
Number of cameras 1
