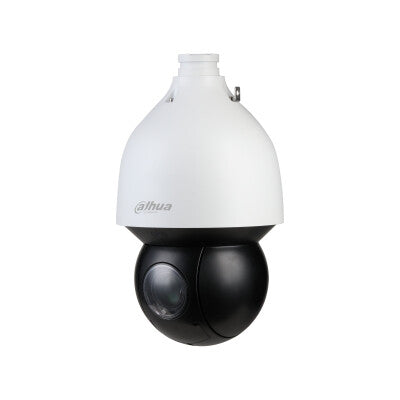

Dahua Technology WizSense DH-SD5A225GB-HNR security camera Turret CCTV security camera Indoor & outdoor 1920 x 1080 pixels Ceiling
Beskrivelse
Beskrivelse
Featuring powerful optical zoom and accurate pan/tilt/zoom performance, this camera provides an all-in-one solution for capturing long distance video surveillance for outdoor applications. Together with infrared illumination and Starlight Technology, the camera is the perfect solution for dark, lowlight applications. The series combines a day/night mechanical IR cut filter for the highest image quality in variable lighting conditions during the day.
Perimeter Protection
Automatically filters out false alarms caused by animals, rustling leaves, bright lights, and more, and uses secondary recognition during target detection to improve alarm accuracy.
Auto-tracking
This feature controls the pan, tilt and zoom actions of the camera to automatically track an object in motion, to keep it in view of the camera. Tracking can be triggered manually or automatically by defined rules. Once a rule is triggered, the camera can zoom in and track the defined target automatically.
Face Detection
Supports 6 attributes and 8 expressions: Gender, age, glasses, mask, beard and expressions (anger, sadness, disgust, fear, surprise, calm, happiness, and confusion). It also supports face cutout settings: Face, and single inch photo. Three snapshot methods are also featured: Real-time snapshot, priority snapshot, and quality priority
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
Starlight Technology
For challenging low-light conditions, Dahua's Starlight Ultra-low Light Technology offers the best in light sensitivity, capturing color in vivid detail, even in lighting as low as 0.005 lux. The camera uses a set of optical features to balance light throughout the scene, producing clear images in dark environments.
SMD 4.0
Dahua Smart Motion Detection technology works with intelligent algorithms to classify targets that trigger motion detection alarms. It filters out objects that are not targets, such as small and large animals, to avoid triggering false alarms. With an AI NVR, Quick Pick technology becomes available, allowing you to easily search for and pick out human and vehicle targets from SMD event videos, prioritizing the highest matches.
Specifikationer
Specifikationer
| Performance | |
|---|---|
| Certification | CE: EN55032/EN55024/EN50130-4FCC: Part15 subpartB, ANSI C63.4-2014UL: UL60950-1+CAN/CSA C22.2, No.60950-1 |
| Alarm input/output | Yes |
| Day/night mode | Yes |
| Auto-tracking | Yes |
| PTZ modes | 5 Pattern |
| PTZ control | Yes |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Type | CCTV security camera |
| Design | |
|---|---|
| Display diagonal | 2.54 cm (1") |
| IK code | IK10 |
| International Protection (IP) code | IP67 |
| Product colour | Black, White |
| Mounting type | Ceiling |
| Form factor | Turret |
| Camera | |
|---|---|
| White balance | Auto, Indoor, Manual, Natural, Outdoor, Sodium lamp, Street lamp |
| Pan preset speed | 400 °/sec |
| Pan manual speed | 0.1 - 300 °/sec |
| Pan range | 0 - 360° |
| Tilt preset speed | 300 °/sec |
| Tilt manual speed | 0.1 - 200 °/sec |
| Tilt angle range | 15 - 90° |
| Lens viewing angle, diagonal | 67.5–3.2 |
| Lens viewing angle, vertical | 33.2-1.5° |
| Lens viewing angle, horizontal | 58.5–2.8 |
| Minimum illumination | 0.0005 lx |
| Image sensor | |
|---|---|
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Sensor type | CMOS |
| Lens system | |
|---|---|
| Closest focusing distance | 0.1 m |
| Identify distance | 161 m |
| Maximum aperture number | 3.5 |
| Minimum aperture number | 1.6 |
| Focus | Manual |
| Auto focus | Yes |
| Focal length range | 4.8–120 |
| Recognize distance | 323 m |
| Observe distance | 646 m |
| Detect distance | 1614 m |
| Digital zoom | 16x |
| Optical zoom | 25x |
| Zoom capability | Yes |
| Number of lenses | 1 |
| Night vision | |
|---|---|
| Number of illumination LEDs | 4 |
| LED type | IR |
| Night vision | Yes |
| Video | |
|---|---|
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Noise reduction | Yes |
| Frame rate | 30 fps |
| Supported graphics resolutions | 352 x 288, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080) |
| Video compression formats | H.264, H.264+, H.264B, H.264H, H.265, H.265+ |
| Total megapixels | 2 MP |
| Maximum resolution | 1920 x 1080 pixels |
| Audio | |
|---|---|
| Audio formats supported | G.711, G.722.1, G.723, G.726, G.729, PCM |
| Audio input channels | 1.0 channels |
| Audio system full duplex | Yes |
| Network | |
|---|---|
| Supported network protocols | HTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; QoS; FTP; UPnP; ICMP; SNMP; SNMP v1/v2c/v3 (MIB-2); IGMP; ARP; RTCP; RTP; PPPoE; RTMP; TCP |
| Bluetooth | No |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Storage | |
|---|---|
| ROM capacity | 4000 MB |
| Internal memory | 1000 MB |
| Maximum memory card size | 512 GB |
| Compatible memory cards | MicroSD (TransFlash) |
| Built-in HDD | No |
| Ports & interfaces | |
|---|---|
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
|---|---|
| Alarm output channels | 1 |
| Alarm input channels | 2 |
| Management features | |
|---|---|
| Web browser | Yes |
| Web-based management | Yes |
| Power | |
|---|---|
| DC output current | 2.5 A |
| DC output voltage | 24 |
| Power consumption (max) | 22 W |
| Power consumption (typical) | 13 W |
| Power source type | DC, PoE |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -40 - 70 °C |
| Weight & dimensions | |
|---|---|
| Weight | 4.7 kg |
| Diameter | 19 cm |
| Height | 332 mm |
| General | |
|---|---|
| Product family | WizSense |
| Packaging data | |
|---|---|
| Package weight | 8 kg |
| Packaging content | |
|---|---|
| Number of cameras | 1 |
