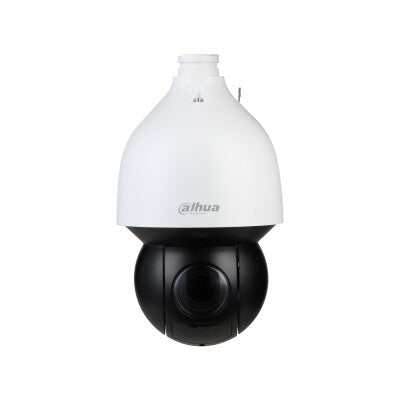

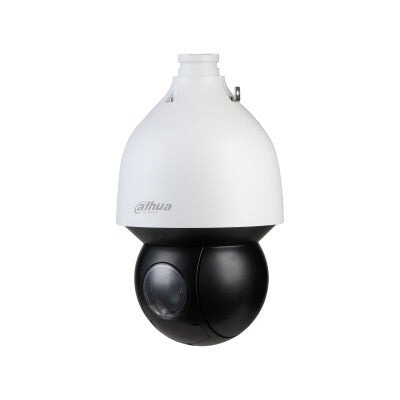

Dahua Technology WizSense DH-SD5A432GB-HNR security camera Turret IP security camera Indoor & outdoor 2560 x 1440 pixels Ceiling

Dahua Europe  |  Varenummer: SD5A432GB-HNR
Stregkode: 6923172540867

Beskrivelse

4MP 1/2.8" CMOS, 32x, Face Detection, 2560×1440 px, IP67, 332 x Φ190 mm, 4.7 kg

Featuring powerful optical zoom and accurate pan/tilt/zoom performance, this camera provides an all-in-one solution for capturing long distance video surveillance for outdoor applications. Together with infrared illumination and Starlight Technology, the camera is the perfect solution for dark, lowlight applications. The series combines a day/night mechanical IR cut filter for the highest image quality in variable lighting conditions during the day

Perimeter Protection
Automatically filters out false alarms caused by animals, rustling leaves, bright lights, and more, and uses secondary recognition during target detection to improve alarm accuracy.

Auto-tracking
This feature controls the pan, tilt and zoom actions of the camera to automatically track an object in motion, to keep it in view of the camera. Tracking can be triggered manually or automatically by defined rules. Once a rule is triggered, the camera can zoom in and track the defined target automatically.

Face Detection
Supports 6 attributes and 8 expressions: Gender, age, glasses, mask, beard and expressions (anger, sadness, disgust, fear, surprise, calm, happiness, and confusion). It also supports face cutout settings: Face, and single inch photo. Three snapshot methods are also featured: Real-time snapshot, priority snapshot, and quality priority.

SMD 4.0
Dahua Smart Motion Detection technology works with intelligent algorithms to classify targets that trigger motion detection alarms. It filters out objects that are not targets, such as small and large animals, to avoid triggering false alarms. With an AI NVR, Quick Pick technology becomes available, allowing you to easily search for and pick out human and vehicle targets from SMD event videos, prioritizing the highest matches.

Starlight Technology
For challenging low-light conditions, Dahua's Starlight Ultra-low Light Technology offers the best in light sensitivity, capturing color in vivid detail, even in lighting as low as 0.005 lux. The camera uses a set of optical features to balance light throughout the scene, producing clear images in dark environments.

Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

Specifikationer

Performance
Certification CE: EN55032/EN55024/EN50130-4FCC: Part15 subpartB, ANSI C63.4-2014UL: UL60950-1+CAN/CSA C22.2, No.60950-1
Auto-tracking Yes
PTZ modes 5 Pattern
PTZ control Yes
Connectivity technology Wired
Placement supported Indoor & outdoor
Type IP security camera
Design
Display diagonal 2.54 cm (1")
IK code IK10
International Protection (IP) code IP67
Product colour Black, White
Mounting type Ceiling
Form factor Turret
Camera
White balance Auto, Indoor, Manual, Natural, Outdoor, Sodium lamp, Street lamp
Pan preset speed 400 °/sec
Pan manual speed 0.1 - 300 °/sec
Pan range 0 - 360°
Tilt preset speed 300 °/sec
Tilt manual speed 0.1 - 200 °/sec
Tilt angle range 15 - 90°
Lens viewing angle, diagonal 67.5–3.2
Lens viewing angle, vertical 31.9–1.3
Lens viewing angle, horizontal 58.5–2.8
Minimum illumination 0.0005 lx
Image sensor
Optical sensor size 25.4 / 2.8 mm (1 / 2.8")
Sensor type CMOS
Lens system
Closest focusing distance 0.8 m
Identify distance 212 m
Maximum aperture number 4
Minimum aperture number 1.6
Focus Manual
Auto focus Yes
Focal length range 4.8–154
Recognize distance 425 m
Observe distance 839 m
Detect distance 2124 m
Digital zoom 16x
Optical zoom 32x
Zoom capability Yes
Number of lenses 1
Night vision
Number of illumination LEDs 4
LED type IR
Night vision distance 150 m
Night vision Yes
Video
Back Light Compensation (BLC) Yes
Digital Wide Dynamic Range (DWDR) Yes
Noise reduction technology 2D noise reduction, 3D noise reduction
Noise reduction Yes
Supported graphics resolutions 352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2560 x 1440
Video compression formats H.264, H.264+, H.264B, H.264H, H.265, H.265+
Total megapixels 4 MP
Maximum resolution 2560 x 1440 pixels
Audio
Audio formats supported G.711, G.722.1, G.723, G.726, G.729
Network
Supported network protocols HTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; QoS; FTP; UPnP; ICMP; SNMP; SNMP v1/v2c/v3 (MIB-2); IGMP; ARP; RTCP; RTP; PPPoE; RTMP; TCP
Bluetooth No
Wi-Fi No
Ethernet LAN Yes
Storage
ROM capacity 4000 MB
Internal memory 1000 MB
Maximum memory card size 512 GB
Compatible memory cards MicroSD (TransFlash)
Built-in HDD No
Ports & interfaces
Headphone outputs 1
Ethernet LAN (RJ-45) ports 1
Management features
Web browser Yes
Web-based management Yes
Power
DC output current 2.5 A
DC output voltage 24
Power consumption (max) 22 W
Power consumption (typical) 13 W
Power source type DC, PoE
Operational conditions
Operating relative humidity (H-H) 0 - 95%
Operating temperature (T-T) -40 - 70 °C
Weight & dimensions
Weight 4.7 kg
Diameter 19 cm
Height 332 mm
General
Product family WizSense
Packaging data
Package weight 8 kg
Packaging content
Number of cameras 1

Download

PDF download:
