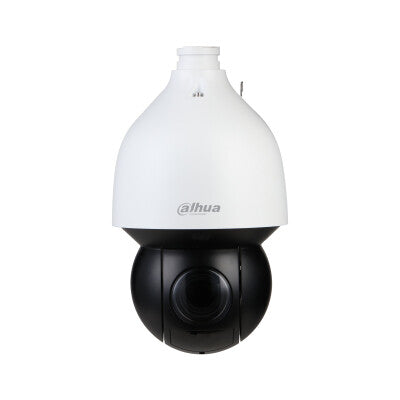

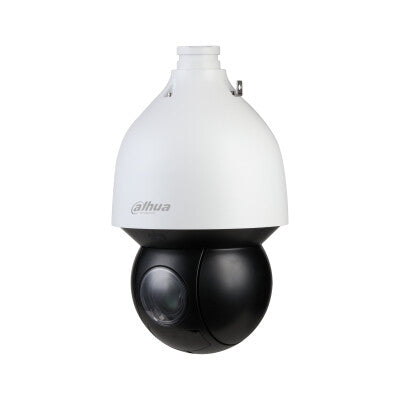

Dahua Technology WizSense DH-SD5A445GB-HNR security camera Dome IP security camera Outdoor 2560 x 1440 pixels Ceiling/wall
Dahua Europe | Varenummer:
SD5A445GB-HNR
Beskrivelse
Beskrivelse
4MP 45x Starlight IR Network PTZ Camera, 1/2.8" CMOS, 3.95 mm - 177.75 mm, RJ-45, 24 VDC/PoE+, IP67
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
Specifikationer
Specifikationer
| Performance | |
|---|---|
| Certification | CE: EN55032/EN55024/EN50130-4FCC: Part15 subpartB,ANSI C63.4- 2014UL: UL60950-1+CAN/CSA 22.2,No.60950-1 |
| Alarm input/output | Yes |
| Day/night mode | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Preset points | Yes |
| Tour recording | Yes |
| Auto-tracking | Yes |
| PTZ protocols | Pelco-P/D, DH-SD |
| PTZ control | Yes |
| Connectivity technology | Wired |
| Placement supported | Outdoor |
| Type | IP security camera |
| Design | |
|---|---|
| Fog proof | Yes |
| IK code | IK10 |
| International Protection (IP) code | IP67 |
| Product colour | White |
| Mounting type | Ceiling/wall |
| Form factor | Dome |
| Camera | |
|---|---|
| Camera shutter speed | 1/1 - 1/30000 s |
| Camera shutter type | Electronic |
| White balance | ATW, Auto, Indoor, Manual, Natural, Outdoor, Sodium lamp, Street lamp |
| Auto flip | Yes |
| Pan preset speed | 400 °/sec |
| Pan manual speed | 0.1 - 300 °/sec |
| Pan range | 0 - 360° |
| Tilt preset speed | 300 °/sec |
| Tilt manual speed | 0.1 - 120 °/sec |
| Tilt angle range | -15 - 90° |
| Lens viewing angle, diagonal | 2.1 - 73.1° |
| Lens viewing angle, vertical | 1.1 - 39.4° |
| Lens viewing angle, horizontal | 1.9 - 65.7° |
| Angle of rotation | 360° |
| Minimum illumination | 0.0005 lx |
| Image sensor | |
|---|---|
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Sensor type | CMOS |
| Lens system | |
|---|---|
| Closest focusing distance | 0.1 m |
| Identify distance | 245.2 m |
| Maximum aperture number | 4.95 |
| Focal length range | 3.95 - 177.75 mm |
| Recognize distance | 490.3 m |
| Observe distance | 972.9 m |
| Detect distance | 2451.7 m |
| Digital zoom | 16x |
| Optical zoom | 45x |
| Zoom capability | Yes |
| Number of lenses | 1 |
| Night vision | |
|---|---|
| Number of illumination LEDs | 4 |
| LED type | IR |
| Night vision distance | 150 m |
| Night vision | Yes |
| Video | |
|---|---|
| Back Light Compensation (BLC) | Yes |
| Privacy masking | Yes |
| Highlight Compensation (HLC) | Yes |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
| Image stabilizer | Yes |
| Bit rate control | Constant Bit Rate (CBR), Variable Bit Rate (VBR) |
| Bit rate | H.264: 96 kbps–14848 kbps; H.265: 38 kbps–8960 kbps |
| Gain control type | Auto/Manual |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Noise reduction | Yes |
| Video streaming | Yes |
| Supported graphics resolutions | 352 x 288, 640 x 480 (VGA), 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2304 x 1296, 2560 x 1440 |
| Video compression formats | H.264, H.264+, H.264B, H.265, H.265+, M-JPEG |
| Total megapixels | 4 MP |
| Maximum resolution | 2560 x 1440 pixels |
| Audio | |
|---|---|
| Voice codecs | G.711Mu, G.711a, G.722.1, G.723, G.726, G.729, PCM |
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Audio output channels | 1.0 channels |
| Audio input channels | 1.0 channels |
| Network | |
|---|---|
| Streaming method | Multicast, Unicast |
| Quality of Service (QoS) support | Yes |
| Number of users | 20 user(s) |
| Supported network protocols | FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP |
| Networking standards | IEEE 802.3at |
| Bluetooth | No |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Storage | |
|---|---|
| ROM capacity | 4000 MB |
| Internal memory | 1000 MB |
| Maximum memory card size | 512 GB |
| Compatible memory cards | MicroSD (TransFlash) |
| Built-in HDD | No |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
|---|---|
| Video motion detection | Yes |
| Active tampering alarm | Yes |
| Intelligent Video Surveillance (IVS) system features | Abandoned object, Face detection, Intrusion, Missing object, Tripwire, Vehicle detection |
| Alarm output channels | 1 |
| Alarm input channels | 2 |
| Management features | |
|---|---|
| Web-based management | Yes |
| Power | |
|---|---|
| DC output voltage | 24 |
| Power consumption (max) | 22 W |
| Power consumption (typical) | 10 W |
| Power source type | DC, PoE |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -40 - 70 °C |
| System requirements | |
|---|---|
| Mobile operating systems supported | Android, iOS |
| Weight & dimensions | |
|---|---|
| Weight | 4.7 kg |
| Diameter | 19 cm |
| Height | 332 mm |
| General | |
|---|---|
| Product family | WizSense |
| Packaging data | |
|---|---|
| Package weight | 8 kg |
| Packaging content | |
|---|---|
| Number of cameras | 1 |
