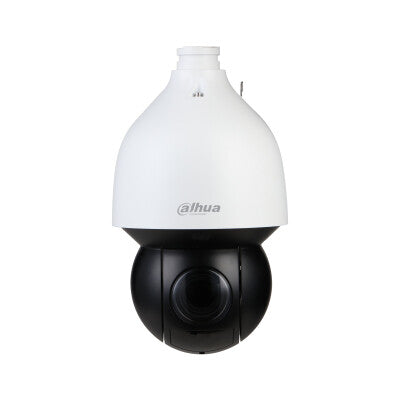

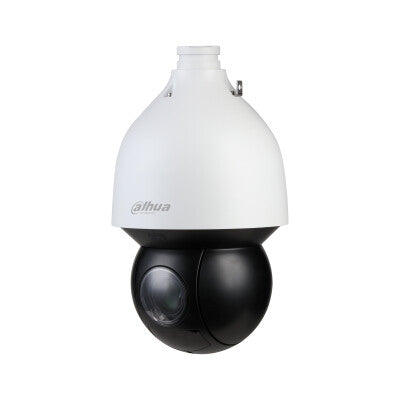

Dahua Technology WizSense SD5A232GB-HNR security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/Wall/Pole
Dahua Europe | Varenummer:
SD5A232GB-HNR
Beskrivelse
Beskrivelse
2MP, 1/2.8" CMOS, 32x, IP67, IK10, 30fps, 4.7 kg
2MP 32x Starlight IR Network PTZ Camera
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast
act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
Specifikationer
Specifikationer
| Performance | |
|---|---|
| Certification | CE: EN55032/EN55024/EN50130-4FCC: Part15 subpartB, ANSI C63.4-2014UL: UL60950-1+CAN/CSA C22.2, No.60950-1 |
| Alarm input/output | Yes |
| Day/night mode | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Type | IP security camera |
| Design | |
|---|---|
| Fog proof | Yes |
| IK code | IK10 |
| International Protection (IP) code | IP67 |
| Product colour | Black, White |
| Mounting type | Ceiling/Wall/Pole |
| Form factor | Dome |
| Camera | |
|---|---|
| Number of Privacy masking areas | 24 |
| Camera shutter speed | 1/1 - 1/30,000 s |
| Camera shutter type | Electronic |
| White balance | ATW, Auto, Indoor, Manual, Natural, Outdoor, Sodium lamp, Street lamp |
| Pan manual speed | 0.1 - 300 °/sec |
| Pan speed | 400 °/sec |
| Pan range | 0 - 360° |
| Tilt manual speed | 0.1 - 200 °/sec |
| Tilt speed | 300 °/sec |
| Tilt angle range | -15 - 90° |
| Lens viewing angle, diagonal | 66.4° |
| Lens viewing angle, vertical | 33.4° |
| Lens viewing angle, horizontal | 58.4° |
| Minimum illumination | 0.0005 lx |
| Image sensor | |
|---|---|
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Sensor type | CMOS |
| Lens system | |
|---|---|
| Closest focusing distance | 0.1 m |
| Maximum aperture number | 1.5 |
| Minimum aperture number | 4 |
| Focus | Motorized/Manual |
| Auto focus | Yes |
| Focal length range | 4.5 - 144 mm |
| Digital zoom | 16x |
| Optical zoom | 32x |
| Night vision | |
|---|---|
| LED type | IR |
| Night vision | Yes |
| Video | |
|---|---|
| Back Light Compensation (BLC) | Yes |
| Privacy masking | Yes |
| Highlight Compensation (HLC) | Yes |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
| Bit rate control | Constant Bit Rate (CBR), Variable Bit Rate (VBR) |
| Bit rate | 64 kbps–10496 kbps |
| Gain control type | Auto/Manual |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Noise reduction | Yes |
| Video streaming | Yes |
| Frame rate | 30 fps |
| Supported graphics resolutions | 352 x 288, 640 x 480 (VGA), 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080) |
| Video compression formats | H.264, H.264+, H.264B, H.264H, H.265, H.265+, M-JPEG |
| Total megapixels | 2 MP |
| Maximum resolution | 1920 x 1080 pixels |
| Audio | |
|---|---|
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Network | |
|---|---|
| Streaming method | Multicast, Unicast |
| Number of users | 20 user(s) |
| Supported network protocols | FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Storage | |
|---|---|
| ROM capacity | 4096 MB |
| Internal memory | 1024 MB |
| Maximum memory card size | 512 GB |
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
|---|---|
| Motion sensor | Yes |
| Management features | |
|---|---|
| Web browser | Yes |
| Web-based management | Yes |
| Power | |
|---|---|
| DC output voltage | 24 |
| Power consumption (max) | 22 W |
| Power consumption (typical) | 10 W |
| Power source type | DC, PoE |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 - 70 °C |
| Weight & dimensions | |
|---|---|
| Weight | 4.7 kg |
| Diameter | 19 cm |
| Height | 332 mm |
| General | |
|---|---|
| Product family | WizSense |
| Packaging data | |
|---|---|
| Package weight | 8 kg |
| Packaging content | |
|---|---|
| Number of cameras | 1 |
