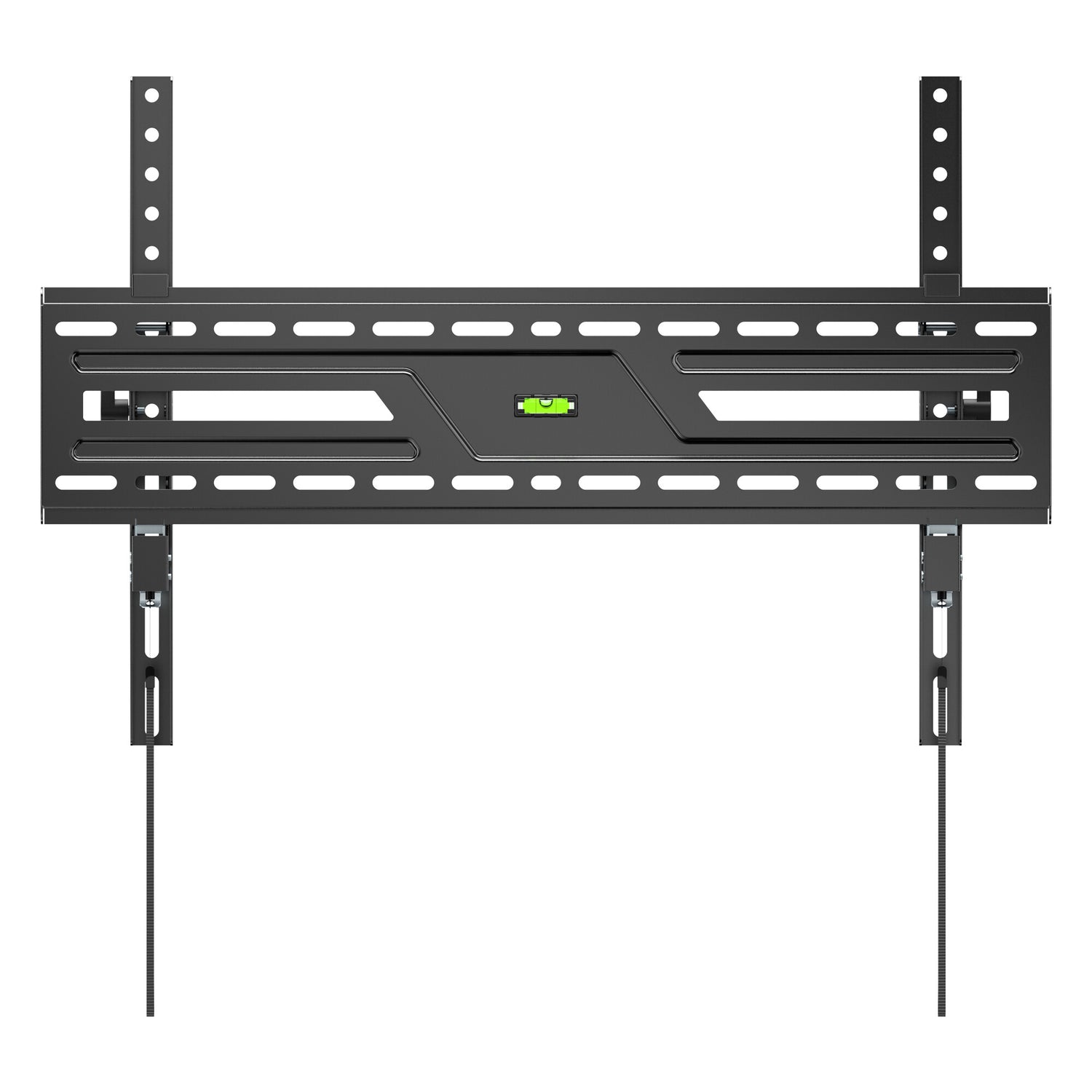

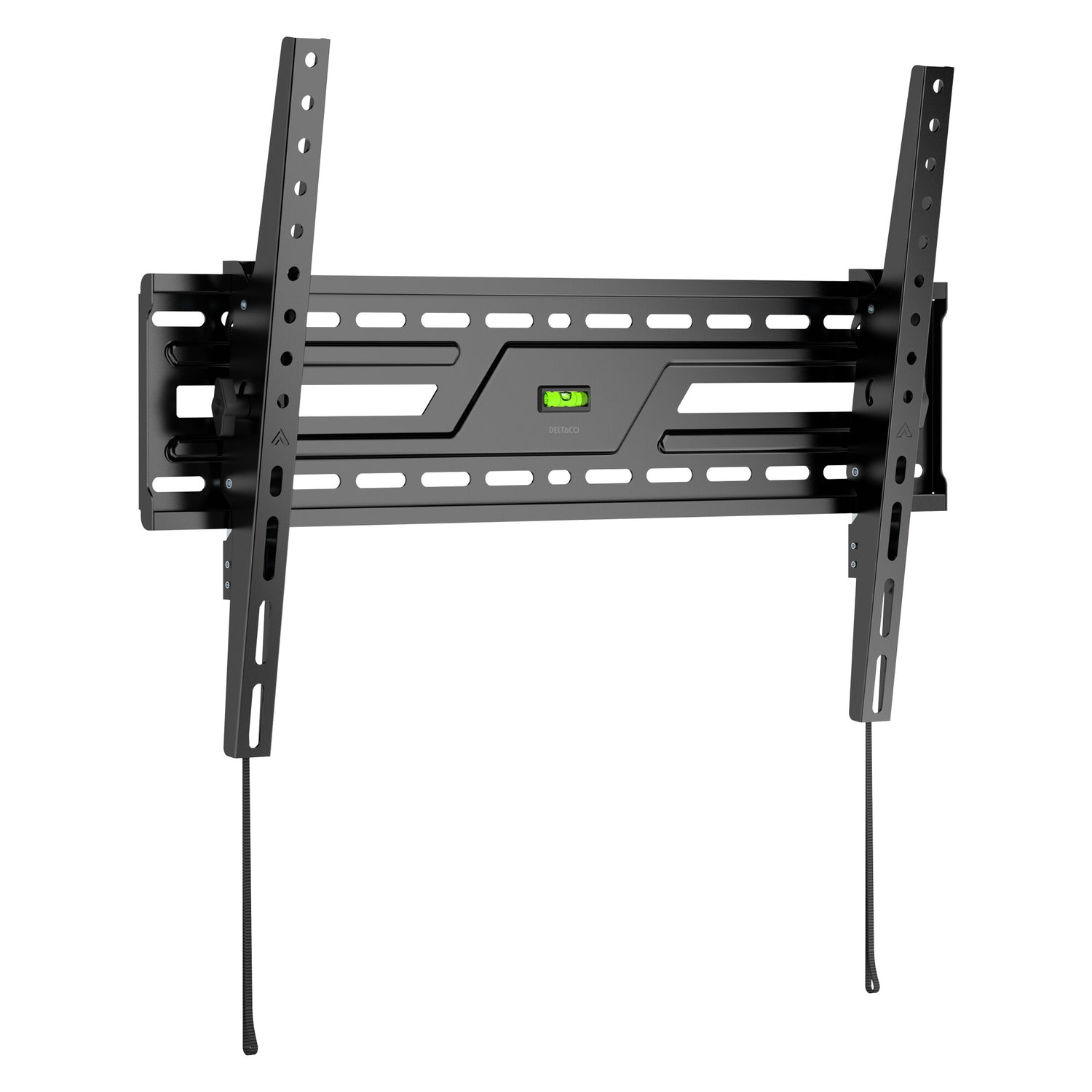

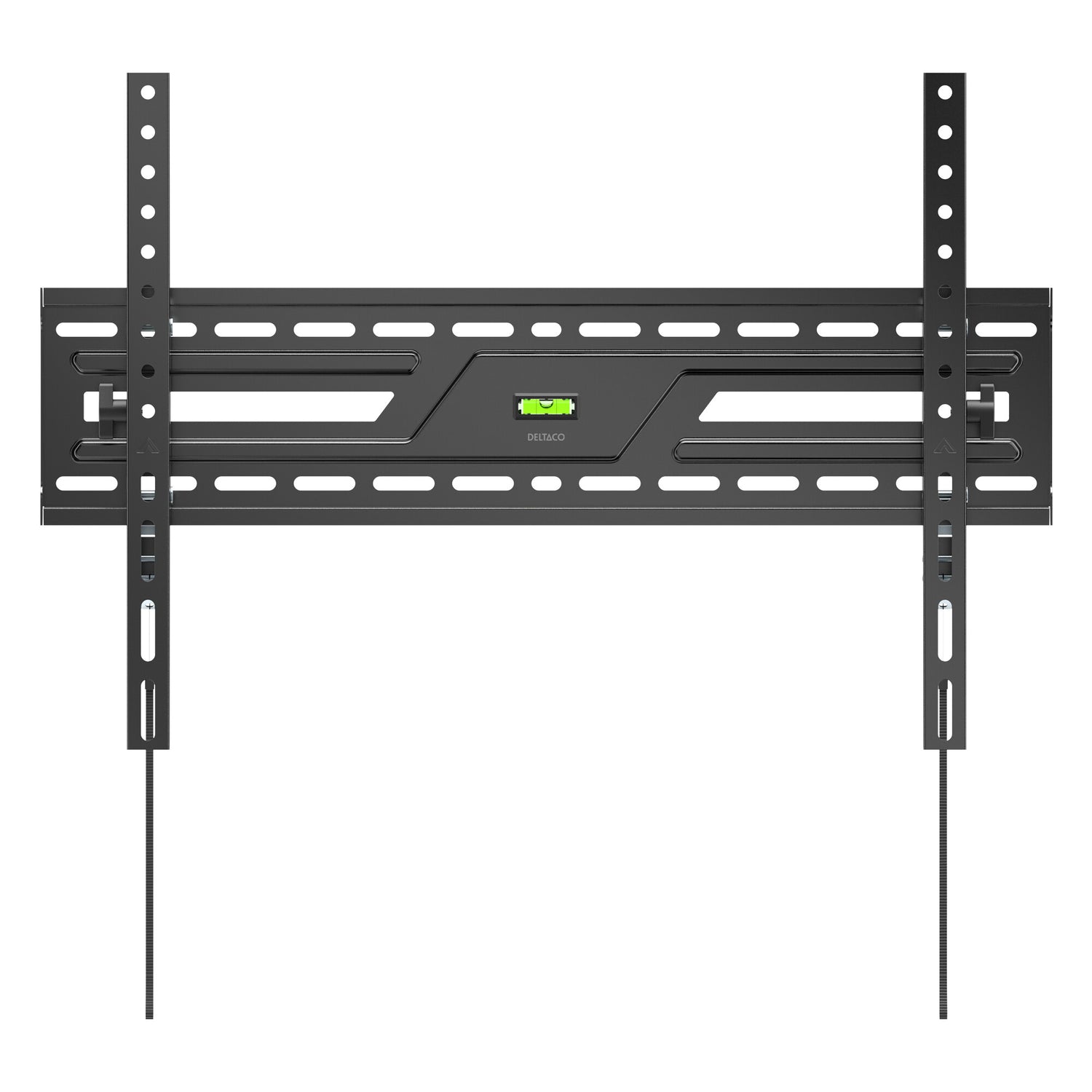

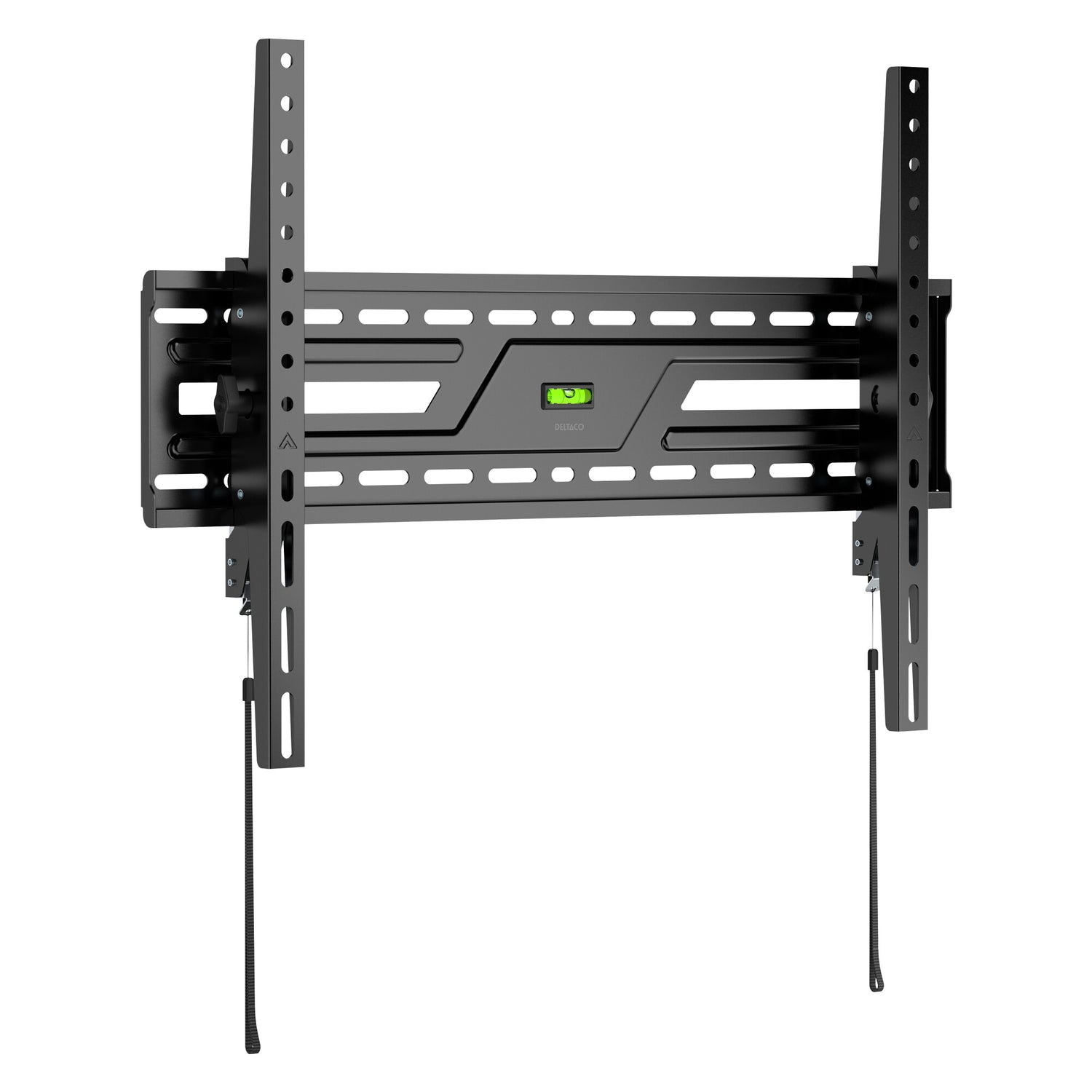

Wall mount Heavy duty, tilt, 37-86", 75 kg, black
Dimensions:50x638x425 mm
Fit Screen Size:37"-86"
Fit Curved TV:Yes
Mounting Hole Pattern:VESA & Universal
VESA Compatible:75x75, 100x100, 100x150, 150x100, 100x200, 200x100, 150x150, 200x200, 200x300, 300x200, 200x400, 400x200, 300x300, 300x400, 400x300, 600x200, 500x300, 400x400, 600x300, 500x400, 600x400
Max. Mounting Hole:608x402
Weight Capacity:75 kg
Strength Tested:4 Times Approved
Profile:50 mm

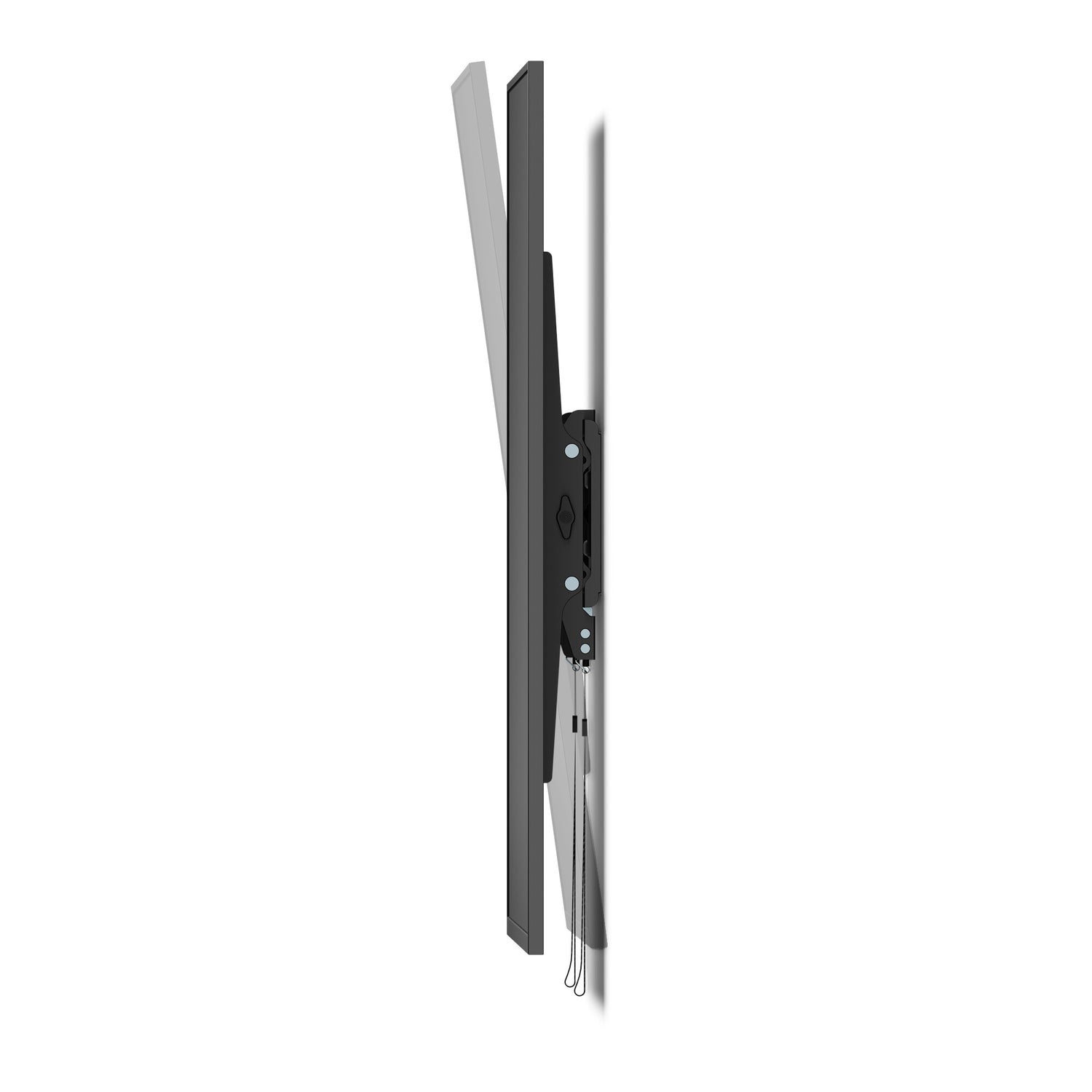

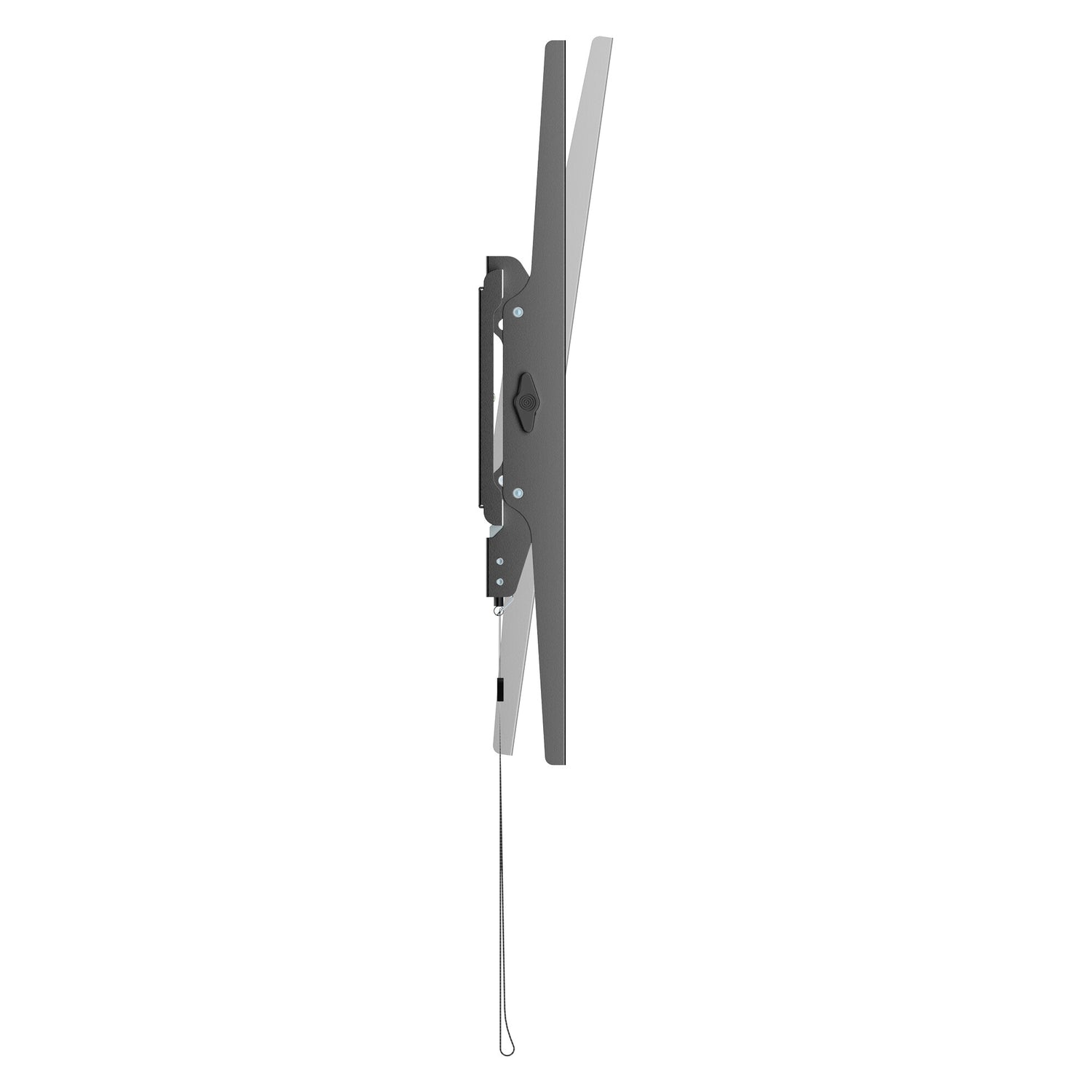

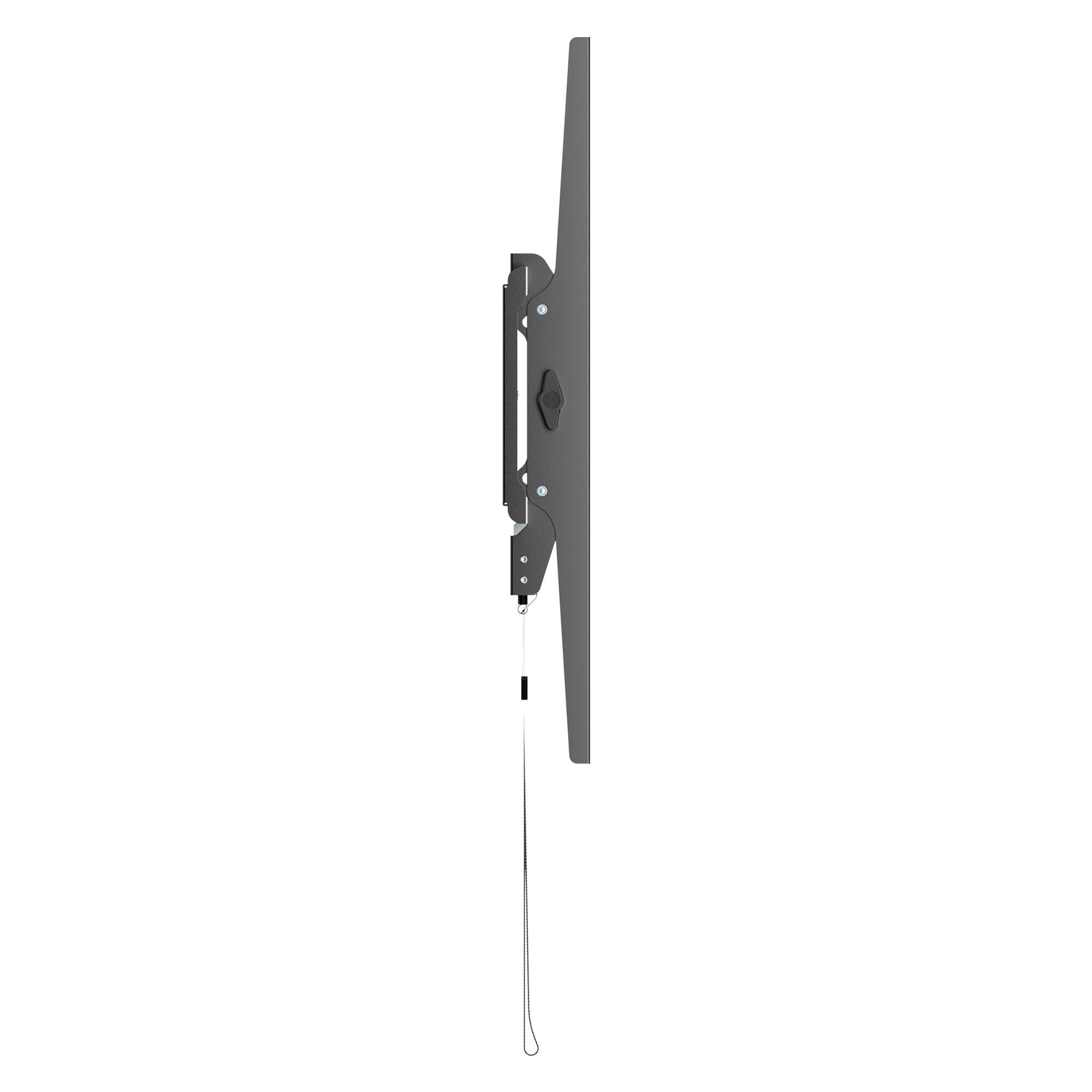

Tilt Range:+5°~-10°
Screen Freely Tilting:No
Installation:Solid Wall,Double Stud(406mm/450mm/600mm)
Panel Type:Detachable Panel
Wall Plate Type:Fixed Wall Plate
AV Component Shelf:No
Direction Indicator:Yes
Cable Management:No
Anti-theft:No
Bubble Level:Built-in Bubble Level (Integrated on Wall Plate/VESA Panel)
| Mounting |
| Number of displays supported |
1 |
| Maximum weight capacity (per display) |
75 kg |
| Maximum weight capacity |
75 kg |
| Minimum screen size |
94 cm (37") |
| Maximum screen size |
2.18 m (86") |
| Mounting type |
Wall |
| Suitable for computer monitor |
Yes |
| Minimum VESA mount |
75 x 75 mm |
| Maximum VESA mount |
600 x 400 mm |
| Panel mounting interface |
100 x 100,100 x 150,100 x 200,150 x 100,150 x 150,200 x 100,200 x 200,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400,600 x 400,75 x 75 |
| Ergonomics |
| Tilt adjustment |
Yes |
| Tilt angle range |
-10 - 5° |
| Wheels |
No |
| Cable management |
No |
| Suitable for curved screen |
Yes |
| Design |
| Product colour |
Black |
| Anti-theft function |
No |
| Technical details |
| Built-in USB hub |
No |
| Warranty period |
5 year(s) |
| Country of origin |
China |
| Quantity per pack |
1 pc(s) |
| Easy to install |
Yes |
| Weight & dimensions |
| Width |
638 mm |
| Depth (min) |
5 cm |
| Depth (max) |
5 cm |
| Height |
425 mm |
| Weight |
3 kg |
| Packaging data |
| Package width |
160 mm |
| Package depth |
50 mm |
| Package height |
640 mm |
| Package weight |
3 kg |
| Logistics data |
| Master (outer) case width |
660 mm |
| Master (outer) case length |
170 mm |
| Master (outer) case height |
350 mm |
| Master (outer) case gross weight |
18.7 kg |
| Products per master (outer) case |
6 pc(s) |
| Customs product code (TARIC) |
8302500000 |
