Deltaco ARM-1201 tv-beslag Sort
Deltaco | Varenummer:
ARM-1201
Beskrivelse
Beskrivelse
37"-70", max 40 kg, VESA 200x200 - 600x400, 474x53-464x420 mm

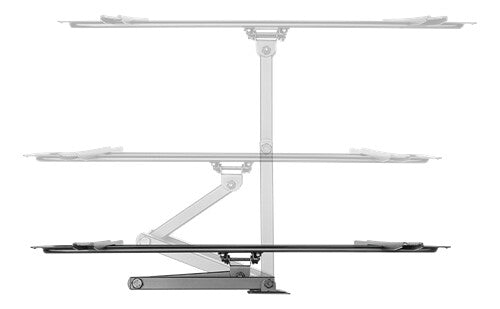

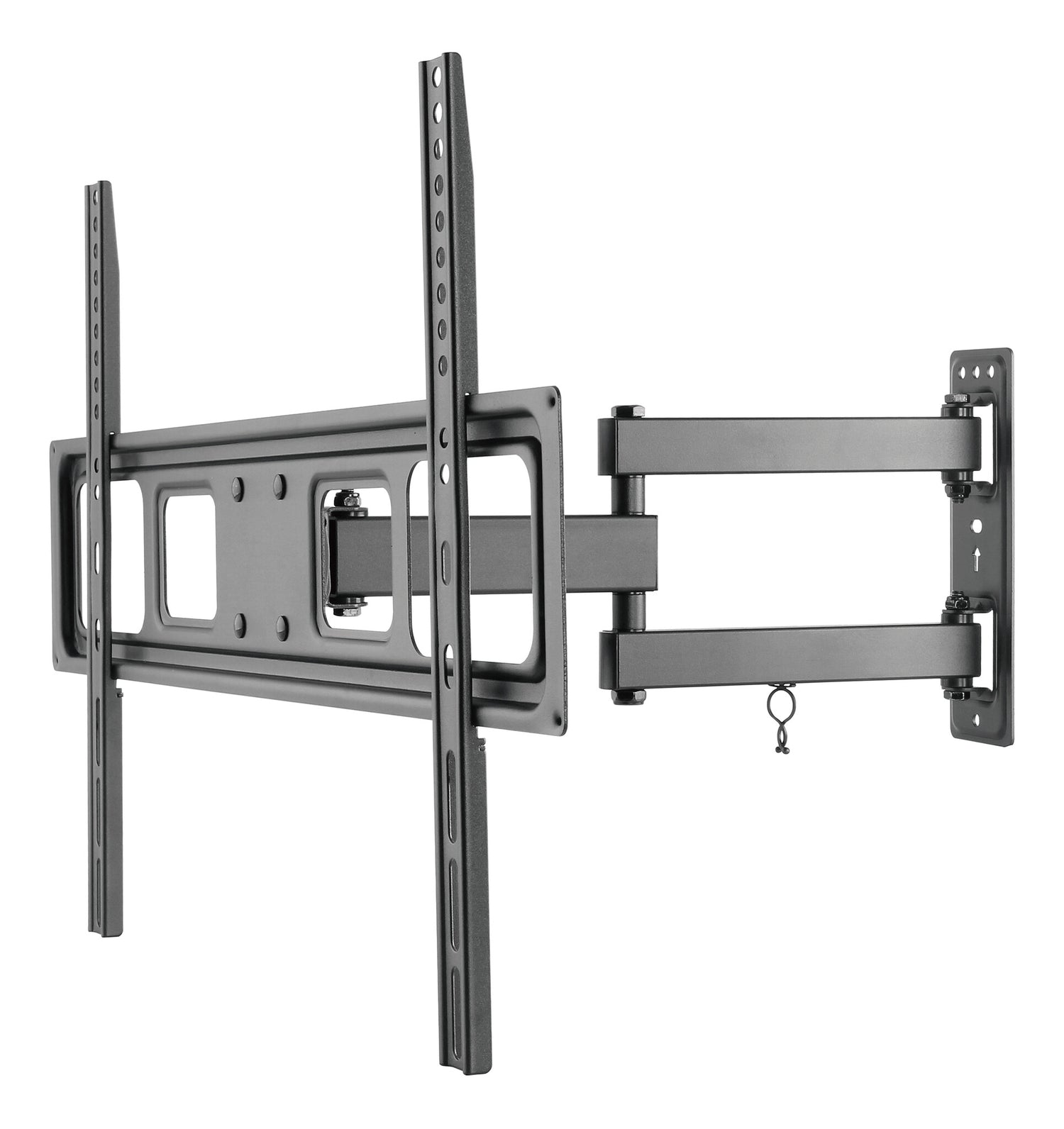

Full motion 3-way wall mount for monitor/TV between 37 "-70" up to 40 kg. The wall bracket is equipped with a direction indicator and cable management for easy installation. Tilt from +5° to -15° and swivel from + 60 ° to -60 ° for the best viewing angle.
Specifikationer
Specifikationer
| Mounting | |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 35 kg |
| Minimum screen size | 94 cm (37") |
| Maximum screen size | 177.8 cm (70") |
| Mounting type | Wall |
| Suitable for computer monitor | Yes |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 600 x 400 mm |
| Panel mounting interface | 200 x 200,300 x 300,400 x 200,400 x 400,600 x 400 |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| Tilt angle range | -15 - 5° |
| Swivelling | Yes |
| Swivel angle range | -60 - 60° |
| Cable management | Yes |
| Design | |
|---|---|
| Product colour | Black |
| Housing material | Steel |
| Technical details | |
|---|---|
| Country of origin | China |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
|---|---|
| Mounting kit | Yes |
| Manual | Yes |
| Weight & dimensions | |
|---|---|
| Width | 474 mm |
| Depth (min) | 5.3 cm |
| Depth (max) | 46.4 cm |
| Height | 420 mm |
| Weight | 3.12 kg |
| Packaging data | |
|---|---|
| Package width | 680 mm |
| Package depth | 70 mm |
| Package height | 230 mm |
| Package weight | 3.54 kg |
| Logistics data | |
|---|---|
| Master (outer) case width | 680 mm |
| Master (outer) case length | 70 mm |
| Master (outer) case height | 430 mm |
| Master (outer) case gross weight | 22 kg |
| Products per master (outer) case | 6 pc(s) |
| Customs product code (TARIC) | 8302500000 |
| Harmonized System (HS) code | 85299097 |
| Shipping (inner) case width | 68 cm |
| Shipping (inner) case length | 7 cm |
| Shipping (inner) case height | 48 cm |
| Shipping (inner) case gross weight | 22 kg |
| Products per shipping (inner) case | 6 pc(s) |
