32"-55", max 40 kg, VESA 200x200 - 400x400, 474x53-464x420 mm

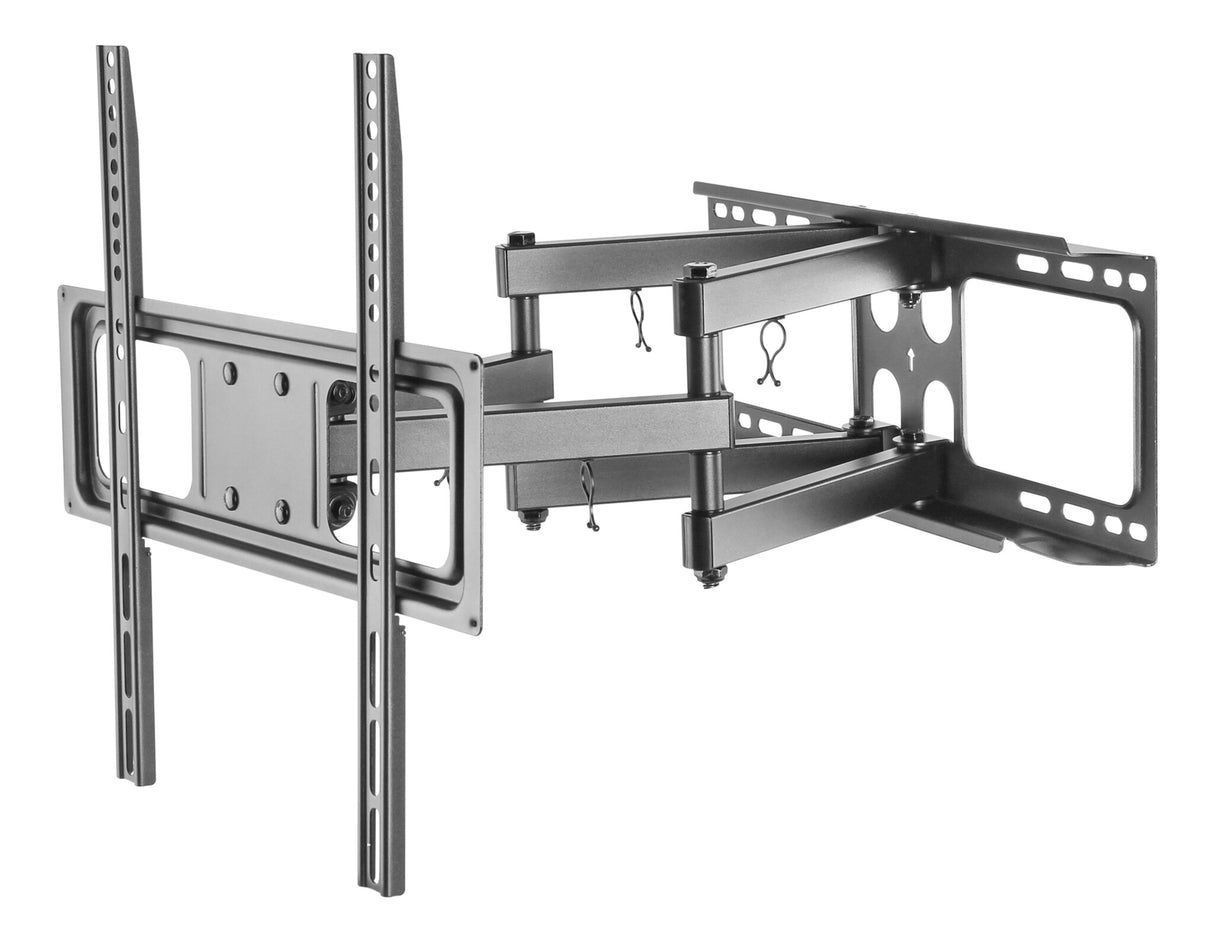

Full motion 3-way wall mount for monitor/TV between 32"-55" up to 40 kg. The wall bracket is equipped with a direction indicator and cable management for easy installation. Tilt from +5° to -15° and swivel from + 60 ° to -60 ° for the best viewing angle.
| Mounting |
| Panel mounting interface |
200 x 200,300 x 300,400 x 200,400 x 400 |
| Maximum VESA mount |
400 x 400 mm |
| Minimum VESA mount |
200 x 200 mm |
| Suitable for computer monitor |
Yes |
| Mounting type |
Wall |
| Maximum screen size |
139.7 cm (55") |
| Minimum screen size |
81.3 cm (32") |
| Maximum weight capacity |
40 kg |
| Number of displays supported |
1 |
| Ergonomics |
| Cable management |
Yes |
| Swivel angle range |
-60 - 60° |
| Swivelling |
Yes |
| Tilt angle range |
-15 - 5° |
| Tilt adjustment |
Yes |
| Design |
| Housing material |
Steel |
| Product colour |
Black |
| Packaging content |
| Manual |
Yes |
| Mounting kit |
Yes |
| Technical details |
| Country of origin |
China |
| Quantity per pack |
1 pc(s) |
| Weight & dimensions |
| Weight |
4.82 kg |
| Height |
420 mm |
| Depth (max) |
46.4 cm |
| Depth (min) |
5.3 cm |
| Width |
474 mm |
| Packaging data |
| Package type |
Box |
| Package weight |
5.13 kg |
| Package height |
230 mm |
| Package depth |
60 mm |
| Package width |
520 mm |
| Logistics data |
| Products per shipping (inner) case |
4 pc(s) |
| Shipping (inner) case gross weight |
21.1 kg |
| Shipping (inner) case height |
25 cm |
| Shipping (inner) case length |
6 cm |
| Shipping (inner) case width |
52 cm |
| Harmonized System (HS) code |
85299097 |
| Customs product code (TARIC) |
8302500000 |
| Products per master (outer) case |
4 pc(s) |
| Master (outer) case gross weight |
21.1 kg |
| Master (outer) case height |
290 mm |
| Master (outer) case length |
60 mm |
| Master (outer) case width |
520 mm |
