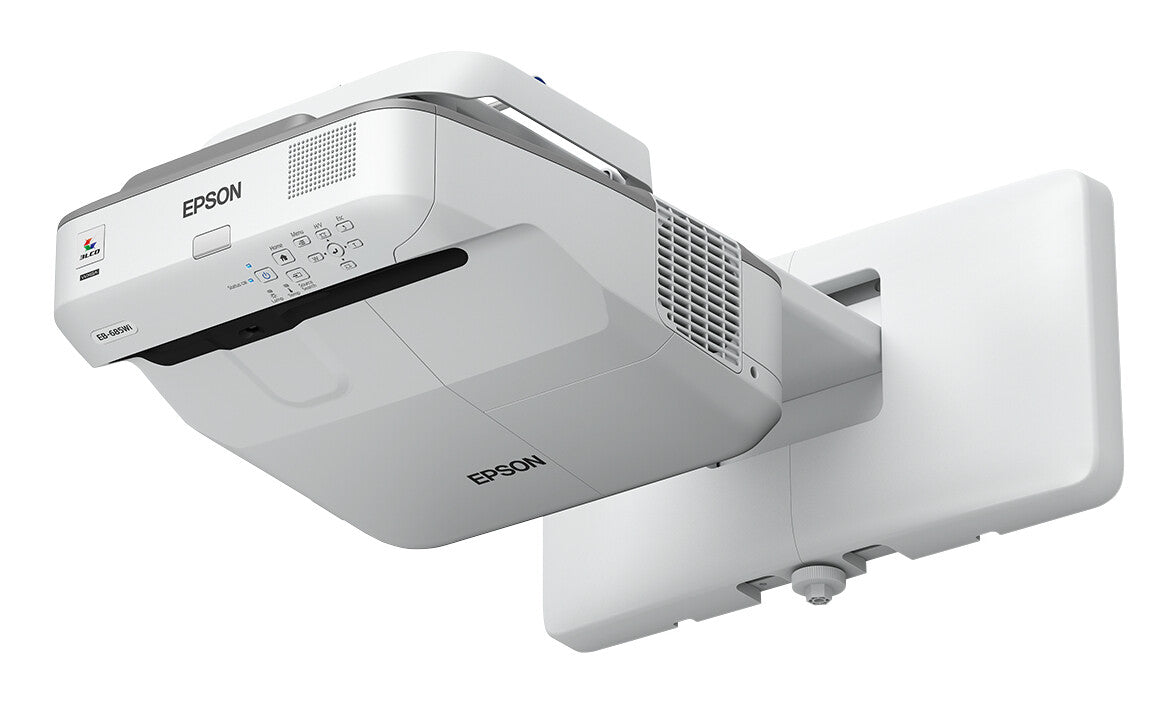

Epson EB-685W Ultra short throw projector 3500 ANSI lumens 3LCD WXGA (1280x800) White, Grey

Epson  |  Varenummer: V11H744040

Beskrivelse

3LCD, 0.59'' D9, WXGA (1280x800), 16:10, 3500-2900 Lumen, 300:1, 60-100'', LAN, HDMI, USB, VGA, 5.7kg, White/Grey

HD-ready classroom projector

Innovative teaching solution with a large scalable screen size of up to 100 inches to display HD-ready WXGA content for enhanced learning.

The EB-685W's ultra-short-throw design allows you to present large images from a very short distance with minimised shadows and glare. With a brightness level of 3,500 lumens, an HD-ready WXGA resolution, a 14,000:1 contrast ratio, and HDMI input, students benefit from sharp, clear images.

High-quality, bright images

Epson’s 3LCD technology ensures high-quality images with equally high White and Colour Light Output for vivid colours and bright images, even in daylight, and three times brighter colours than leading competitive projectors.

Enhanced learning

Split-screen functionality allows two pieces of content to be displayed simultaneously without compromising on quality. The moderator function allows teachers to remain in control, choosing what content to display.

Document camera compatibility

Connecting the optional Epson document camera allows you to easily display images and 3D objects with incredible detail for the whole class to see.

Keep costs down

Project for longer with improved reliability and a longer lamp life of up to 10,000 hours in eco mode.

-Optional wireless capability

Wirelessly display content easily from a range of smart devices and Google Chromebooks using our iProjection App.

Specifikationer

Projector
Keystone correction, horizontal -3 - 3°
Keystone correction, vertical -3 - 3°
Matrix size 1.5 cm (0.59")
Vertical scan range 100 - 120 Hz
Projector brightness (economic mode) 2900 ANSI lumens
Number of colours 1.07 billion colours
Contrast ratio (dynamic) 14000:1
Projection distance (tele) 0 - 0.6 m
Projection distance (wide) 0 - 0.4 m
Projection distance 0.4 - 0.6 m
Screen size compatibility 1524 - 2540 mm (60 - 100")
Supported aspect ratios 16:10
Native aspect ratio 16:10
Contrast ratio (typical) 14000:1
Projector native resolution WXGA (1280x800)
Projection technology 3LCD
Projector brightness 3500 ANSI lumens
Light source
Lamp power 250 W
Service life of light source (economic mode) 10000 h
Service life of light source 5000 h
Light source type Lamp
Lens system
Throw ratio 0.28 - 0.37:1
Digital zoom 1.35x
Zoom ratio 1.35:1
Zoom type Auto
Zoom capability Yes
Fixed focal length 3.7 mm
Focal length range 3.7 mm
Focus Manual
Video
Video processing 10 bit
Colour modes (2D) Cinema, Dynamic
Video colour modes Dynamic, Cinema, Presentation, sRGB, Blackboard
3D No
HD-Ready Yes
Full HD No

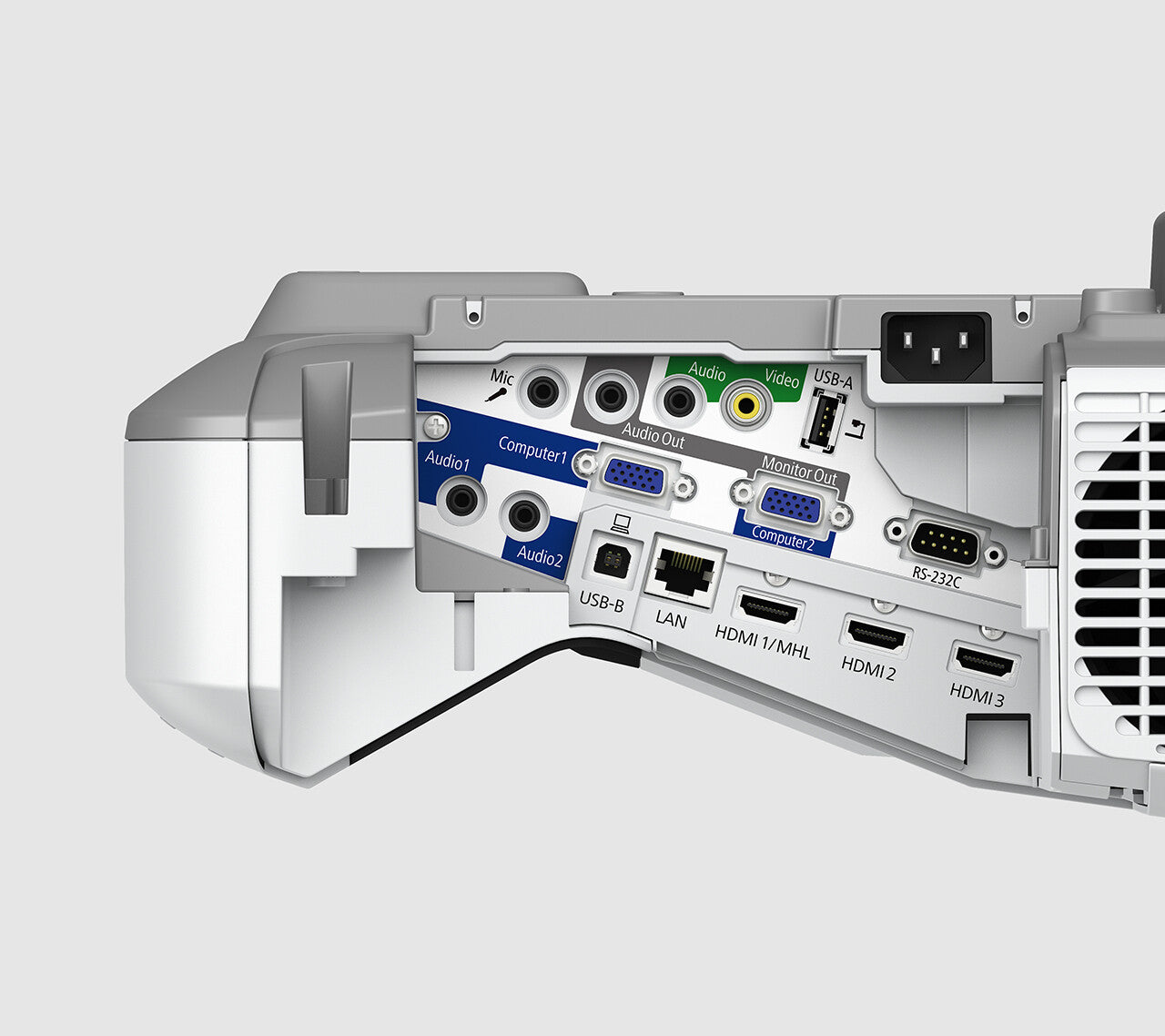

Ports & interfaces
AC (power) in Yes
Mobile High-Definition Link (MHL) Yes
USB connector type USB Type-A, USB Type-B
Serial interface type RS-232
Microphone in Yes
Headphone outputs 1
Audio (L/R) in 1
USB 2.0 ports quantity 2
Composite video in 1
DVI port No
HDMI ports quantity 3
VGA (D-Sub) ports quantity 3
Network
Ethernet LAN (RJ-45) ports 1
Ethernet LAN data rates 10,100 Mbit/s
Ethernet LAN Yes
Storage
Card reader integrated No
Features
Compatible operating systems Linux, Mac OS 10.10.x, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Ubuntu 14.10, Ubuntu 15.04, Ubuntu 15.10, Ubuntu 16.04 LTS, Windows 10, Windows 8, Windows 8.1
Password protection Yes
2D/3D frequency image 100 - 120 Hz
Country of origin Philippines
Air filter Yes
On Screen Display (OSD) Yes
Noise level (economic mode) 30 dB
Noise level 35 dB
Interactive No
Multimedia
RMS rated power 16 W
Number of built-in speakers 1
Built-in speaker(s) Yes
Design
Cable lock slot type Kensington
Cable lock slot Yes
Placement Wall
Product colour White, Grey
Market positioning Ulta short throw
Product type Ultra short throw projector
Display
Built-in display No
Power
AC input frequency 50 - 60 Hz
AC input voltage 100-240 V
Power consumption (economy mode) 309 W
Power consumption (PowerSave) 310 W
Power consumption (standby) 0.37 W
Power consumption (typical) 354 W
Power source AC
Software
Mac operating systems supported Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Windows operating systems supported Windows 10, Windows 8, Windows 8.1
Mac compatibility Yes
Software support via: AMX, Crestron (Network), Control4
Operational conditions
Storage relative humidity (H-H) 10 - 90%
Operating relative humidity (H-H) 20 - 80%
Storage temperature (T-T) -10 - 60 °C
Operating temperature (T-T) 5 - 40 °C
Weight & dimensions
Package weight 18.5 kg
Package height 335 mm
Package depth 730 mm
Package width 490 mm
Height 149 mm
Depth 400 mm
Width 367 mm
Weight 5.7 kg
Packaging content
Bundled software EasyMP Multi PC Projection, Epson Projektor Management
Cables included AC
Manual Yes
WLAN adapter included Yes
Quick start guide Yes
Batteries included Yes
Remote control type IR
Remote control included Yes
Technical details
USB display function 3 in 1: Image / Mouse / Sound
Sustainability certificates TCO
Colour Yes
Logistics data
Products per pallet 12 pc(s)
Pallet gross weight 0 g
Products per pallet (UK) 12 pc(s)
Pallet weight (UK) 0 g
Pallet gross length 120 cm
Pallet gross width 80 cm
Pallet gross height 141 cm
Products per pallet layer 2 pc(s)
Products per pallet layer (UK) 2 pc(s)
Pallet length (UK) 120 cm
Pallet width (UK) 100 cm
Pallet height (UK) 141 cm
Harmonized System (HS) code 85286200
Quantity per pack 1 pc(s)
Other features
RS-232 ports 1

Download

PDF download:
