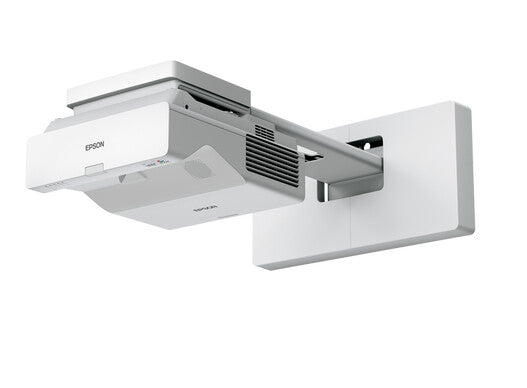

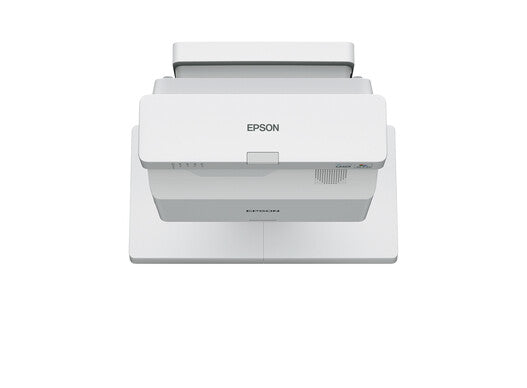

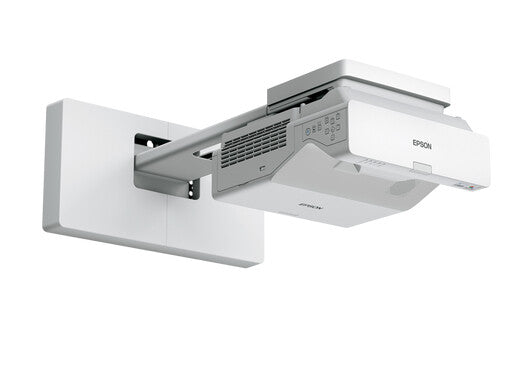

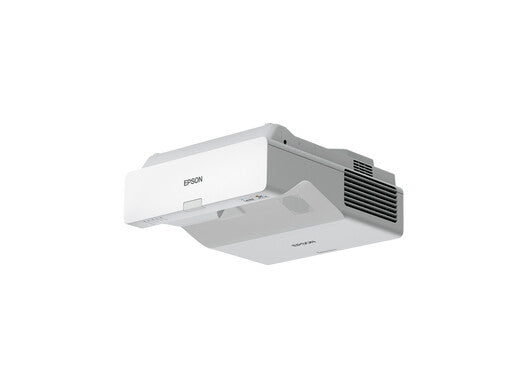

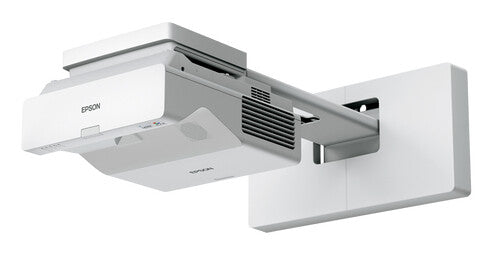

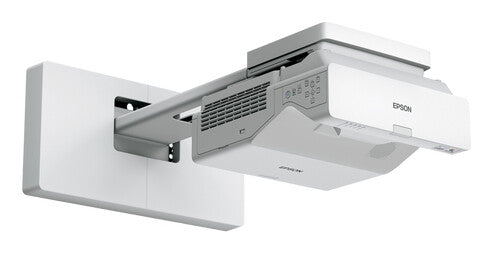

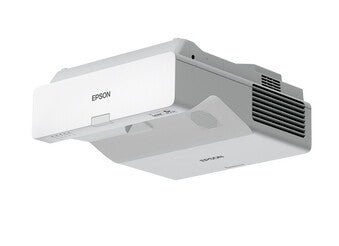

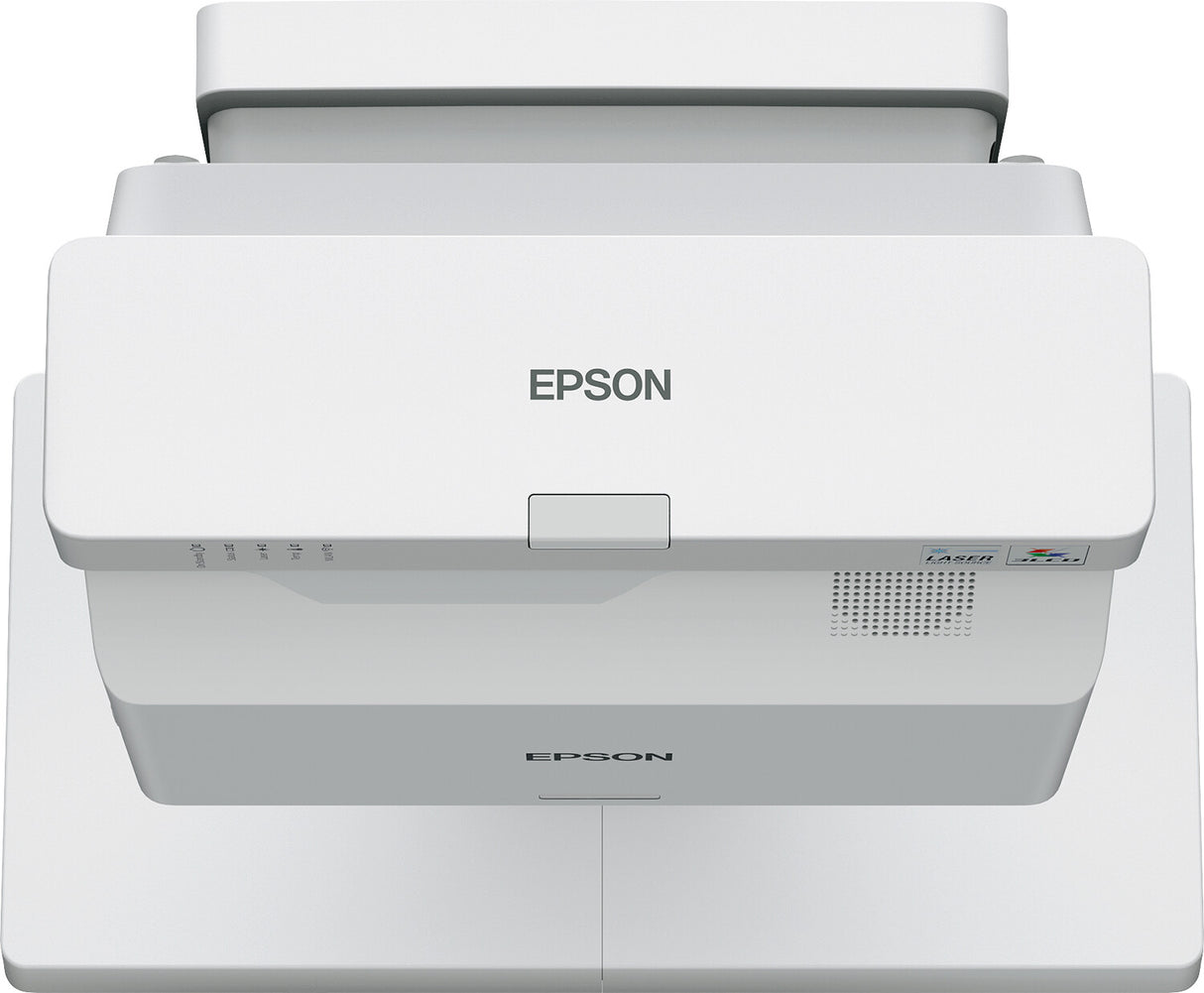

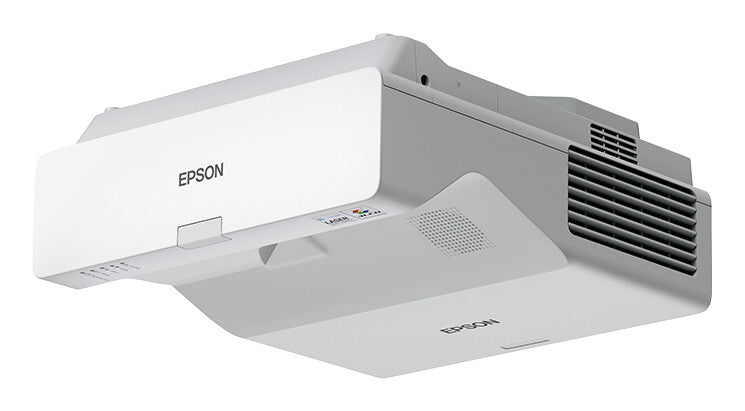

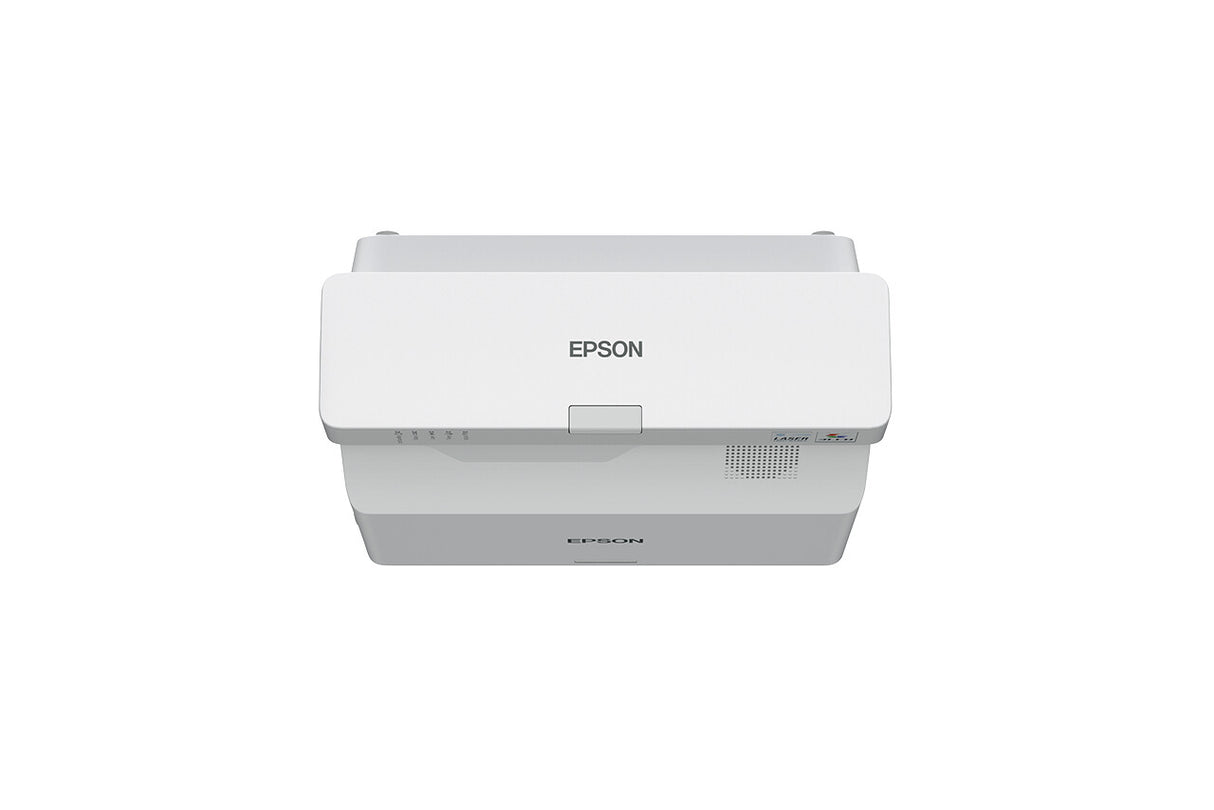

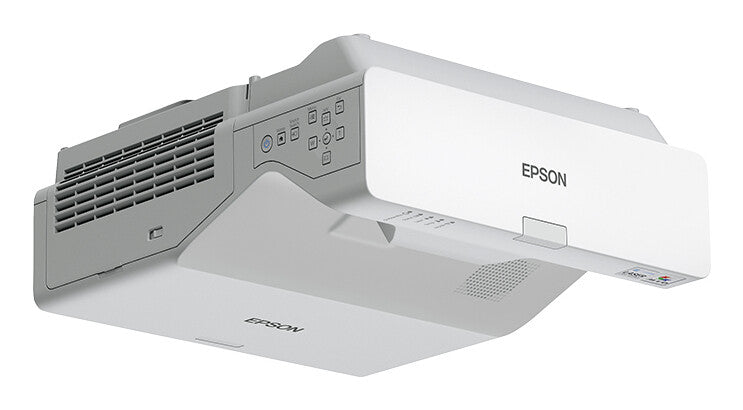

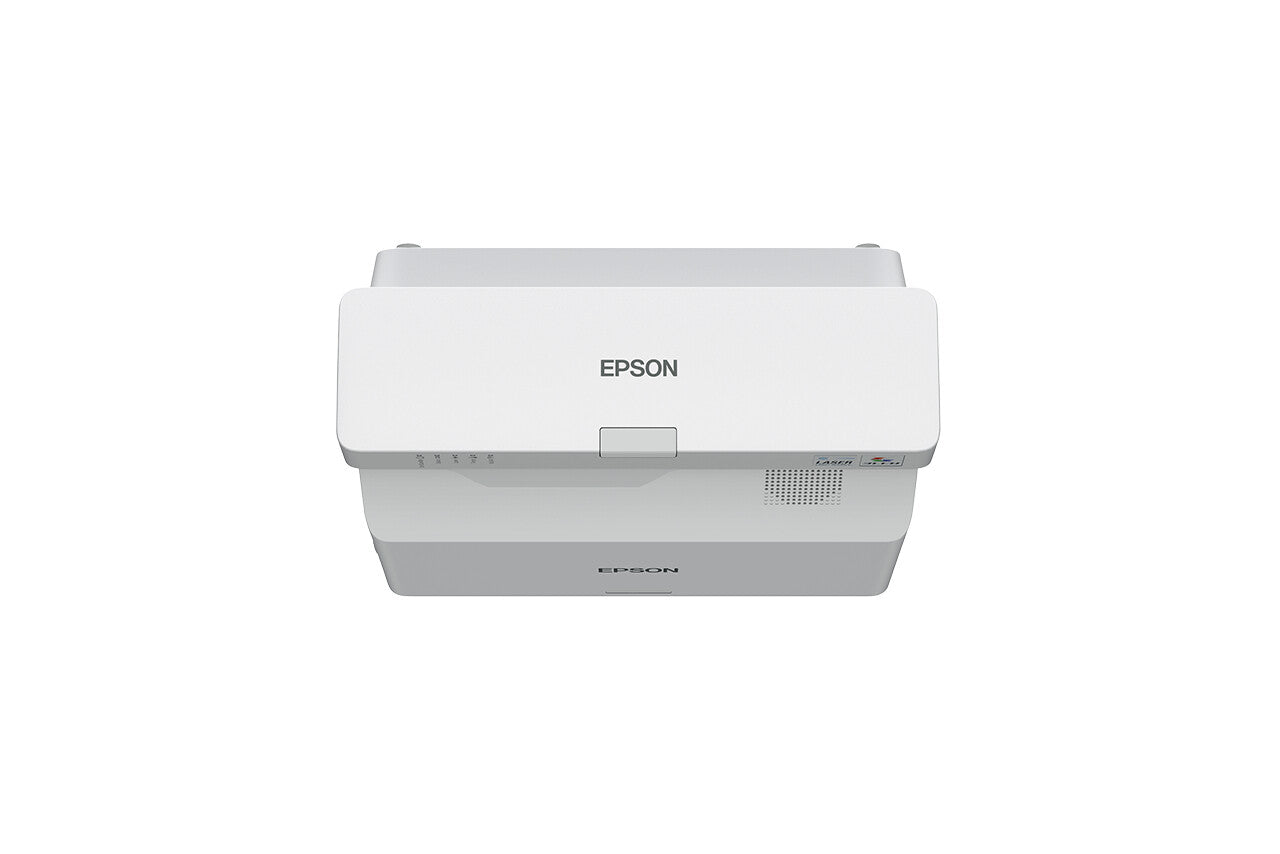

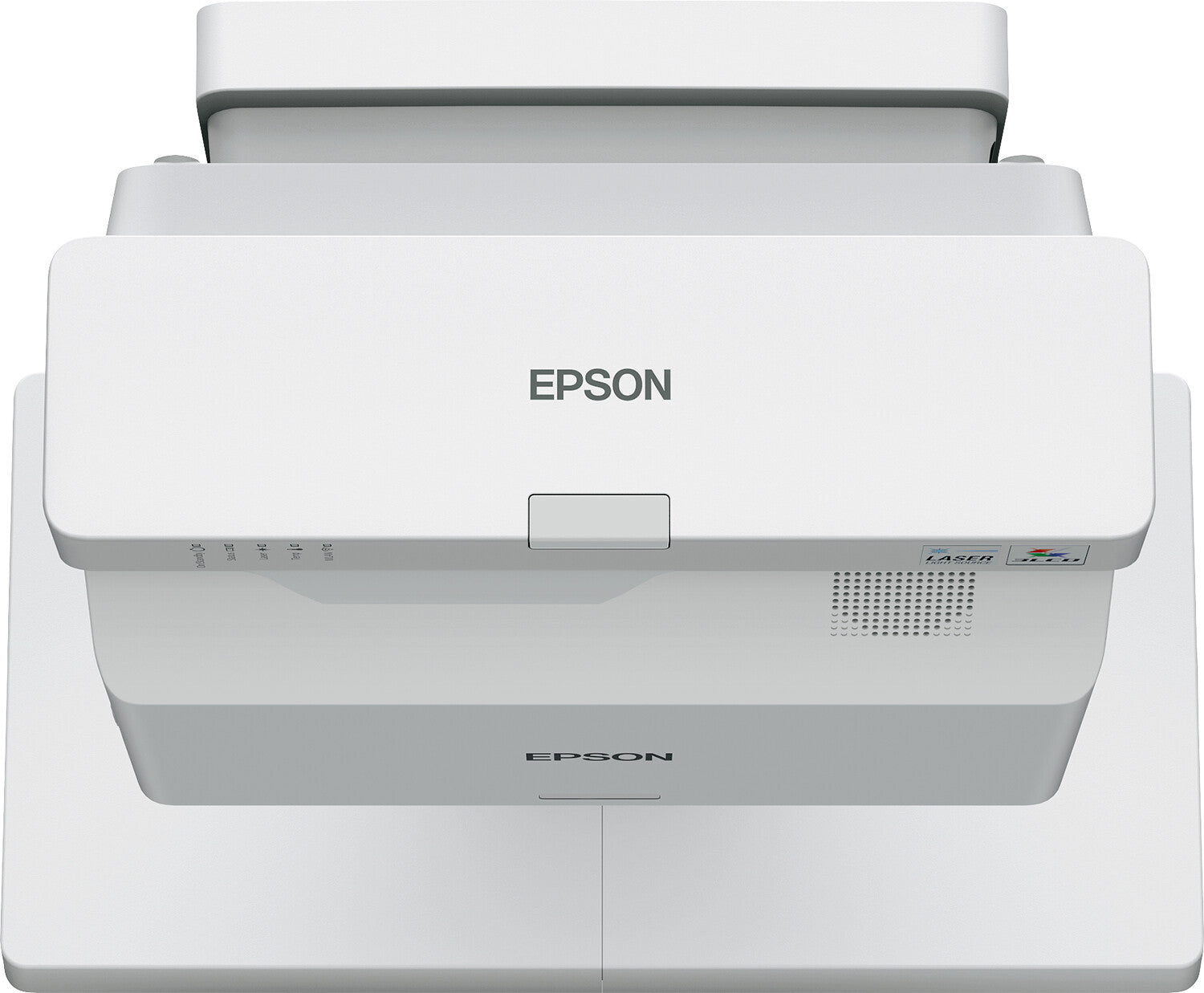

Epson EB-760W

Epson  |  Varenummer: V11HA81080
Stregkode: 8715946715285

Beskrivelse

EB-760W

Agile UST laser display
Whatever the size of class or meeting room, unrestricted and immersive presentations are possible with this bright, clear, compact and affordable display solution.

The EB-760W's bright image, scalable up to 150", is clearly visible from any angle and from a distance, and content can be easiliy shared or streamed directly from multiple devices for the perfect collaborative experience.

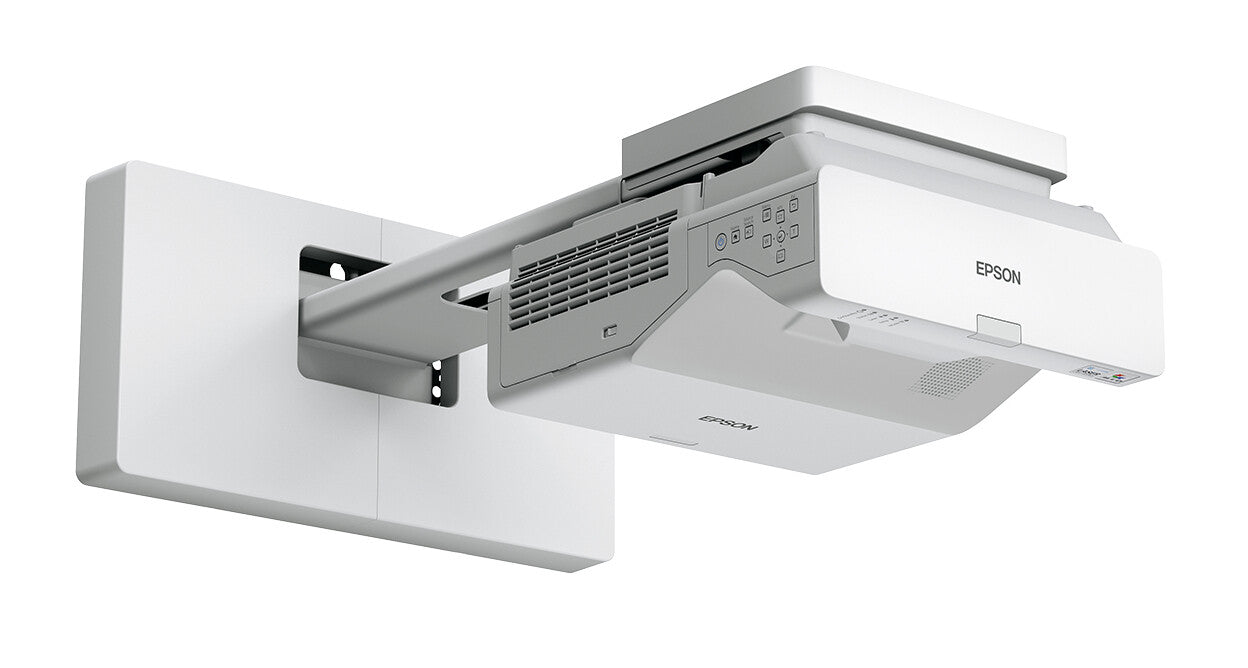

The EB-760W's ultra short throw lens allows safe, discreet positioning close to the display, enabling presenters free access to perform without casting shadows.


With 4,100 lumens Colour Light Output and Epson 3LCD technology, the display is bright and vibrant up-to 150", clearly visible from all angles and from a distance. The experience is immersive and user-friendly.


Projection also enables flexible display sizes, scalable from 49-150", display sizes can be optimised for each room with one familiar product and at a fixed cost


Versatile wired and wireless connectivity options, including screen mirroring via Miracast™, allow participants to effortlessly share content from their PCs or mobile devices. With a connected optional Epson visualiser, documents, presentations or 3D objects can be viewed with incredible detail.


Unlike a flat-panel display, there is no heavy, breakable, glass panel to create disruptive, reflected blind spots at certain angles, and teachers are not subjected to LCD panel direct blue light radiation, believed to damage eyes. Paired with a hygienic, antibacterial whiteboard, teachers can annotate presentations with dry-wipe pens, or to save energy, simply use the whiteboard with the display turned off.

Specifikationer

Projector
Projector brightness 4100 ANSI lumens
Projection technology 3LCD
Projector native resolution 1080p (1920x1080)
Contrast ratio (typical) 2500000:1
Native aspect ratio 16:10
Supported aspect ratios 16:10
Screen size compatibility 1524 - 3810 mm (60 - 150")
Number of colours 1.07 billion colours
Projector brightness (economic mode) 2800 ANSI lumens
Vertical scan range 100 - 120 Hz
Keystone correction, vertical -3 - 3°
Keystone correction, horizontal -3 - 3°
Heat dissipation 895 BTU/h
Light source
Light source type Laser/LED hybrid
Service life of light source 20000 h
Service life of light source (economic mode) 30000 h
Lens system
Focus Manual
Fixed focal length 3.7 mm
F-number (relative aperture) 1.6
Zoom capability Yes
Zoom ratio 1.35:1
Throw ratio 0.27 - 0.37:1
Video
Full HD Yes
3D No
Video colour modes Blackboard, Cinema, Dynamic, Presentation, sRGB
Ports & interfaces
VGA (D-Sub) ports quantity 2
HDMI ports quantity 3
DVI port No
Composite video in 1
USB 2.0 ports quantity 3
USB 2.0 Type-A ports quantity 2
USB 2.0 Type-B ports quantity 1
Audio (L/R) in 3
Audio (L/R) out 1
Microphone in Yes
Serial interface type RS-232C
Consumer Electronics Control (CEC) support Yes
Audio Return Channel (ARC) Yes
Network
Ethernet LAN Yes
Ethernet LAN data rates 10,100 Mbit/s
Ethernet LAN (RJ-45) ports 1
Wi-Fi Yes
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Miracast Yes
Storage
Card reader integrated No
Features
Noise level 37 dB
Noise level (economic mode) 27 dB
On Screen Display (OSD) Yes
Screen mirroring Yes
Multimedia
Built-in speaker(s) Yes
RMS rated power 16 W
Design
Product type Ultra short throw projector
Market positioning Presentation
Product colour White
Cable lock slot type Kensington
Cable lock slot Yes
Display
Built-in display No
Power
Power source AC
Power consumption (typical) 197 W
Power consumption (standby) 0.5 W
Power consumption (max) 263 W
Power consumption (PowerSave) 199 W
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Supplier features
Recommended gender Any gender
Operational conditions
Storage temperature (T-T) -10 - 60 °C
Operating relative humidity (H-H) 20 - 80%
Storage relative humidity (H-H) 10 - 90%
Weight & dimensions
Weight 5.9 kg
Width 356 mm
Depth 395 mm
Height 133 mm
Packaging content
Remote control included Yes
Batteries included Yes
Manual Yes
Cables included AC
Technical details
Warranty period 5 year(s)
