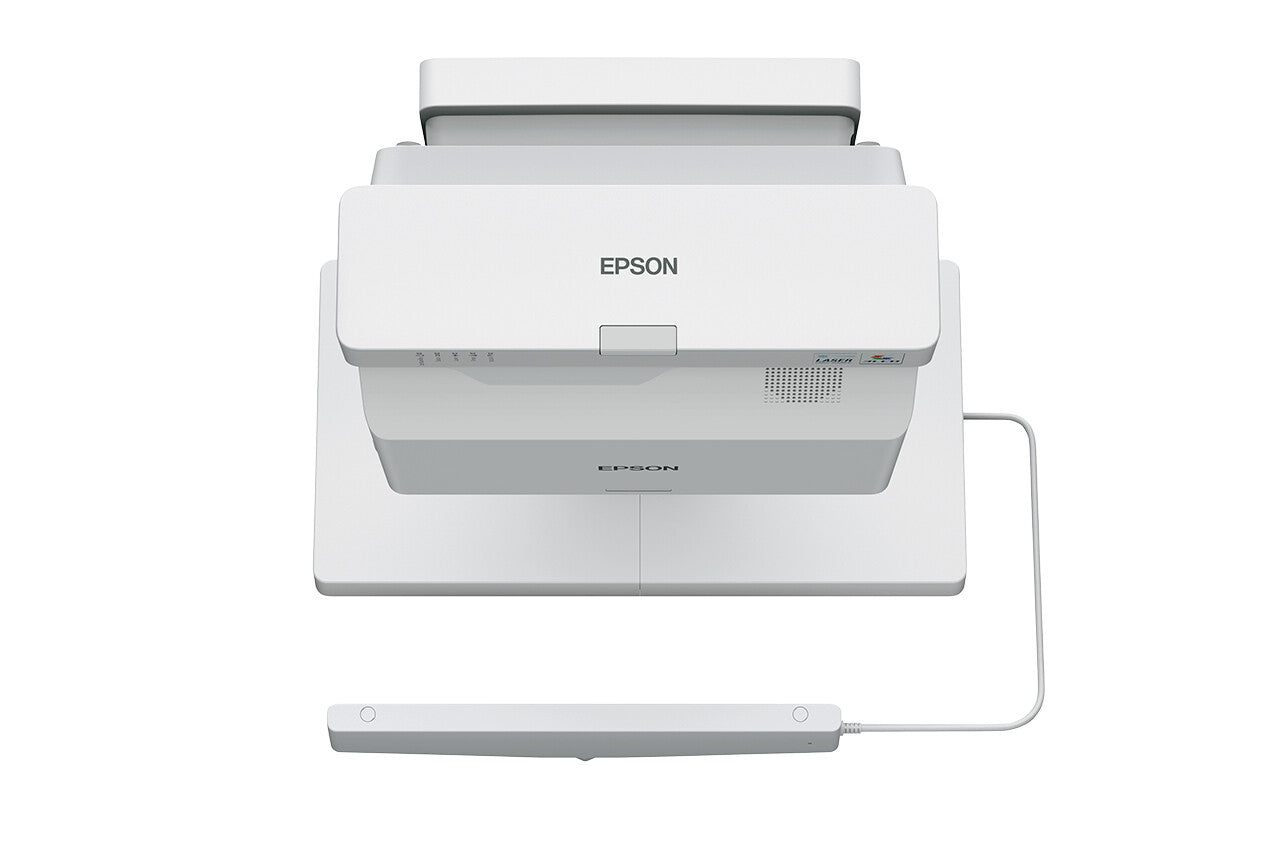

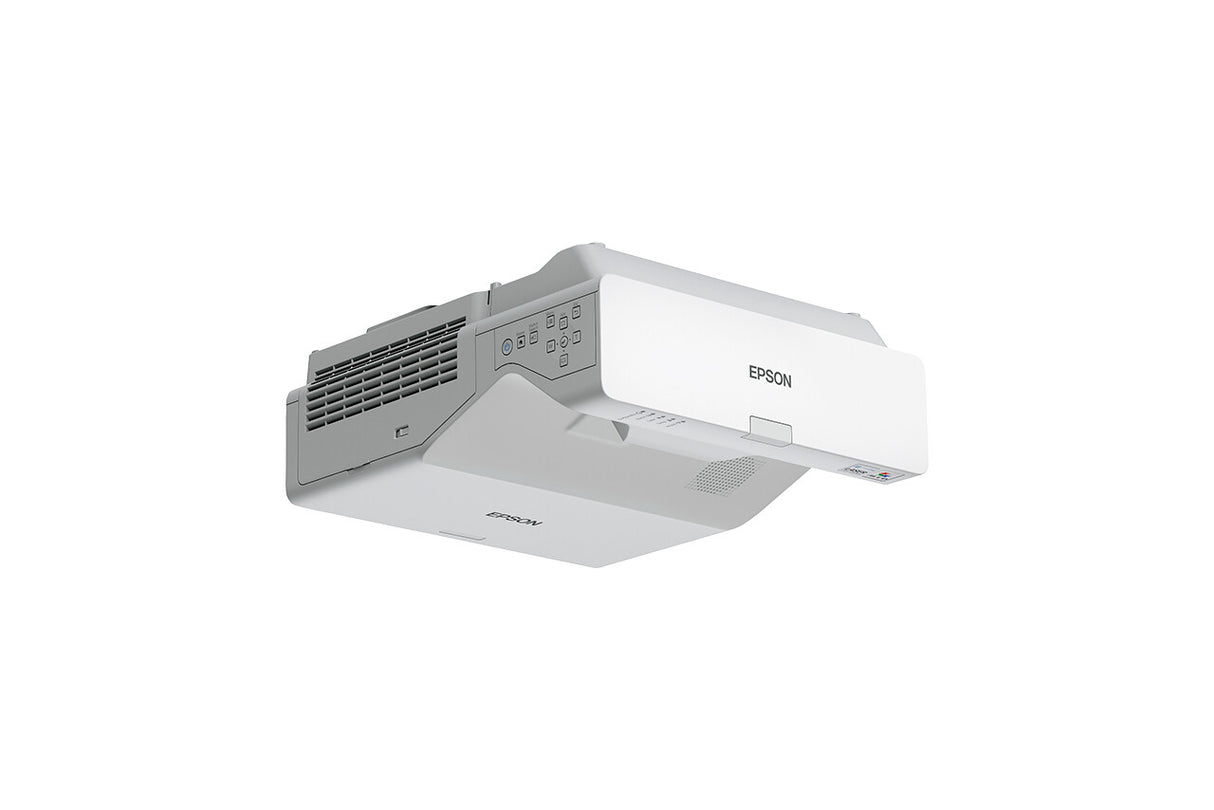

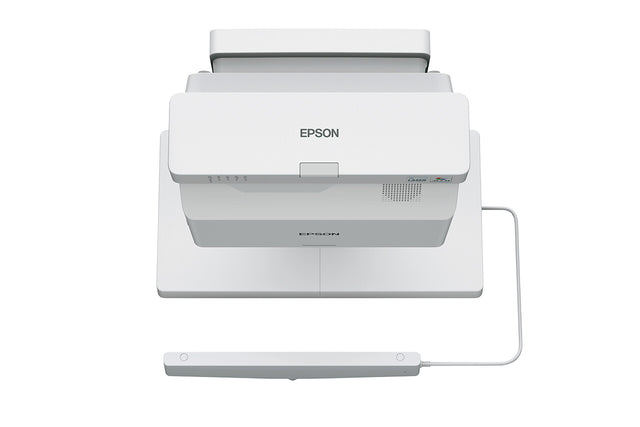

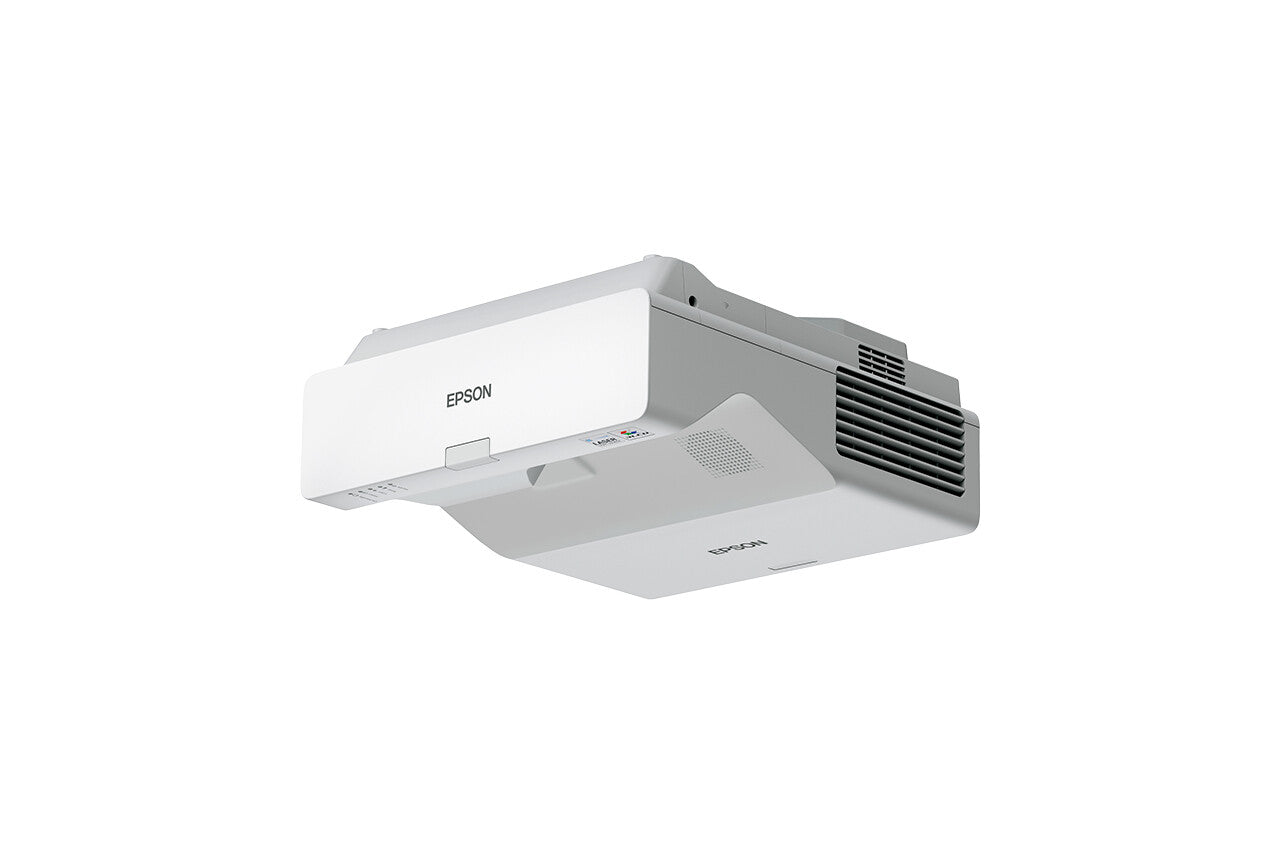

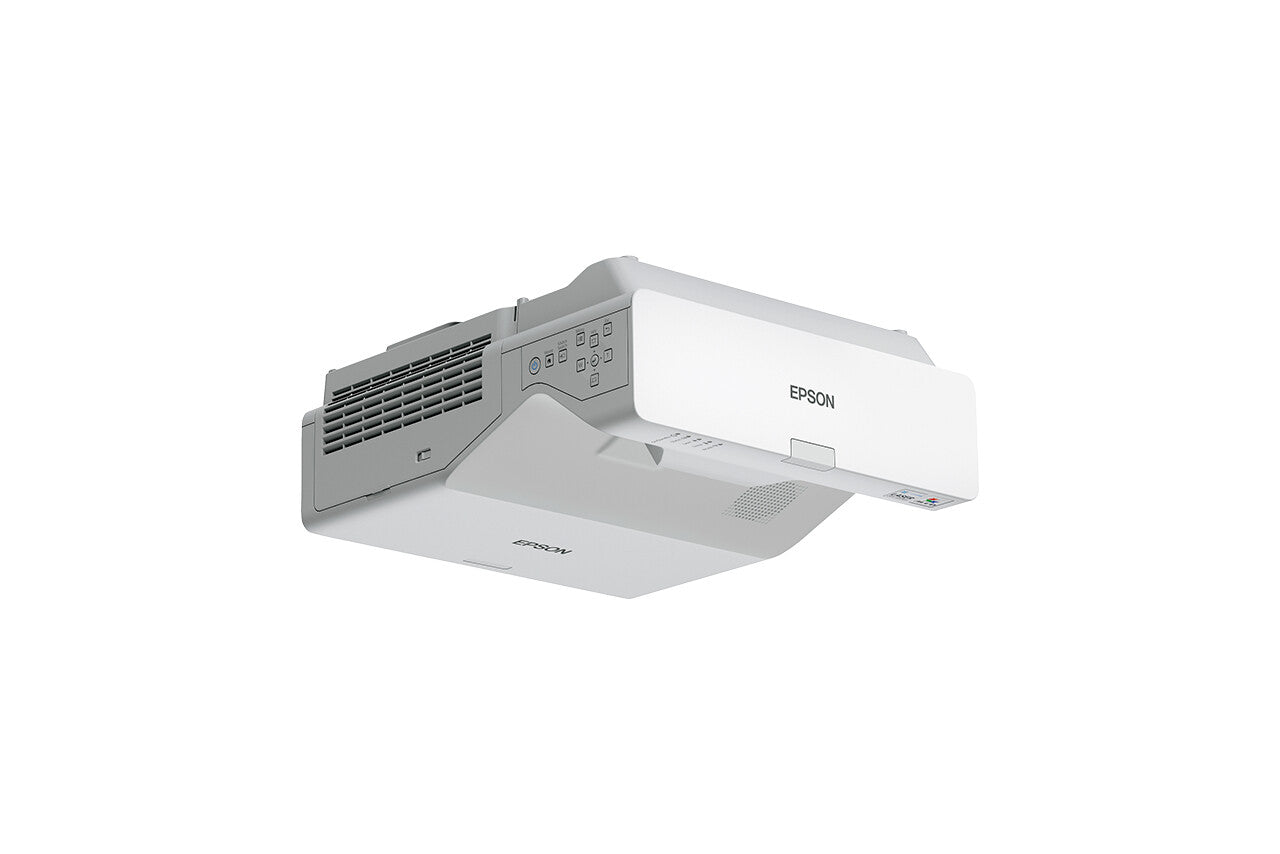

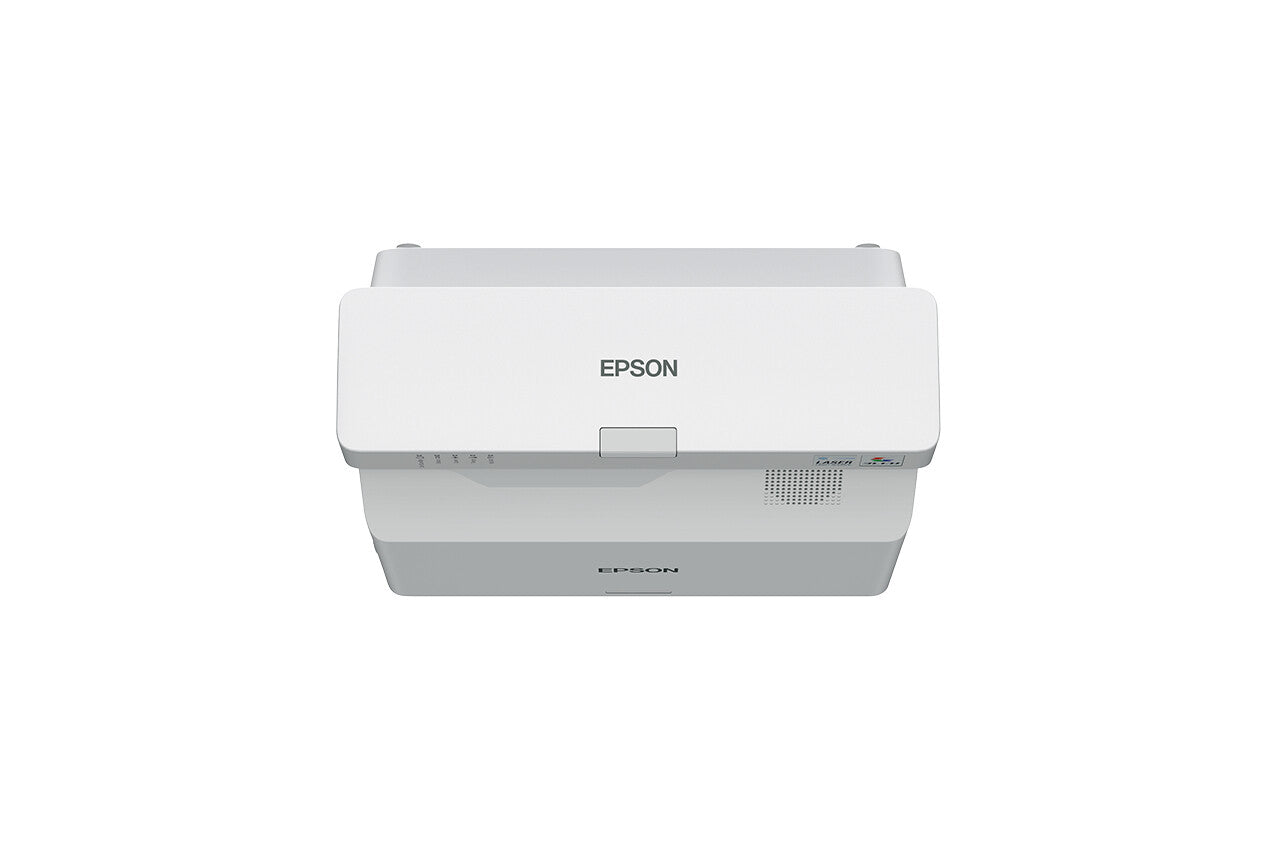

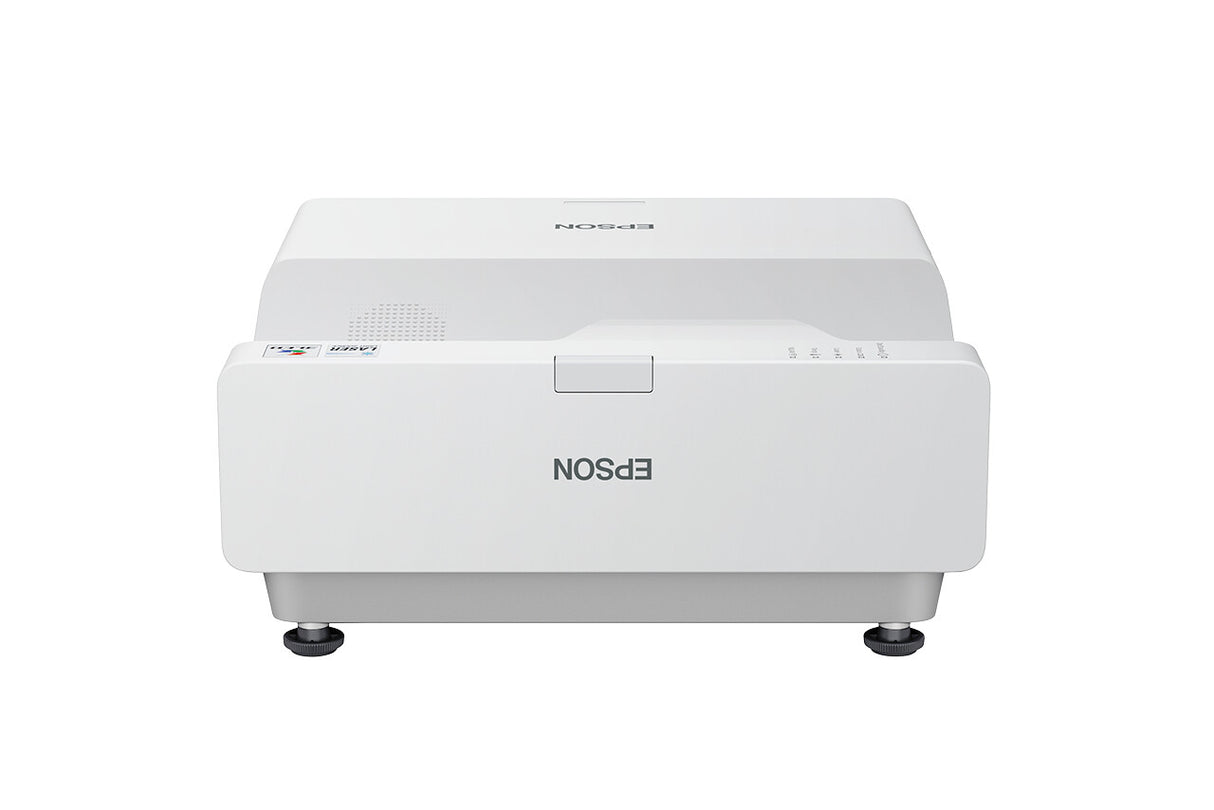

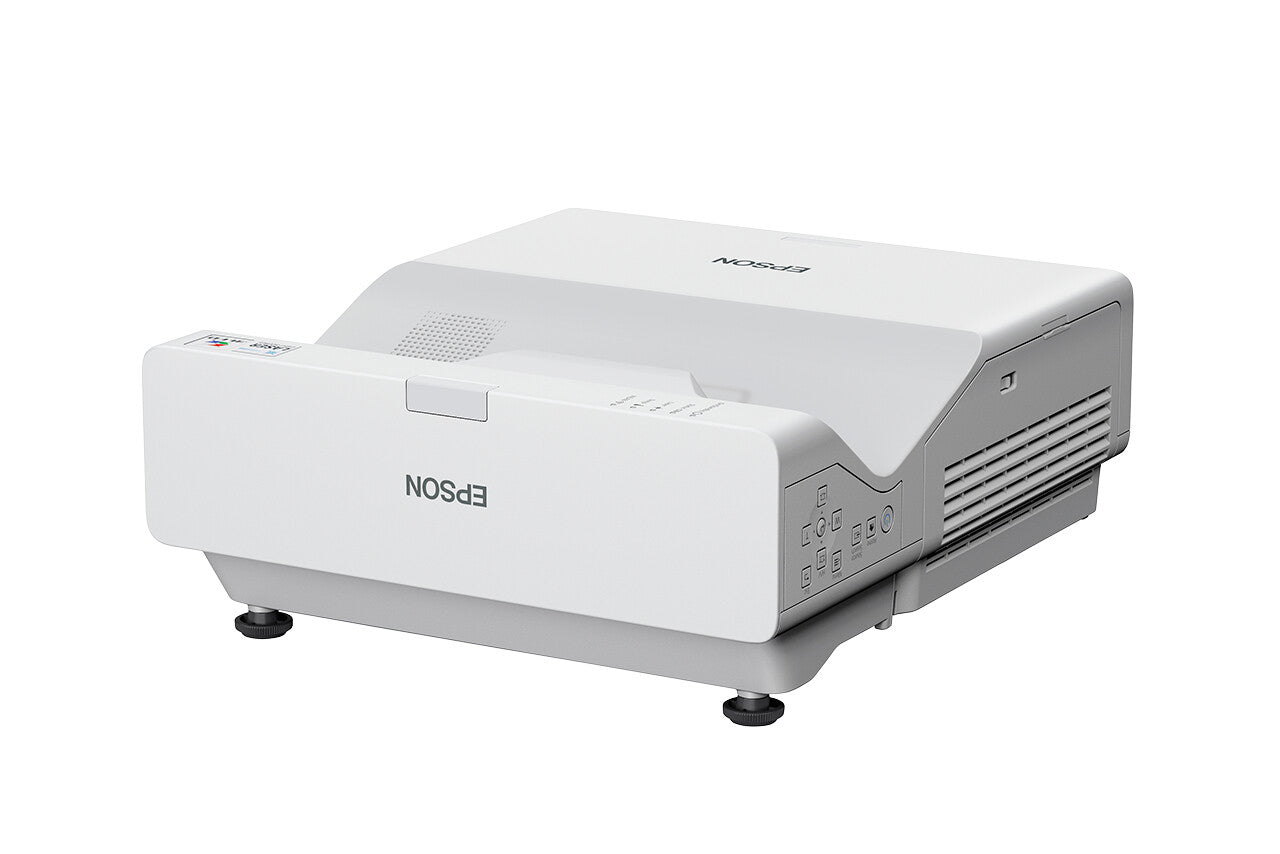

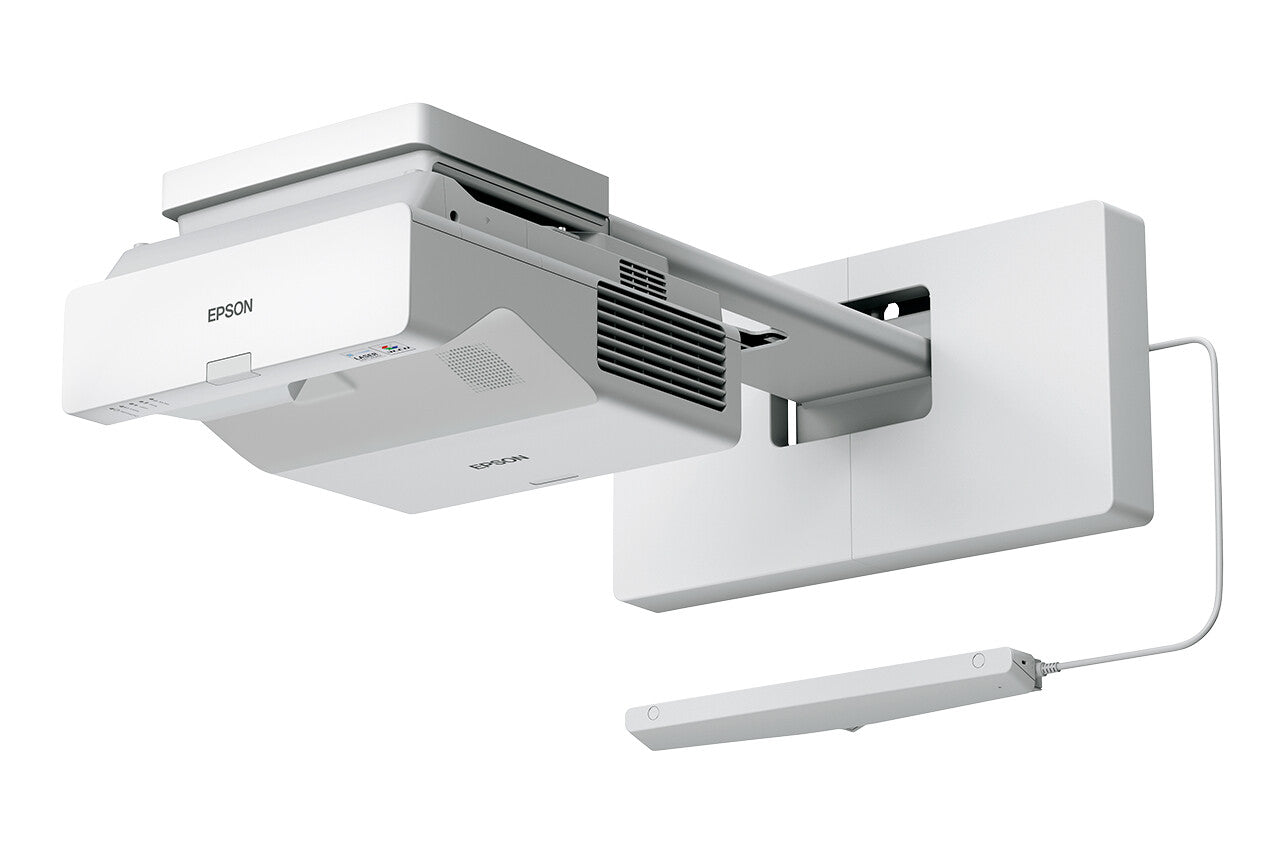

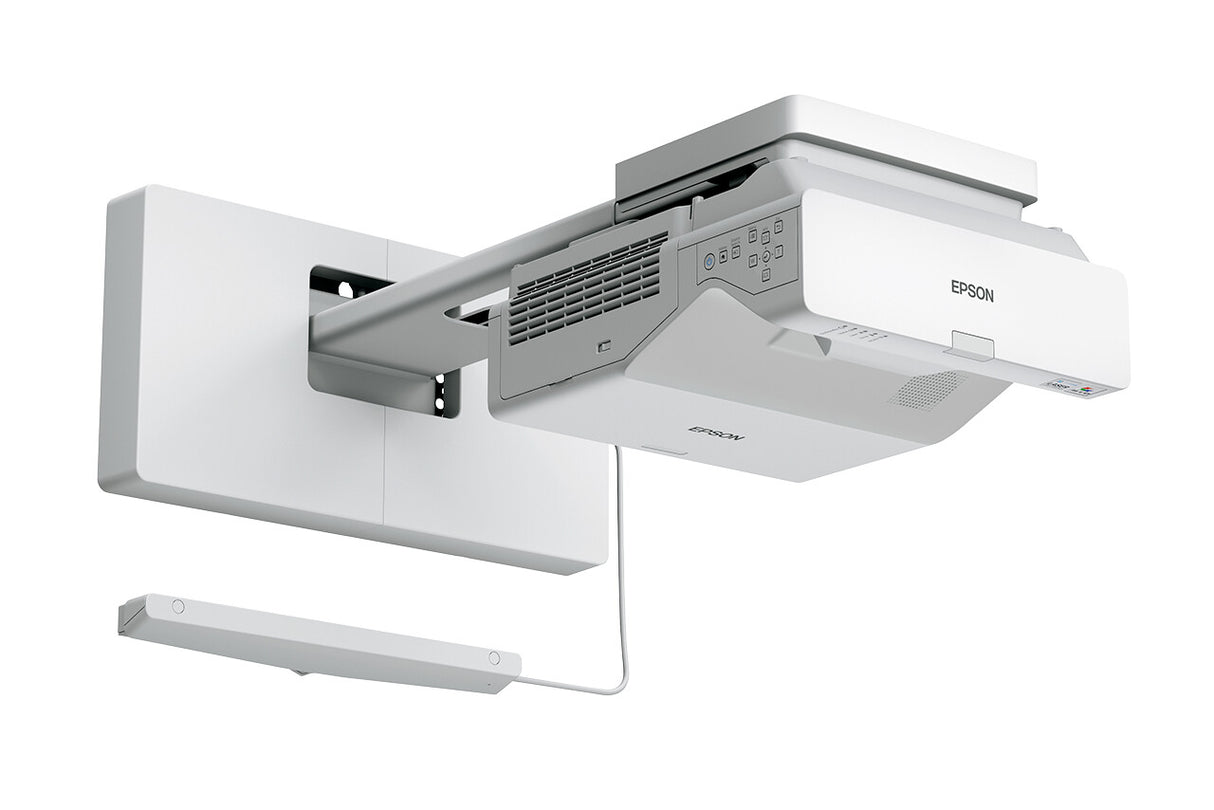

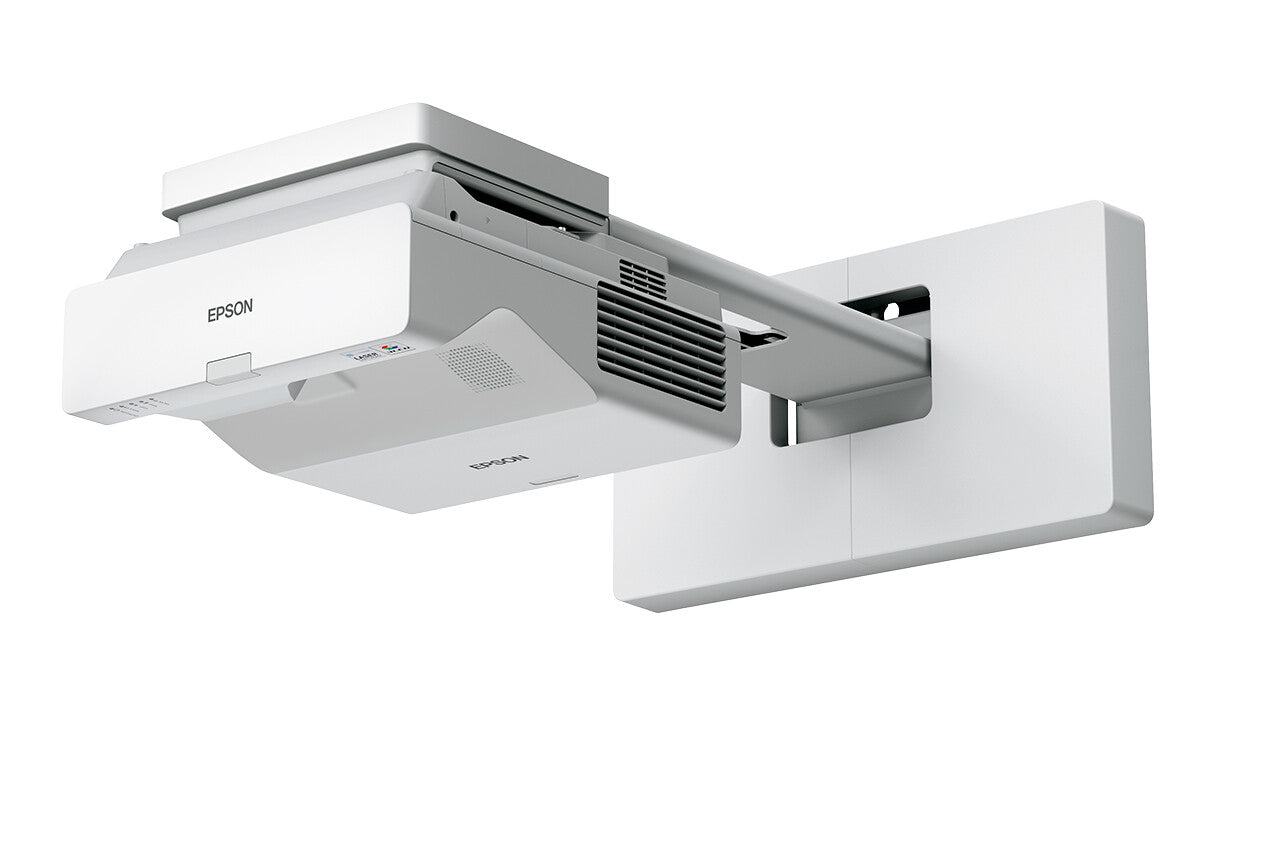

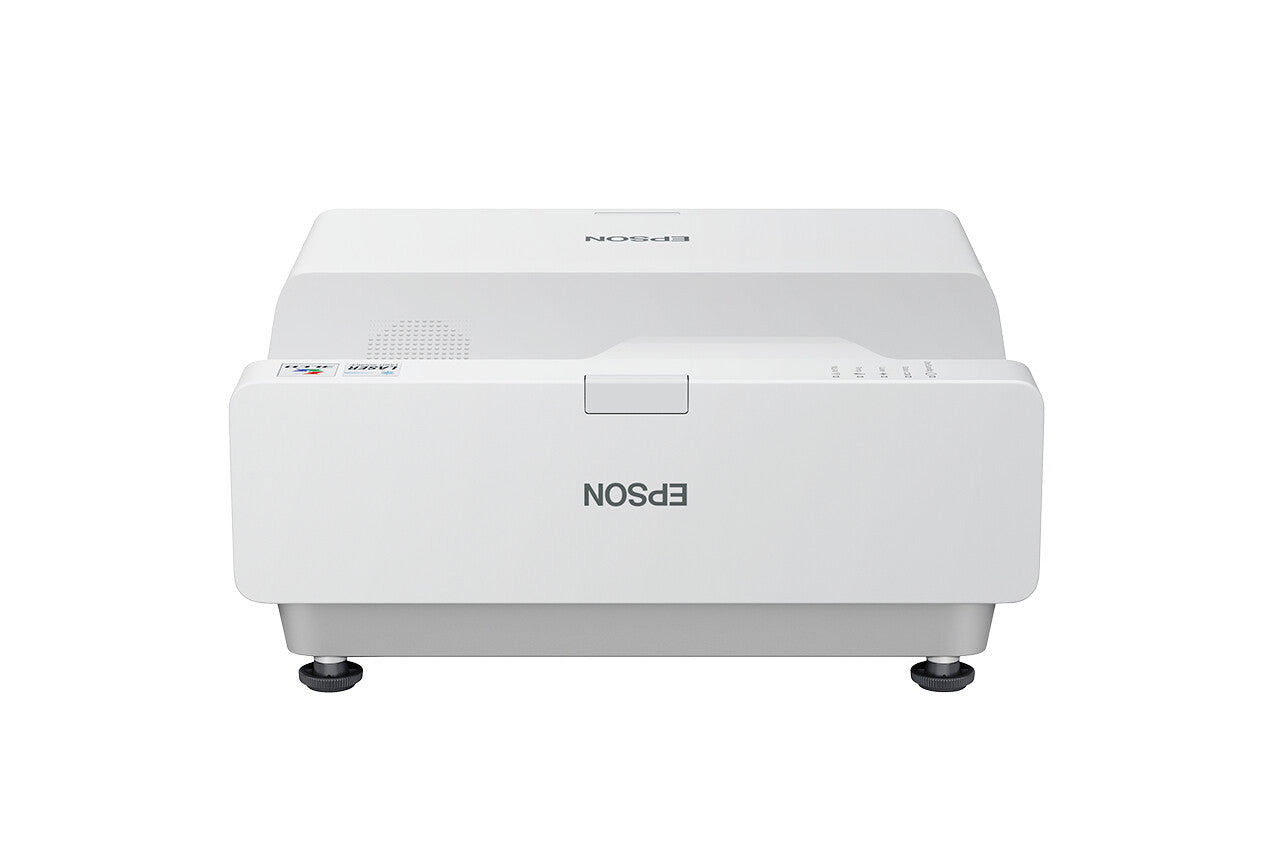

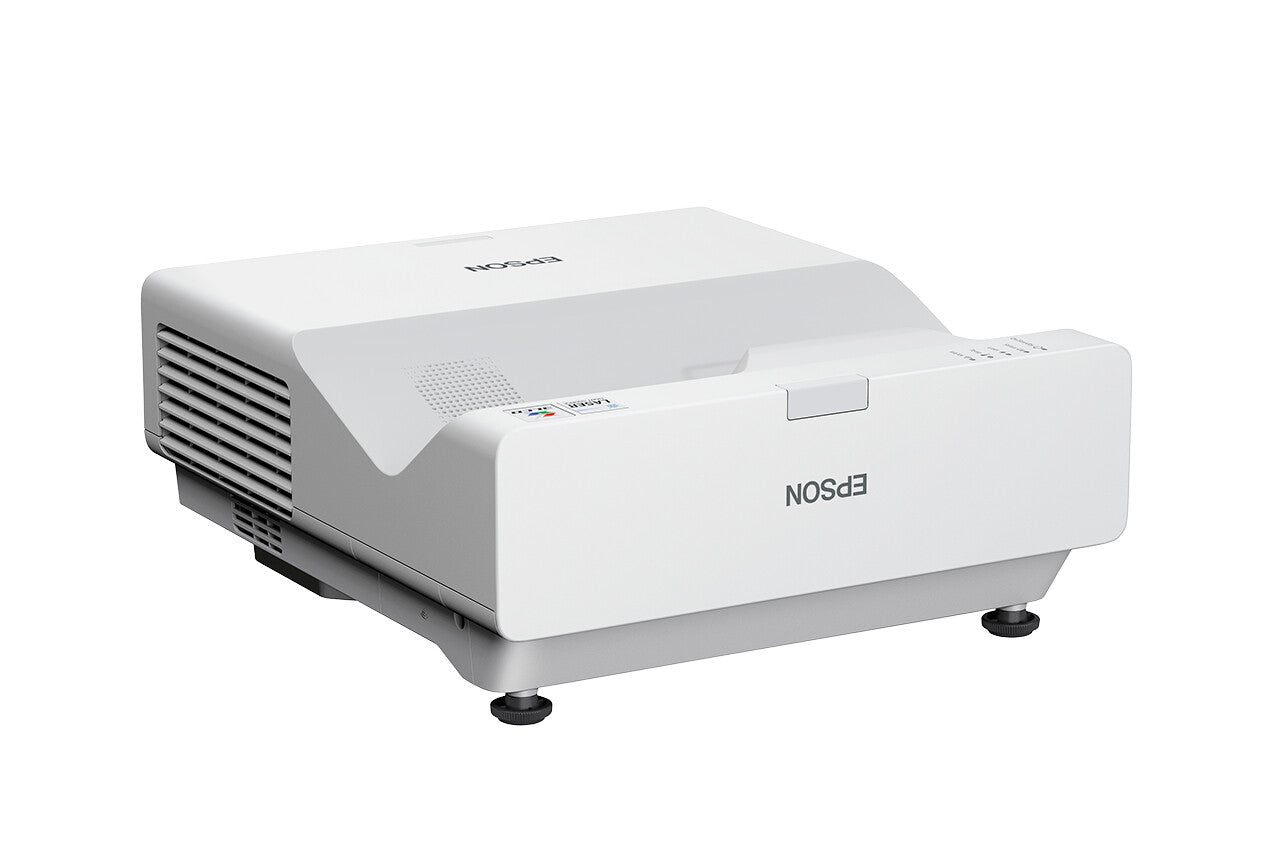

Epson EB-770Fi Ultra short throw projector 4100 ANSI lumens 3LCD 1080p (1920x1080) White
Epson | Varenummer:
V11HA78080
Beskrivelse
Beskrivelse
EB-770Fi
Agile USTi laser display
Project your vision, with a Full HD interactive large screen display up to 100" that will enhance engagement, learning and productivity.

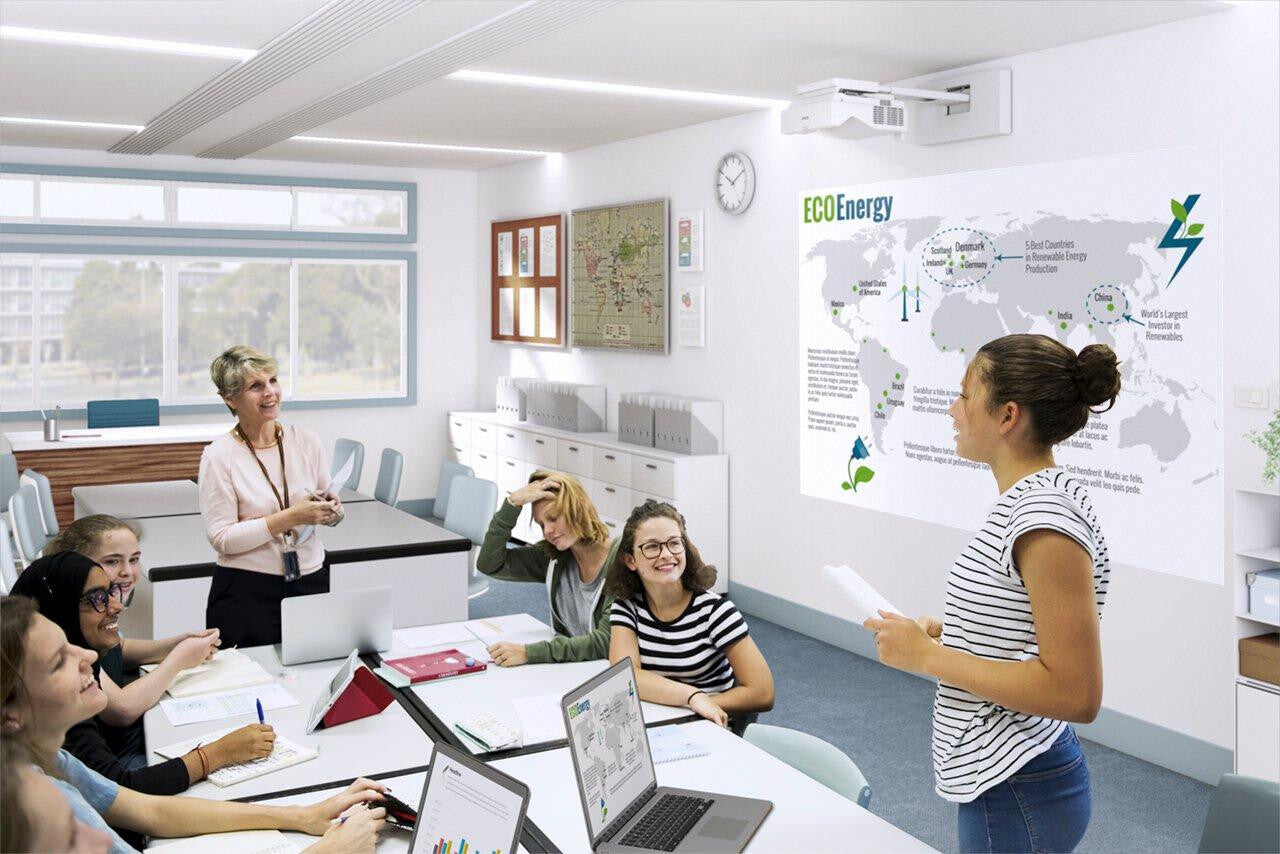

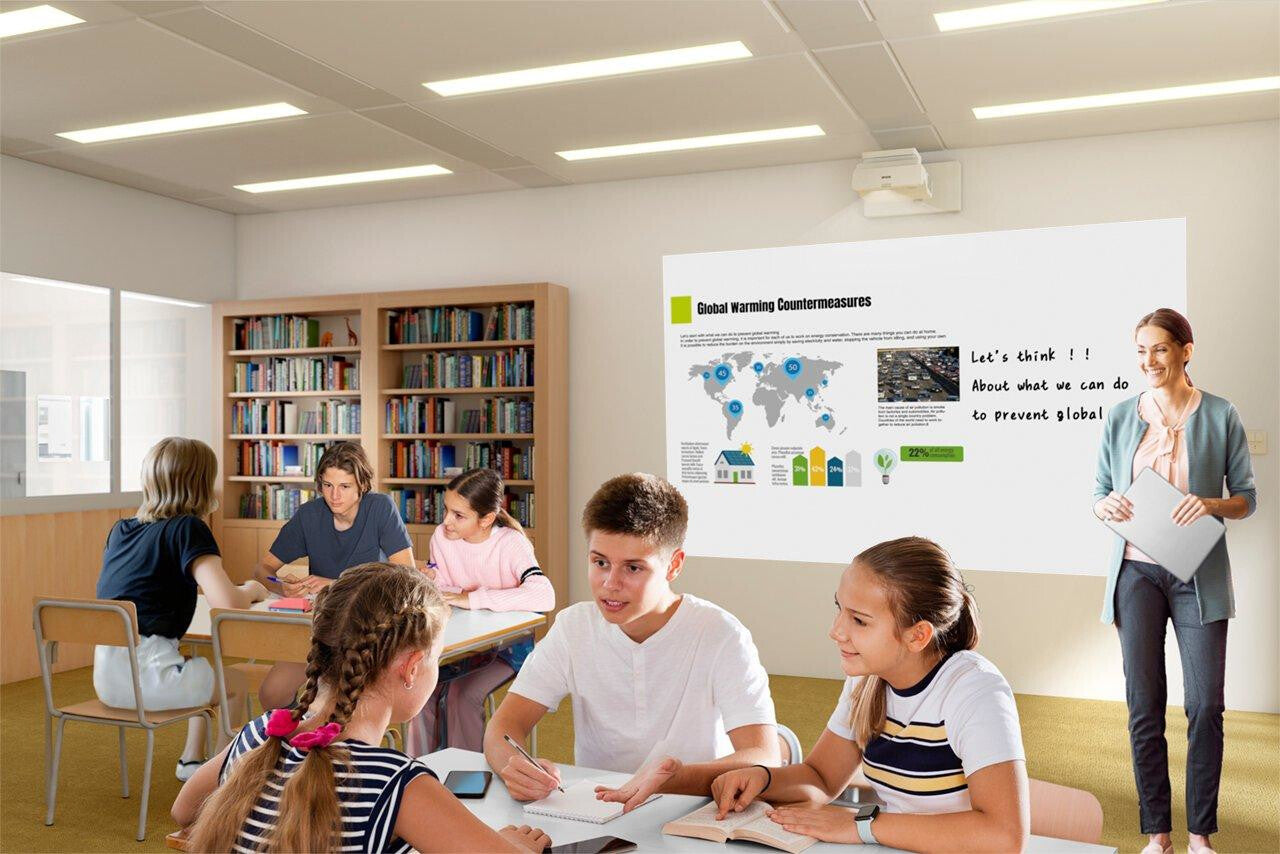

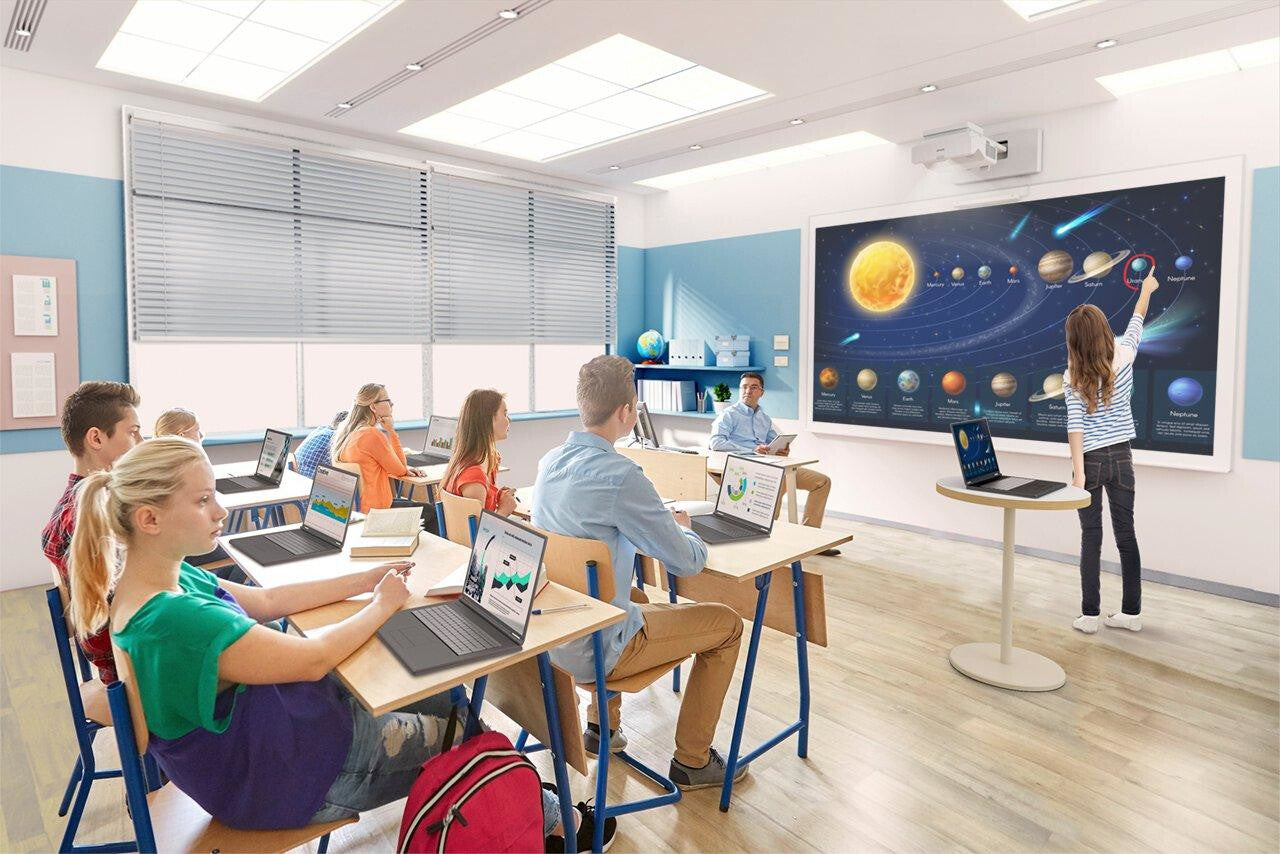

Whatever the size of class or meeting room, unrestricted and interactive learning sessions are possible with this bright, compact and affordable touch-display solution.
The EB-770Fi's bright image, scalable up to 100", is clearly visible from every angle and at a distance, and content can easiliy be shared or streamed directly from multiple devices for the ultimate collaborative experience.
Specifikationer
Specifikationer
| Projector | |
|---|---|
| Heat dissipation | 895 BTU/h |
| Keystone correction, horizontal | -3 - 3° |
| Keystone correction, vertical | -3 - 3° |
| Vertical scan range | 192 - 240 Hz |
| Number of colours | 1.07 billion colours |
| Screen size compatibility | 1524 - 2540 mm (60 - 100") |
| Native aspect ratio | 16:9 |
| Contrast ratio (typical) | 2500000:1 |
| Projector native resolution | 1080p (1920x1080) |
| Projection technology | 3LCD |
| Projector brightness | 4100 ANSI lumens |
| Light source | |
|---|---|
| Service life of light source (economic mode) | 30000 h |
| Service life of light source | 20000 h |
| Light source type | Laser |
| Lens system | |
|---|---|
| Throw ratio | 0.25 - 0.35:1 |
| Zoom ratio | 1.35:1 |
| Zoom capability | Yes |
| F-number (relative aperture) | 1.6 |
| Fixed focal length | 3.7 mm |
| Focus | Manual |
| Video | |
|---|---|
| 3D | No |
| Full HD | Yes |
| Analog signal format system | Not supported |

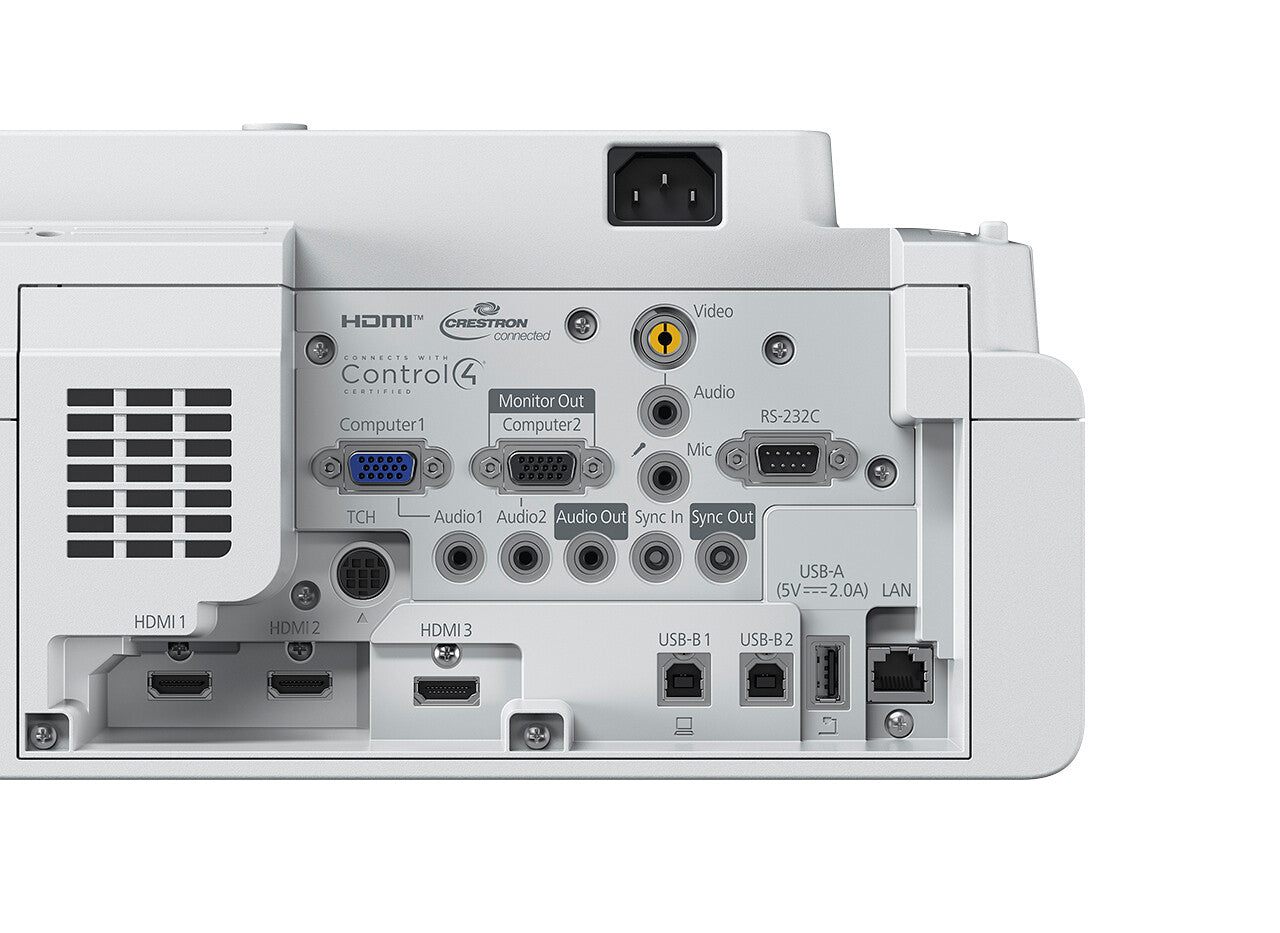

| Ports & interfaces | |
|---|---|
| Serial interface type | RS-232C |
| Microphone in | Yes |
| USB 2.0 Type-B ports quantity | 2 |
| USB 2.0 Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 4 |
| DVI port | No |
| HDMI ports quantity | 3 |
| VGA (D-Sub) ports quantity | 2 |
| Network | |
|---|---|
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN | Yes |
| Storage | |
|---|---|
| Card reader integrated | No |
| Features | |
|---|---|
| Noise level (economic mode) | 27 dB |
| Noise level | 37 dB |
| Interactive input supported | Interactive pen/Touch |
| Interactive | Yes |
| Multimedia | |
|---|---|
| RMS rated power | 16 W |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |

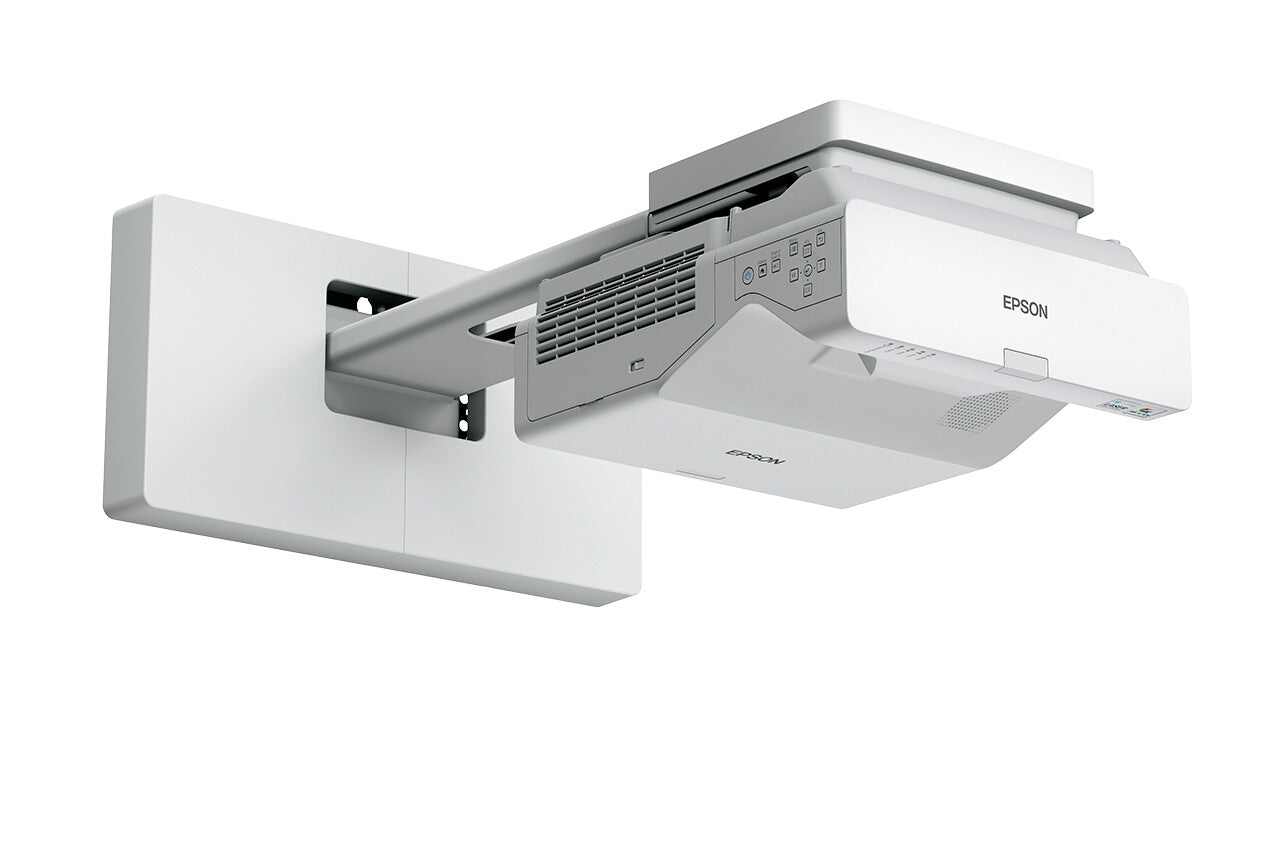

| Placement | Ceiling, Desktop, Wall |
| Product colour | White |
| Market positioning | Presentation |
| Product type | Ultra short throw projector |
| Power | |
|---|---|
| AC adapter output voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (PowerSave) | 199 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 197 W |
| Power source | AC |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 - 90% |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -10 - 60 °C |
| Weight & dimensions | |
|---|---|
| Height | 133 mm |
| Depth | 395 mm |
| Width | 356 mm |
| Weight | 6 kg |
| Packaging content | |
|---|---|
| Cables included | AC, USB |
| Batteries included | Yes |
| Remote control included | Yes |
