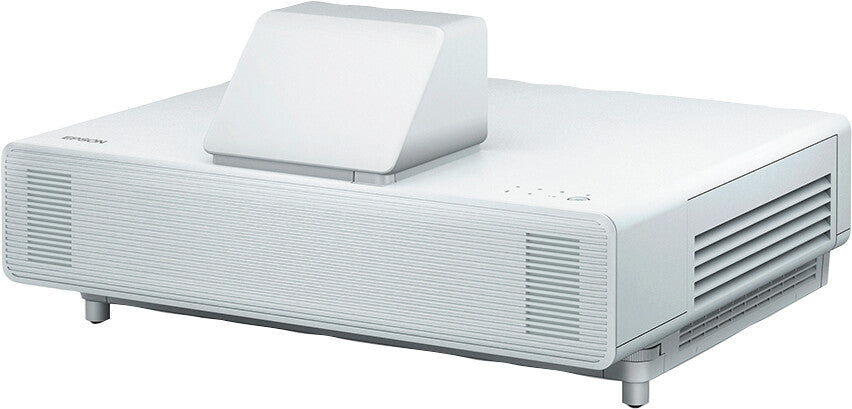

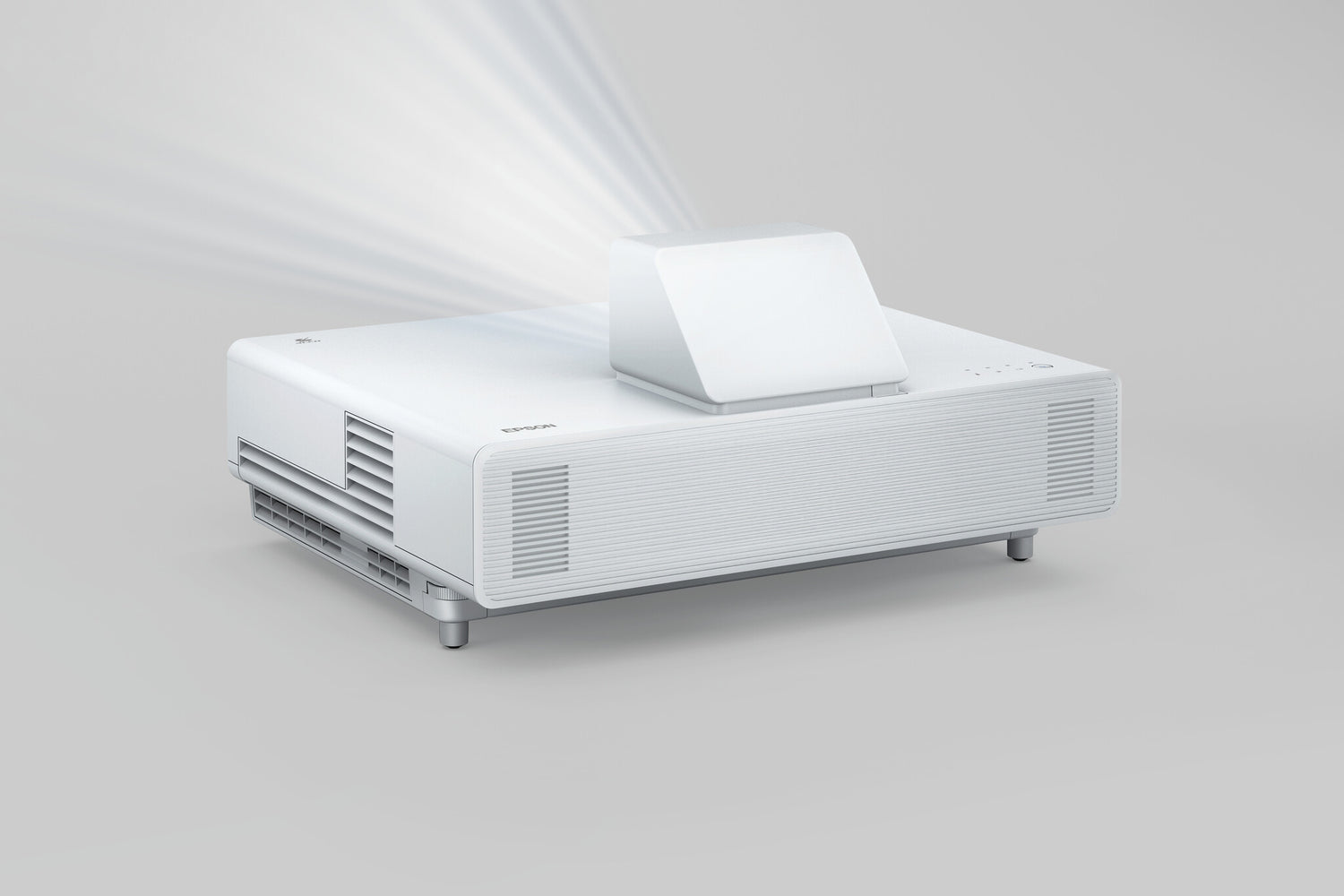

Epson EB-800F Ultra short throw projector 5000 ANSI lumens 3LCD 1080p (1920x1080) White
Epson | Varenummer:
V11H923540
Beskrivelse
Beskrivelse
EB-800F Ultra Short Throw Laser 5.000 Lumens, Full HD, 1920 x 1080, HD-BaseT EB-800F, 5000 ANSI lumens, 3LCD, 1080p (1920x1080),
Specifikationer
Specifikationer
| Projector | |
|---|---|
| Heat dissipation | 1244 BTU/h |
| Keystone correction, horizontal | -3 - 3° |
| Keystone correction, vertical | -3 - 3° |
| Matrix size | 1.57 cm (0.62") |
| Vertical scan range | 192 - 240 Hz |
| Projector brightness (economic mode) | 3500 ANSI lumens |
| Number of colours | 1.07 billion colours |
| Projection distance (tele) | 0 - 0.8 m |
| Projection distance (wide) | 0 - 0.4 m |
| Screen size compatibility | 1651 - 3302 mm (65 - 130") |
| Native aspect ratio | 16:9 |
| Contrast ratio (typical) | 2500000:1 |
| Projector native resolution | 1080p (1920x1080) |
| Projection technology | 3LCD |
| Projector brightness | 5000 ANSI lumens |
| Light source | |
|---|---|
| Service life of light source (economic mode) | 30000 h |
| Service life of light source | 20000 h |
| Light source type | Laser |
| Lens system | |
|---|---|
| Throw ratio | 0.27 - 0.37:1 |
| Zoom ratio | 1.35:1 |
| Zoom type | Auto |
| Zoom capability | Yes |
| Fixed focal length | 3.9 mm |
| Focus | Manual |
| Video | |
|---|---|
| Video processing | 10 bit |
| Video colour modes | Blackboard, Cinema, Dynamic, Presentation, sRGB, DICOM simulation mode, Multi-projection |
| 3D | No |
| Full HD | Yes |

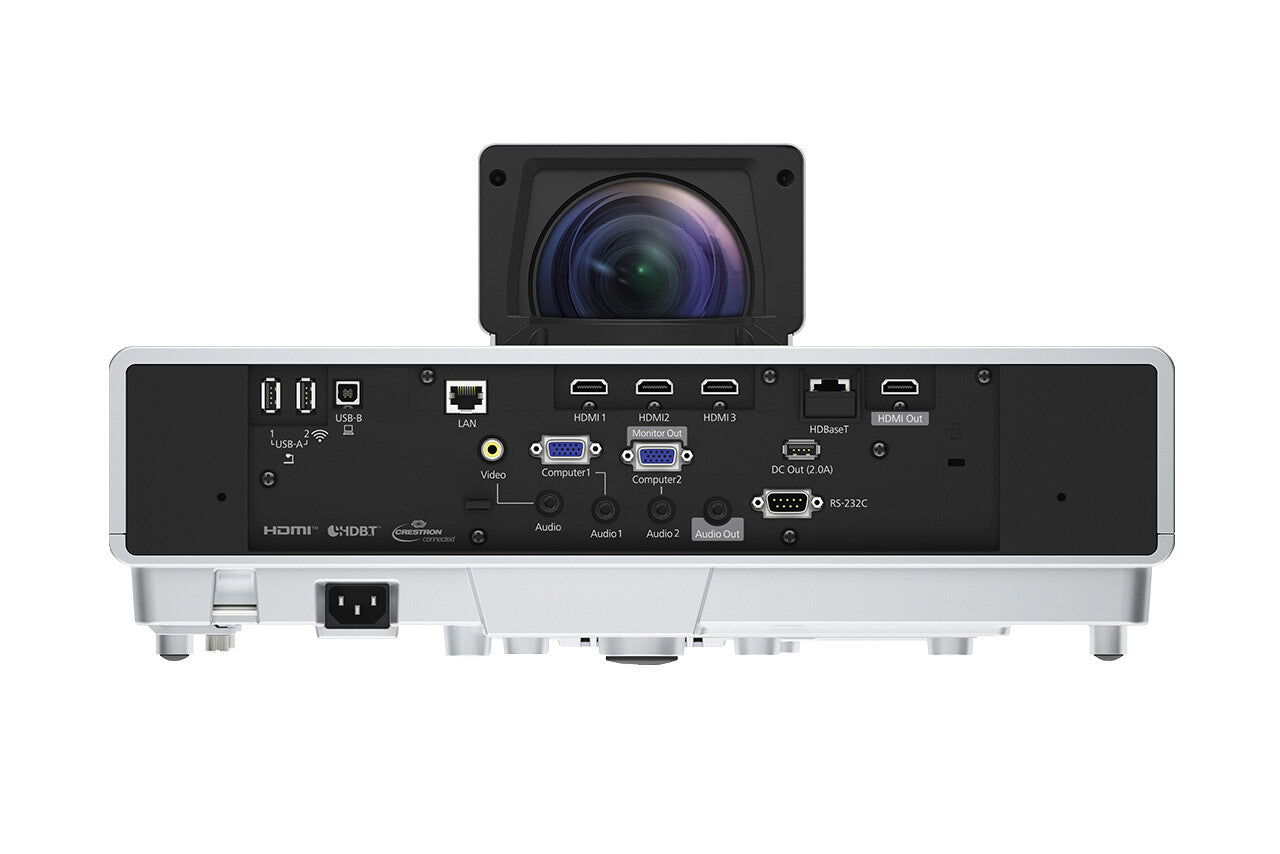

| Ports & interfaces | |
|---|---|
| Serial interface type | RS-232C |
| Audio (L/R) out | 1 |
| Audio (L/R) in | 3 |
| USB 2.0 Type-B ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| HDBaseT port | Yes |
| Composite video in | 1 |
| DVI port | No |
| HDMI ports quantity | 4 |
| VGA (D-Sub) ports quantity | 3 |
| Network | |
|---|---|
| Web browser | Yes |
| Wi-Fi | No |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN | Yes |
| Smart TV | No |
| Storage | |
|---|---|
| Card reader integrated | No |
| Features | |
|---|---|
| Password protection | Yes |
| Country of origin | China |
| Noise level (economic mode) | 27 dB |
| Noise level | 36 dB |
| Multimedia | |
|---|---|
| RMS rated power | 8 W |
| Number of built-in speakers | 2 |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Placement | Ceiling, Desktop, Wall |
| Product colour | White |
| Market positioning | Business |
| Product type | Ultra short throw projector |
| Power | |
|---|---|
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 220-240 V |
| Power consumption (economy mode) | 262 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 366 W |
| Power source | AC |
| Software | |
|---|---|
| Software support | via: Crestron Integrated Partner, Crestron RoomView, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 - 90% |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -10 - 60 °C |
| Weight & dimensions | |
|---|---|
| Package weight | 13.2 kg |
| Package height | 345 mm |
| Package depth | 595 mm |
| Package width | 530 mm |
| Height | 210 mm |
| Depth | 375 mm |
| Width | 458 mm |
| Weight | 9.4 kg |
| Packaging content | |
|---|---|
| Bundled software | Inhalt DIY-App, EasyMP Multi PC Projection, Epson Projektor Content Manager, Epson Projektor Management |
| Packaging content | CD manual, cable cover, lens cap, warranty document |
| Cables included | AC |
| Warranty card | Yes |
| WLAN adapter included | Yes |
| Batteries included | Yes |
| Remote control included | Yes |
| Technical details | |
|---|---|
| Sustainability certificates | TCO |
| Logistics data | |
|---|---|
| Products per pallet | 12 pc(s) |
| Pallet gross weight | 0 g |
| Products per pallet (UK) | 12 pc(s) |
| Pallet weight (UK) | 0 g |
| Harmonized System (HS) code | 85286200 |
| Quantity per pack | 1 pc(s) |
| Other features | |
|---|---|
| Supported network protocols | HTTPS, IPv6, SNMP, ESC/VP.net, PJLink |
