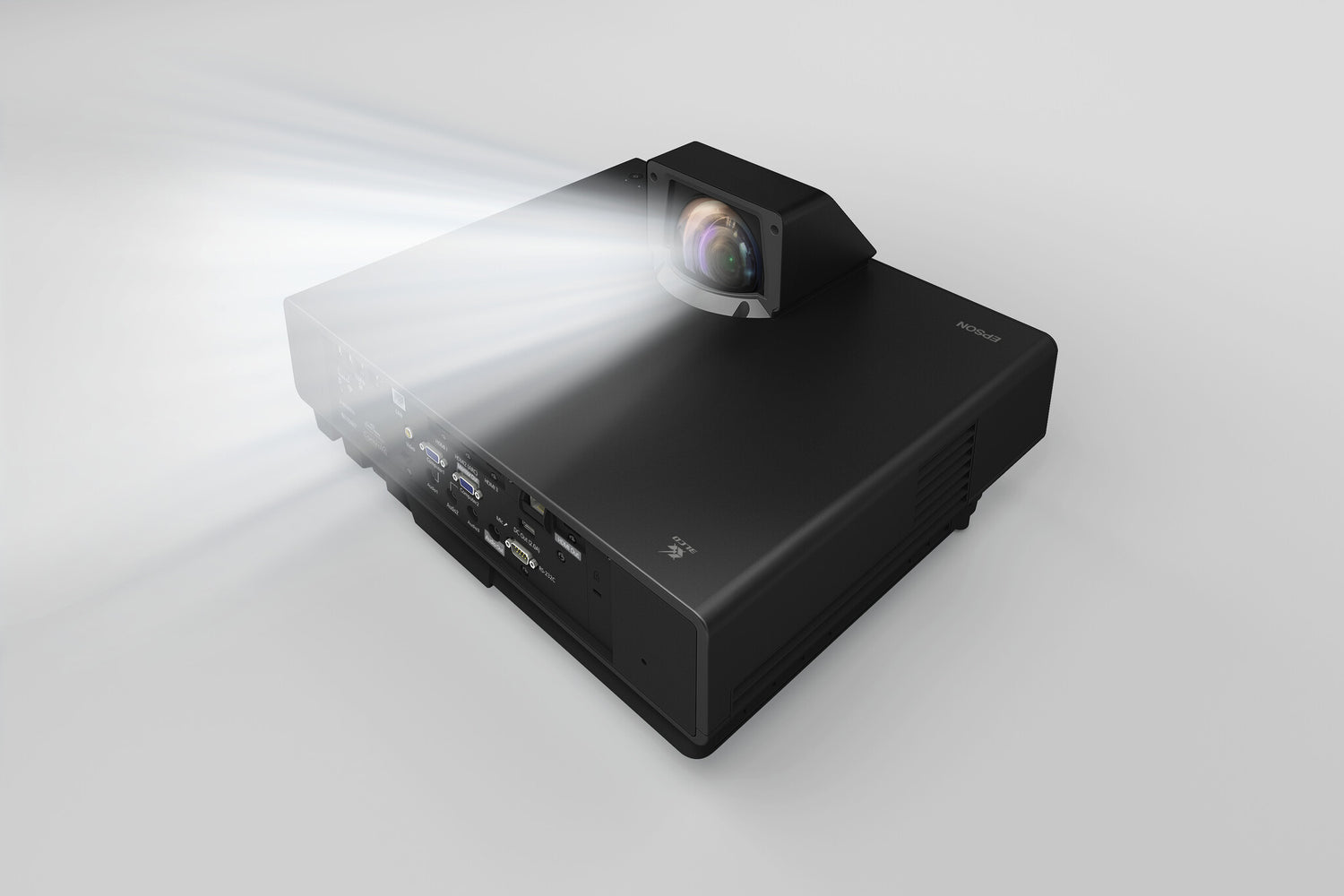

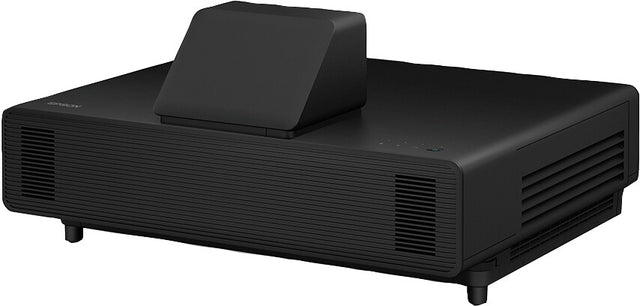

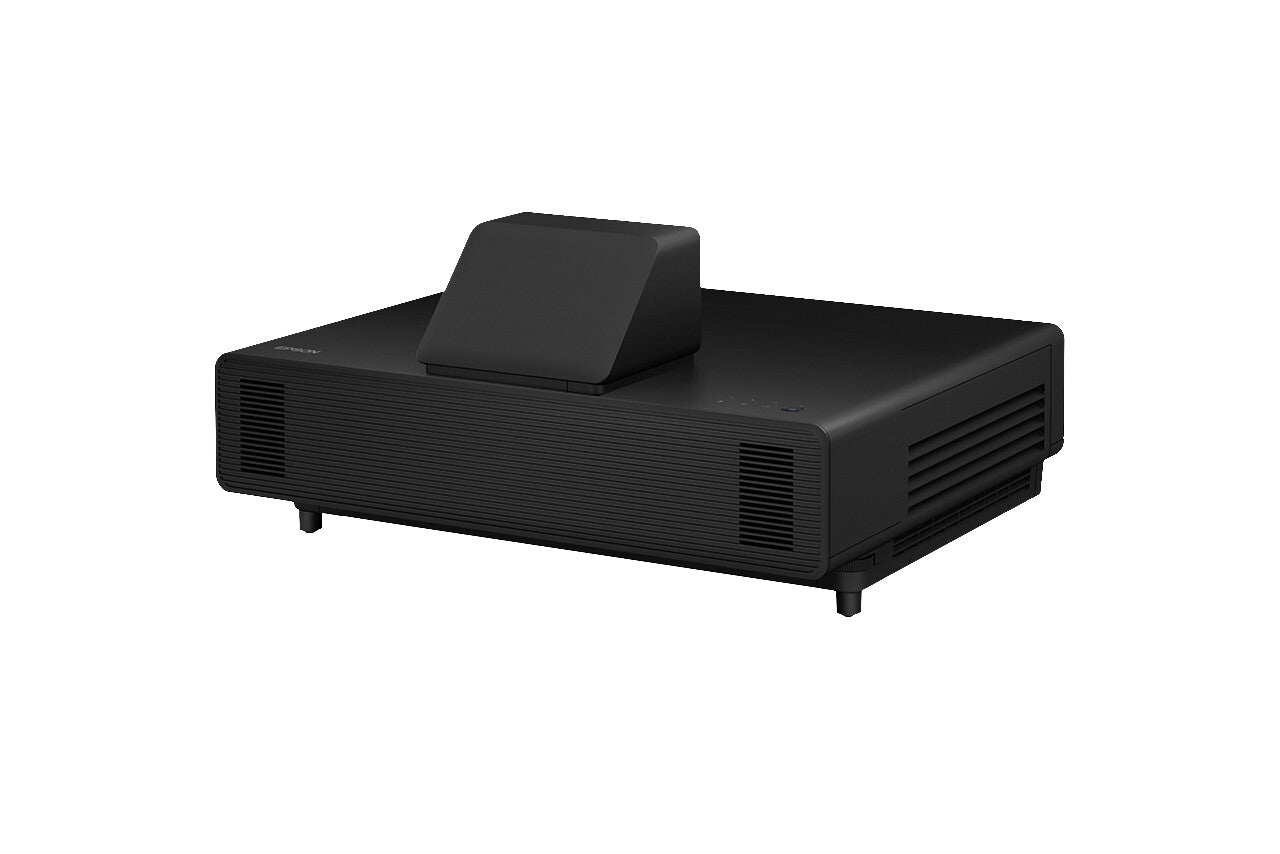

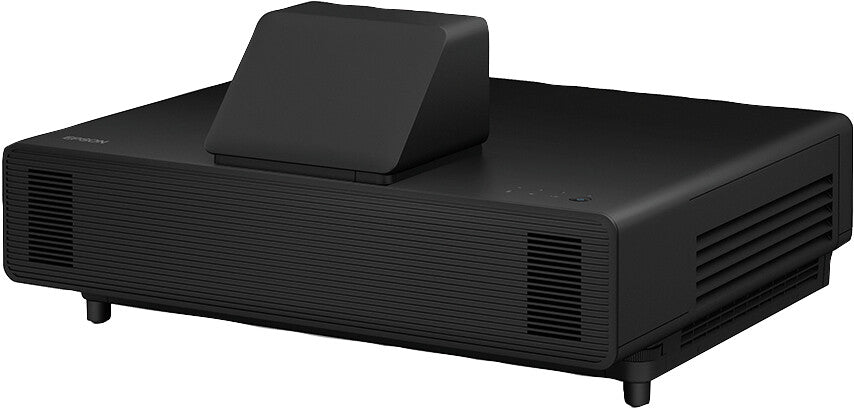

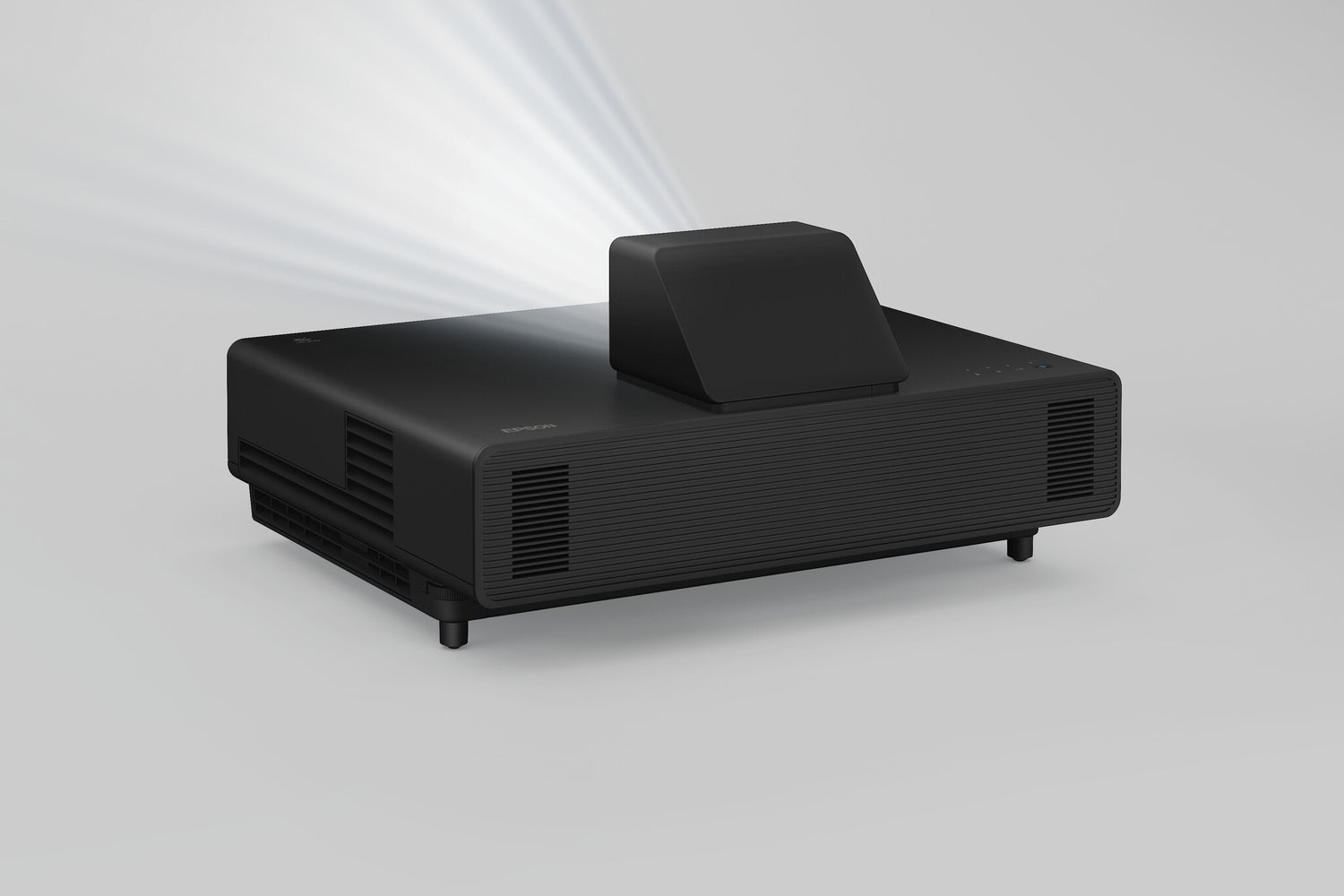

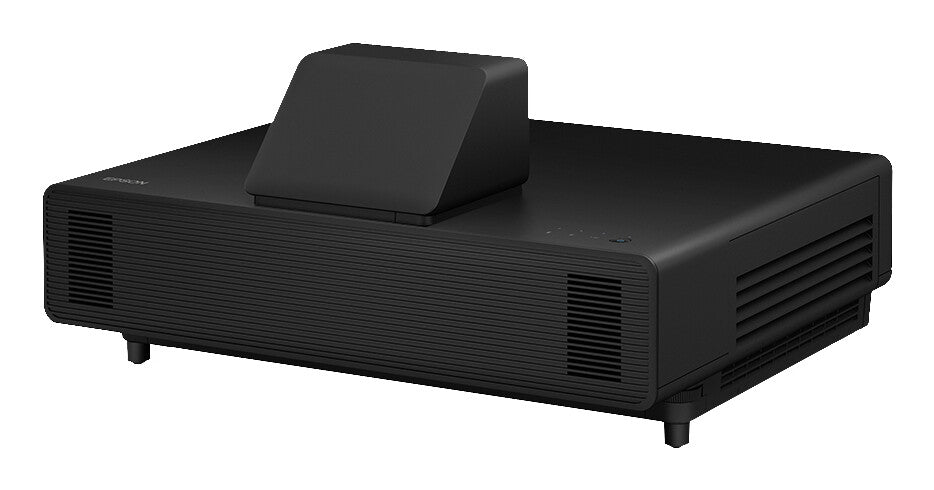

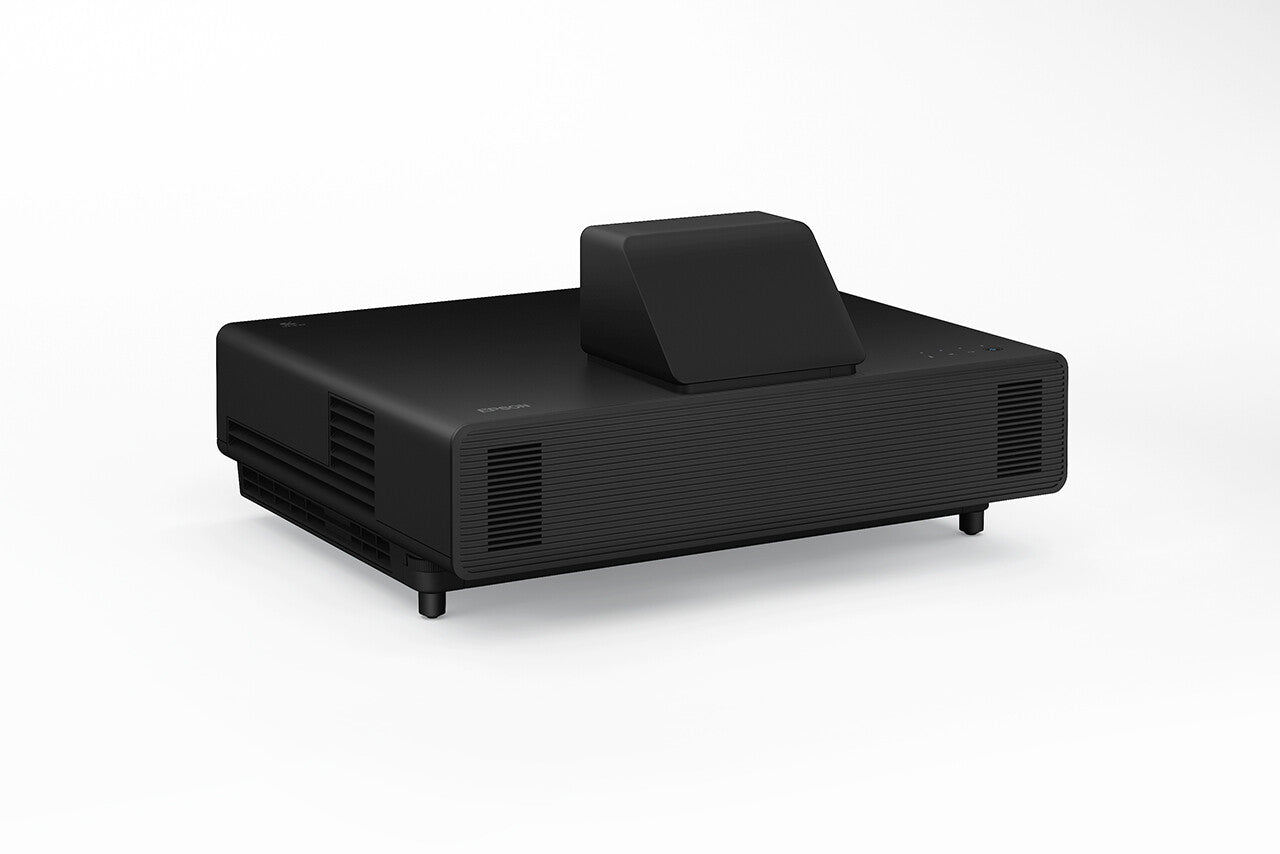

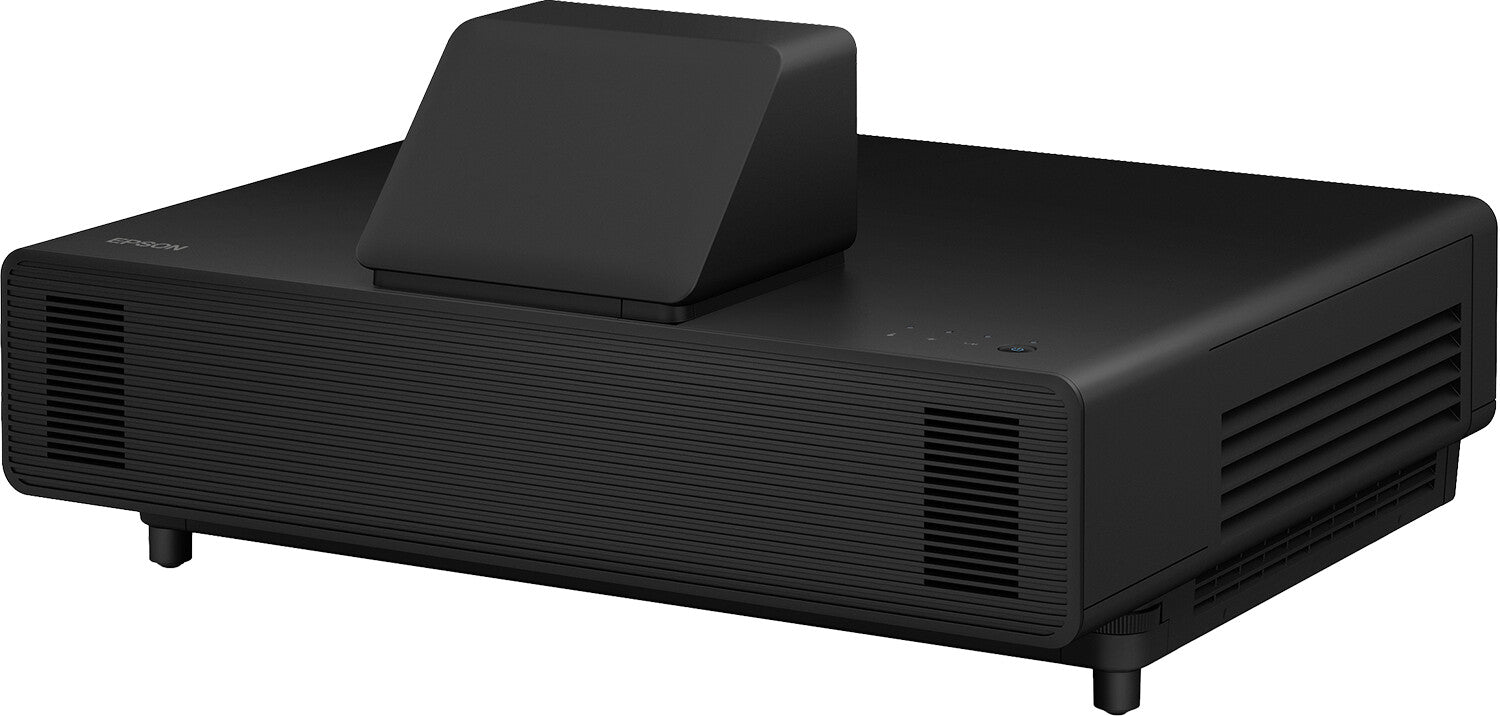

Epson EB-805F Ultra short throw projector 5000 ANSI lumens 3LCD 1080p (1920x1080) Black

Epson  |  Varenummer: V11H923640

Beskrivelse

3LCD, 5000 lm, Full HD, 1080p, 1920 x 1080, 16:9, 2.500.000 : 1, Laser

EB-805F

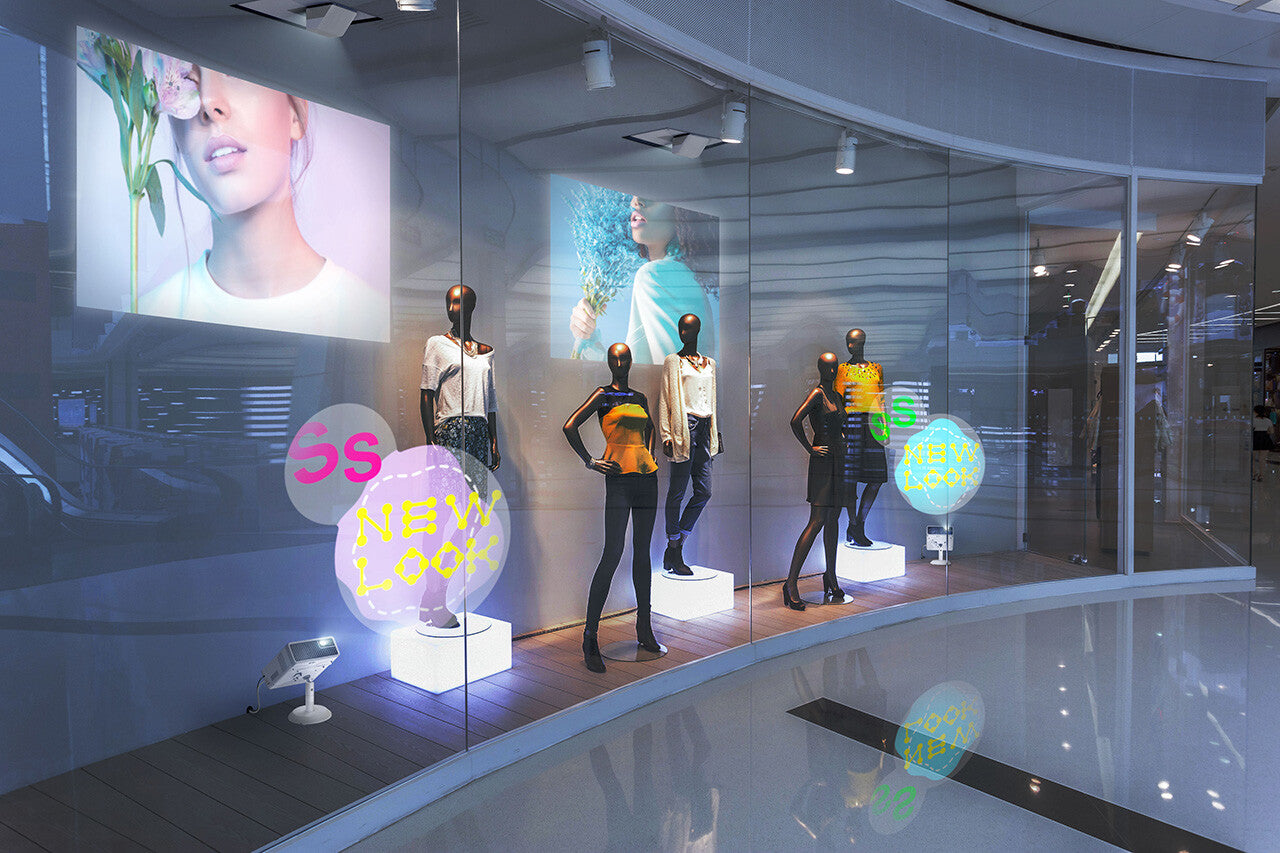

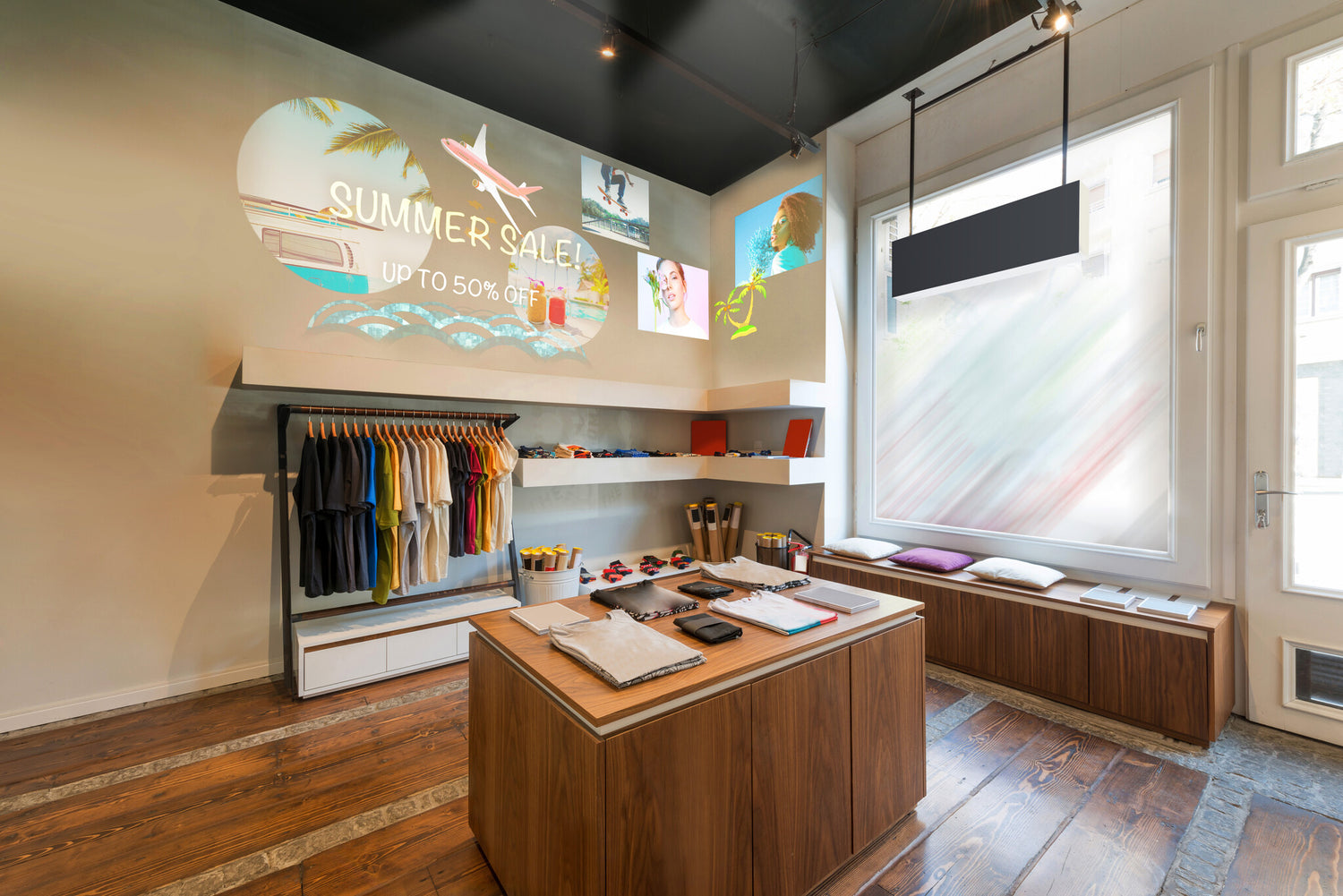

This laser display solution brings informative signage to life and produces scalable projections of up to 130 inches. It brings a fresh dimension to signage with borderless images and projection onto ultra-wide surfaces, including glass and curved walls. The EB-805F features Full HD 1080p image quality and delivers powerful and informative displays for retail, hospitality and visitor attractions.

Innovative and cost effective
Epson's advanced laser technology is robust and reliable, providing a fit-and-forget digital signage solution. It offers bright and vivid colours in a cost-effective solution that's capable of large display sizes.

Large and scalable images
The EB-805F enables scalable display sizes of up to 130 inches, in Full HD resolution with 5,000 lumen brightness and 3LCD technology for bright colours and high display quality even in bright spaces.

Versatile and easy to install
This sleek, stylish and bright display solution offers the flexibility to fulfil the most exacting brief, and the versatility to work in tight spaces. It can be mounted on the wall, ceiling, floor, or even hidden away to create added mystery. Its ultra-short-throw design enables projection of large images from a short distance. A white version is also available.

Flexible playback options
Content can be played directly from a USB stick, including: playlists, videos, and signage content using the built-in content playback feature and Epson Projector Content Manager software. Users can benefit from multi-projector and daisy-chain support for built-in edge blending, or illuminate an entire wall with one huge image. Also, the split screen feature allows users to connect multiple input sources to display different content sources simultaneously.

Specifikationer

Projector
Heat dissipation 1244 BTU/h
White light output 5000 ANSI lumens
Colour light output 5000 ANSI lumens
Keystone correction, horizontal -3 - 3°
Keystone correction, vertical -3 - 3°
Matrix size 1.57 cm (0.62")
Vertical scan range 192 - 240 Hz
Projector brightness (economic mode) 3500 ANSI lumens
Number of colours 1.07 billion colours
Projection distance (tele) 0 - 0.8 m
Projection distance (wide) 0 - 0.4 m
Screen size compatibility 1651 - 3302 mm (65 - 130")
Native aspect ratio 16:9
Contrast ratio (typical) 2500000:1
Projector native resolution 1080p (1920x1080)
Projection technology 3LCD
Projector brightness 5000 ANSI lumens
Light source
Service life of light source (economic mode) 30000 h
Service life of light source 20000 h
Light source type Laser
Lens system
Throw ratio 0.27 - 0.37:1
Zoom ratio 1.35:1
Zoom type Auto
Fixed focal length 3.9 mm
Focus Manual
Video
Video processing 10 bit
Video colour modes Blackboard, Cinema, Dynamic, Presentation, sRGB, DICOM simulation mode, Multi-projection
Full HD Yes

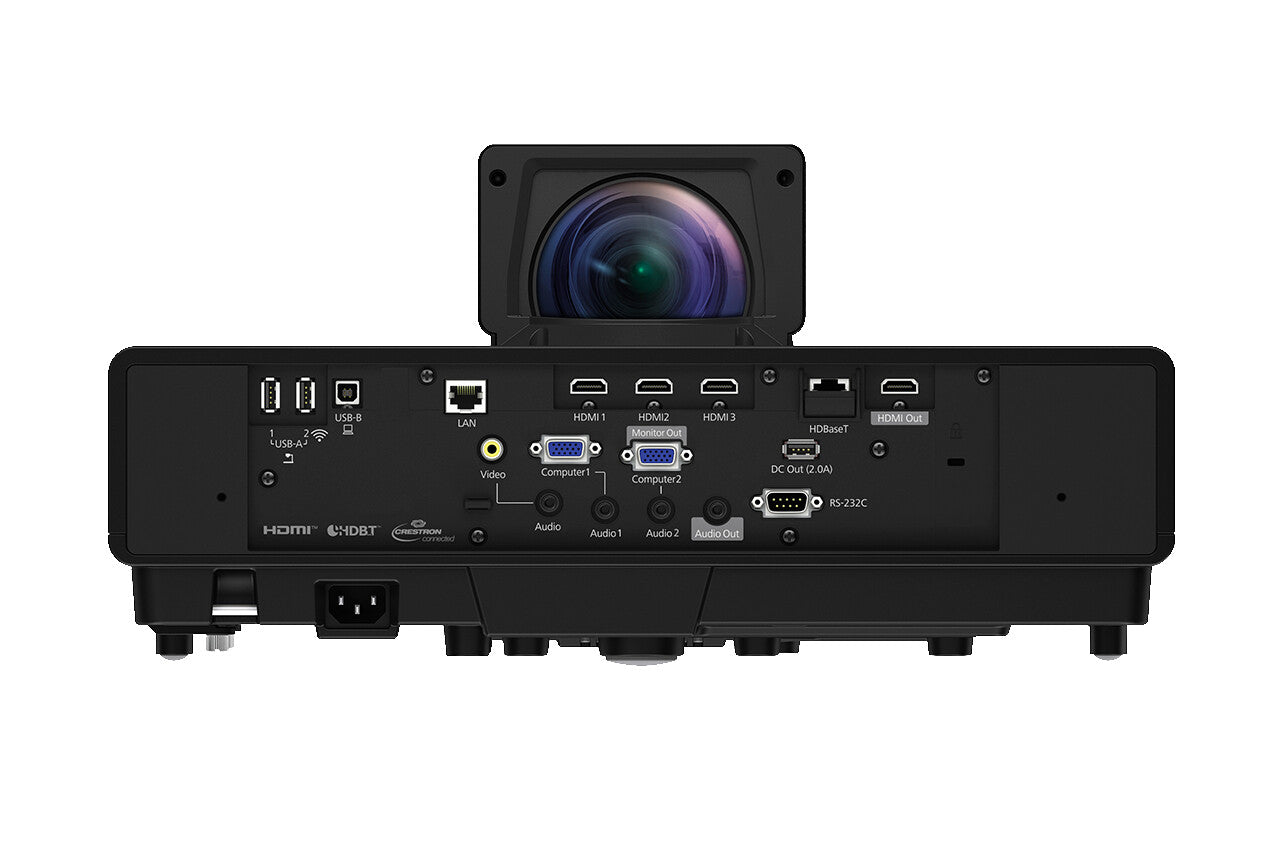

Ports & interfaces
Serial interface type RS-232C
Audio (L/R) out 1
Audio (L/R) in 3
USB 2.0 Type-B ports quantity 1
USB 2.0 ports quantity 2
HDMI connector type Full-size
HDMI ports quantity 4
VGA (D-Sub) ports quantity 2
Network
Ethernet LAN (RJ-45) ports 1
Ethernet LAN Yes
Features
Password protection Yes
Country of origin China
Noise level (economic mode) 27 dB
Noise level 36 dB
Multimedia
RMS rated power 8 W
Built-in speaker(s) Yes
Design
Cable lock slot type Kensington
Cable lock slot Yes
Placement Ceiling, Desktop, Wall
Product colour Black
Product type Ultra short throw projector
Power
AC input frequency 50 - 60 Hz
AC input voltage 220-240 V
Power consumption (economy mode) 262 W
Power consumption (standby) 0.5 W
Power consumption (typical) 366 W
Power source AC
Software
Software support via: Crestron Integrated Partner, Crestron RoomView, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol
Operational conditions
Storage relative humidity (H-H) 10 - 90%
Operating relative humidity (H-H) 20 - 80%
Storage temperature (T-T) -10 - 60 °C
Weight & dimensions
Package weight 13.2 kg
Package height 350 mm
Package depth 595 mm
Package width 535 mm
Height 210 mm
Depth 375 mm
Width 458 mm
Weight 9.4 kg
Packaging content
Bundled software Inhalt DIY-App, EasyMP Multi PC Projection, Epson Projektor Content Manager, Epson Projektor Management
Cables included AC
Warranty card Yes
WLAN adapter included Yes
Batteries included Yes
Remote control included Yes
Technical details
Sustainability certificates TCO
Logistics data
Products per pallet 12 pc(s)
Pallet gross weight 0 g
Products per pallet (UK) 12 pc(s)
Pallet weight (UK) 0 g
Harmonized System (HS) code 85286200
Quantity per pack 1 pc(s)
Other features
Supported network protocols HTTPS, IPv6, SNMP, ESC/VP.net, PJLink
