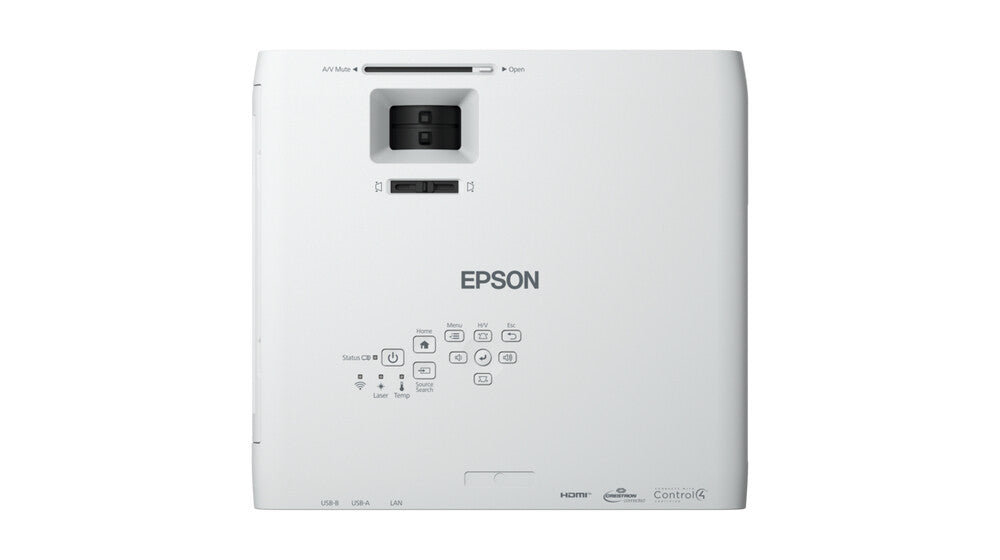

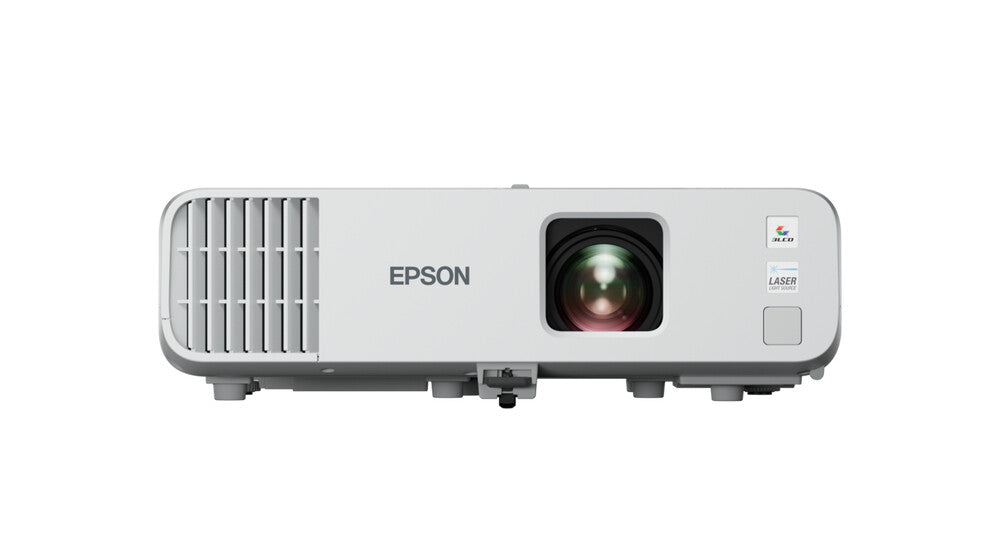

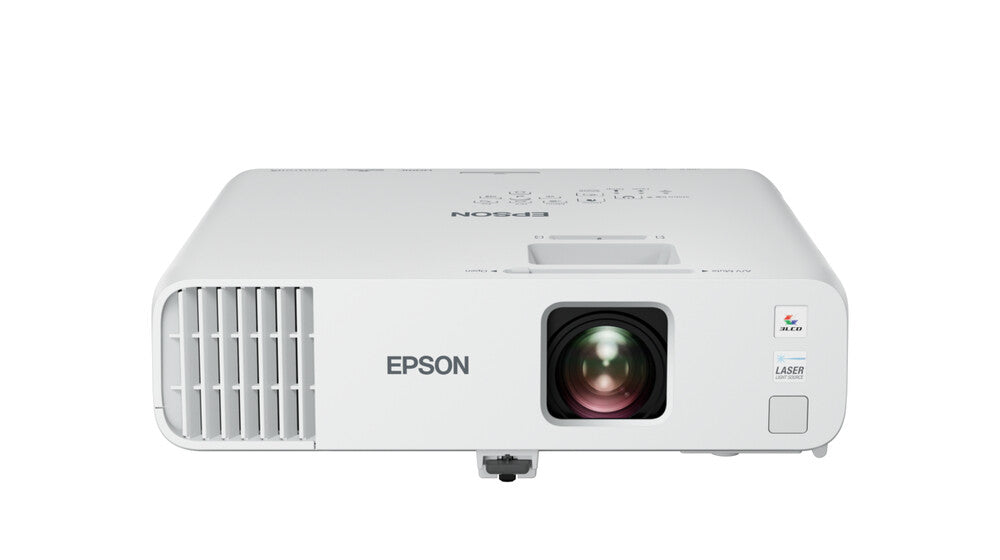

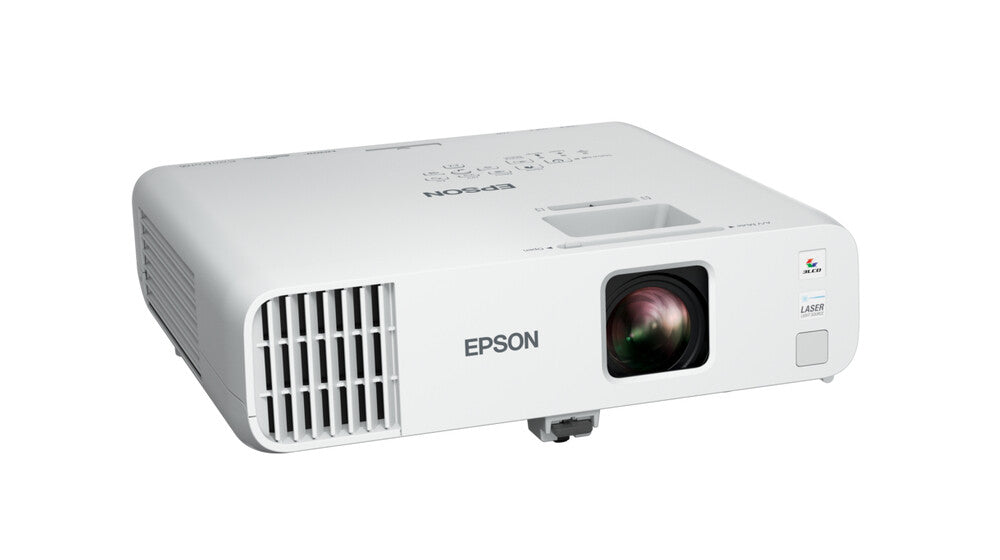

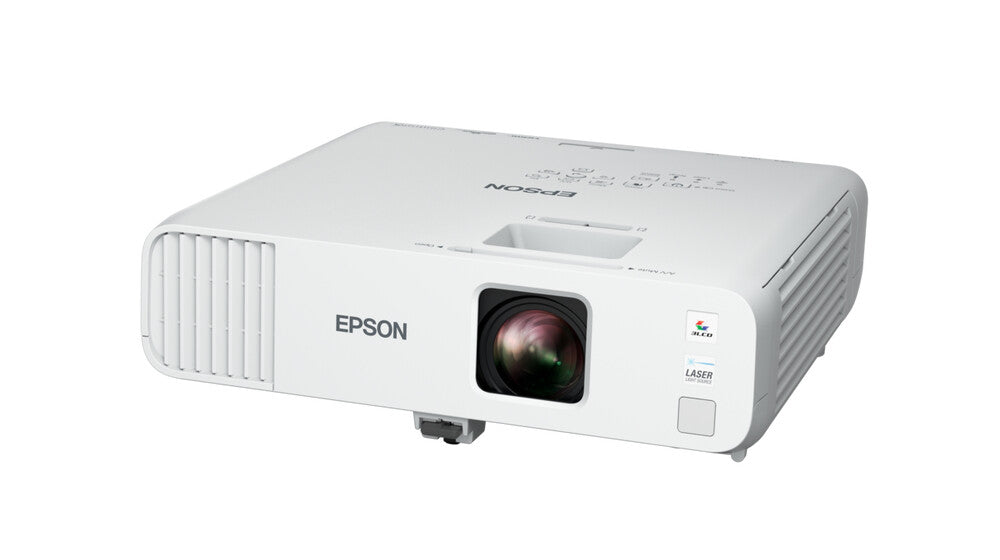

Epson EB-L260F
Epson | Varenummer:
V11HA69080
Beskrivelse
Beskrivelse
4600 - 3200 Lumen, 1080p, 16:9, 2500000:1, 10 Bits, 192 Hz - 240 Hz, 260W, AC 220-240 V, 50-60 Hz
Wireless laser projector
Combined with advance features, the EB-L260F is an entry-level Full HD wireless laser projector the ideal solution for any working environment. It offers 4,600 lumens brightness, a range of wireless and wired connectivity and the ability to have a scalable display size of up to 310 inches.
Specifikationer
Specifikationer
| Projector | |
|---|---|
| Projector brightness | 4600 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 2500000:1 |
| Native aspect ratio | 16:9 |
| Screen size compatibility | 787.4 - 7874 mm (31 - 310") |
| Projection distance (wide) | 0.9 - 9.1 m |
| Contrast ratio (dynamic) | 5000000:1 |
| Number of colours | 1.07 billion colours |
| Projector brightness (economic mode) | 3200 ANSI lumens |
| Vertical scan range | 192 - 240 Hz |
| Keystone correction, vertical | ±30° |
| Keystone correction, horizontal | ±30° |
| Heat dissipation | 884 BTU/h |
| Light source | |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
| Lens system | |
|---|---|
| Focus | Manual |
| Focal length range | 18.2 - 29.1 mm |
| Aperture range (F-F) | 1.51 - 1.77 |
| Zoom capability | Yes |
| Zoom type | Manual |
| Zoom ratio | 1:1.62 |
| Throw ratio | 1.32 - 2.12:1 |
| Offset | 1000% |
| Video | |
|---|---|
| Full HD | Yes |
| Video processing | 10 bit |
| Video colour modes | Blackboard, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Presentation, sRGB |

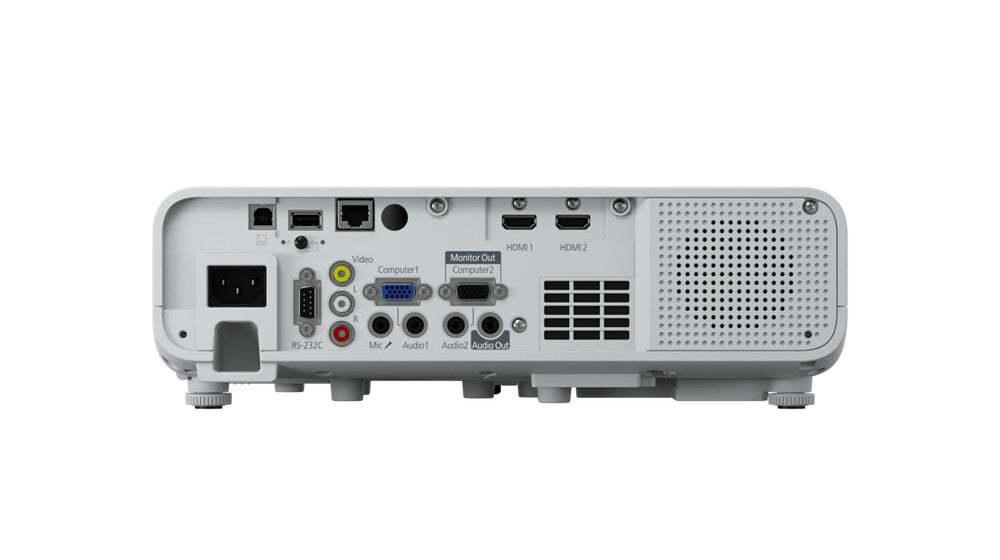

| Ports & interfaces | |
|---|---|
| VGA (D-Sub) ports quantity | 3 |
| HDMI ports quantity | 2 |
| Composite video in | 1 |
| USB 2.0 ports quantity | 2 |
| USB 2.0 Type-A ports quantity | 1 |
| Audio (L/R) in | 2 |
| Audio (L/R) out | 1 |
| Microphone in | Yes |
| Serial interface type | RS-232C |
| AC (power) in | Yes |
| Audio Return Channel (ARC) | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Miracast | Yes |
| Features | |
|---|---|
| Noise level | 37 dB |
| Noise level (economic mode) | 27 dB |
| HDCP | Yes |
| Projection modes | Ceiling, Front |
| On Screen Display (OSD) | Yes |
| Screen mirroring | Yes |
| Country of origin | Philippines |

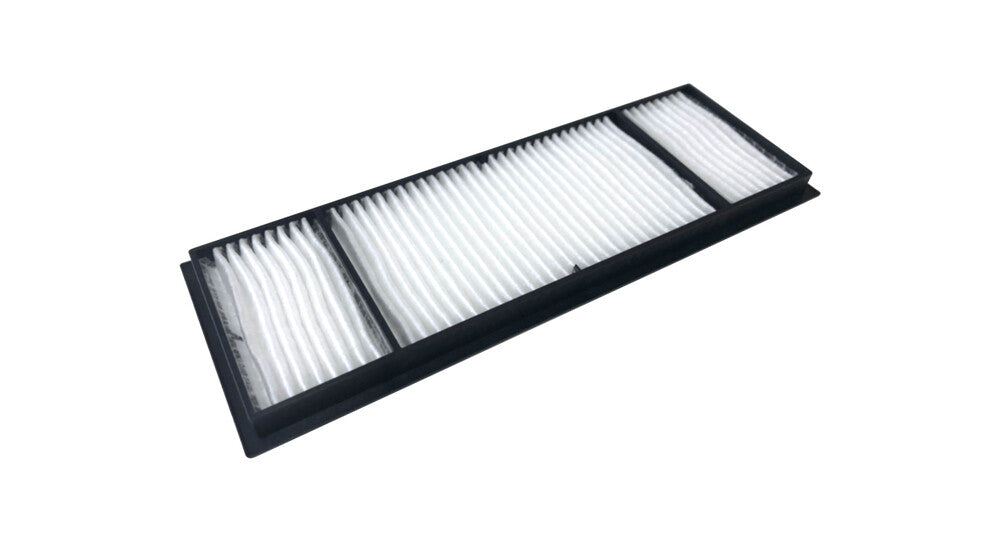

| Air filter | Yes |
| Password protection | Yes |
| Multimedia | |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 16 W |
| Design | |
|---|---|
| Product type | Standard throw projector |
| Product colour | White |
| Placement | Ceiling, Desktop, Floor, Wall |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Power | |
|---|---|
| Power source | AC |
| Power consumption (typical) | 199 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 260 W |
| Power consumption (economy mode) | 144 W |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Weight | 4.15 kg |
| Width | 325 mm |
| Depth | 299 mm |
| Height | 90 mm |
| Package width | 380 mm |
| Package depth | 495 mm |
| Package height | 190 mm |
| Package weight | 5.93 kg |
| Packaging content | |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | HDMI, Power |
| Bundled software | Epson Creative Projection, EasyMP Multi PC Projection, Epson Projector Content Manager, Epson Projector Management |
| Technical details | |
|---|---|
| Mobile app support | Yes |
| Other features | AV Mute Slide, Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Customizable user logo, Direct Power on/off, Document Camera Compatible, Edge Blending, Home Screen, Horizontal and vertical keystone correction, Long light source life, OSD copy function, PC Free, Quick Corner, Schedule Function, Screen Mirroring, Screen share, Split-Screen-Function, Super resolution, Web Control, Wireless LAN capable, iProjection App |
| Logistics data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Pallet height (UK) | 2.24 m |
| Pallet length (UK) | 120 cm |
| Products per pallet layer (UK) | 6 pc(s) |
| Products per pallet layer | 4 pc(s) |
| Pallet gross height | 2.24 m |
| Pallet gross width | 80 cm |
| Pallet gross length | 120 cm |
| Products per pallet (UK) | 66 pc(s) |
| Products per pallet | 44 pc(s) |
| Other features | |
|---|---|
| Interface | USB 2.0-A, USB 2.0, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wi-Fi Direct, VGA in (2x), VGA out, Composite in, Miracast, Jack plug out, Jack plug in (2x), Cinch audio out, Microphone input, HDMI (HDCP 2.2) (2x), Wireless LAN IEEE 802.11a/b/g/n/ac |
| Security features | Kensington lock, Security bar, Control panel lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection |
| Supported network protocols | HTTPS, IPv6, SNMP, ESC/VP.net, PJLink |
| Option type | Air filter, Ceiling mount, Connection and control box, Document camera, External Speaker, Safety wire set, Suspension adapter, WP System - ELPWP10, Wall mount, Wireless transmitter - ELPWT01 |
| Box contents | HDMI Cable, Main unit, Power cable, Quick Start Guide, Remote control incl. batteries, Warranty card |
| Control panel | 0.62 inch with C2 Fine |
