EB-L720U data projector Desktop projector 7000 ANSI lumens 3LCD 1080p (1920x1080) White EB-L720U, 7000 ANSI lumens, 3LCD, WUXGA
| Projector |
|---|
| Keystone correction, horizontal |
-30 - 30° |
| Keystone correction, vertical |
-30 - 30° |
| Matrix size |
1.7 cm (0.67") |
| Vertical scan range |
192 - 240 Hz |
| Projector brightness (economic mode) |
4900 ANSI lumens |
| Number of colours |
1.07 billion colours |
| Screen size compatibility |
1270 - 12700 mm (50 - 500") |
| Native aspect ratio |
16:10 |
| Contrast ratio (typical) |
2500000:1 |
| Projector native resolution |
WUXGA (1920x1200) |
| Projection technology |
3LCD |
| Projector brightness |
7000 ANSI lumens |
| Light source |
|---|
| Service life of light source (economic mode) |
30000 h |
| Service life of light source |
20000 h |
| Light source type |
Laser |
| Lens system |
|---|
| Offset |
27% |
| Throw ratio |
1.35 - 2.20:1 |
| Zoom ratio |
1.6:1 |
| Zoom type |
Manual |
| Zoom capability |
Yes |
| Aperture range (F-F) |
1.5 - 1.7 |
| Focal length range |
20 - 31.8 mm |
| Focus |
Manual |
| Video |
|---|
| Video processing |
10 bit |
| Video colour modes |
Cinema, Dynamic, Presentation, sRGB, DICOM simulation mode |
| Full HD |
Yes |

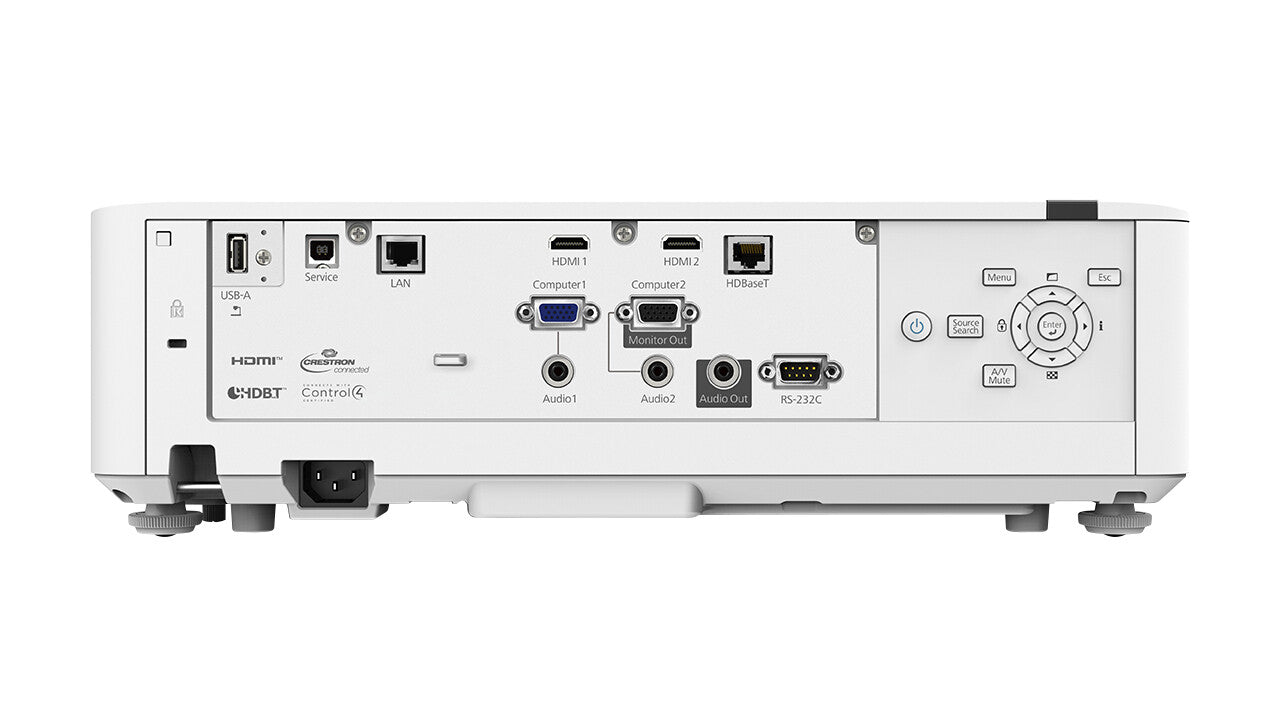

| Ports & interfaces |
|---|
| PC Audio out |
Yes |
| PC Audio in |
Yes |
| Serial interface type |
RS-232C |
| USB 2.0 Type-B ports quantity |
1 |
| USB 2.0 ports quantity |
1 |
| HDBaseT port |
Yes |
| DVI port |
No |
| HDMI connector type |
Full-size |
| HDMI ports quantity |
2 |
| VGA (D-Sub) ports quantity |
3 |
| Network |
|---|
| Wi-Fi |
No |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Smart TV |
No |
| Storage |
|---|
| Card reader integrated |
No |
| Features |
|---|
| Country of origin |
China |
| Noise level (economic mode) |
27 dB |
| Noise level |
39 dB |
| Interactive |
No |
| Multimedia |
|---|
| RMS rated power |
10 W |
| Number of built-in speakers |
1 |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Placement |
Ceiling, Desktop, Floor, Wall |
| Product colour |
White |
| Product type |
Standard throw projector |
| Display |
|---|
| Built-in display |
No |
| Power |
|---|
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100-240 V |
| Power consumption (economy mode) |
258 W |
| Power consumption (standby) |
0.3 W |
| Power consumption (typical) |
345 W |
| Power source |
AC |
| Software |
|---|
| Software support |
via: AMX, Crestron (Network), Control4, Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
10 - 90% |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage temperature (T-T) |
-10 - 60 °C |
| Weight & dimensions |
|---|
| Package weight |
10.8 kg |
| Package height |
210 mm |
| Package depth |
530 mm |
| Package width |
540 mm |
| Height |
304 mm |
| Depth |
122 mm |
| Width |
440 mm |
| Weight |
7.8 kg |
| Packaging content |
|---|
| Bundled software |
EasyMP Multi PC Projection |
| Cables included |
AC, HDMI |
| Manual |
Yes |
| Warranty card |
Yes |
| WLAN adapter included |
Yes |
| Batteries included |
Yes |
| Remote control included |
Yes |
| Technical details |
|---|
| USB display function |
3 in 1: Image / Mouse / Sound |
| Sustainability certificates |
TCO |
| Logistics data |
|---|
| Products per pallet |
14 pc(s) |
| Pallet gross weight |
0 g |
| Products per pallet (UK) |
14 pc(s) |
| Pallet weight (UK) |
0 g |
| Harmonized System (HS) code |
85286200 |
| Quantity per pack |
1 pc(s) |
