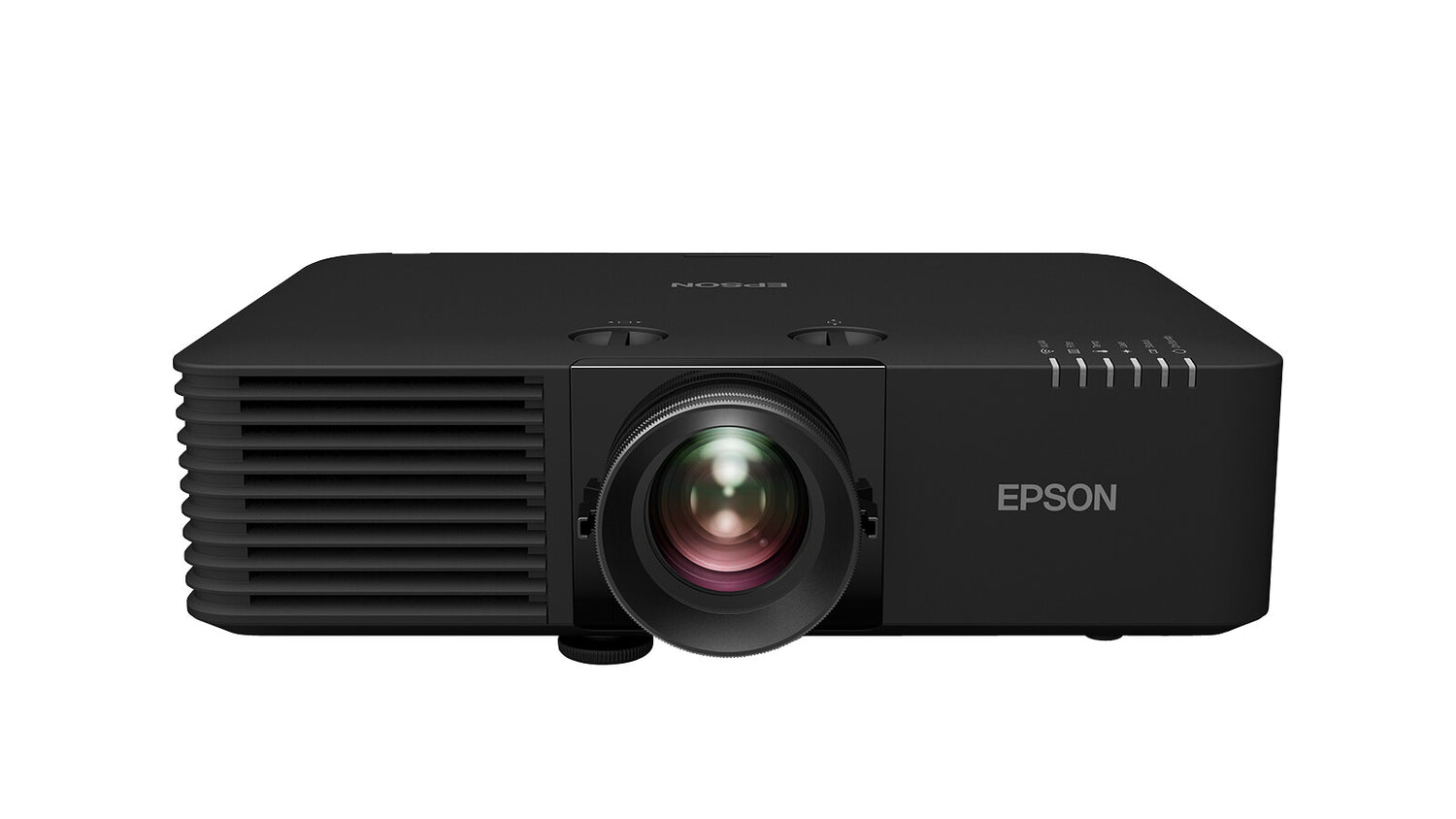

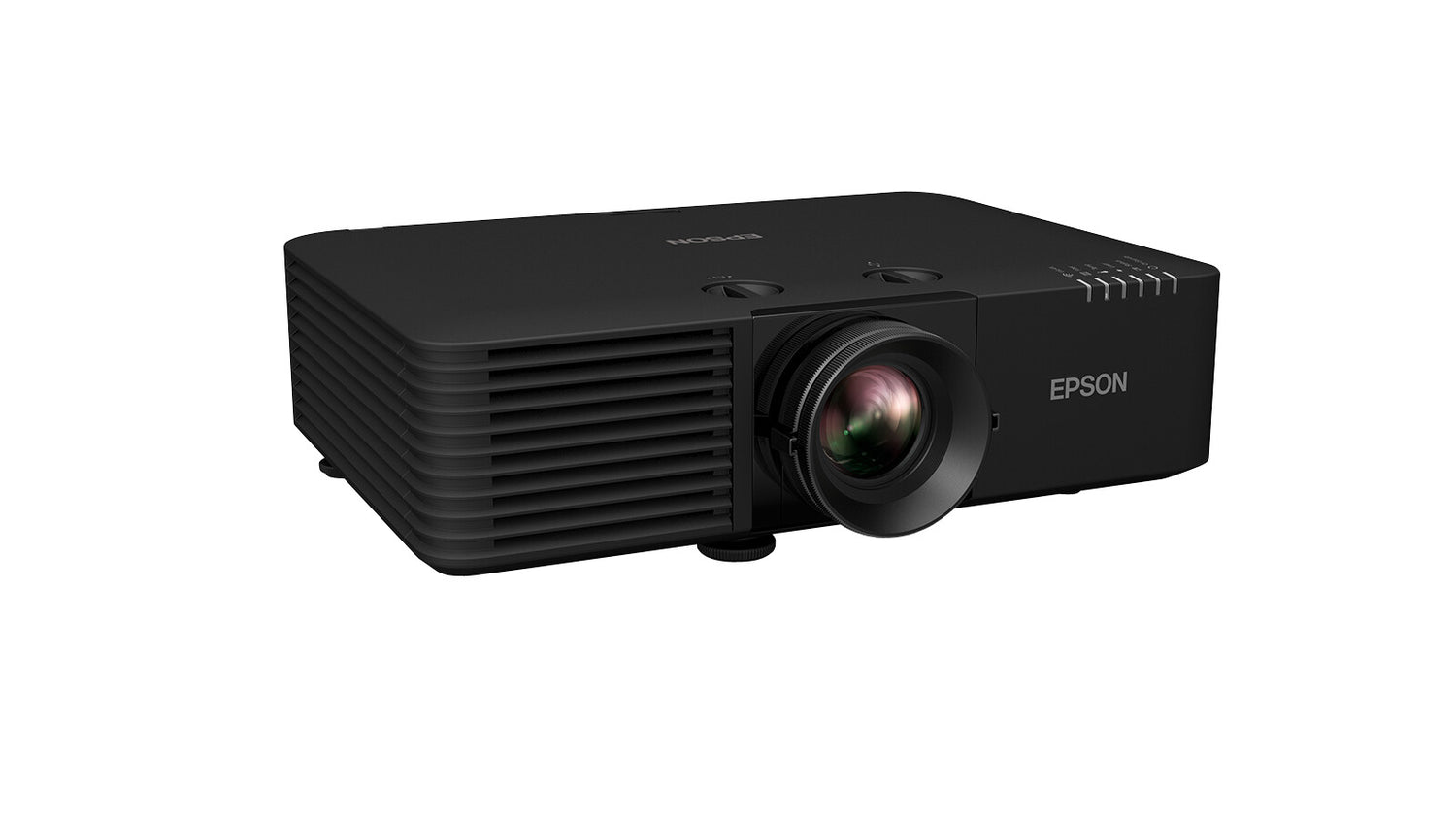

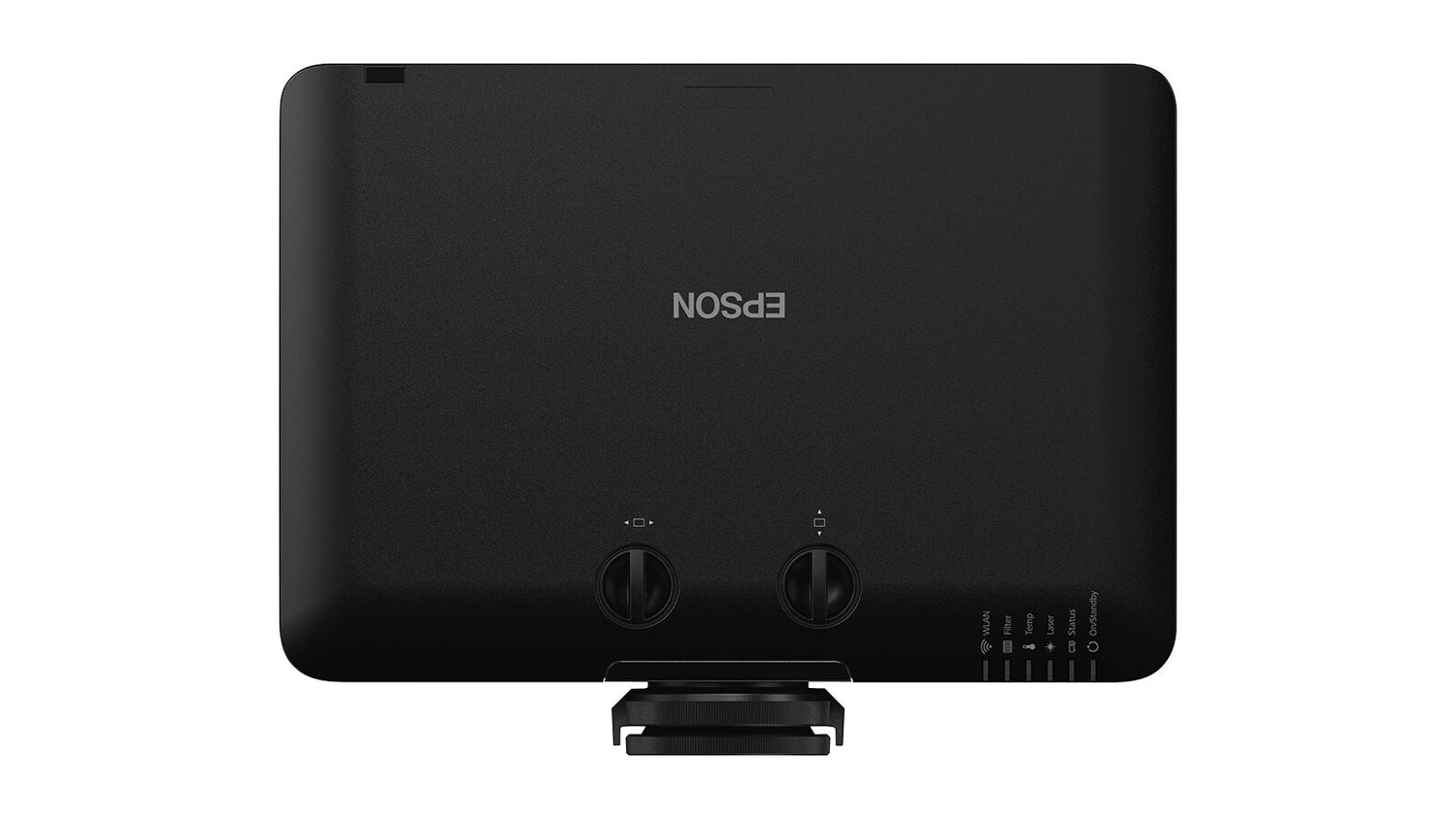

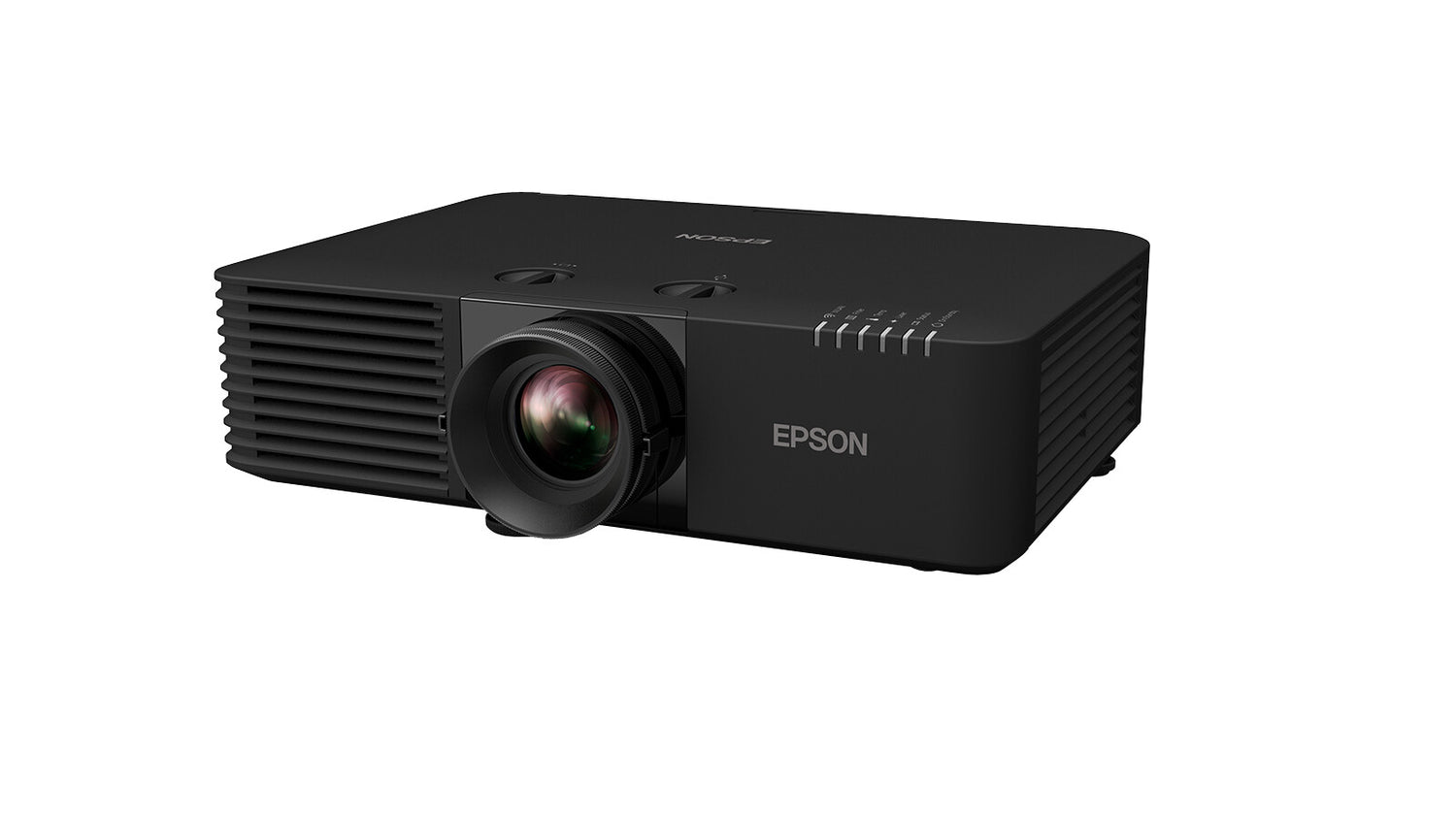

Epson EB-L775U
Beskrivelse
Beskrivelse
4KE display solution
Exceed your vision with Epson compact 3LCD technology laser projector, delivery sharp and smooth 4K images. The EB-L775U delivers effective, practical and creative display applications across a number of different industries.
Bright, cost-effective display solutions
Providing higher quality image, more engaging and impactful displays even in brightly-lit environments, the EB-L775U offers impressive 7,000-lumen brightness, 4KE resolution and lens shift at an affordable price. The EB-L775U is capable to display from 50 to 500-inches, without any reduction in clarity or stunning detail.
Superior connectivity
This displays solution offers many ways to connect. BYOD connectivity with optional wireless or wired and HDBaseT. Offers MTR auto power-on function by HDMI signal detection. The EB-L775U comes equipped with future-proofed connectivity options including HDMI, HDBaseT and built-in media player. Compatible with iProjection software for easy connectivity with mobile devices and content sharing.
Effortless and flexible installation

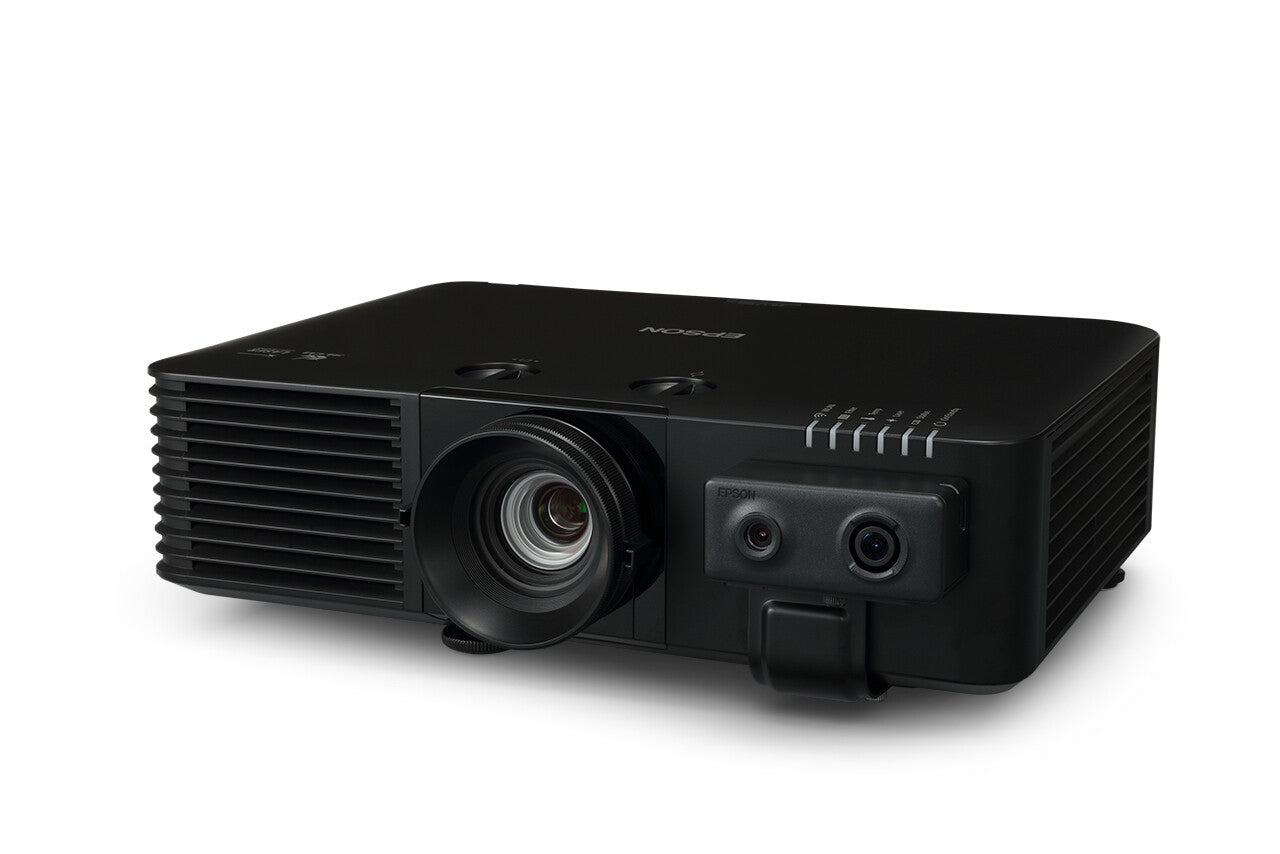

360-degree installation without compromising the display quality and supports 21:9 and 16:6 ultra-widescreen, lens shift and HDMI output. For projector installs offers premium multi-projection features - options that you would normally expect to see in higher range or priced models. Edge blending combined optional ELPEC01 camera enables simple stacking/ tiling features. Also available in white.
Peace of mind and long-lasting durability
Project for longer with exceptional reliability and a longer usage life of up to 30,000 hours in Eco Mode (20,000 hours normal).
Specifikationer
Specifikationer
| Projector | |
|---|---|
| Projector brightness | 7000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 2500000:1 |
| Native aspect ratio | 16:10 |
| Screen size compatibility | 1270 - 12700 mm (50 - 500") |
| Contrast ratio (dynamic) | 5000000:1 |
| Number of colours | 1.07 billion colours |
| Projector brightness (economic mode) | 4900 ANSI lumens |
| Keystone correction, vertical | ±30° |
| Keystone correction, horizontal | ±30° |
| Light source | |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
| Lens system | |
|---|---|
| Focus | Manual |
| Focal length range | 20 - 31.8 mm |
| Aperture range (F-F) | 1.5 - 1.7 |
| Zoom capability | Yes |
| Zoom type | Manual |
| Zoom ratio | 1.6:1 |
| Throw ratio | 1.35 - 2.20:1 |
| Video | |
|---|---|
| Analog signal format system | Not supported |
| Full HD | Yes |
| 3D | No |
| Video processing | 10 bit |
| Video colour modes | BT.709, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Natural, Presentation |
| Ports & interfaces | |
|---|---|
| HDMI ports quantity | 3 |
| DVI port | No |
| HDBaseT port | Yes |
| USB 2.0 ports quantity | 2 |
| USB 2.0 Type-A ports quantity | 1 |
| USB 2.0 Type-B ports quantity | 1 |
| Serial interface type | RS-232C |
| Network | |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | Yes |
| Storage | |
|---|---|
| Card reader integrated | No |
| Features | |
|---|---|
| Interactive | No |
| Noise level | 38 dB |
| Noise level (economic mode) | 27 dB |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| Country of origin | Philippines |
| High Dynamic Range (HDR) supported | Yes |
| Password protection | Yes |
| Multimedia | |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 10 W |
| Design | |
|---|---|
| Market positioning | Education |
| Product colour | Black |

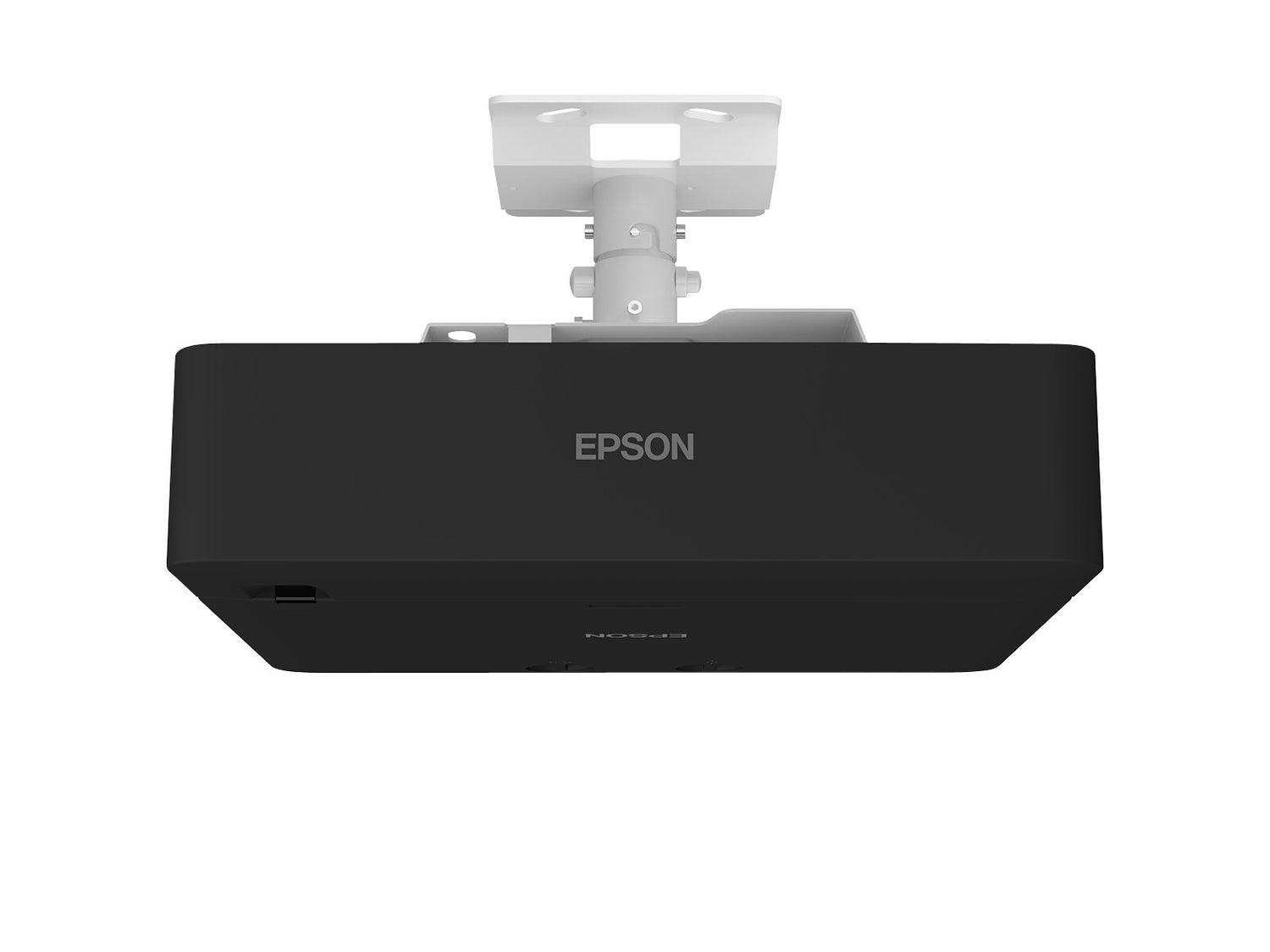

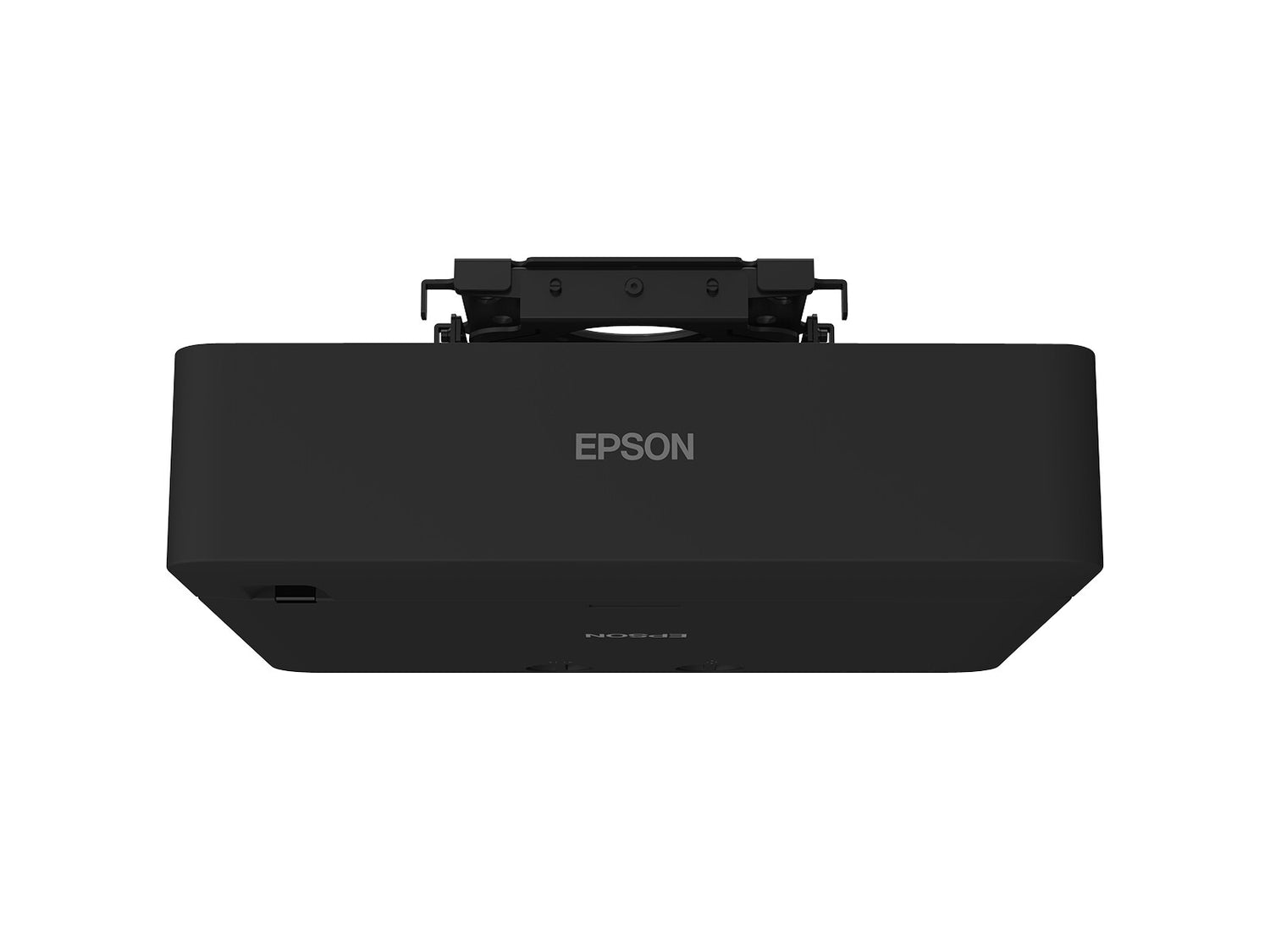

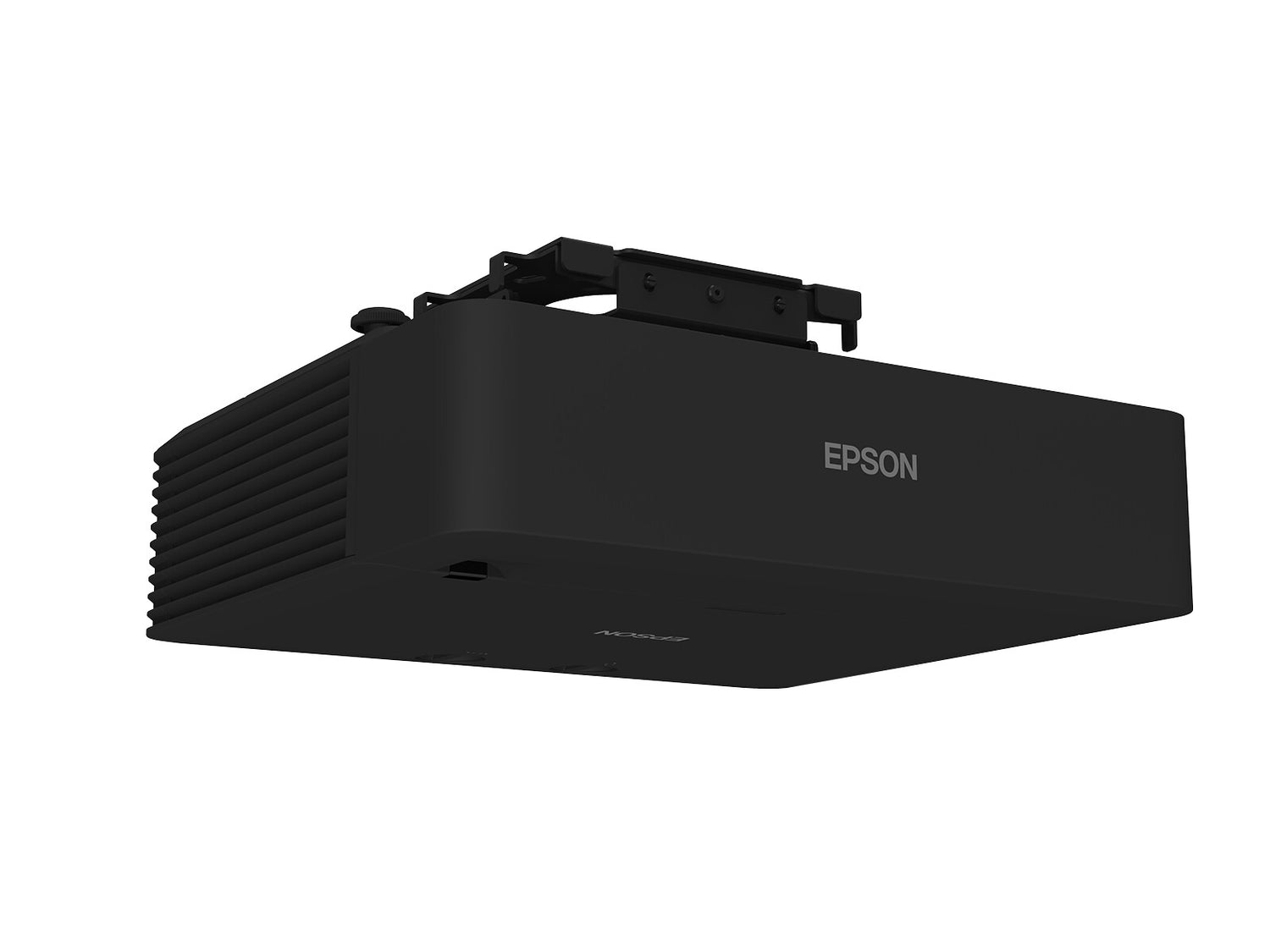

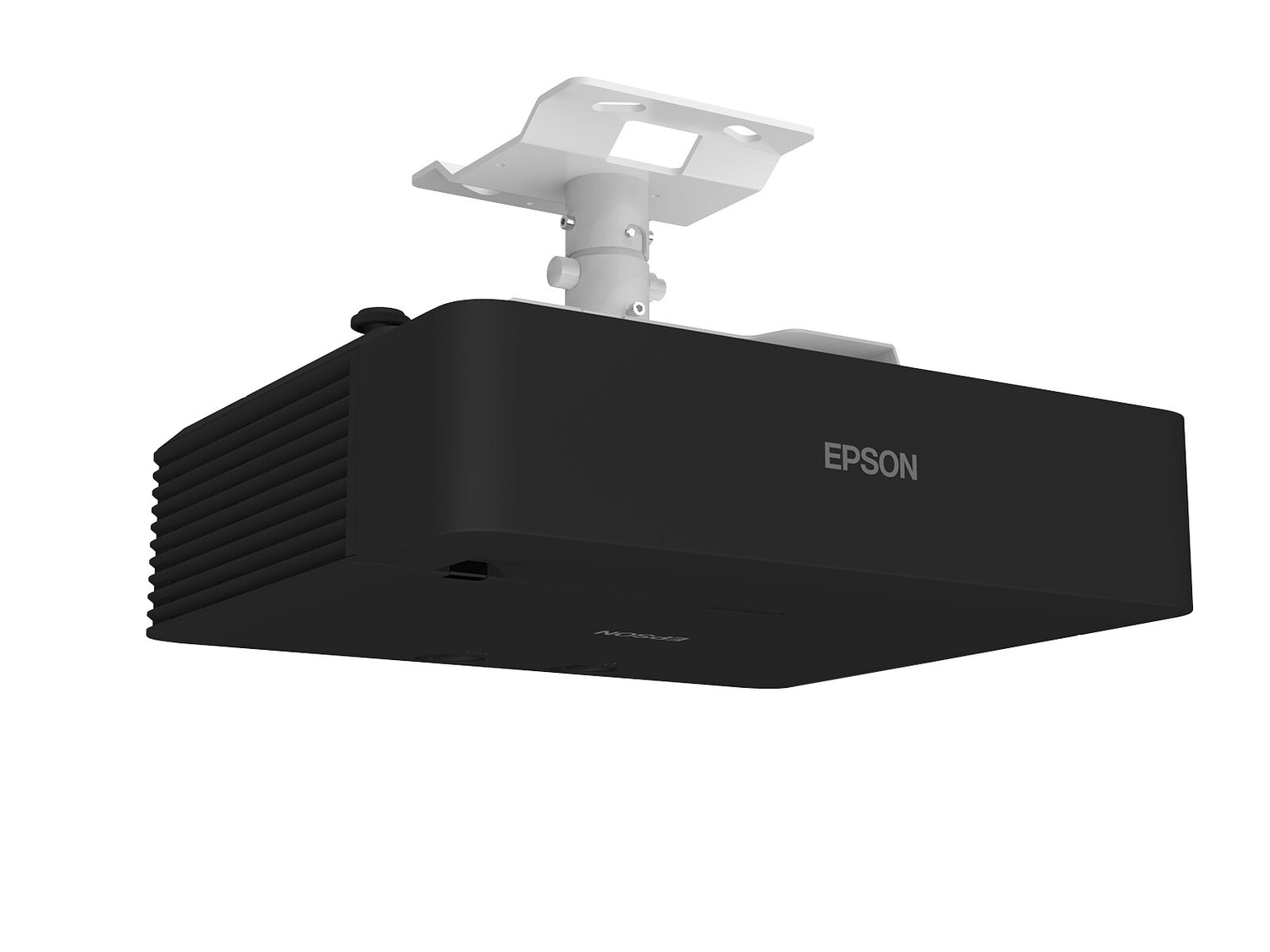

| Placement | Ceiling, Desktop |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Power | |
|---|---|
| Power source | AC |
| Power consumption (typical) | 300 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 366 W |
| Power consumption (economy mode) | 277 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| AC adapter output voltage | 100 - 240 V |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Weight | 8.5 kg |
| Width | 440 mm |
| Depth | 304 mm |
| Height | 122 mm |
| Package width | 540 mm |
| Package depth | 575 mm |
| Package height | 240 mm |
| Package weight | 12.6 kg |
| Packaging content | |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Bundled software | Epson Projector Management |
| Technical details | |
|---|---|
| Mobile app support | Yes |
| Other features | 21:9 aspect ratio support, 4K enhancement, A/V mute, Arc Correction, Auto source search, Built-in speaker, CEC compatible, Direct Power on/off, Document Camera Compatible, Edge Blending, PC Free, Super resolution, Ultra-wide display (16:6), iProjection App |
| Logistics data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Pallet height (UK) | 159 cm |
| Pallet length (UK) | 120 cm |
| Products per pallet layer (UK) | 4 pc(s) |
| Products per pallet layer | 2 pc(s) |
| Pallet gross height | 159 cm |
| Pallet gross width | 80 cm |
| Pallet gross length | 120 cm |
| Products per pallet (UK) | 24 pc(s) |
| Products per pallet | 12 pc(s) |
| Other features | |
|---|---|

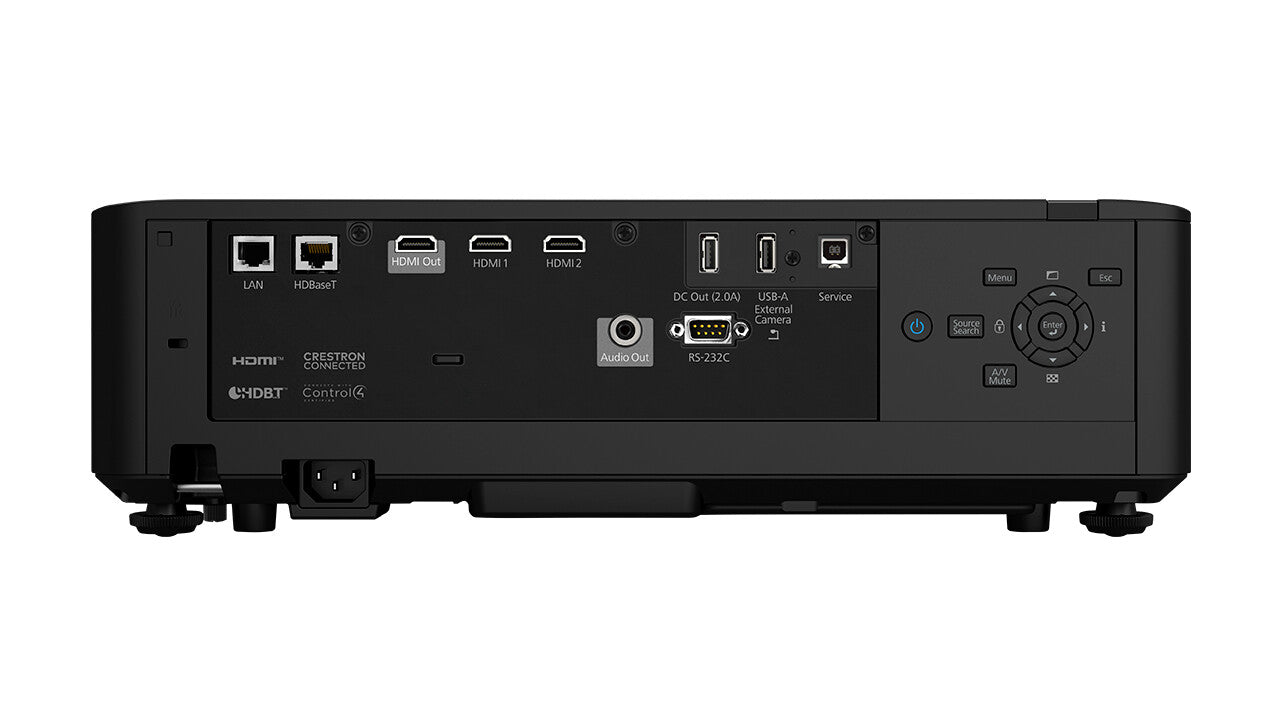

| Interface | USB 2.0-A, USB 2.0 Type B (Service Only), RS-232C, HDMI in (2x), HDMI out, HDBaseT, Jack plug out, Ethernet interface (100 Base-TX / 10 Base-T) |
| Security features | Kensington lock, Password lock, Security cable hole, Wireless LAN unit lock, Password protection |
| Supported network protocols | HTTPS, IPv6, SNMP, PJLink |
| Option type | Air filter, Ceiling mount, Connection and control box, Document camera, External Speaker, Safety wire set, Visualiser camera, WP System - ELPWP20 |
| Box contents | Cable cover, HDMI Cable, Main unit, Power cable, Remote control incl. batteries, User guide, Warranty document |
| Control panel | 0.67 inch with C2 Fine |
