Epson EB-W49 Standard throw projector 3800 ANSI lumens 3LCD WXGA (1280x800) White

Epson  |  Varenummer: V11H983040

Beskrivelse

3LCD, 3800 Lm, WXGA (1280 x 800), 16:10, UHE 210 W, USB 2.0, RS-232C, LAN, VGA, HDMI, Composite, 302‎ x 249 x 87 mm, 2.7 Kg

Flexible, HD-Ready WXGA display
With detailed WXGA resolution and the versatility to be positioned just about anywhere, this durable projector will provide years of service.

The compact, stylish design of the EB-W49 makes it the ideal choice for sharp, legible presentations and vivid video content, especially in roles where portability is key. Long lamp life and trusted Epson durability offer peace of mind and minimal maintenance.

Bright, vivid content on a large scalable screen
Enjoy large scale presentations with crisp, clear text, as well as compelling imagery and video content on screen sizes up to 320 inches. 3,800-lumen performance combines with a high contrast ratio of 16,000:1 to offer outstanding visual performance, even in well-lit rooms.

Years of uninterrupted meetings
With a lamp life of up to 17,000 hours in Eco mode.

Network and wireless (optional)
Network capability (via RJ45) and optional wireless connectivity mean the EB-W49 can be added to a company network or upgraded for wireless device access at a later stage (optional accessory required).

Installation and placement flexibility
Automatic vertical and manual horizontal keystone correction provide greater flexibility as to where the projector can be placed in the room for distortion-free images and the wide optical zoom adds to the flexibility.

High-quality sound
This projector has a built-in 5W speaker to allow audio content to be heard clearly, without the need for additional external speakers.

Specifikationer

Projector
Keystone correction, horizontal -30 - 30°
Keystone correction, vertical -30 - 30°
Matrix size 1.5 cm (0.59")
Vertical scan range 100 - 120 Hz
Projector brightness (economic mode) 2600 ANSI lumens
Number of colours 1.07 billion colours
Screen size compatibility 838.2 - 8128 mm (33 - 320")
Supported aspect ratios 16:10
Native aspect ratio 16:10
Contrast ratio (typical) 16000:1
Projector native resolution WXGA (1280x800)
Projection technology 3LCD
Projector brightness 3800 ANSI lumens
Light source
Lamps quantity 1 lamp(s)
Lamp power 210 W
Lamp type UHE
Service life of light source (economic mode) 17000 h
Service life of light source 8000 h
Light source type Lamp
Lens system
Throw ratio 1.30 - 1.56:1
Zoom ratio 1.2:1
Zoom type Manual
Zoom capability Yes
Aperture range (F-F) 1.49 - 1.72
Focal length range 16.9 - 20.28 mm
Focus Manual
Video
Video processing 10 bit
Video colour modes Dynamic, Cinema, Presentation, sRGB, Blackboard
3D No
Full HD No

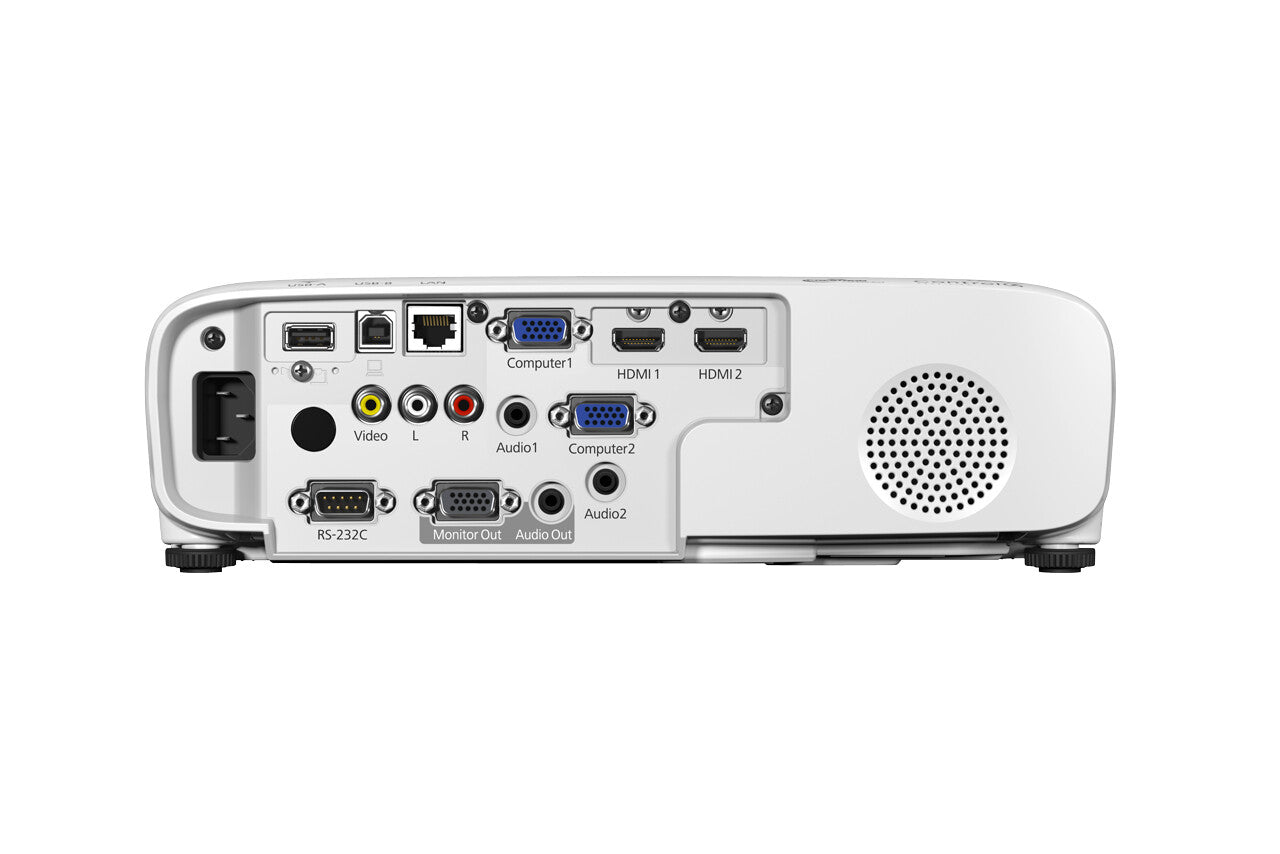

Ports & interfaces
AC (power) in Yes
PC in (D-Sub) Yes
PC Audio out Yes
PC Audio in Yes
Serial interface type RS-232C
USB 2.0 Type-B ports quantity 1
USB 2.0 ports quantity 1
Composite video in 1
DVI port No
HDMI connector type Full-size
HDMI ports quantity 2
VGA (D-Sub) ports quantity 3
Network
Ethernet LAN (RJ-45) ports 1
Ethernet LAN Yes
Smart TV No
Storage
Card reader integrated No
Features
Country of origin Philippines
On Screen Display (OSD) Yes
Preset modes Blackboard, Dynamic, Presentation, Theatre, sRGB
Noise level (standby) 28 dB
Noise level (economic mode) 28 dB
Noise level 37 dB
Multimedia
RMS rated power 5 W
Number of built-in speakers 1
Built-in speaker(s) Yes
Design
Cable lock slot type Kensington
Cable lock slot Yes
Placement Ceiling, Desktop
Product colour White
Market positioning Portable
Product type Standard throw projector
Display
Built-in display No
Power
AC input frequency 50 - 60 Hz
AC input voltage 100-240 V
Power consumption (economy mode) 225 W
Power consumption (standby) 0.3 W
Power consumption (typical) 327 W
Power source AC
Software
Software support via: AMX, Crestron (Network), Control4, Extron
Operational conditions
Storage relative humidity (H-H) 10 - 90%
Operating relative humidity (H-H) 20 - 80%
Storage temperature (T-T) -10 - 60 °C
Operating temperature (T-T) 5 - 35 °C
Weight & dimensions
Package weight 4.01 kg
Package height 160 mm
Package depth 380 mm
Package width 350 mm
Height 87 mm
Depth 249 mm
Width 302 mm
Weight 2.7 kg
Packaging content
Bundled software EasyMP Network Projection, Epson Projektor Management
Cables included AC, HDMI
WLAN adapter included Yes
Batteries included Yes
Remote control included Yes
Technical details
USB display function 3 in 1: Image / Mouse / Sound
Logistics data
Products per pallet 78 pc(s)
Pallet gross weight 0 g
Products per pallet (UK) 78 pc(s)
Pallet weight (UK) 0 g
Harmonized System (HS) code 85286200
Quantity per pack 1 pc(s)
Other features
Supported network protocols PJLink
