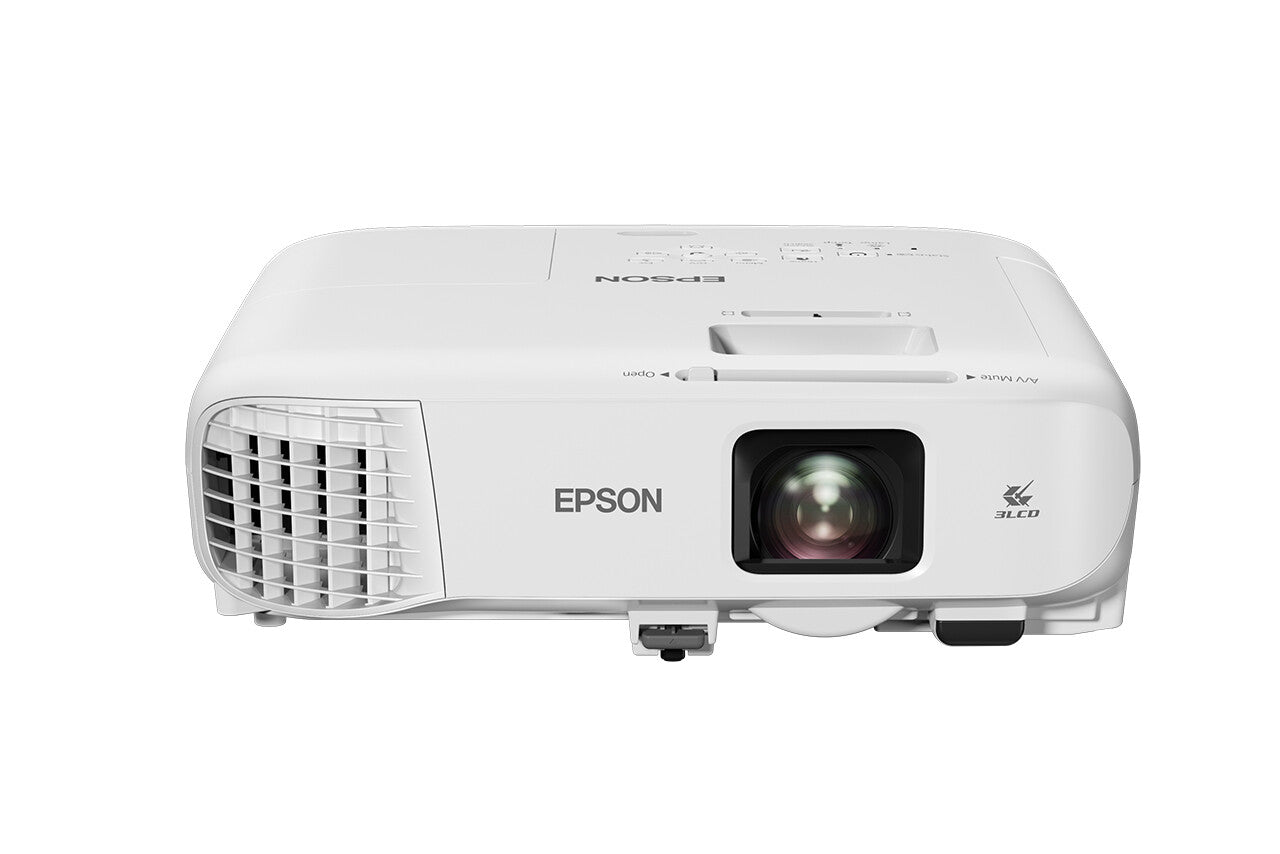

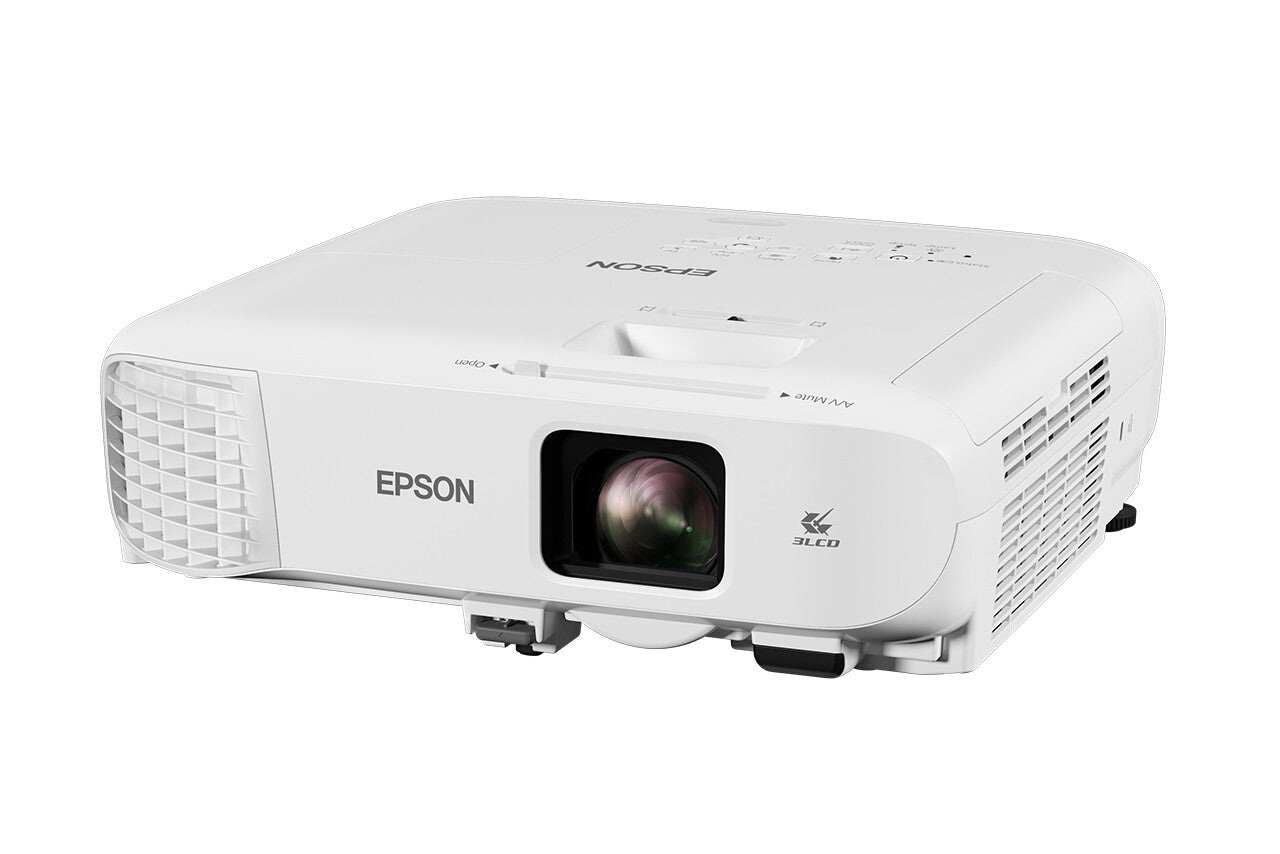

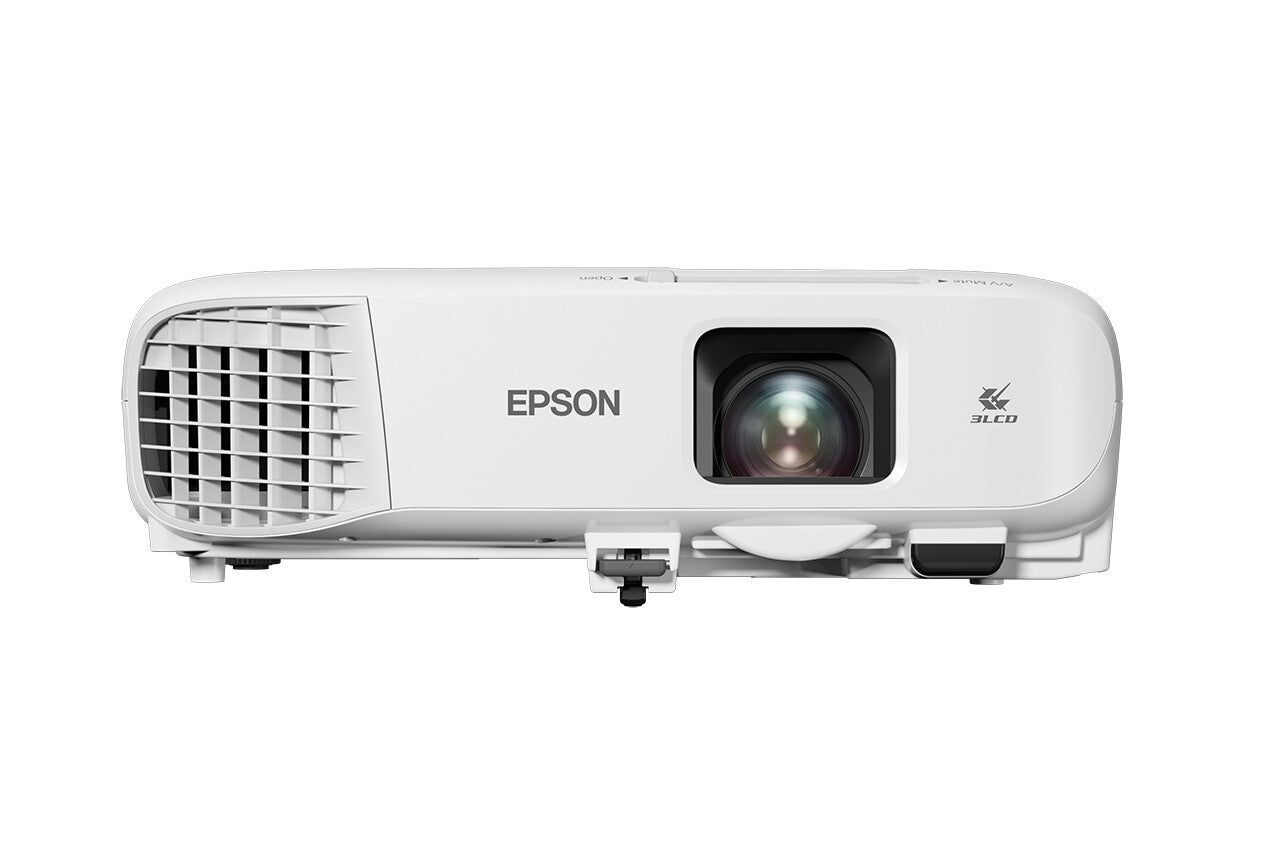

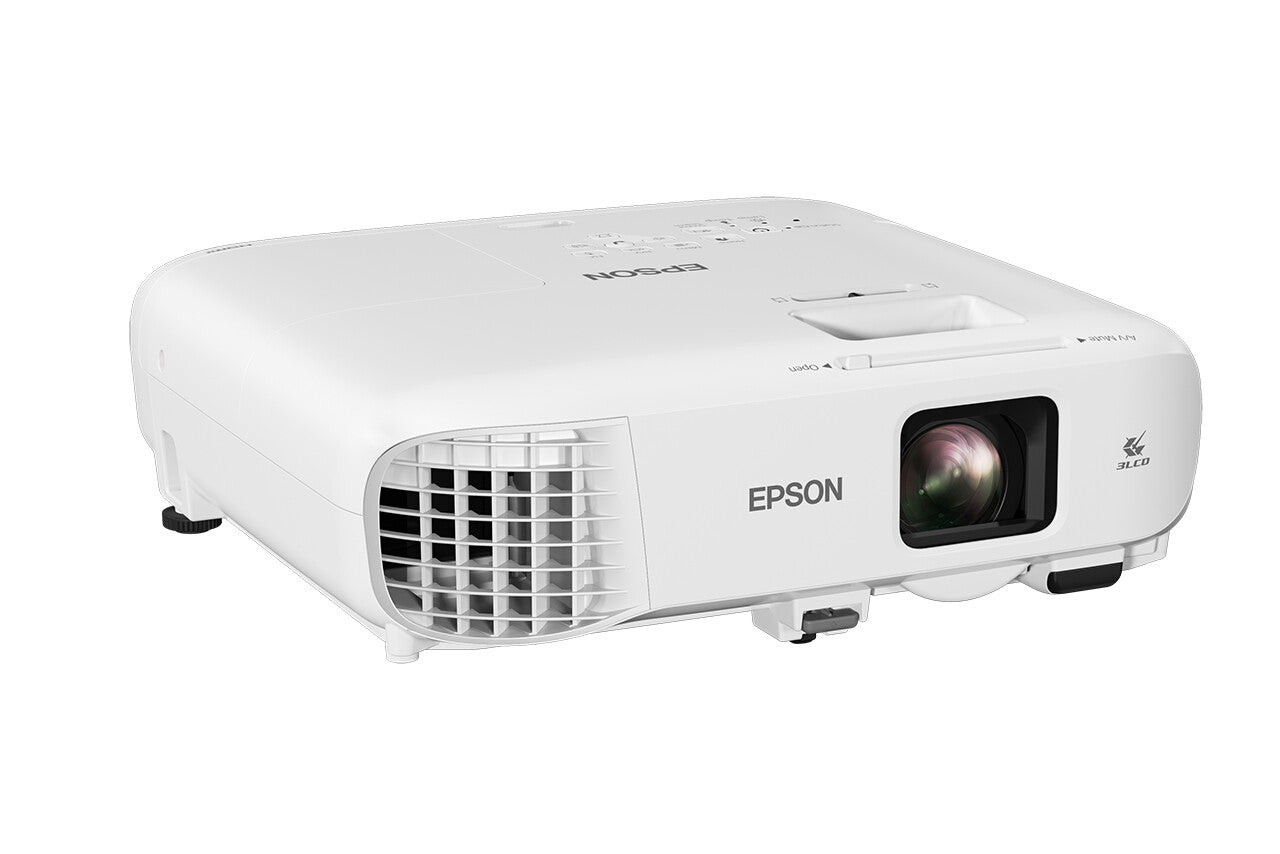

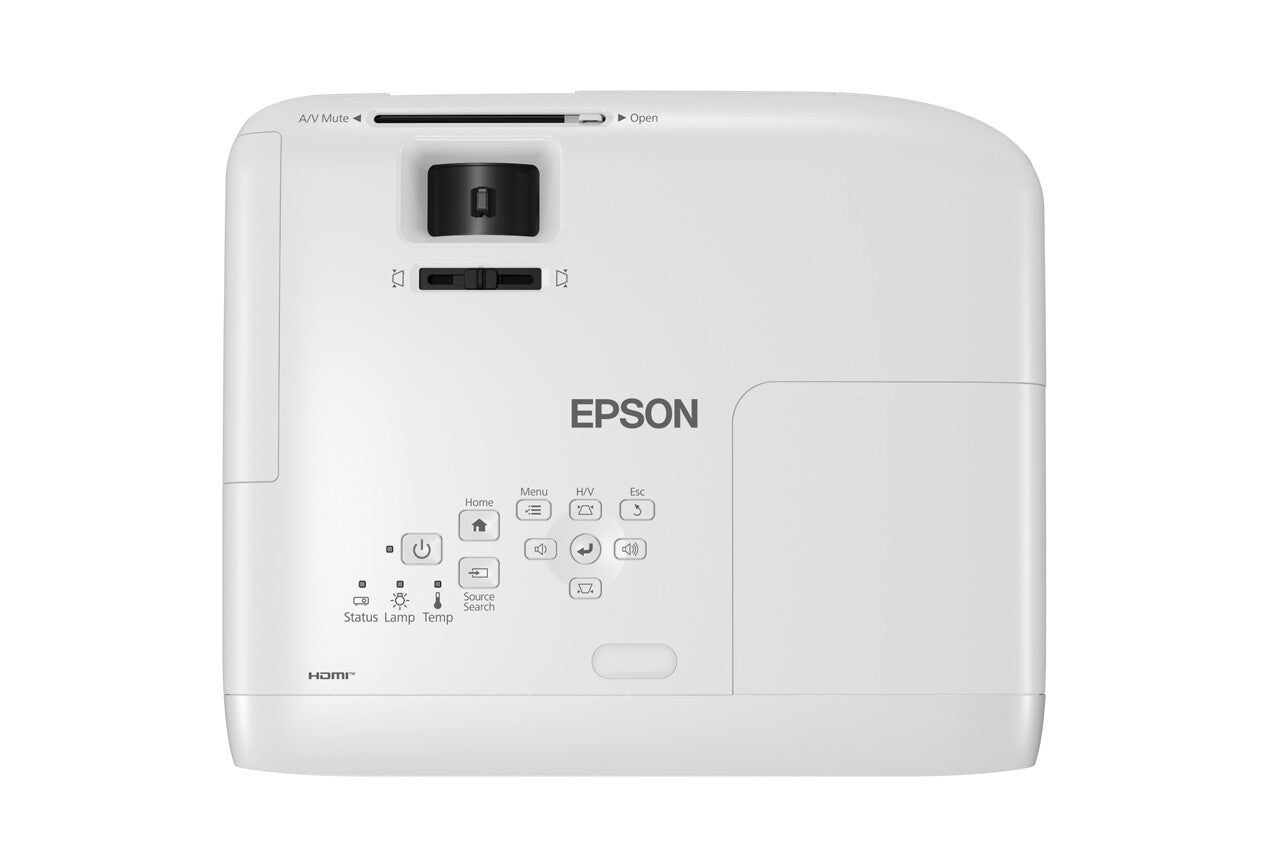

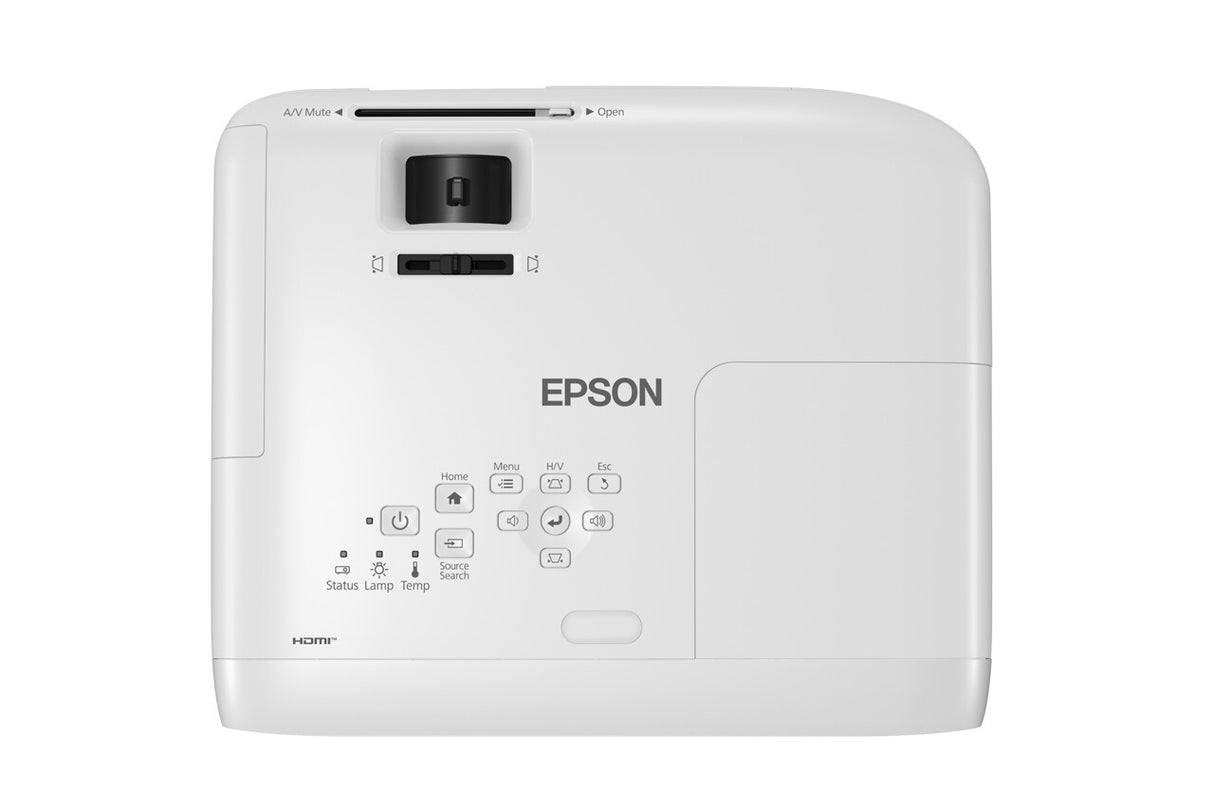

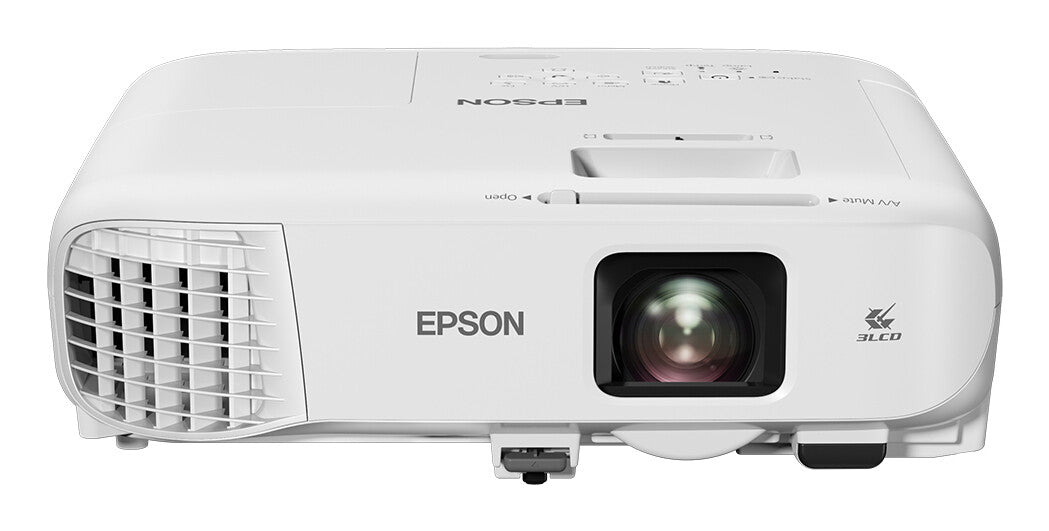

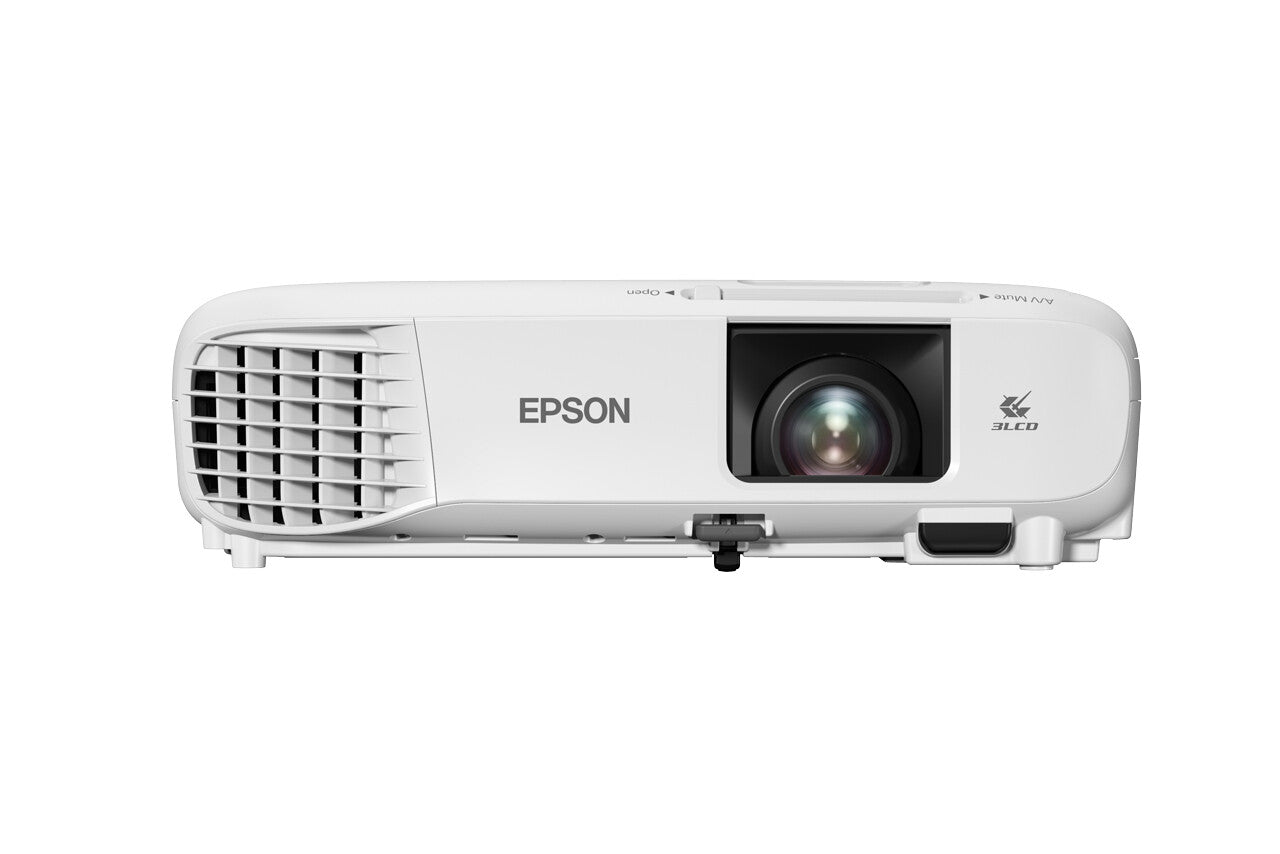

Epson EB-X49 Standard throw projector 3600 ANSI lumens 3LCD XGA (1024x768) White

Epson  |  Varenummer: V11H982040

Beskrivelse

3LCD, 3600 Lm, XGA (1024 x 768), 4:3, UHE 210 W, USB 2.0, RS-232C, LAN, VGA, HDMI, Composite, 302‎ x 249 x 87 mm, 2.7 Kg

Compact display, optional wireless
Combines the versatility to be positioned just about anywhere with excellent brightness and sharpness, plus low-maintenance performance.

Presentations become effortless, with the sharp, stylish EB-X49, which offers great performance in a remarkably versatile package. Long lamp life and trusted Epson durability offer peace of mind and minimal maintenance.

Bright, vivid content on a large scalable screen
Enjoy large scale presentations with crisp, clear text, as well as compelling imagery and video content, on screen sizes up to 300 inches. 3,600-lumen performance combines with a high contrast ratio of 16,000:1 to offer outstanding visual performance, even in well-lit rooms.

Years of uninterrupted meetings
With a lamp life of up to 12,000 hours in Eco mode.

Installation and placement flexibility
Automatic vertical and manual horizontal keystone correction provide greater flexibility as to where the projector can be placed in the room for distortion-free images and the wide optical zoom adds to the flexibility.

Network and wireless (optional)
Network capability (via RJ45) and optional wireless connectivity mean the EB-X49 can be added to a company network or upgraded for wireless device access at a later stage.

High-quality sound
This projector has a built-in 5W speaker to allow audio content to be heard clearly, without the need for additional external speakers.

Specifikationer

Projector
Keystone correction, horizontal -30 - 30°
Keystone correction, vertical -30 - 30°
Matrix size 1.4 cm (0.55")
Vertical scan range 100 - 120 Hz
Projector brightness (economic mode) 2400 ANSI lumens
Number of colours 1.07 billion colours
Screen size compatibility 762 - 7620 mm (30 - 300")
Supported aspect ratios 4:3
Native aspect ratio 4:3
Contrast ratio (typical) 16000:1
Projector native resolution XGA (1024x768)
Projection technology 3LCD
Projector brightness 3600 ANSI lumens
Light source
Lamp power 210 W
Lamp type UHE
Service life of light source (economic mode) 12000 h
Service life of light source 6000 h
Light source type Lamp
Lens system
Throw ratio 1 - 1.2:1
Zoom ratio 1.2:1
Zoom type Manual
Zoom capability Yes
Aperture range (F-F) 1.49 - 1.72
Focal length range 16.9 - 20.28 mm
Focus Manual
Video
Video processing 10 bit
Video colour modes Dynamic, Cinema, Presentation, sRGB, Blackboard
3D No
Full HD No
Ports & interfaces
AC (power) in Yes
PC in (D-Sub) Yes
PC Audio out Yes
PC Audio in Yes
Serial interface type RS-232C
USB 2.0 Type-B ports quantity 1
Composite video in 1
DVI port No
HDMI connector type Full-size
HDMI ports quantity 1
VGA (D-Sub) ports quantity 3
Network
Ethernet LAN (RJ-45) ports 1
Ethernet LAN Yes
Smart TV No
Storage
Card reader integrated No
Features
Country of origin Philippines
On Screen Display (OSD) Yes
Preset modes Blackboard, Dynamic, Presentation, Theatre, sRGB
Noise level (economic mode) 28 dB
Noise level 37 dB
Multimedia
RMS rated power 5 W
Number of built-in speakers 1
Built-in speaker(s) Yes
Design
Cable lock slot type Kensington
Cable lock slot Yes
Placement Ceiling, Desktop
Product colour White
Market positioning Portable
Product type Standard throw projector
Display
Built-in display No
Power
AC input frequency 50 - 60 Hz
AC input voltage 100-240 V
Power consumption (economy mode) 225 W
Power consumption (typical) 327 W
Power source AC
Software
Software support via: AMX, Crestron (Network), Control4, Extron
Operational conditions
Storage relative humidity (H-H) 10 - 90%
Operating relative humidity (H-H) 20 - 80%
Storage temperature (T-T) -10 - 60 °C
Operating temperature (T-T) 5 - 35 °C
Weight & dimensions
Package weight 4.12 kg
Package height 160 mm
Package depth 380 mm
Package width 355 mm
Height 87 mm
Depth 249 mm
Width 302 mm
Weight 2.7 kg
Packaging content
Bundled software EasyMP Multi PC Projection, Epson Projektor Management
Cables included AC, HDMI
WLAN adapter included Yes
Quick start guide Yes
Batteries included Yes
Remote control included Yes
Technical details
USB display function 3 in 1: Image / Mouse / Sound
Logistics data
Products per pallet 78 pc(s)
Pallet gross weight 0 g
Products per pallet (UK) 78 pc(s)
Pallet weight (UK) 0 g
Harmonized System (HS) code 85286200
Quantity per pack 1 pc(s)
Other features
Supported network protocols PJLink
