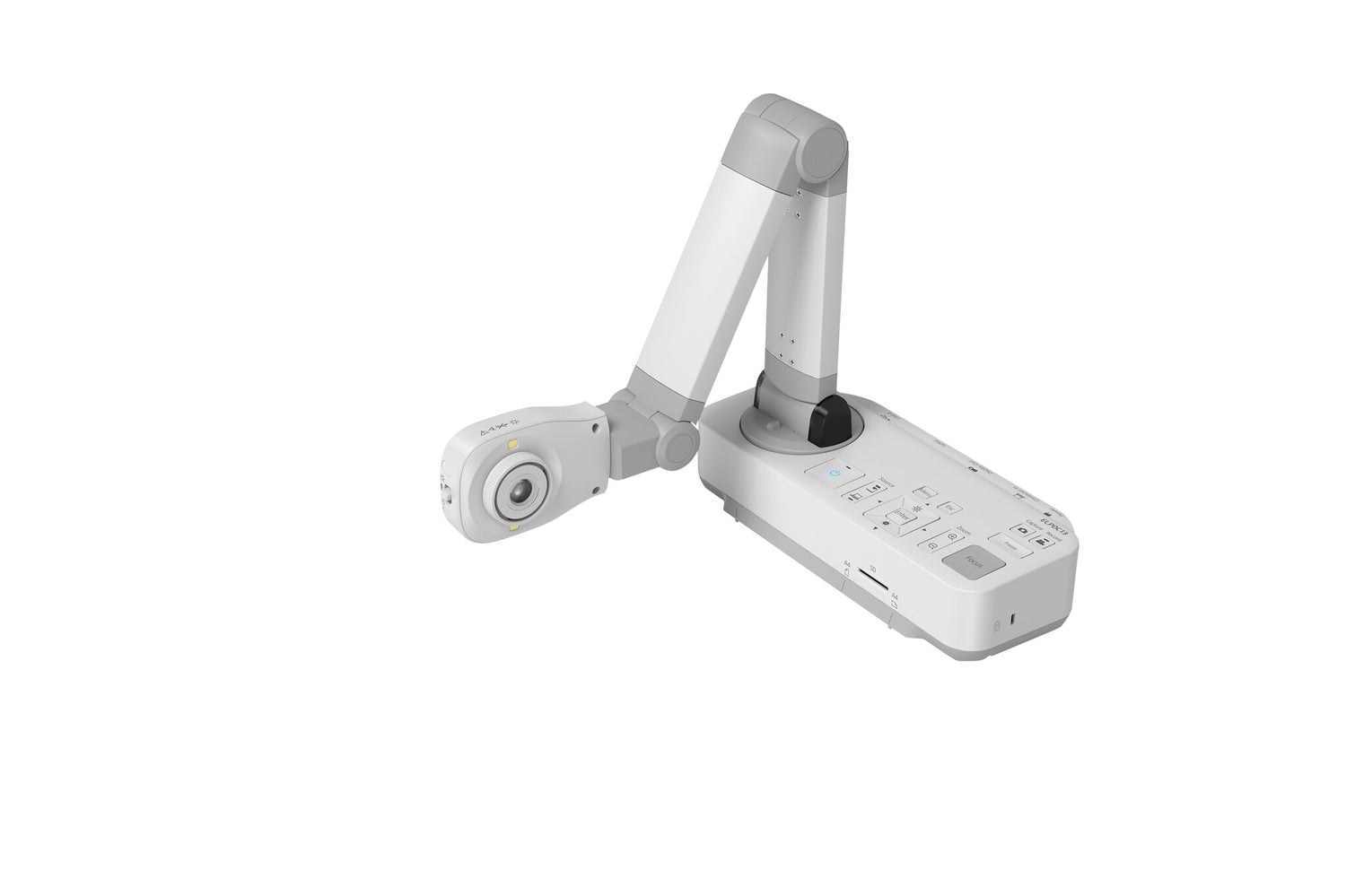

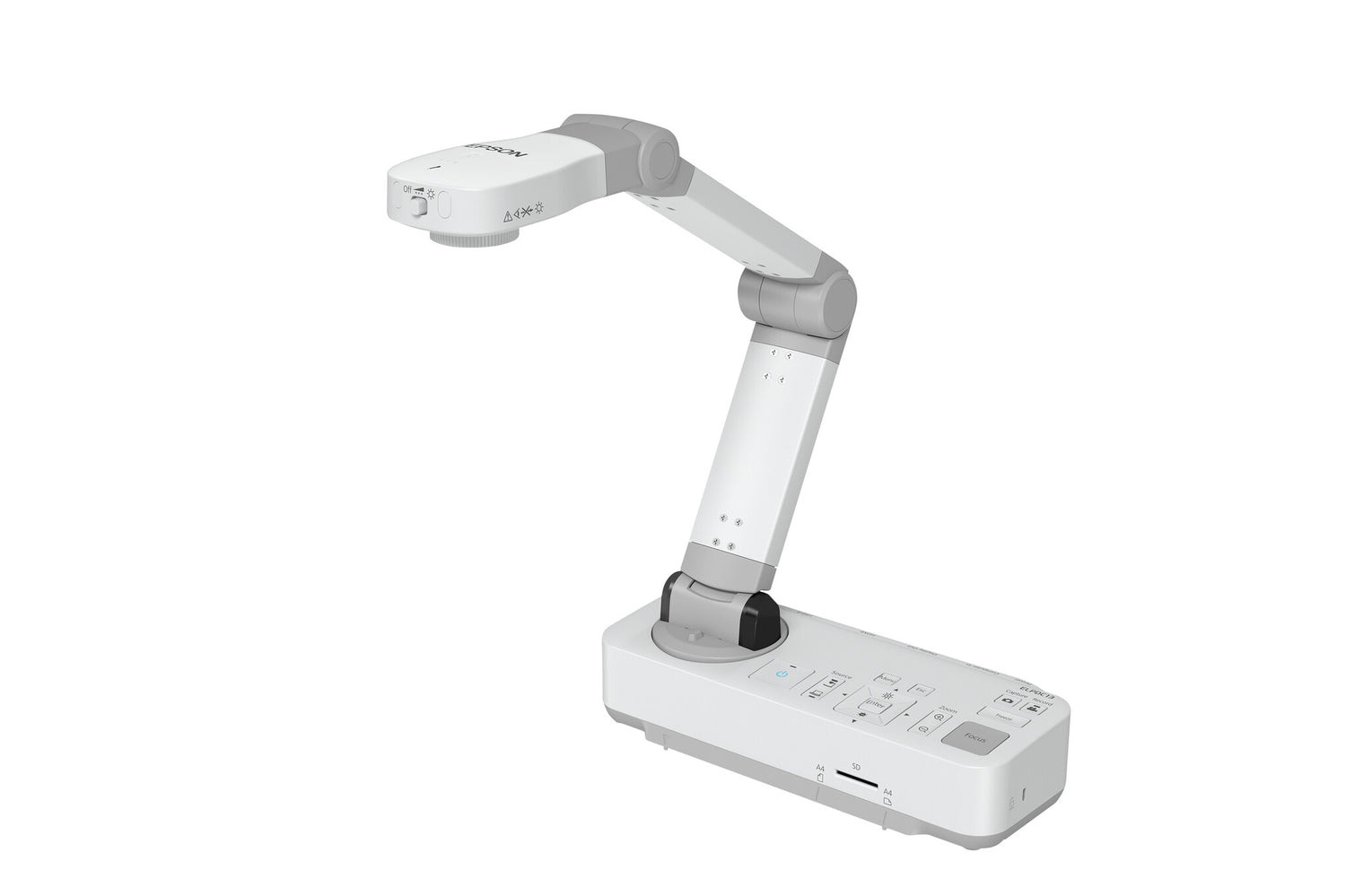

Epson ELPDC13 document camera White 25.4 / 2.7 mm (1 / 2.7") CMOS USB 1.1
Epson | Varenummer:
V12H757040
Beskrivelse
Beskrivelse
Visualiser ELPDC13 ELPDC13, 25.4 / 2.7 mm (1 / 2.7), CMOS, 1920 x 1080 (HD 1080), 30 fps, Auto, LED
Specifikationer
Specifikationer
| Camera | |
|---|---|
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Sensor type | CMOS |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Maximum frame rate | 30 fps |
| White balance | Auto |
| Light exposure modes | Auto |
| Image freeze | Yes |

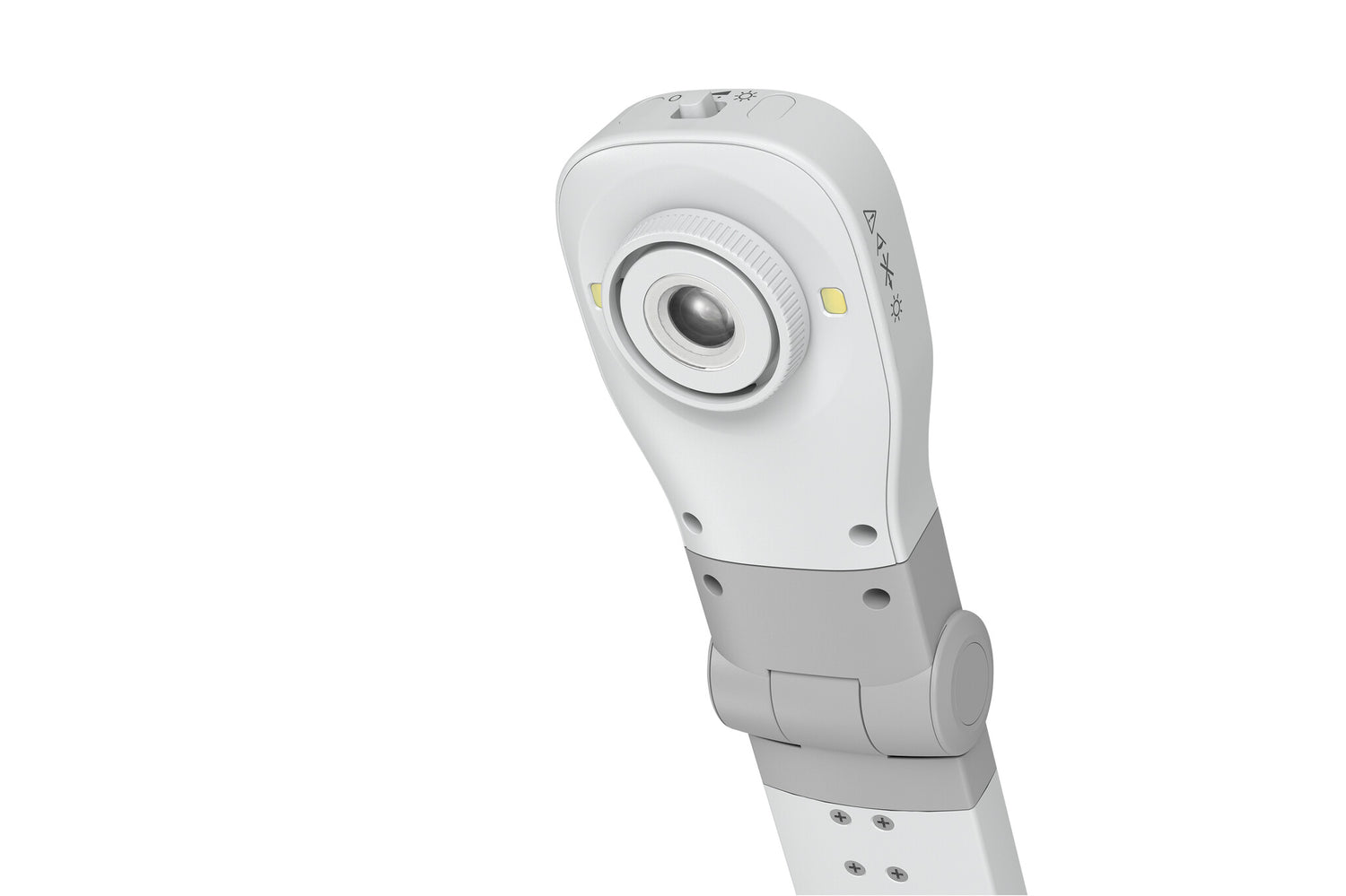

| Light source | LED |
| Lens system | |
|---|---|
| Auto focus | Yes |
| Digital zoom | 16x |
| Shooting area (WxD) | 297 x 420 mm |

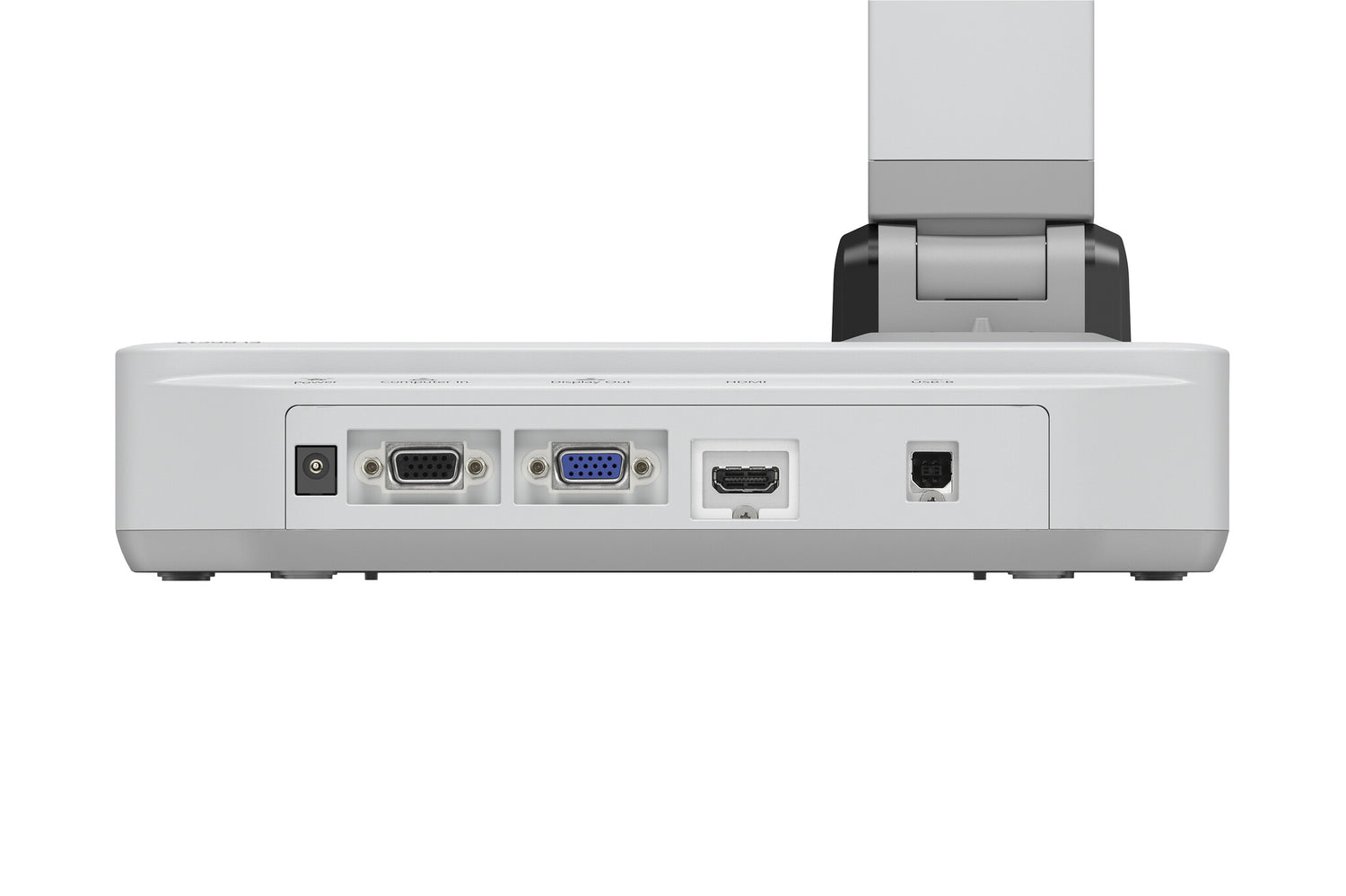

| Ports & interfaces | |
|---|---|
| Interface | USB 1.1 |
| USB connector type | USB Type-B |
| Parallel connector | Yes |
| DC-in jack | Yes |
| VGA (D-Sub) output ports | 1 |
| VGA (D-Sub) input ports | 1 |
| Storage | |
|---|---|

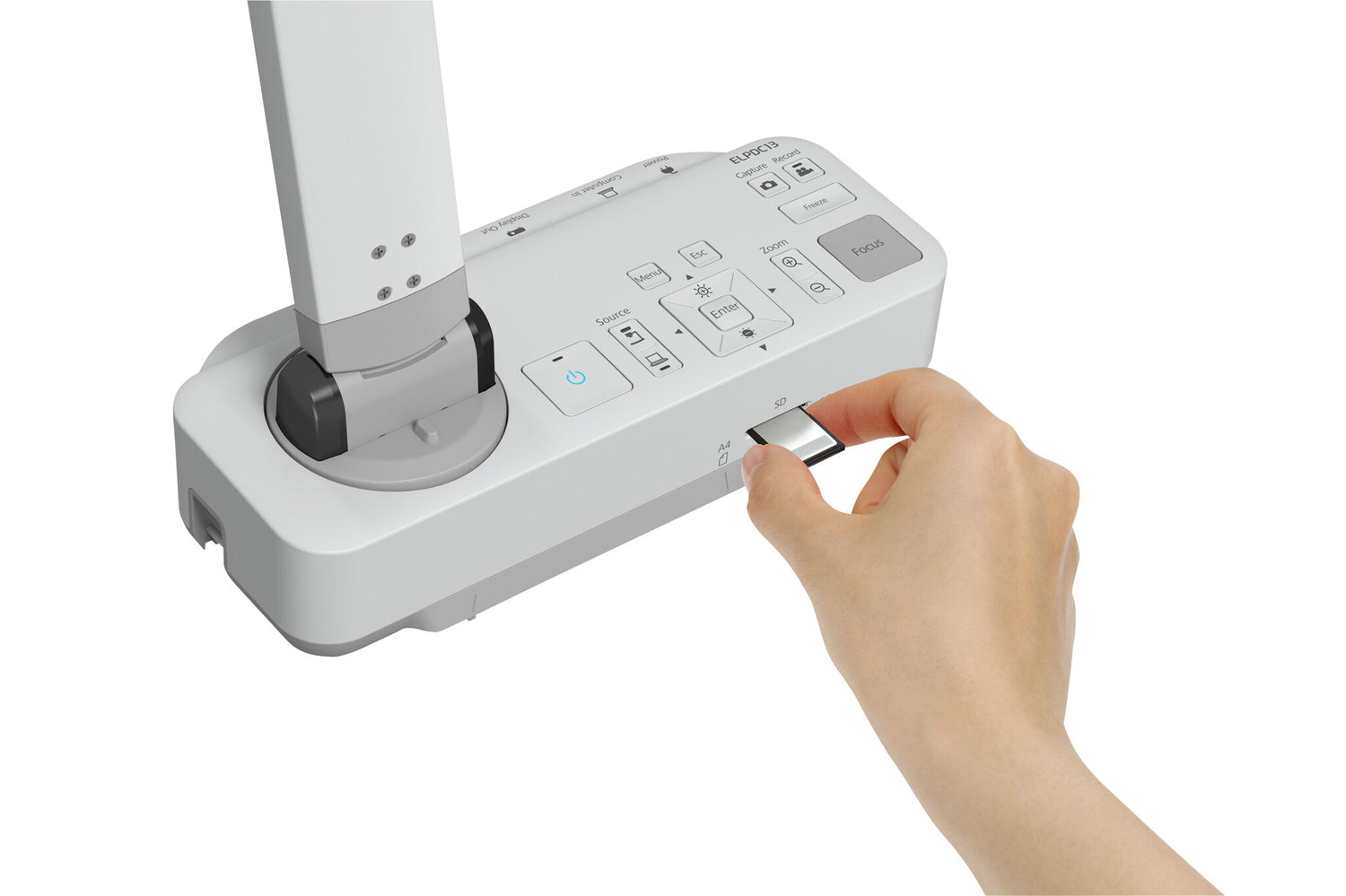

| Card reader integrated | Yes |
| Compatible memory cards | SD |
| Maximum memory card size | 32 GB |
| Technical details | |
|---|---|
| Document size (max) | A3 |
| Product colour | White |
| Display modes | Microscope |
| Split screen | Yes |

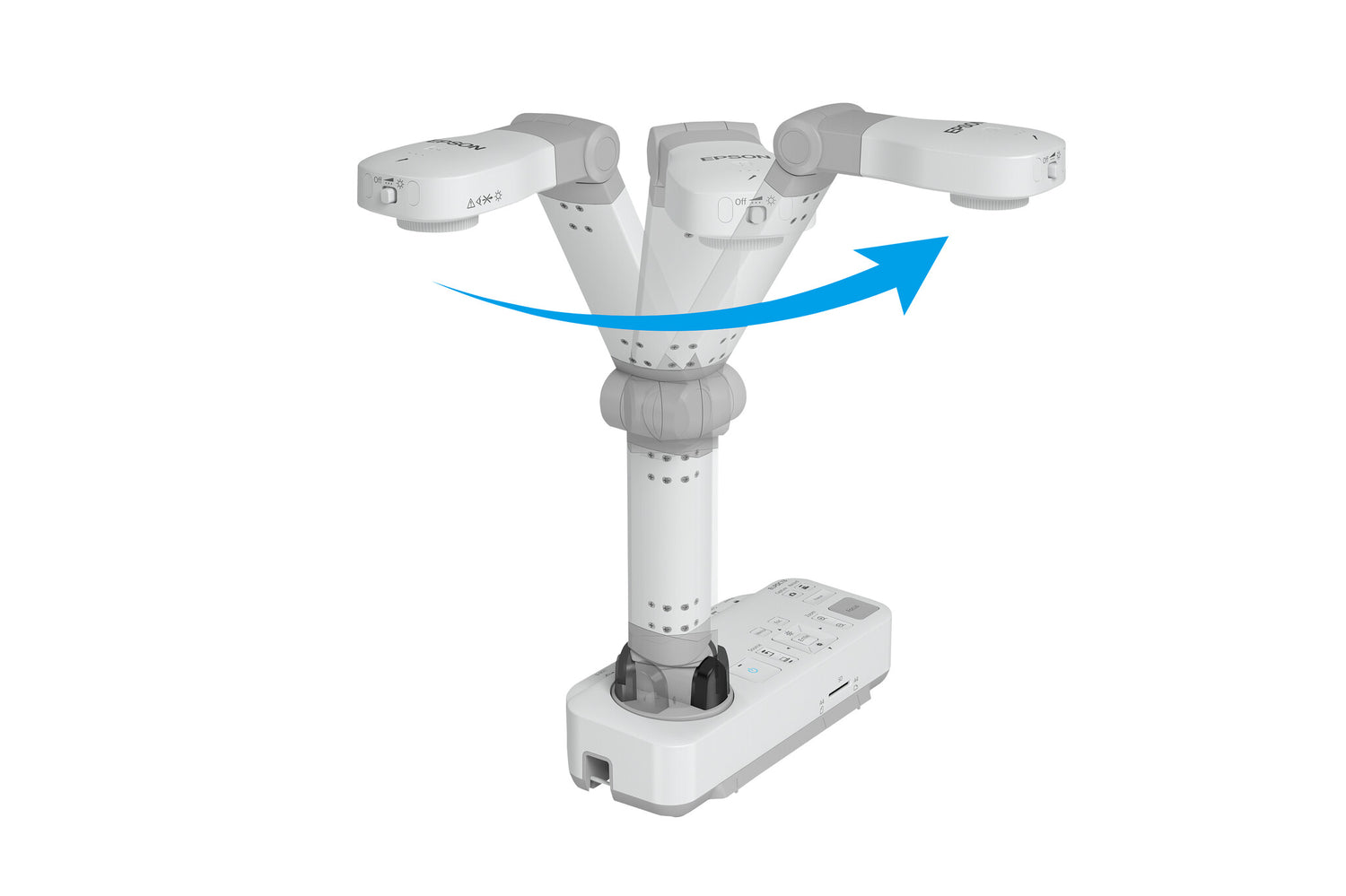

| Horizontal rotation angle | -90 - 90° |
| Vertical rotation angle | -90 - 90° |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Illumination | Yes |
| Country of origin | Philippines |
| Zoom capability | Yes |
| Special features | Auto focus, Freeze, Parallel video output, SD card viewer, Split screen, Zoom |
| Image viewer | Yes |
| Image quality adjustment | Brightness, Contrast |
| Compatible operating systems | Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Mac OS X, Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista |
| Bundled software | Easy Interactive Tools, TWAIN driver for Epson Document Camera (for Windows) |
| Photo effects | Black&White |
| Built-in microphone | Yes |
| Lamp type | LED |
| Output resolutions | SXGA (1280*1024)/XGA (1024*768)/WXGA 16:10 (1280*800)/WXGA 16:9 (1360*768)/1080p (1920*1080), 480p/720p/1080p |
| Power | |
|---|---|
| Power supply type | AC |
| Power consumption (typical) | 13 W |
| Power consumption (standby) | 0.5 W |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100-240 V |
| System requirements | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista |
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Weight & dimensions | |
|---|---|
| Width | 270 mm |
| Depth | 317 mm |
| Height | 447 mm |
| Weight | 2.5 kg |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 235 mm |
| Package depth | 445 mm |
| Package height | 180 mm |
| Package weight | 4.58 kg |
| Packaging content | |
|---|---|
| AC adapter included | Yes |
| Software CD | Yes |

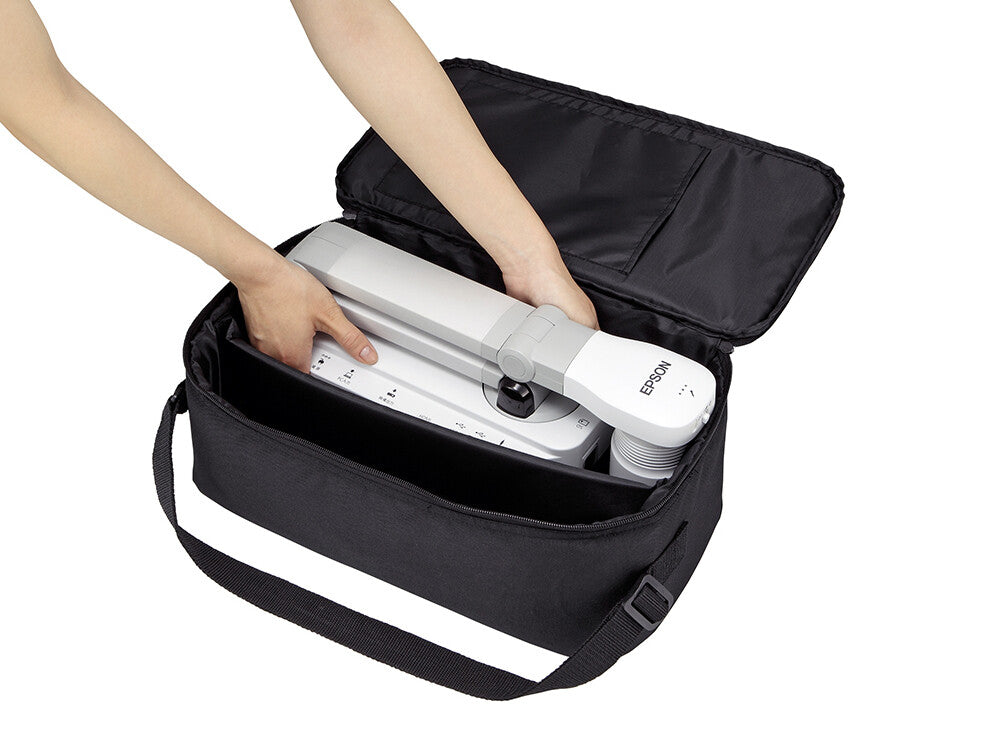

| Carrying case | Yes |
| Cables included | AC |
| Manual | Yes |
| Logistics data | |
|---|---|
| Pallet height (UK) | 5.04 m |
| Pallet width (UK) | 100 cm |
| Pallet length (UK) | 120 cm |
| Pallet weight (UK) | 0 g |
| Products per pallet (UK) | 110 pc(s) |
| Products per pallet layer (UK) | 10 pc(s) |
| Products per pallet layer | 6 pc(s) |
| Pallet gross height | 5.04 m |
| Pallet gross width | 80 cm |
| Pallet gross length | 120 cm |
| Pallet gross weight | 0 g |
| Products per pallet | 66 pc(s) |
