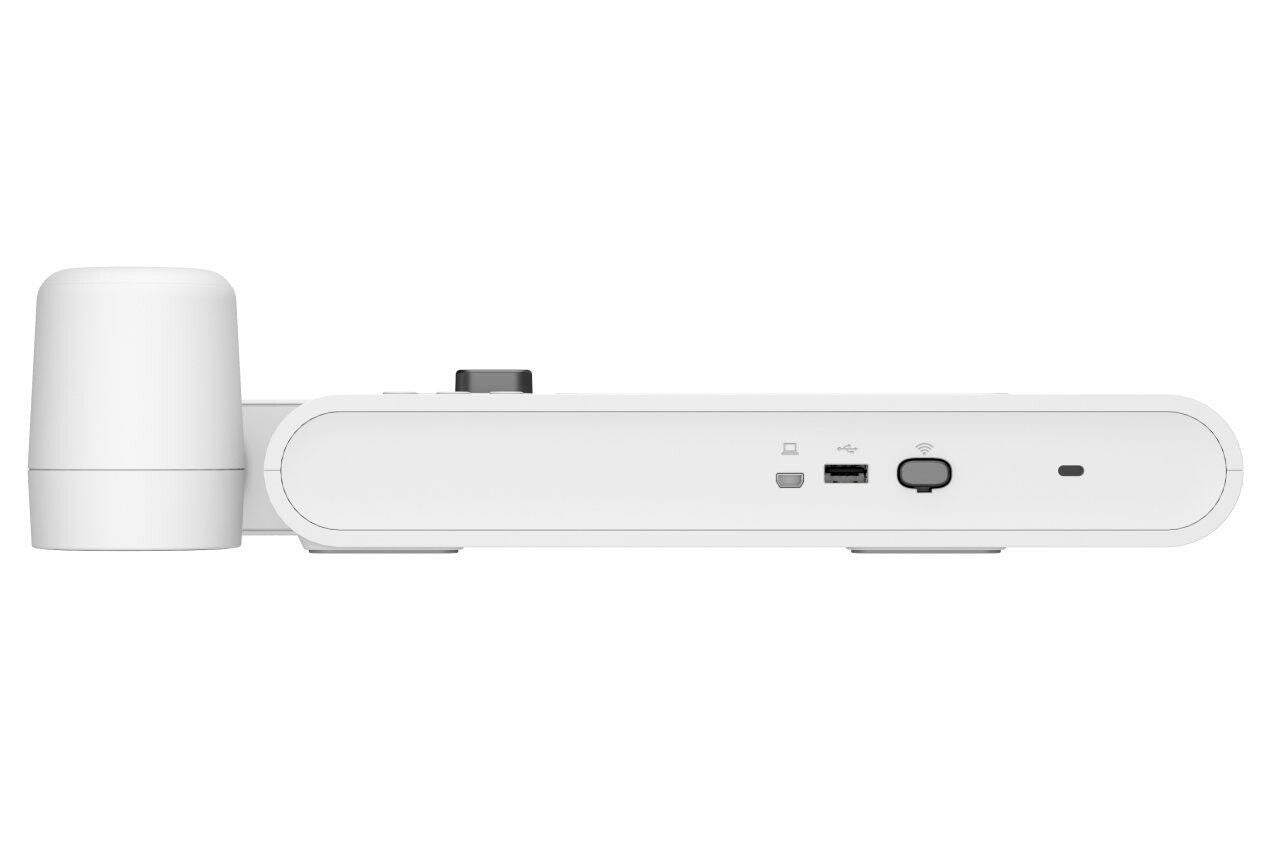

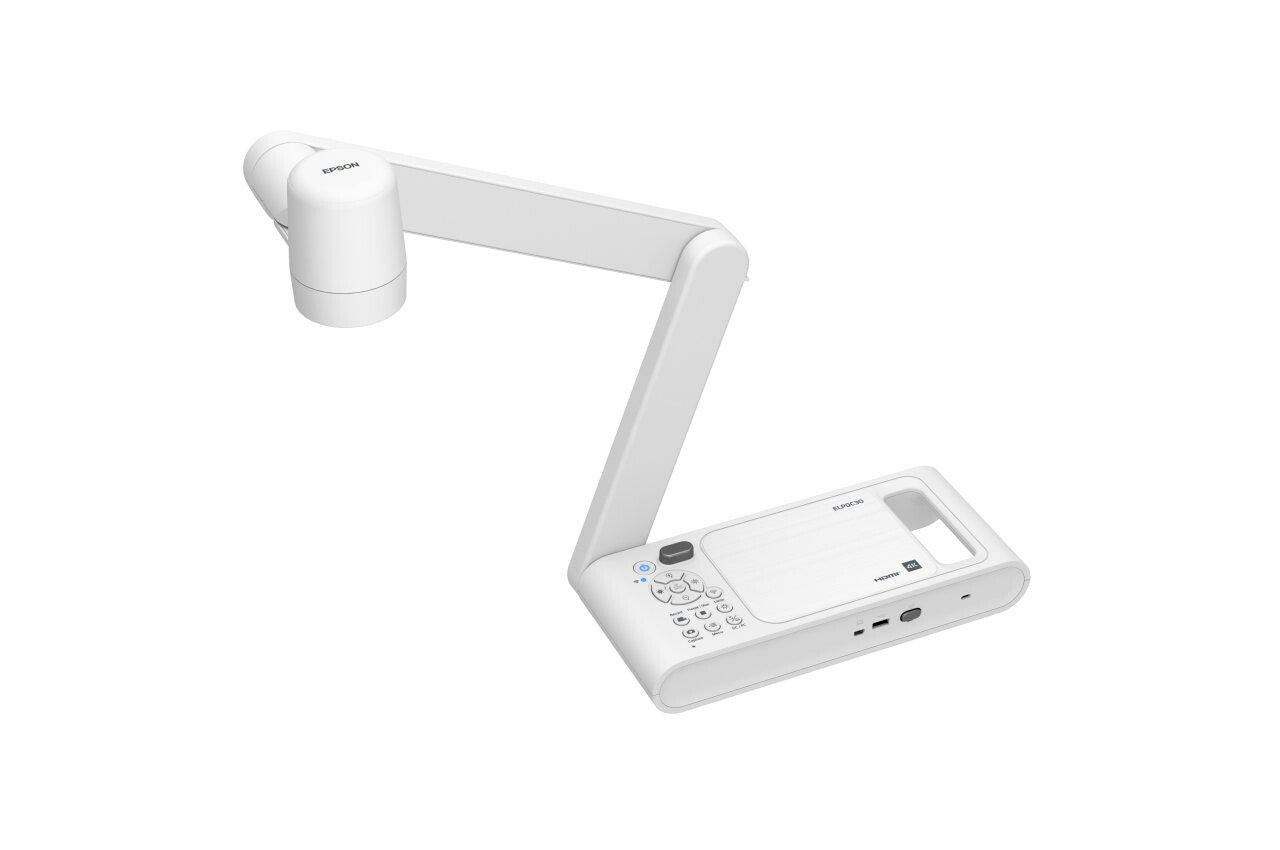

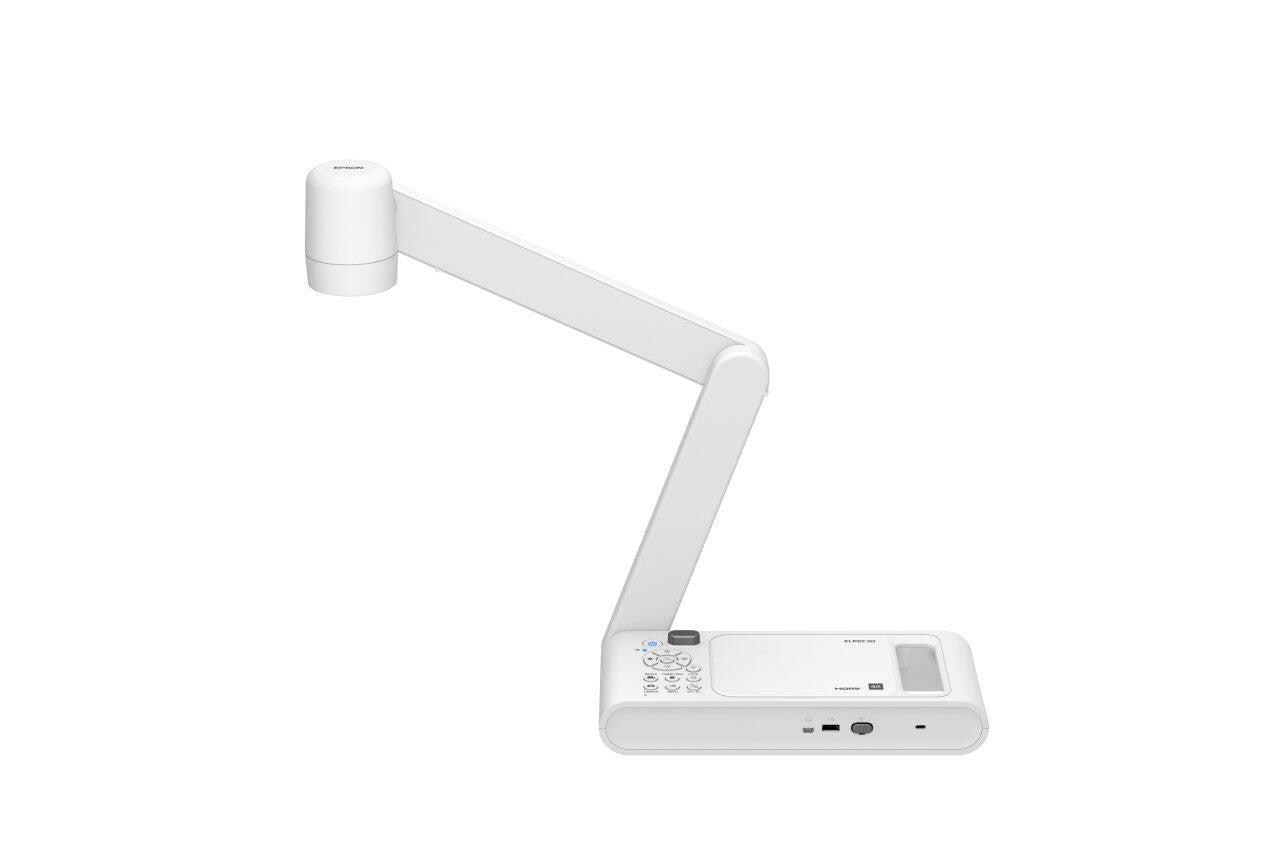

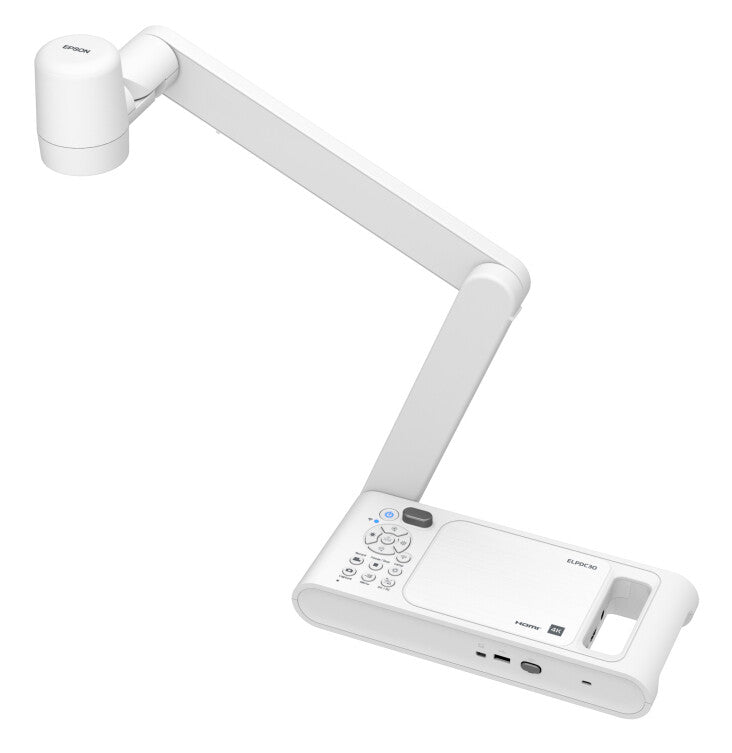

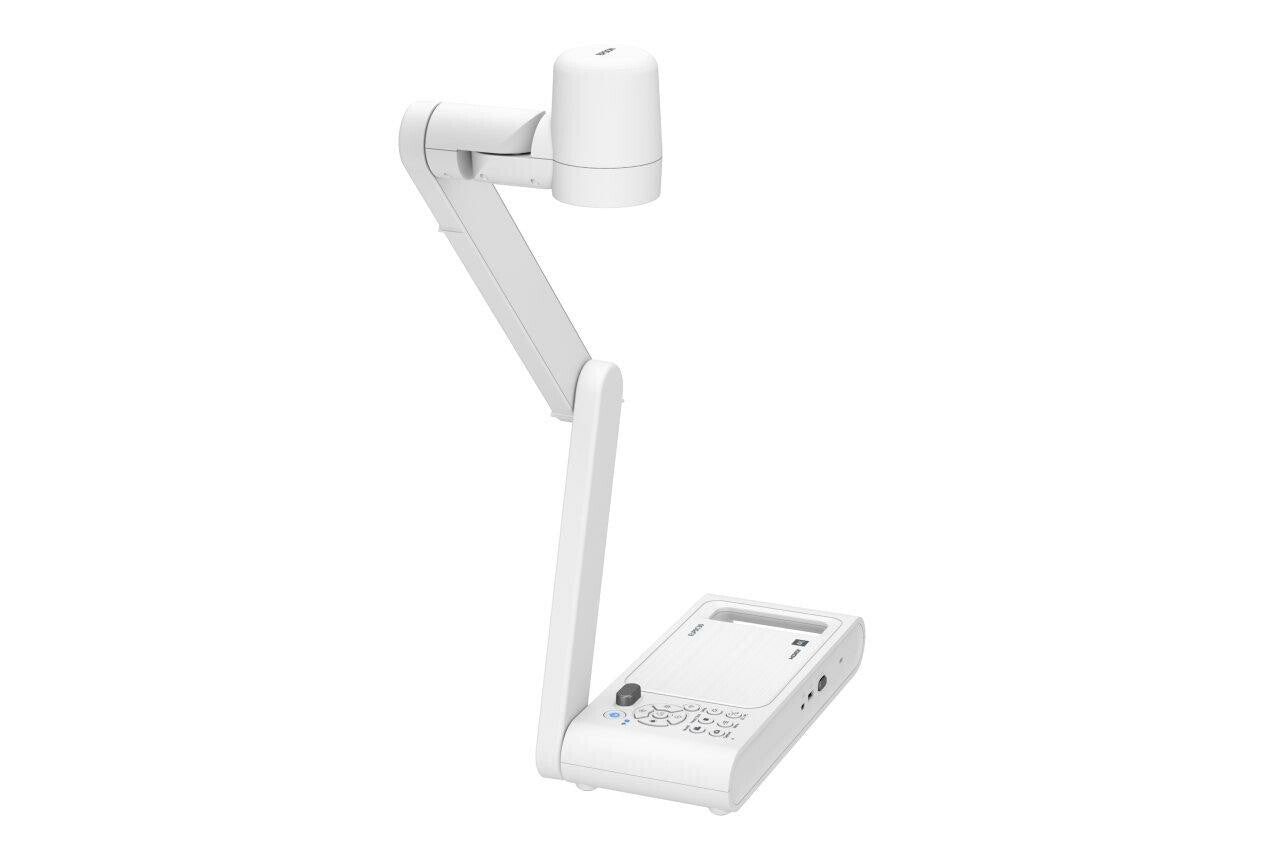

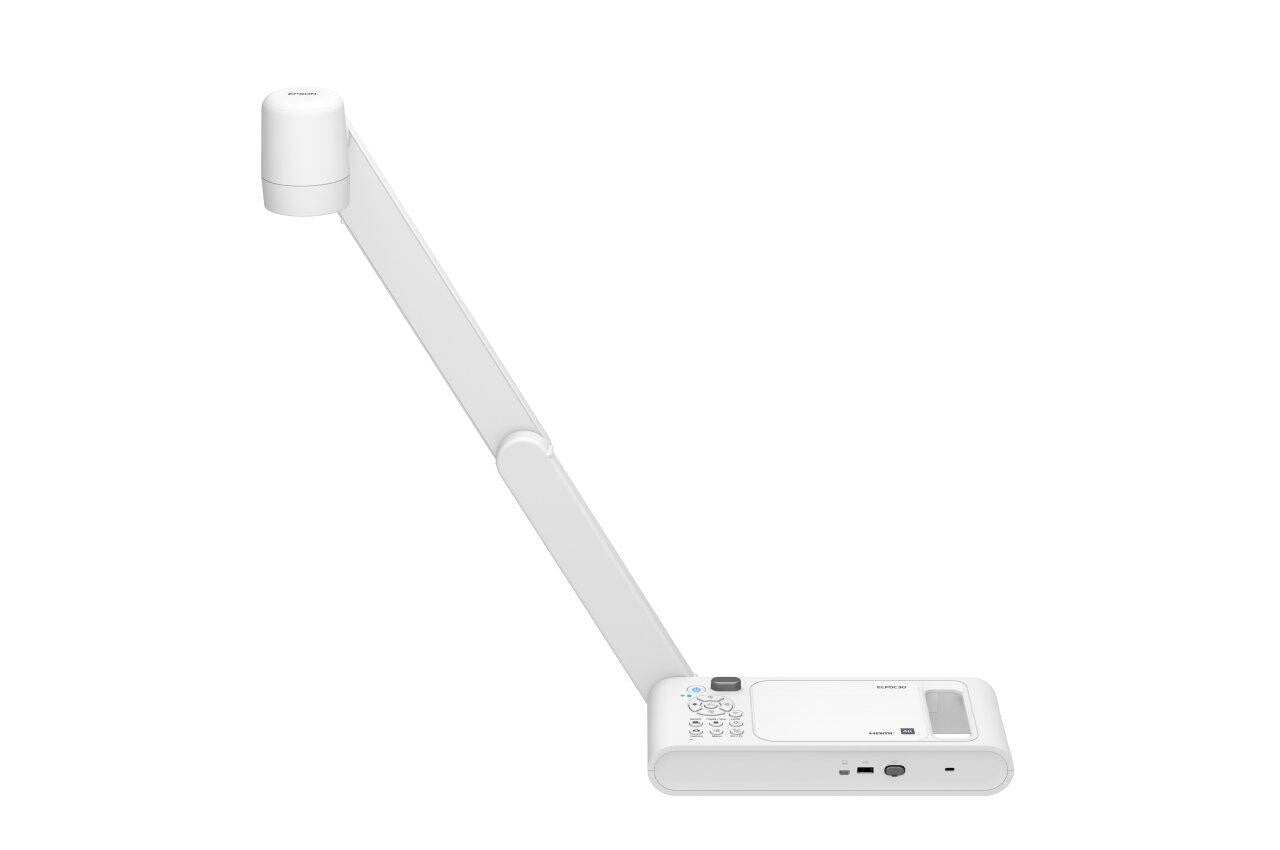

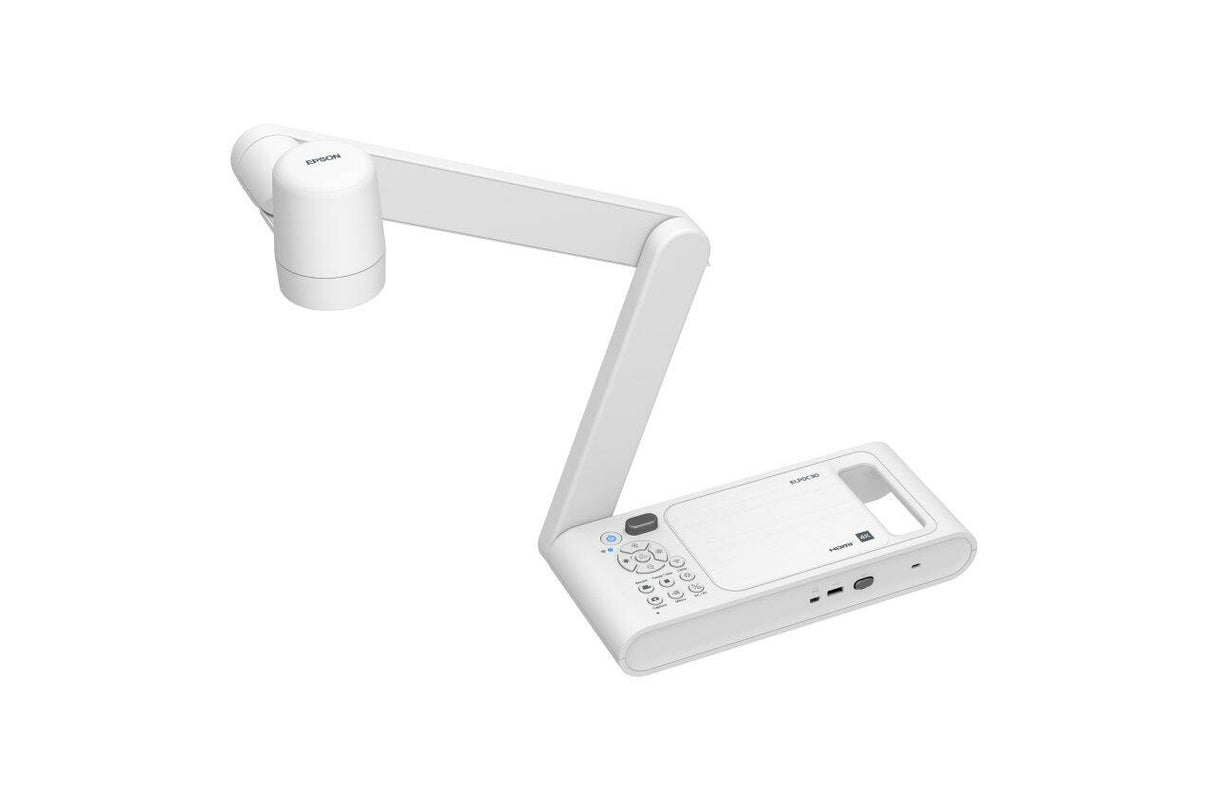

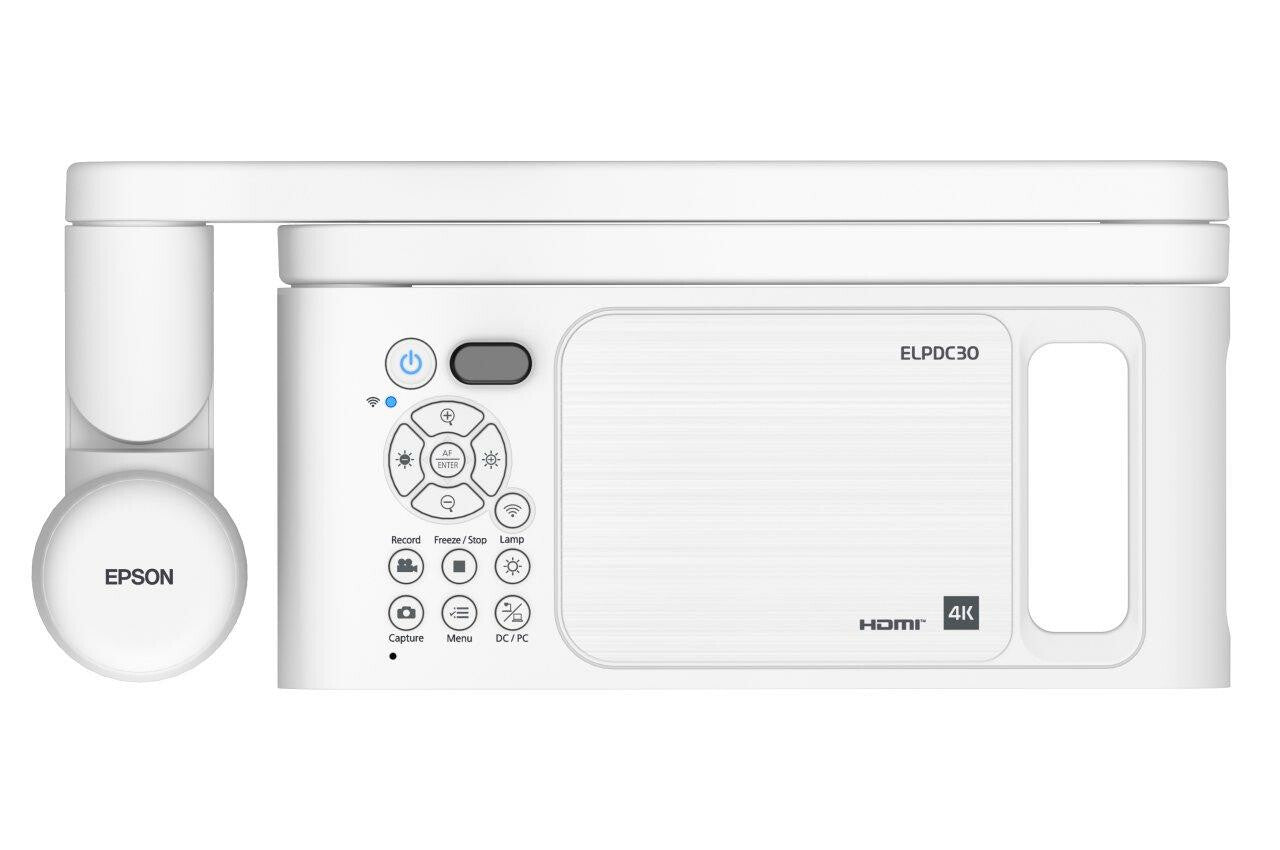

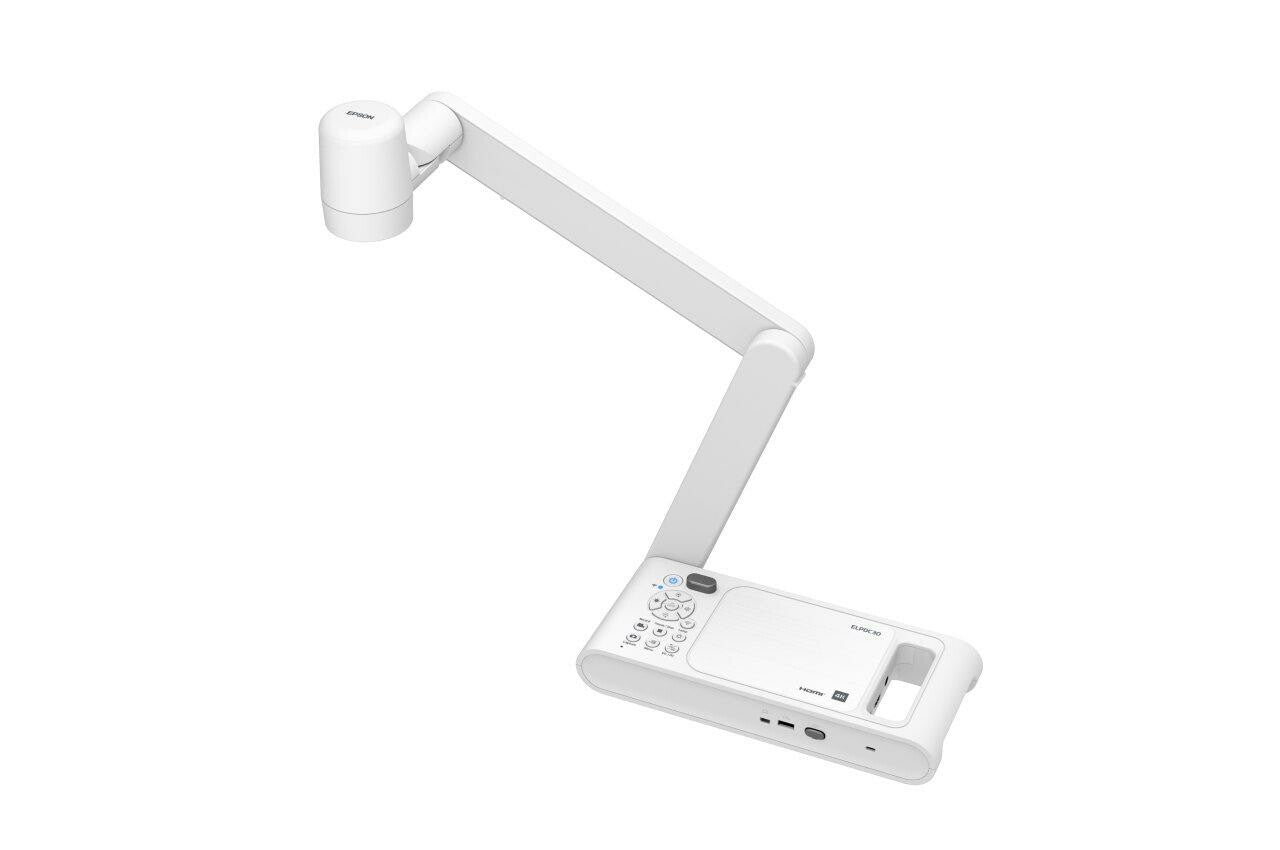

Epson V12HB09080 document camera White 25.4 / 3.2 mm (1 / 3.2") CMOS USB/HDMI/Wi-Fi
Beskrivelse
Beskrivelse
The ELPDC30 is perfect for teachers who want to transform digital learning. Thanks to 4K UHD resolution and the 13 mega-pixel camera, image quality is stunning in every learning setting. It has a shooting area up to A3, and when combined with an Epson projector the content can be displayed on a large screen that's accessible to all students. Add in 230x zoom ratio and every detail can be shared and discussed in perfect clarity.

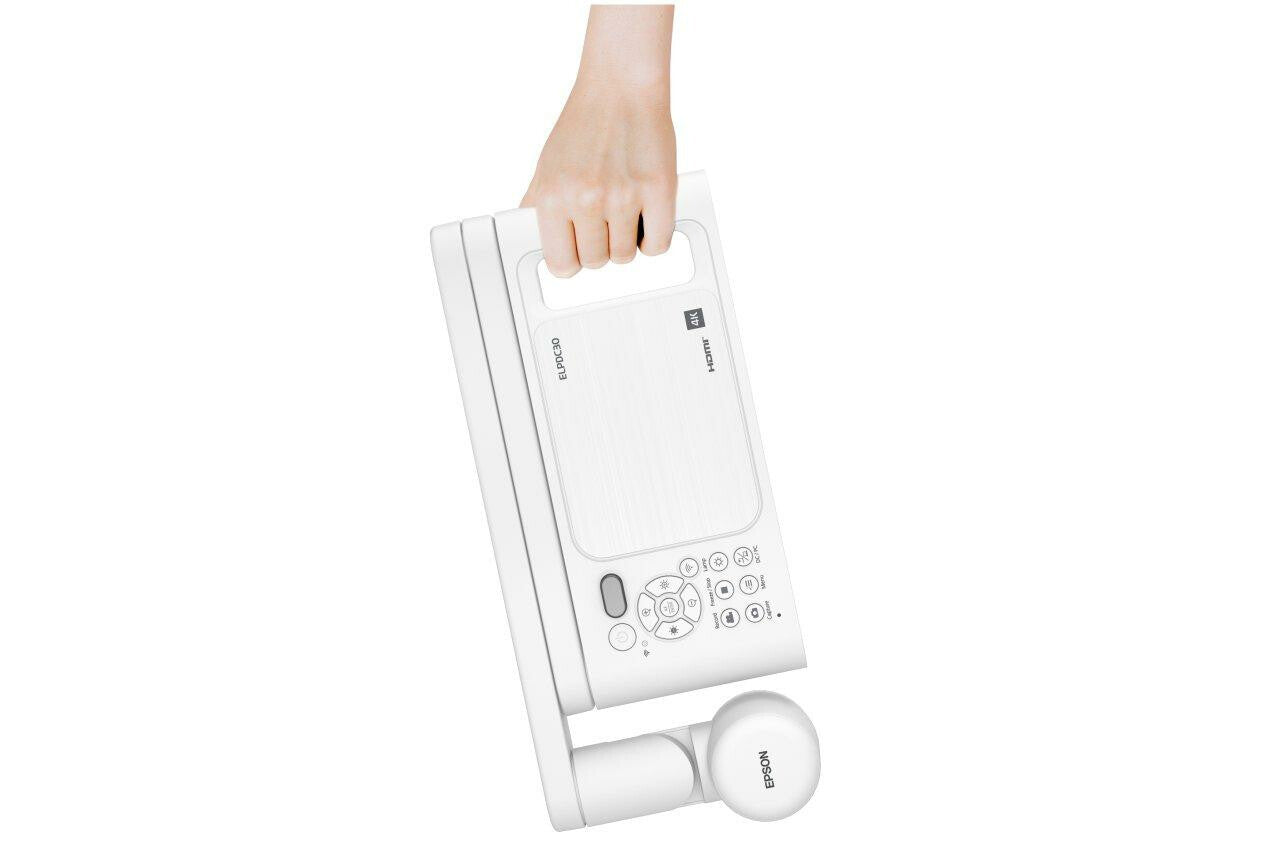

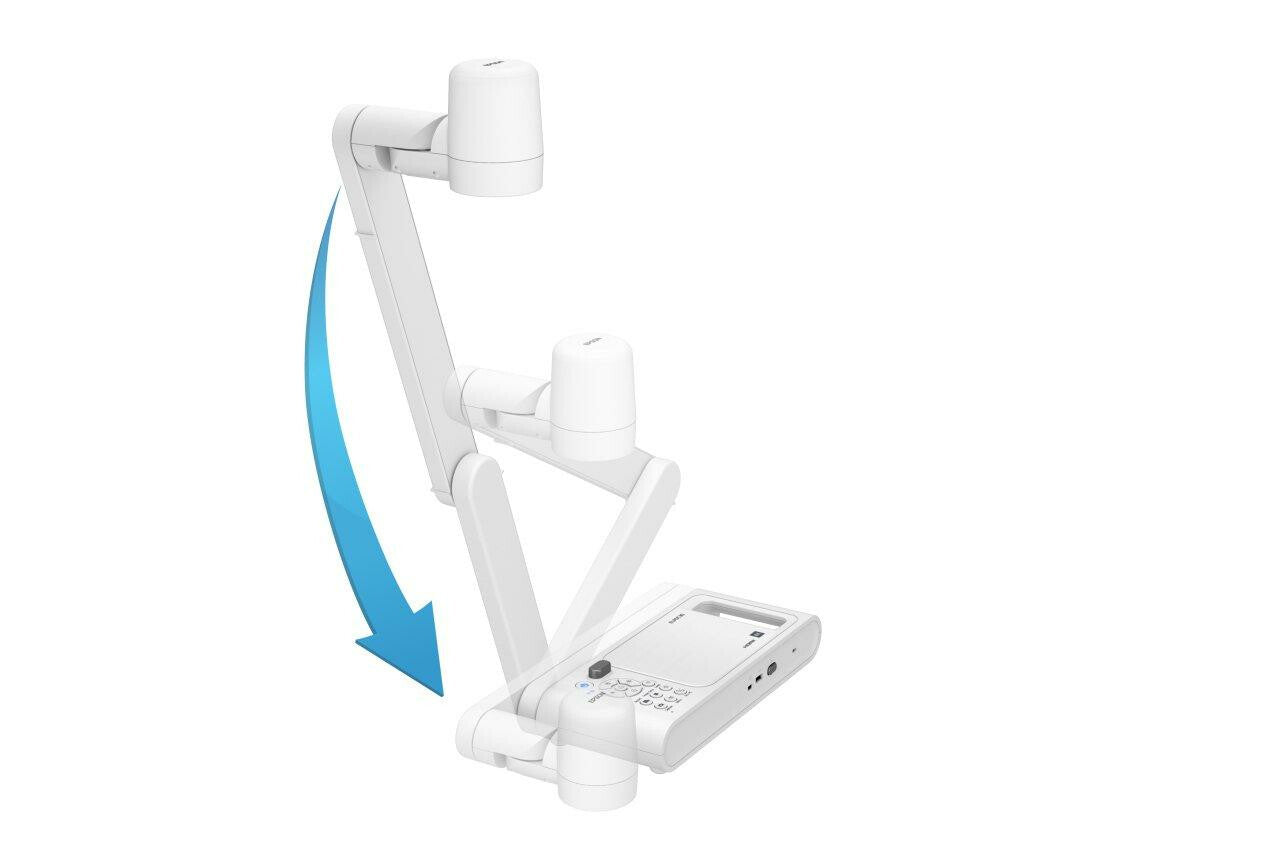

The ELPDC30 can be connected directly to the main display wirelessly or via Miracast at 30fps (60fps max without Miracast), without being limited by HDMI connectivity. Being compact, lightweight and having a built-in carry handle, makes handling safe and easy.
The microscope attachment means the smallest content can be viewed at the largest of scales, while USB memory storage of up to 32GB gives the ELPDC30 the ability to record, capture and store images for future sessions and classes.

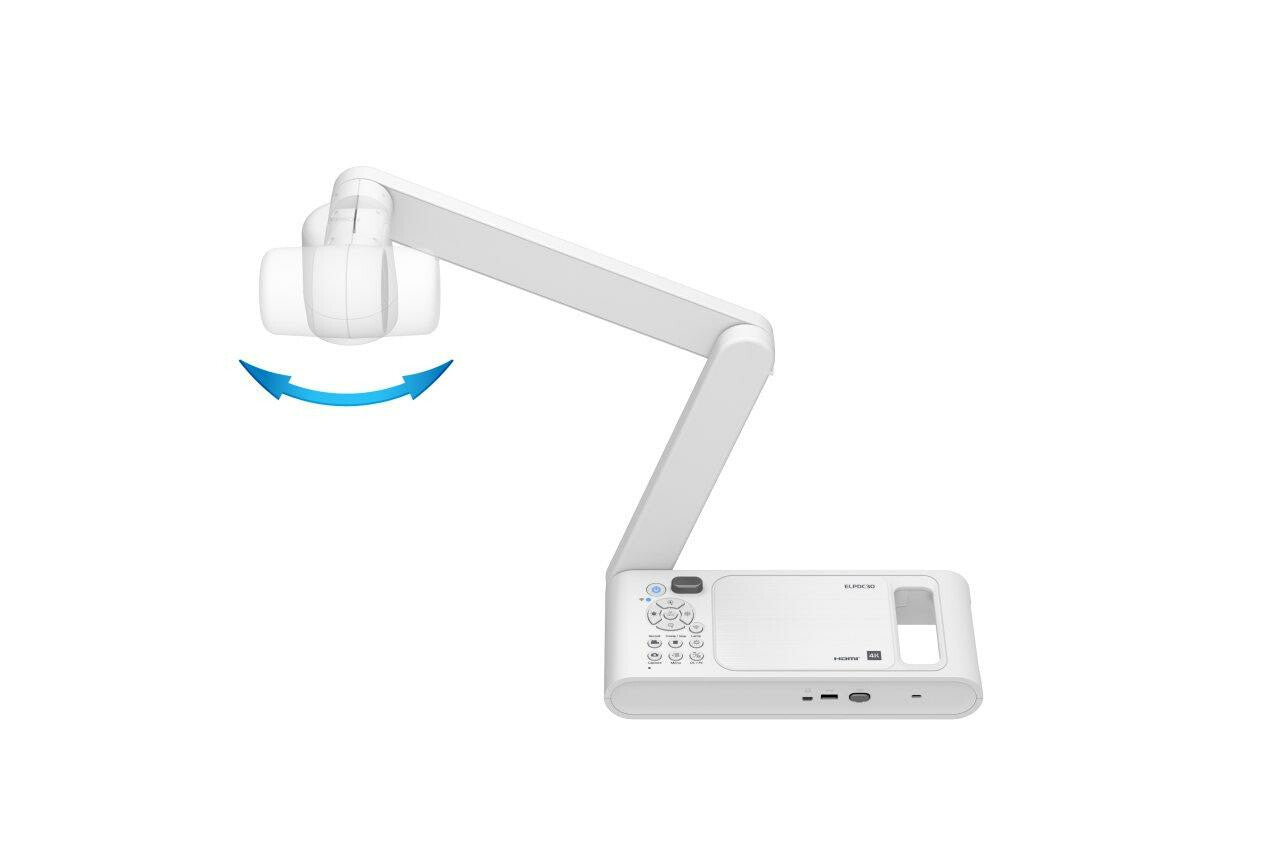

The flicker-reduction feature ensures a comfortable viewing experience, making it a healthy choice for young eyes, and a flexible mechanical head with built-in LED light enhances the content being shown.
An optional carry case provides extra protection when moved between rooms or locations and, if the ELPDC30 needs to be secured, it comes with a Kensington lock.
Specifikationer
Specifikationer
Camera | |
---|---|
Maximum frame rate | 60 fps |
HD type | 4K Ultra HD |
Supported graphics resolutions | 320 x 180, 320 x 240, 320 x 288 (QVGA), 640 x 360, 640 x 480 (VGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 2560 x 1920 |
Sensor type | CMOS |
Optical sensor size | 25.4 / 3.2 mm (1 / 3.2") |
Effective sensor resolution | 13 MP |
Lens system | |
---|---|
Shooting area (WxD) | 297 x 420 mm |
Digital zoom | 23x |
Optical zoom | 10x |
Auto focus | Yes |
Ports & interfaces | |
---|---|
USB 1.1 ports quantity | 1 |
Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
USB connector type | Mini-USB B, USB Type-A |

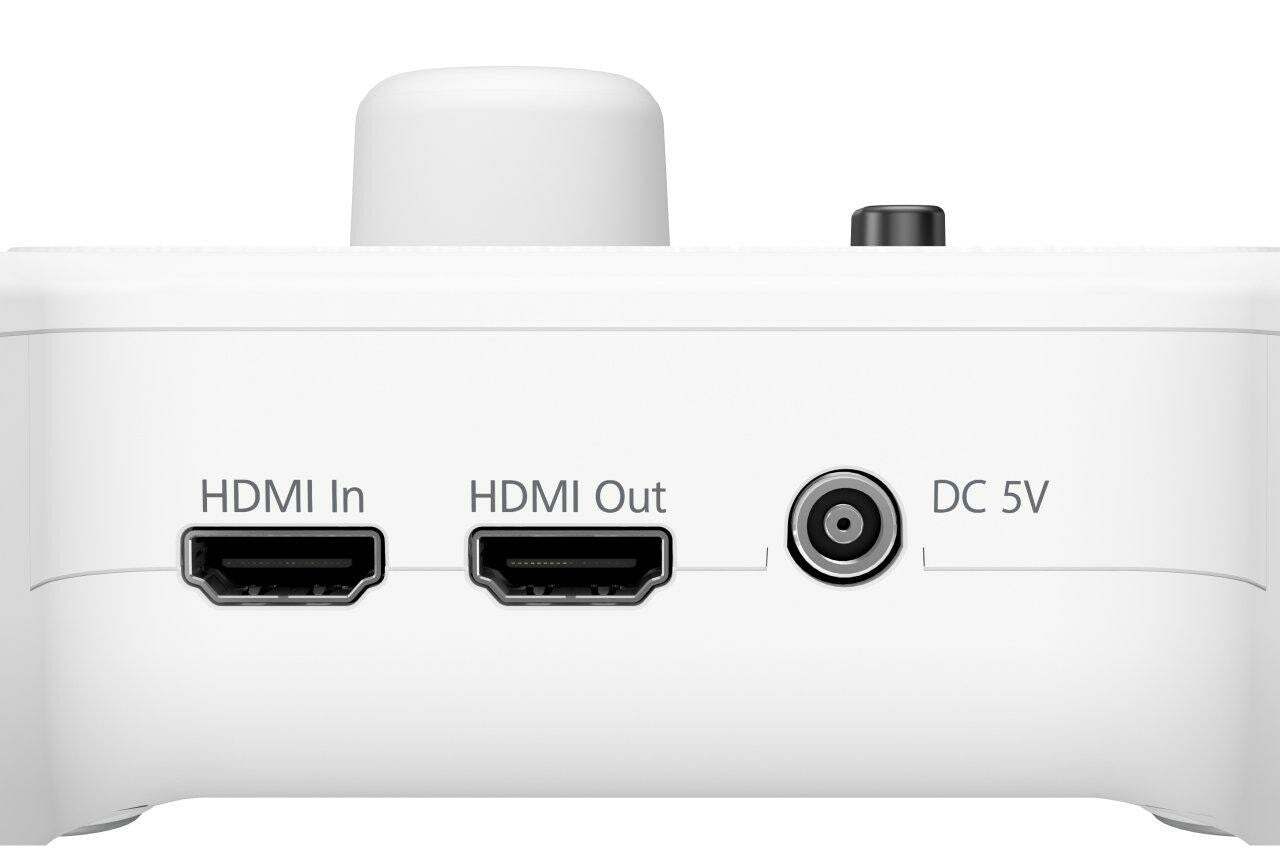

HDMI input ports quantity | 1 |
HDMI output ports quantity | 1 |
Interface | USB/HDMI/Wi-Fi |
Technical details | |
---|---|
Frame rate | 60 fps |
Warranty period | 5 year(s) |
Cable lock slot type | Kensington |
Cable lock slot | Yes |
LED indicators | Yes |
Anti-flicker | Yes |
Display modes | Microscope, Motion |
Control type | Buttons |
Product colour | White |
Power | |
---|---|
Power consumption (standby) | 0.5 W |
Power consumption (typical) | 9.6 W |
Weight & dimensions | |
---|---|
Dimensions folded (WxDxH) | 362 x 159 x 85 mm |
Weight | 2.8 kg |
Height | 554 mm |
Depth | 159 mm |
Width | 586 mm |
Packaging data | |
---|---|
Quantity per pack | 1 pc(s) |
