Erard EXO 600TW3 190.5 cm (75") Black
Erard | Varenummer:
048360
Beskrivelse
Beskrivelse

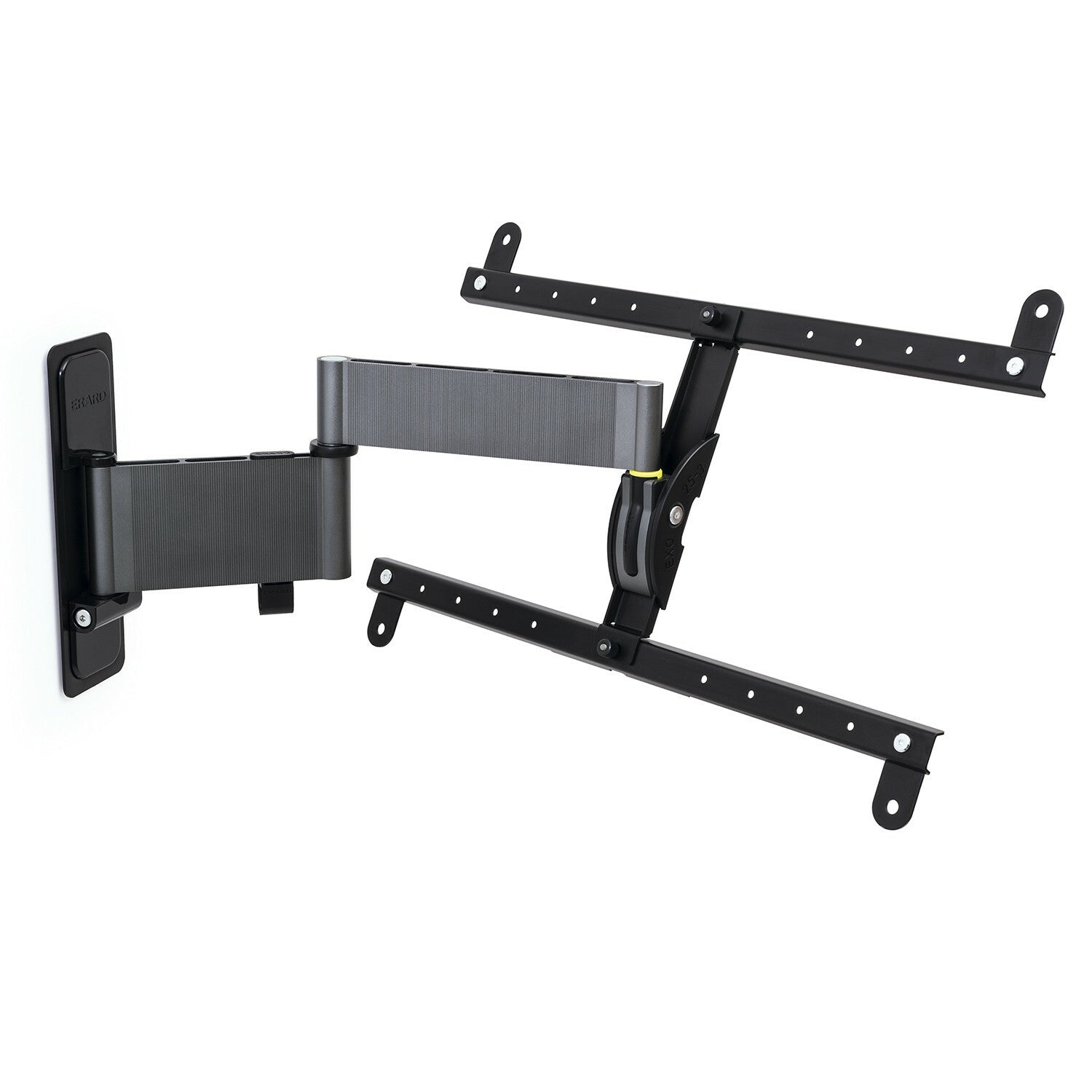

Tilting and swiveling, 40"-75", Max 35kg, VESA 200>600, Aluminium/Steel, Black

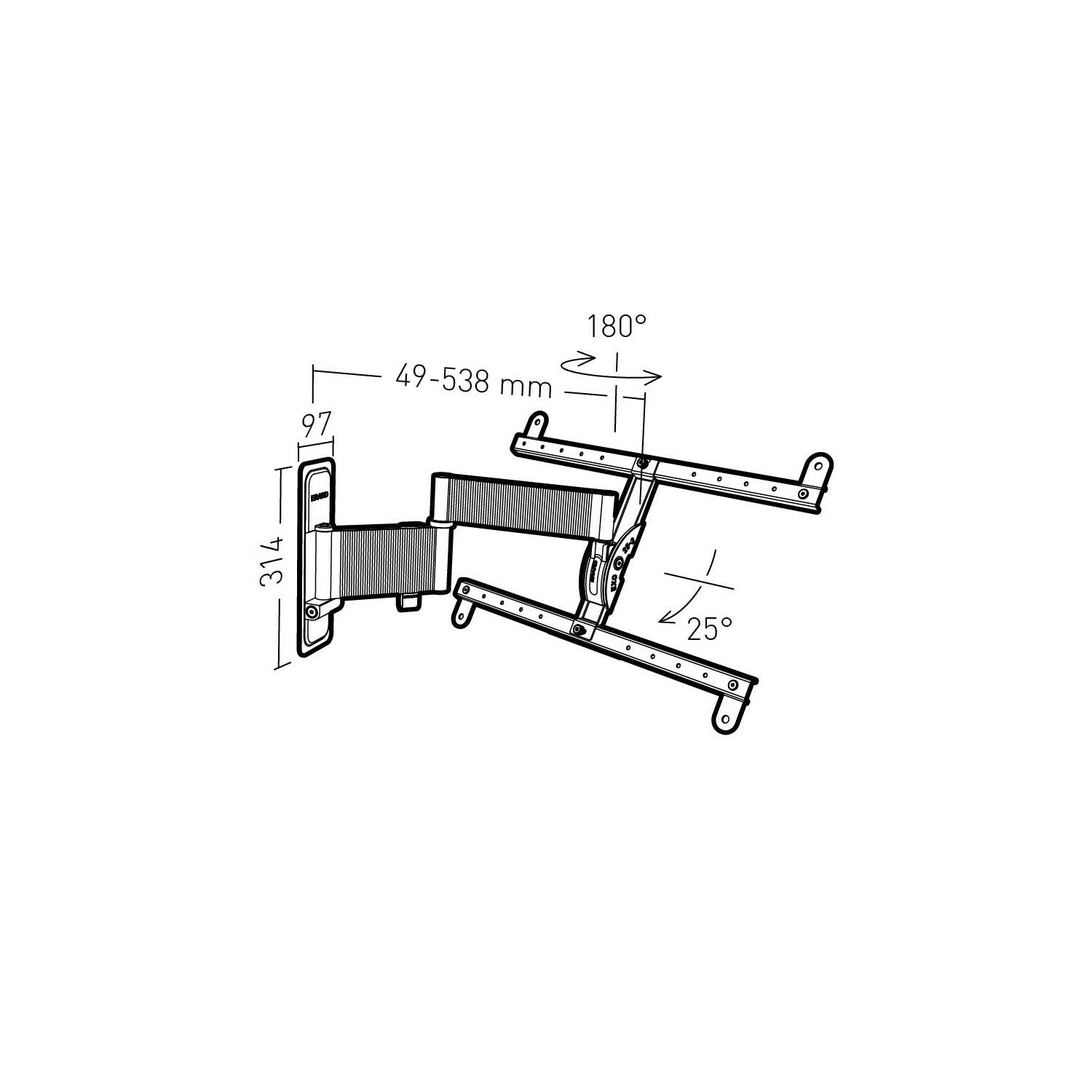

- Offset 538 mm - 2 arm
- Off-centre spacers to correct horizontality after drilling
- Patented micro adjustment system for perfect horizontality of the screen
- Texturized anodized aluminium arm, Titanium colour epoxy painting
- Screen and wall mount made of steel, black epoxy painting
- Compatible with flat and curved screens (screws and spacers included)
Specifikationer
Specifikationer
| Mounting | |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 35 kg |
| Minimum screen size | 101.6 cm (40") |
| Maximum screen size | 190.5 cm (75") |
| Mounting type | Wall |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 600 x 600 mm |
| Panel mounting interface | 200 x 200,300 x 300,400 x 400,500 x 500,600 x 600 |
| Ergonomics | |
|---|---|
| Tilt angle range | -25 - 0° |
| Swivel angle range | 0 - 180° |
| Distance to the wall (max) | 53.8 cm |
| Design | |
|---|---|
| Product colour | Black |
| Housing material | Aluminium, Steel |
| Packaging content | |
|---|---|
| Screws included | Yes |
| Quick installation guide | Yes |
| User guide | Yes |
| Mounting kit | Yes |
| Weight & dimensions | |
|---|---|
| Width | 97 mm |
| Height | 314 mm |
| Packaging data | |
|---|---|
| Package type | Box |
Erard EXO 600TW3 190.5 cm (75") Black
