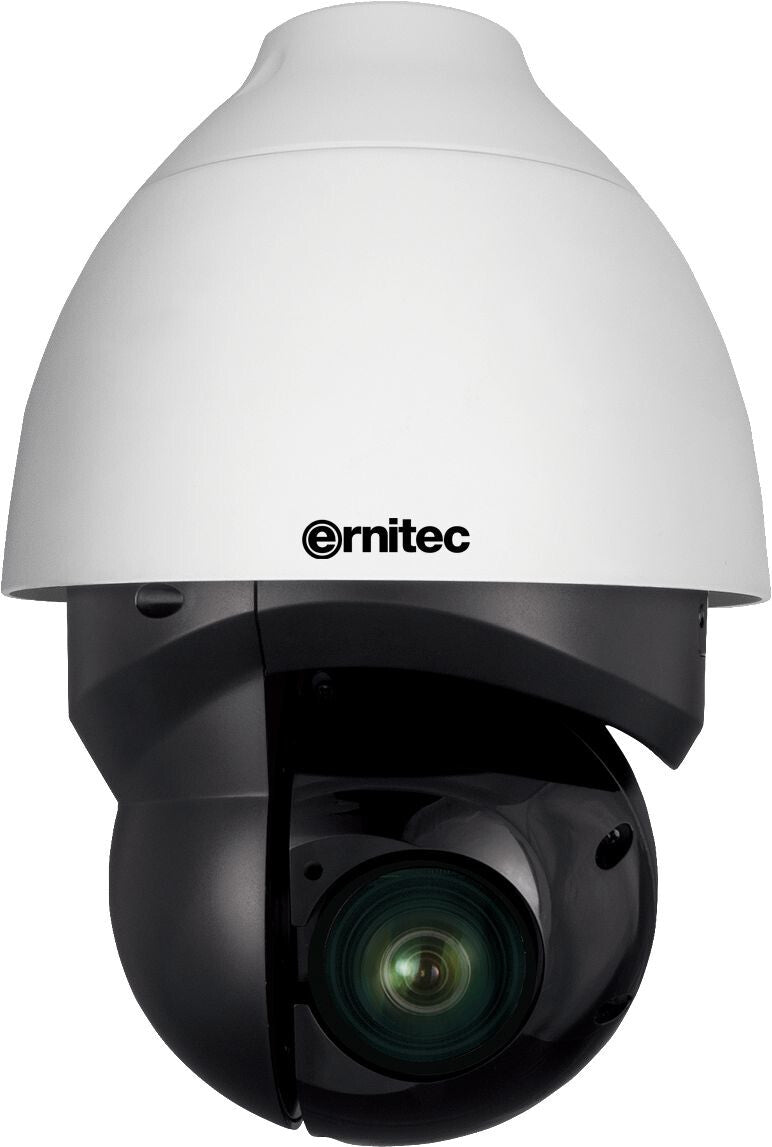

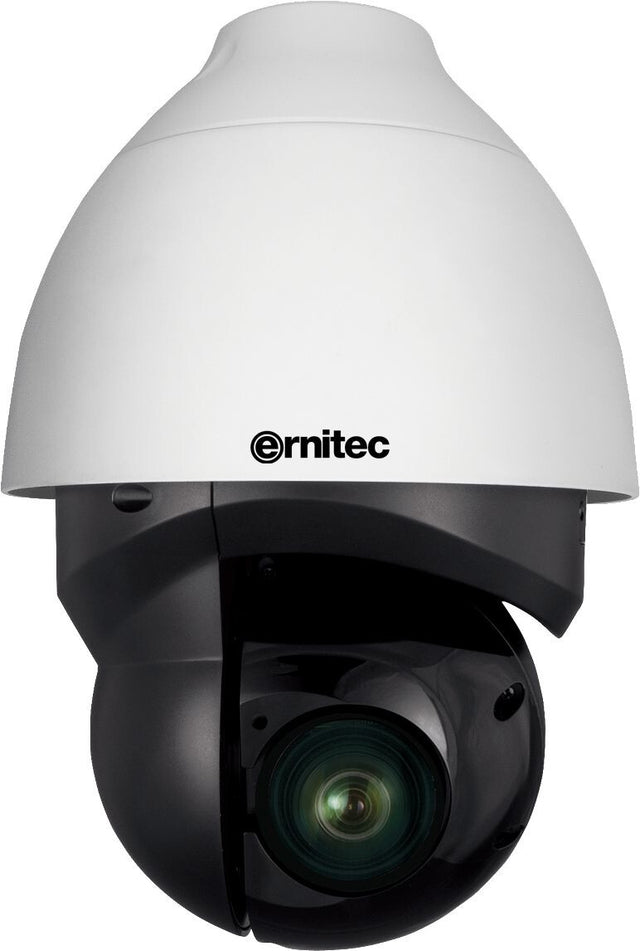

Ernitec 0070-05852IR security camera Dome IP security camera Indoor & outdoor 1945 x 1097 pixels Ceiling/Wall/Pole
Ernitec | Varenummer:
0070-05852IR
Beskrivelse
Beskrivelse
Orion Pro 2MP PTZ Camera with 40x Optical Zoom & IR 200m, PoE+, IP66 - NDAA
Orion DX 852IR
This new full HD IP speed dome camera features the latest 2 mega pixel resolution (1080p) sensor with 25/30 pictures per second using wide dynamic range.
At night, or in any environment where there is low/zero lighting.
This PTZ is also able to provide effective illumination to the objects 200 meters away, and also deliver crystal clear and image using our high quality 40x optical zoom lens.
Specifikationer
Specifikationer
| Performance | |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Design | |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling/Wall/Pole |
| Product colour | White |
| International Protection (IP) code | IP66 |
| IK code | IK10 |
| Weatherproof | Yes |
| Camera | |
|---|---|
| Camera pan control | Yes |
| Lens viewing angle, horizontal | 66.60° ~ 1.90 |
| Lens viewing angle, vertical | 40.10° ~ 1.10 |
| Lens system | |
|---|---|
| Optical zoom | 40x |
| Focal length range | 4.3 - 170 mm |
| Night vision | |
|---|---|
| Night vision | Yes |
| Night vision distance | 200 m |
| LED type | IR |
| Video | |
|---|---|
| Maximum resolution | 1945 x 1097 pixels |
| Total megapixels | 2 MP |
| Video intelligence analytic | Yes |
| Audio | |
|---|---|
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Storage | |
|---|---|
| Card reader integrated | Yes |
| Security | |
|---|---|
| Alarm input channels | 4 |
| Alarm output channels | 2 |
| Power | |
|---|---|
| Power source type | PoE+ |
| Power consumption (max) | 60 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 300 mm |
| Depth | 300 mm |
| Height | 400 mm |
| Weight | 3.7 kg |
| Packaging data | |
|---|---|
| Package width | 300 mm |
| Package depth | 300 mm |
| Package height | 400 mm |
| Package weight | 3.8 kg |
| Other features | |
|---|---|
| Dimensions (WxDxH) | 207 x 207 x 300 mm |
Download
Download
PDF download:
Ernitec 0070-05852IR security camera Dome IP security camera Indoor...
Nøgle specifikationer
Nøgle specifikationer
-
SKI nummer50070125-10000321-1
