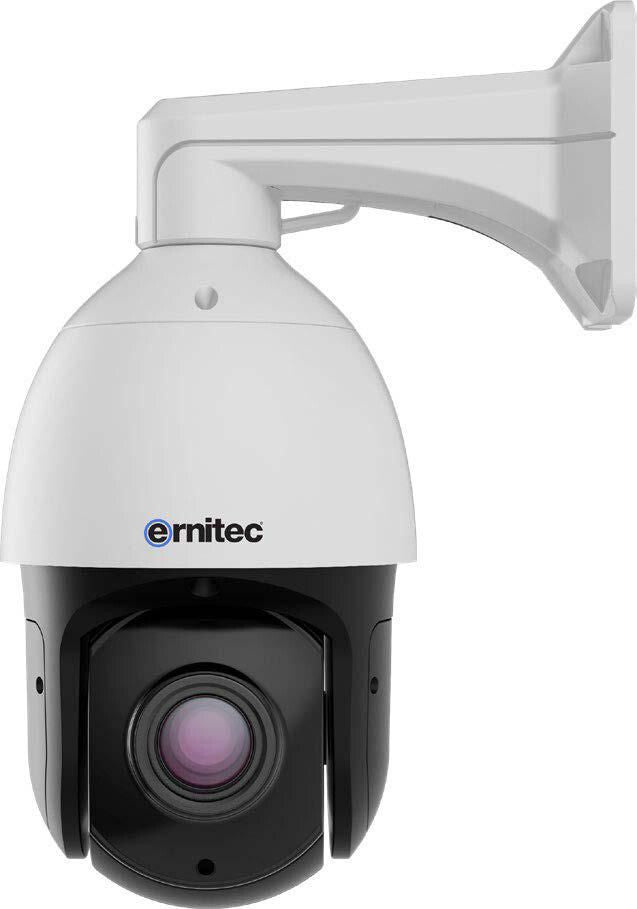

Ernitec 0070-08316 security camera Bulb IP security camera Indoor & outdoor 2592 x 1944 pixels Wall
Ernitec | Varenummer:
0070-08316
Beskrivelse
Beskrivelse
Jupitor Pro 5MP PTZ Camera with 30x Optical Zoom & IR 150m, PoE+, IP66 - NDAA
Jupiter PX-815IR
Specifikationer
Specifikationer
| Performance | |
|---|---|
| Languages support | Multi |
| Number of languages | 10 |
| Alarm input/output | Yes |
| Day/night mode | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Preset points | Yes |
| Auto-tracking | Yes |
| PTZ status display | Yes |
| PTZ modes | Preset point |
| PTZ control | Yes |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Type | IP security camera |
| Design | |
|---|---|
| Fog proof | Yes |
| International Protection (IP) code | IP66 |
| Protection features | Waterproof |
| Housing material | Metal |
| Product colour | Black, White |
| Mounting type | Wall |
| Form factor | Bulb |
| Camera | |
|---|---|
| Camera shutter speed | 1/5 - 1/20000 s |
| Preset programs quantity | 400 |
| White balance | Auto, Manual |
| Pan preset speed | 180 °/sec |
| Pan manual speed | 0.1 - 180 °/sec |
| Pan range | 0 - 360° |
| Tilt preset speed | 90 °/sec |
| Tilt manual speed | 0.1 - 90 °/sec |
| Tilt angle range | 0 - 90° |
| Lens viewing angle, vertical | 42.76 - 1.91° |
| Lens viewing angle, horizontal | 56.62 - 2.48° |
| Angle of rotation | 360° |
| Minimum illumination | 0 lx |
| Camera tilt control | Yes |
| Camera pan control | Yes |
| Image sensor | |
|---|---|
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Number of sensors | 1 |
| Sensor type | CMOS |
| Lens system | |
|---|---|
| Maximum aperture number | 4.3 |
| Minimum aperture number | 1.6 |
| Focus | Motorized/Manual |
| Auto focus | Yes |
| Focal length range | 5.3 - 159 mm |
| Digital zoom | 16x |
| Optical zoom | 30x |
| Zoom capability | Yes |
| Number of lenses | 1 |
| Night vision | |
|---|---|
| LED type | IR |
| Night vision distance | 150 m |
| Night vision | Yes |
| Video | |
|---|---|
| Back Light Compensation (BLC) | Yes |
| Privacy masking | Yes |
| Highlight Compensation (HLC) | Yes |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | 100 kbps - 12 Mbps |
| Noise reduction technology | 3D noise reduction |
| Frame rate | 30 fps |
| Total megapixels | 5 MP |
| Maximum resolution | 2592 x 1944 pixels |
| Audio | |
|---|---|
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Audio formats supported | G.711, PCM |
| Audio output channels | 1.0 channels |
| Audio input channels | 1.0 channels |
| Network | |
|---|---|
| Streaming method | Unicast |
| Number of users | 10 user(s) |
| Supported network protocols | IPv4, IPv6, TCP / IP, HTTP, HTTPS, UPnP, RTSP / RTP / RTCP, IGMP / Multicast, SMTP, DHCP, NTP, DNS, DDNS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS |
| Ethernet interface type | Fast Ethernet |
| Bluetooth | No |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Storage | |
|---|---|
| Maximum memory card size | 256 GB |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
|---|---|
| Mirror | Yes |
| Video motion detection | Yes |
| Intelligent Video Surveillance (IVS) system features | Crossing line, Human detection, Intrusion, People counting, Vehicle detection |
| Alarm output channels | 2 |
| Alarm input channels | 2 |
| Management features | |
|---|---|
| Web-based management | Yes |
| Power | |
|---|---|
| DC output voltage | 36 |
| Power consumption (typical) | 30 W |
| AC input voltage | 24 V |
| Power source type | AC, DC, PoE |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | -40 - 55 °C |
| Weight & dimensions | |
|---|---|
| Weight | 3.5 kg |
| Diameter | 17.3 cm |
| Height | 292.6 mm |
| Packaging data | |
|---|---|
| Package weight | 5 kg |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Packaging content | |
|---|---|
| Number of cameras | 1 |
| Technical details | |
|---|---|
| Number of video streams | 3 |
