Fanvil X210 IP phone Black 20 lines LCD

Fanvil  |  Varenummer: X210
Stregkode: 6937295601473,6937295601466,7613081100687

Beskrivelse

X210, 20 SIP, 4.3" LCD, Bluetooth,106 DSS keys, EHS, RJ-9, RJ-45, 309x214x187 mm

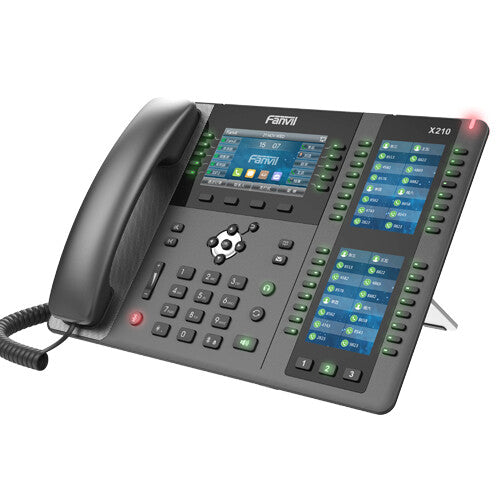

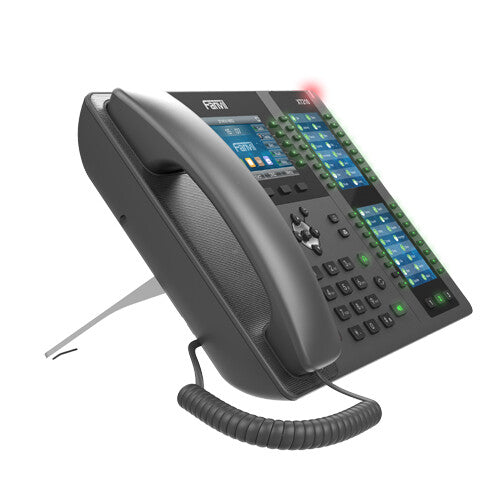

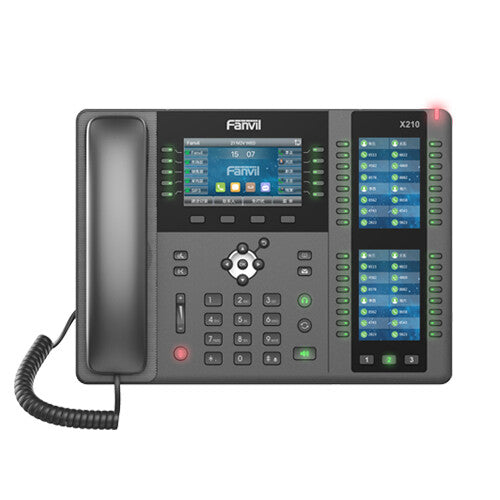

X210 is a high-end enterprise IP phone for users who need to get access to flexible and advanced features to handle medium to high call volumes in their daily work. Featuring 10 DSS keys on 4.3" main color display, up to 96 DSS keys (32 physical) on 2×3.5" side color displays, X210 has up to 106 DSS keys in total to set for BLF, speed dial, group broadcasting function etc. It also comes with HD audio, built-in Bluetooth, Wi-Fi connectivity, EHS support, dual Gigabit, PoE, IP camera/SIP door phone integration, delivering vast productivity with these advanced features.

4.3" main color display 2×3.5" side color displays for DSS keys
Elegantly designed and featuring a large 4.3" high-resolution color display and two convenient 3.5" side color displays make using this IP phone more intuitive than ever.

HD audio for speakerphone and handset
Newly-added support for Opus and a larger audio cavity bring abundant, strong low frequency effect. The speakerphone adopts full net coverage delivering crystal clear, life-like voice communication.

Unified Designed With Two Side Displays
For Up To 106 DSS Keys
· Convenient operation on X210 with two 3.5" side DSS Key displays, no need to add external extension modules.
· With three page-switch buttons, the side displays allow to set up to 96 DSS keys (32 physical), and plus 10 DSS keys on the main display, up to 106 DSS keys are available in total for BLF, speed dial, group broadcasting function etc.

Rich Extension Function
X210 offers a variety of device connections including Wi-Fi
(via Wi-Fi dongle), integrated Bluetooth, EHS headset, USB port for charging smartphone or other devices. Two Gigabit ports allows you to connect your desktop computer or laptop on the phone – no need for extra cabling.

Deliver HD Video Call with IP Camera/SIP Video
Door Phone Integration Equipped with video codec H.264, X210 enables to be integrated with your IP camera or Fanvil SIP video door phone, so that you can have a two-way talk with visitors and unlock the door from your X210 IP phone if you deem them worthy.

Specifikationer

Design
Product colour Black
Handset type Wired handset
Product type IP Phone
Phone features
Caller ID Yes
Call waiting Yes
Anonymous call Yes
Phonebook sharing Yes
Call park Yes
Call pick up Yes
Phonebook capacity 2000 entries
Call hold Yes
Call forwarding Yes
Conference call Yes
Redialing Yes
Intercom Yes
Speed dialling Yes
Do not disturb function Yes
Call transfer Yes
Call log entries 1000
Answering machine Yes
Lines quantity 20 lines
Management features
Firmware upgradeable Yes
Keypad number of keys 77
Display
Touchscreen No
Display resolution 480 x 272 pixels
Display diagonal 10.9 cm (4.3")
Display LCD
Audio
Voice codecs AMR, AMR-WB, G.711a, G.711u, G.722, G.723.1, G.726-32, G.729ab, OPUS, iLBC
Noise reduction Yes
Echo cancellation Yes
Voice activity detection Yes
Microphone mute Yes
Speakerphone Yes
Video
Video codecs H.264
Video call Yes
Network
Quality of Service (QoS) support Yes
Supported network protocols SIP2.0, RTP/RTCP/SRTP, STUN, DHCP, IPv6, LDP, PPPoE, L2TP, OpenVPN, SNTP, FTP/TFTP, HTTP/HTTPS, TR-069
Networking standards IEEE 802.1x
Syslog Yes
Bluetooth version 2.1+EDR
Bluetooth Yes
Wi-Fi No
Ethernet LAN interface type Gigabit Ethernet
Ethernet LAN data rates 10,100,1000 Mbit/s
Ethernet LAN Yes
Ports & interfaces
RJ-9 ports quantity 2
DC-in jack Yes
Ethernet LAN (RJ-45) ports 2
USB 2.0 ports quantity 1
Power
Power consumption (typical) 8 W
Input current 2 A
Power over Ethernet (PoE) Yes
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 10 - 95%
Weight & dimensions
Package height 66 mm
Package depth 287 mm
Package width 325 mm
Height 187 mm
Depth 214 mm
Width 309 mm
Packaging content
Cables included LAN (RJ-45)
Number of handles included 1 pc(s)
