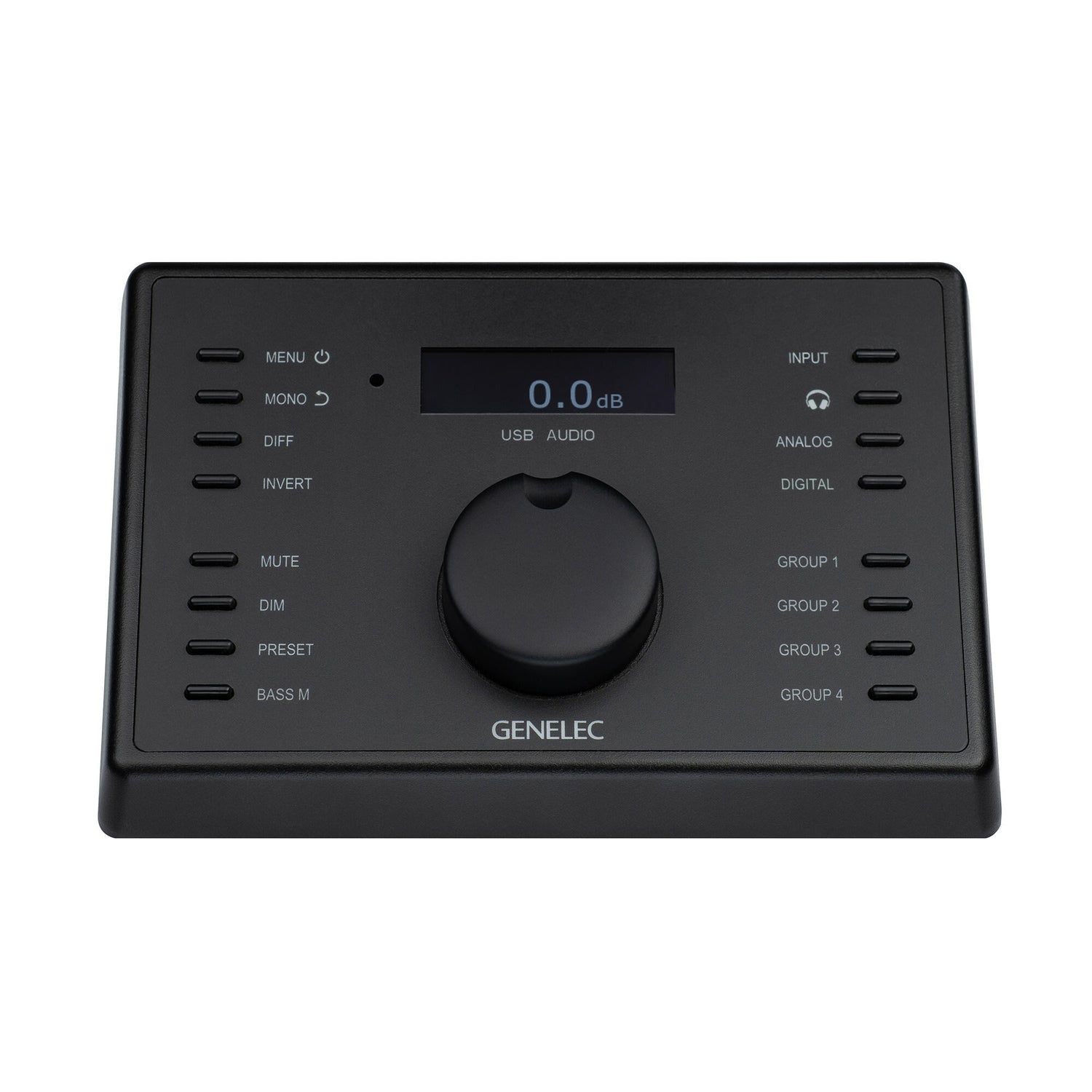

Genelec SAMTM Reference Controller

The Genelec Reference Controller is a Smart Monitoring Device designed as a solution to integrating all key monitoring technologies. Precise imaging and neutral sound reproduction in demanding monitoring applications in all control rooms as well as for headphone monitoring. The 9320A works as a monitor controller, calibration set, output interface, GLM remote and headphone amp. 9320A requires GLM version 5.0 or higher. Dimensions: Height: 60 mm (2.4 inches), Width: 190 mm (7.5 inches), Length: 139 mm (5.5 inches), Weight: 0.9 kg (2.0 lb).Connectors:Genelec measurement microphone connector, Headphone output, 6.3 mm stereo jack, Two analogue balanced line outputs, 6.3 mm tip-ring-sleeve connectors, Two analogue balanced line inputs, 6.3 mm tip-ring-sleeve connectors, Digital audio output supports AES/EBU (AES3) format, XLR connector, Digital audio input supports AES/EBU (AES3) format and S/PDIF format when used with an separate 75 to 110 ohm impedance converter, XLR connector, GLM monitor loudspeaker management network interface (bottom connector) and GLM network terminator, optionally used when the management network is long (top connector), PWR is an auxiliary USB-C power input for use when the computer USB output cannot supply sufficient power for 9320A, USB-C computer interface, used for management, audio input, and power supply for 9320A, Kensington compatible anti-theft lock opening.
