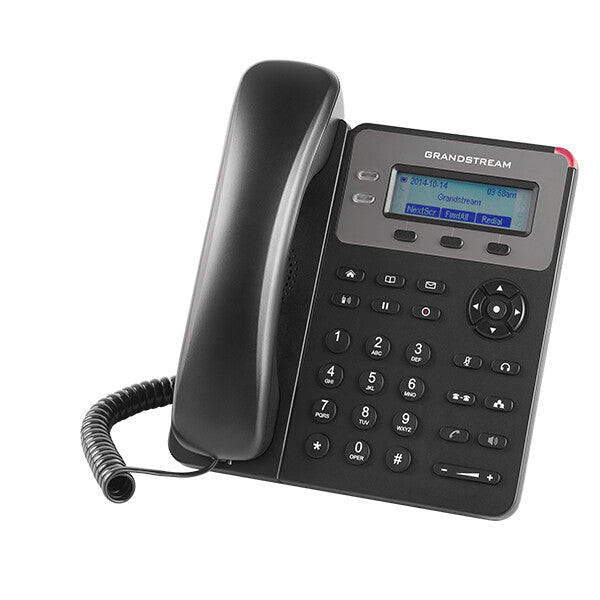

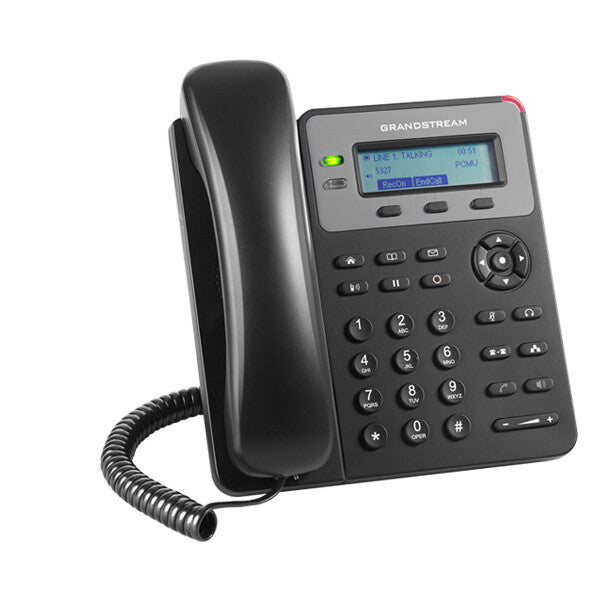

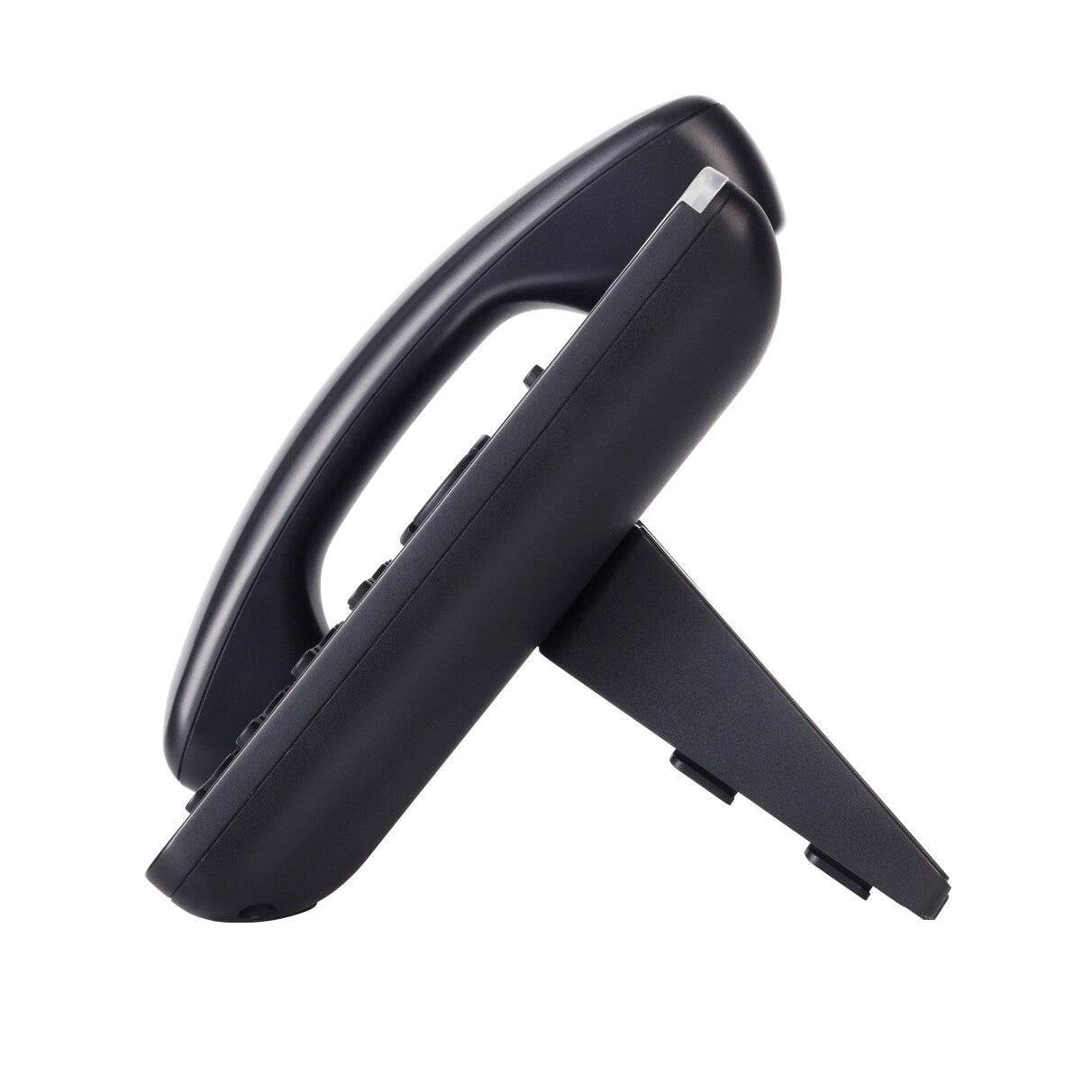

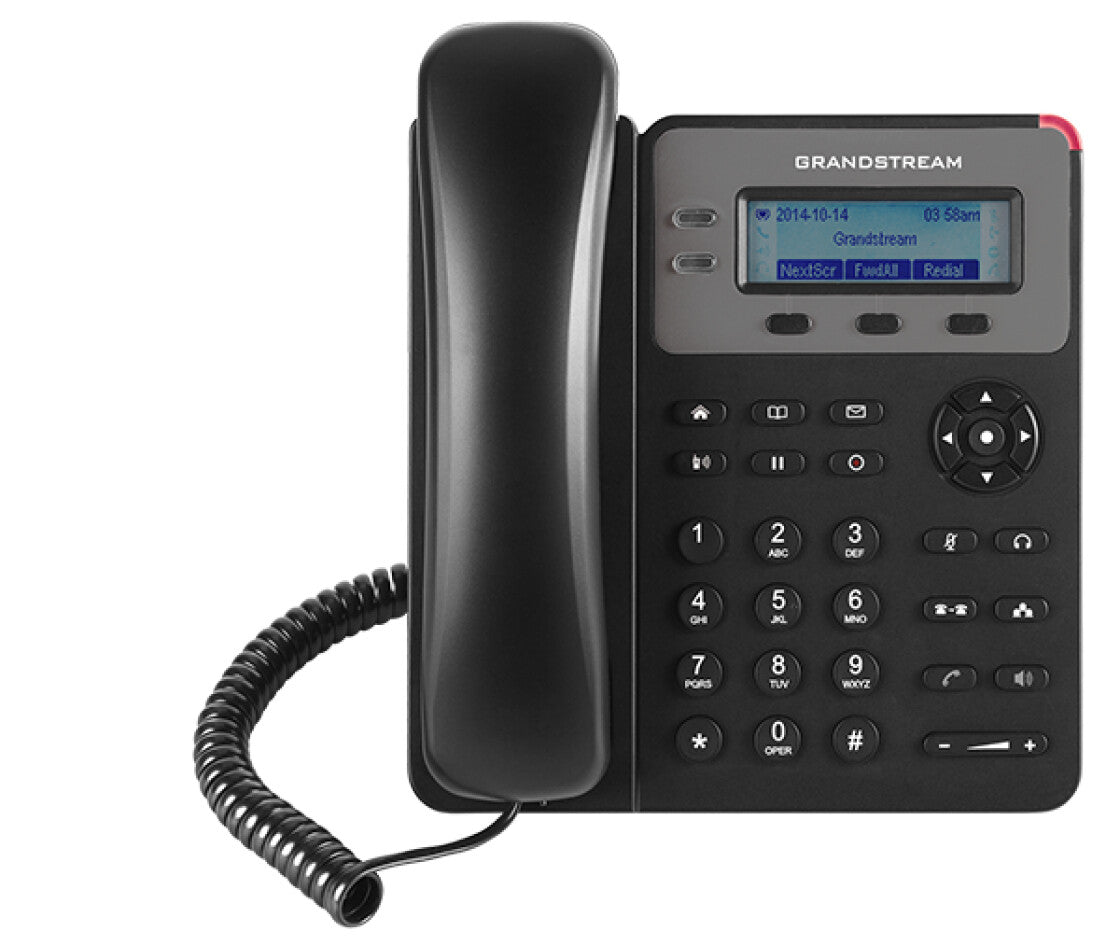

GXP1615 - 132 x 48 LCD, 10/100 Mbps Ethernet, 1x SIP, RJ9
A simple IP phone for small business users, the GXP1610/1615 delivers a user-friendly VoIP calling experience in a very easy-to-use IP phone. The GXP1610/1615 offers support for 1 line, 2 call appearances and includes 3-way voice conferencing to maximize productivity. Additional features include a 132x48 LCD screen for easy viewing, 3 XML programmable soft keys for customization, 10/100 mbps ports, integrated PoE on the GXP1615 model, EHS support for Plantronics headsets and multilanguage support. These features allow the GXP1610/GXP1615 to be a high-quality small business IP phone that is simple and easy-to-use.
| Design |
| Mounting |
Desk/Wall |
| Wall mountable |
Yes |
| Handset type |
Wired handset |
| Product type |
IP Phone |
| Phone features |
| Call waiting |
Yes |
| Call park |
Yes |
| Call pick up |
Yes |
| Full duplex |
Yes |
| Phonebook capacity |
500 entries |
| Number of VoIP accounts |
1 |
| Call hold |
Yes |
| Call forwarding |
Yes |
| Conference call |
Yes |
| Intercom |
Yes |
| Call transfer |
Yes |
| Lines quantity |
1 lines |
| Management features |
| Volume control |
Digital |
| Display |
| Touchscreen |
No |
| Display resolution |
132 x 48 pixels |
| Display |
LCD |
| Audio |
| Voice codecs |
G.711Mu, G.711a, G.722, G.723, G.726, G.729ab, iLBC |
| Speakerphone |
Yes |
| Network |
| Quality of Service (QoS) support |
Yes |
| DHCP client |
Yes |
| Supported network protocols |
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDPMED, LDAP, TR-069, 802.1x, TLS, SRTP |
| Bluetooth |
No |
| Wi-Fi |
No |
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN |
Yes |
| Ports & interfaces |
| RJ-9 ports quantity |
1 |
| Certificates |
| Certification |
FCC: Part 15 (CFR 47) Class BCE : EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950; AS/NZS 60950.1 |
| Power |
| AC adapter output current |
0.6 A |
| AC adapter output voltage |
5 V |
| Input frequency |
50 - 60 Hz |
| AC adapter input voltage |
100 - 240 V |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-10 - 60 °C |
| Weight & dimensions |
| Depth |
209 mm |
| Width |
184.5 mm |
| Packaging content |
| Manual |
Yes |
| AC adapter included |
Yes |
| Number of handles included |
1 pc(s) |
| Logistics data |
| Harmonized System (HS) code |
85171800 |
