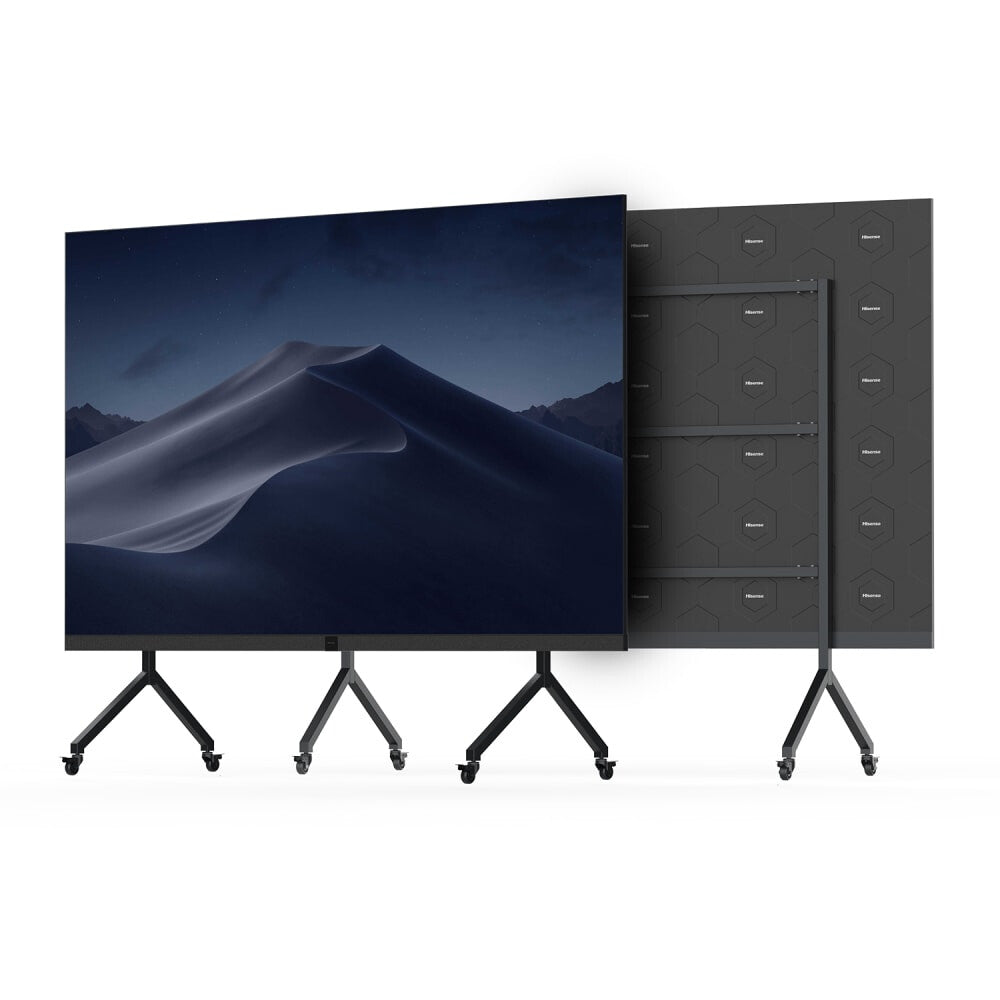

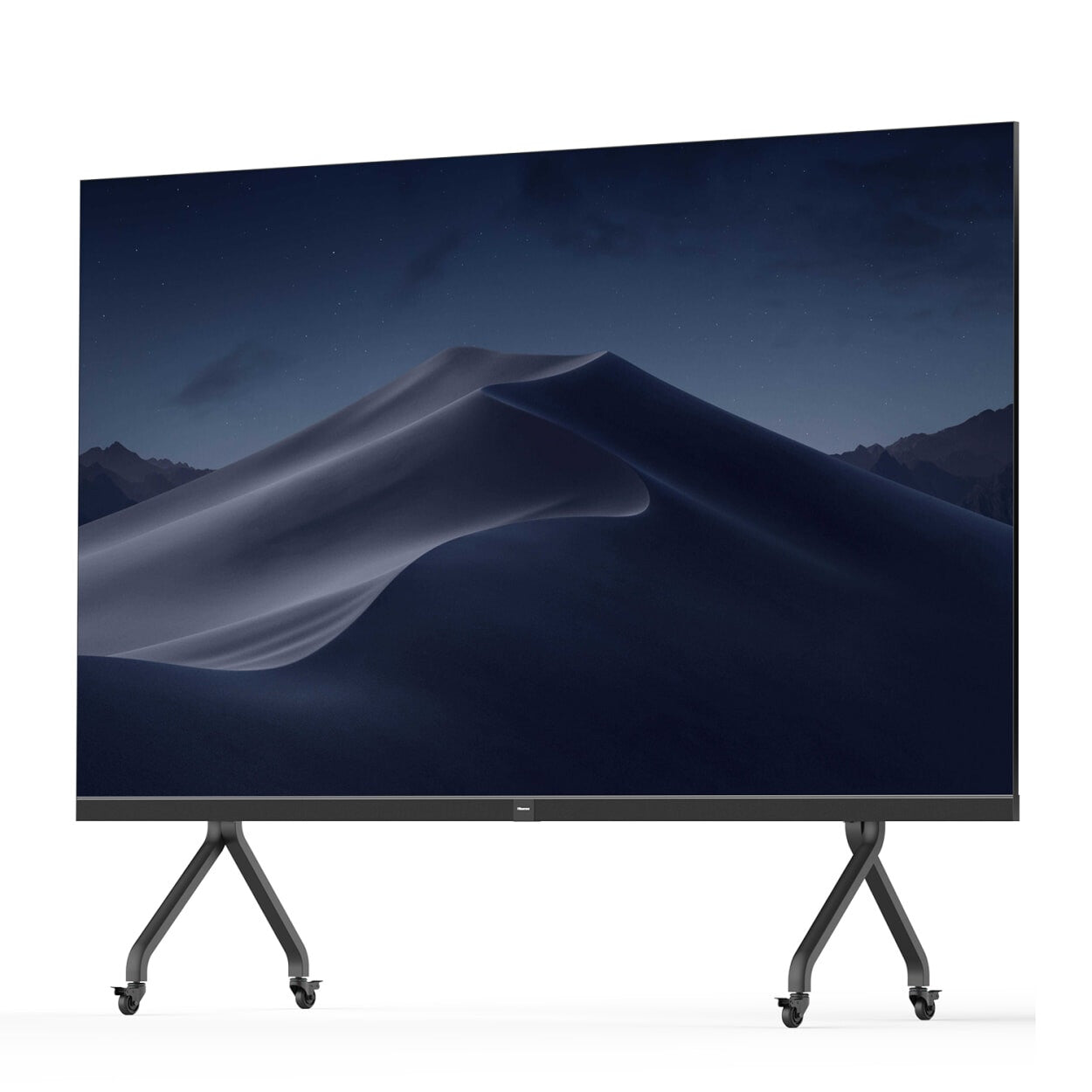

Hisense HAIO163 Digital signage flat panel 4.14 m (163") LED Wi-Fi 500 cd/m² Full HD Black Built-in processor Android 9

Hisense  |  Varenummer: HAIO163DE

Beskrivelse

500 nits, 5000:1, 1920 x 1080, 14 bits, BT 5.0, WiFi: 2.4G & 5G, HDMI 2.0, USB, LAN, SPDIF, Android 9.0, 100-240V

Create the ultimate immersive AV experience for your boardroom with the Hisense All-In-One LED display. Delivering vivid detail and unrivalled color depth, the All-in-one 163” LED display will provide finishing touch to any quality meeting space.

Ultra Picture Quality Chip
Relying on Hisense’s super picture quality chip, supported by powerful algorithms, colour enhancement, multi-grayscale correction, MEMC, HDR, SR super resolution four major picture quality technologies, the picture quality is more detailed and vivid.

Smart Display
Automatically adjust the brightness of the LED all-in-one screen according to the environment. Automatic all-round monitoring of the screen status. Up to three intelligent screen casting methods.

Stereo Surround Sound
Equipped with 60W built in speakers, Dolby & DTS audio dual decoding, impactful bass and crisp treble to create a truly immersive stereo surround sound.

Energy Saving
With our efficient power supply and 3-in-1 minimalist ASIC architecture, along with common-negative driver and super energy-saving algorithms, we have significantly reduced energy consumption, aiding in minimizing environmental impact. Additionally, our advanced technology allows us to maintain a maximum temperature of 40°C for the screen body, ensuring users enjoy a comfortable and safe experience when close to the screen. This not only enhances user comfort but also prolongs the display’s lifespan. Overall, our commitment to innovation and sustainability enables us to create a high-performance display solution that prioritizes energy efficiency and user comfort.

Automatic PQ Adjustment
Hisense HAIO series, the spare lamp board can be directly replaced, intelligent reading lamp board data, automatically complete the colour correction

Quick Installation and Easy Maintenance
Complete installation within 1.5 hours for 2 persons with a fully automated configuration setup. Full front installation and maintenance helps to minimise installation space.

Simple Precise Design
Industrial aesthetic minimalist integrated design. The thinnest lightweight body at only 32.3mm means occupying less space for the display. An ultra-narrow bezel, 95% screen ratio and elegant design of wall bracket and mobile cart.

Specifikationer

Display
Display diagonal 4.14 m (163")
Display technology LED
Display resolution 1920 x 1080 pixels
Display brightness 500 cd/m²
HD type Full HD
Touchscreen No
Native aspect ratio 16:9
Contrast ratio (typical) 5000:1
Viewing angle, horizontal 150°
Viewing angle, vertical 140°
Pixel pitch 1.875 x 1.875 mm
Rated lifetime 100000 h
Colour depth 14 bit
Ports & interfaces
HDMI ports quantity 3
HDMI version 2.0
HDMI input ports quantity 3
USB port Yes
USB ports quantity 2
USB version 2.0/3.2 Gen 1 (3.1 Gen 1)
USB connector type USB Type-A, USB Type-C
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
Wi-Fi Yes
RS-232 interface Yes
Audio
Built-in speaker(s) Yes
Number of built-in speakers 6
RMS rated power 60 W
Design
Product design Digital signage flat panel
Product colour Black
Placement supported Indoor
Performance
On Screen Display (OSD) languages Simplified Chinese, German, English, French, Polish, Spanish, Italian, Arabic, Russian
Number of OSD languages 9
On Screen Display (OSD) Yes
Power
Power consumption (typical) 720 W
Input voltage 100 - 240 V
Power consumption (max) 2100 W
AC input frequency 50/60 Hz
Computer system
Computer system Yes
Built-in processor Yes
Processor manufacturer ARM
Processor family ARM Cortex
Processor architecture ARM Cortex-A73
Processor frequency 1.3 GHz
Processor cores 4
Internal memory 3 GB
On-board graphics card model Mali-G52 MC1
Internal storage capacity 64 GB
Operating system installed Android 9
Operating system version 9.0
Weight & dimensions
Display width 3604 mm
Display depth 32.3 mm
Display height 2112 mm
Display weight 162 kg
Width (with stand) 3604 mm
Depth (with stand) 1086.8 mm
Height (with stand) 2662 mm
Packaging data
Package width 1120 mm
Package depth 768 mm
Package height 2100 mm
Packaging content
Remote control included Yes
Batteries included Yes
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -20 - 40 °C
Storage relative humidity (H-H) 10 - 65%
Other features
Bluetooth version 5.0
Housing material Aluminium
Audio output 1
Bluetooth Yes
Manual Yes
