75'', LCD, 16:9, 3840 x 2160, 450 cd/m², 178° / 178°, 60 Hz, 1709.4 x 1020.1 x 101.2 mm, 44.2 kg
DEPENDABLE. RESILIENT. SUSTAINABLE.

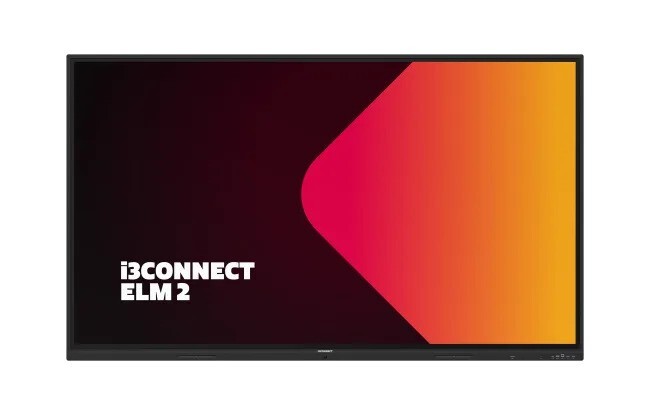

Meet the Elm 2. This Android 14, Google EDLA certified touchscreen is sure to make your teachers & your budget very happy. Like its namesake tree, the Elm 2 is dependable, resilient and sustainable.
DESIGNED FOR TODAY’S AND TOMORROW’S CLASSROOMS
Educators, IT managers and decision-makers, we heard you. The Elm 2 meets modern classroom needs: higher security, lower energy use, easier setup and consistent performance.
UP-TO-DATE ANDROID OS? YES PLEASE!
The Elm 2 runs Android 14 with an 8-core CPU and 8GB of memory. It’s ready to run your favourite education apps or teaching software of choice for years to come.
ACCESSIBILITY BUILT IN
Adaptable for every classroom:
- up-down-left-right Reposition the menu for easier reach
- paintbrush-pencil Change colour modes to support visual needs
- circle-dot Set the multi-use button to do what you need .
SMART TECH = GREEN TECH
Efficient, lighter, better for the planet:
- plug-circle-bolt Uses 25% less energy than previous models.
- street-view Presence detection means it turns off when not in use.
- leaf-heart Meets EU ECO-DESIGN and ENERGY STAR 8.0.
- sword-laser-alt Up to 10% lighter than its predecessors.
| Display |
| Display diagonal |
190.5 cm (75") |
| Display brightness |
450 cd/m² |
| Display number of colours |
1.07 billion colours |
| Display resolution |
3840 x 2160 pixels |
| HD type |
4K Ultra HD |
| LED backlight |
Yes |
| Panel type |
ADS |
| LED backlighting type |
Direct-LED |
| Contrast ratio (dynamic) |
5000:1 |
| Contrast ratio (typical) |
1200:1 |
| Response time |
8 ms |
| Maximum refresh rate |
60 Hz |
| Touchscreen |
Yes |
| Touch technology |
Multi-touch |
| Touchscreen type |
Infrared |
| Number of simultaneous touchpoints |
50 |
| Touch system response time |
5 ms |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Surface material |
Tempered glass |
| Computer system |
| Operating system installed |
Android |
| Operating system version |
14 |
| Built-in processor |
Yes |
| Processor architecture |
ARM Cortex A72 + ARM Cortex A53 |
| Processor cores |
8 |
| Maximum internal memory |
64 GB |
| RAM capacity |
8 GB |
| Graphics card family |
ARM |
| Graphics card |
Mali-G52 MC3 |
| Audio |
| Built-in speaker(s) |
Yes |
| Number of built-in speakers |
2 |
| Speaker power |
40 W |
| Built-in subwoofer |
Yes |
| Subwoofer RMS power |
25 W |
| Network |
| Wi-Fi |
Yes |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Bluetooth version |
5.2 |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
1000,10,100 Mbit/s |
| Ports & interfaces |
| Interface |
HDMI |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| USB 2.0 ports quantity |
1 |
| USB Type-C ports quantity |
2 |
| HDMI ports quantity |
4 |
| HDMI output ports quantity |
3 |
| HDMI version |
2.1 |
| USB Power Delivery up to |
65 W |
| USB Power Delivery (USB PD) |
Yes |
| DisplayPorts quantity |
3 |
| DisplayPort version |
1.2 |
| Ethernet LAN (RJ-45) ports |
2 |
| S/PDIF out port |
Yes |
| Microphone connectivity |
3.5 mm |
| Headphone connectivity |
3.5 mm |
| RS-232 ports |
1 |
| Ergonomics |
| Product colour |
Black |
| VESA mounting |
Yes |
| Panel mounting interface |
600 x 400 mm |
| Mean time between failures (MTBF) |
50000 h |
| Power cable length |
3 m |
| Certification |
CE, EMC, CB, FCC, REACH, RoHS, Energy Star 8.0, EU EcoDesign |
| Performance |
| Ambient light sensor |
Yes |
| Power |
| Power consumption (typical) |
83.2 W |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Storage relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
| Width |
1709.4 mm |
| Depth |
101.2 mm |
| Height |
1020.1 mm |
| Weight |
44.2 kg |
| Packaging data |
| Package width |
1863 mm |
| Package depth |
185 mm |
| Package height |
1148 mm |
| Package weight |
64.8 kg |
| Quantity per pack |
1 pc(s) |
| Packaging content |
| Manual |
Yes |
| USB cable length |
1.8 m |
| Cables included |
USB Type-C, Power |
| Quick start guide |
Yes |
| Remote control included |
Yes |
| Stylus included |
Yes |
| Stylus pen type |
Passive |
| Number of stylus pens |
2 |
