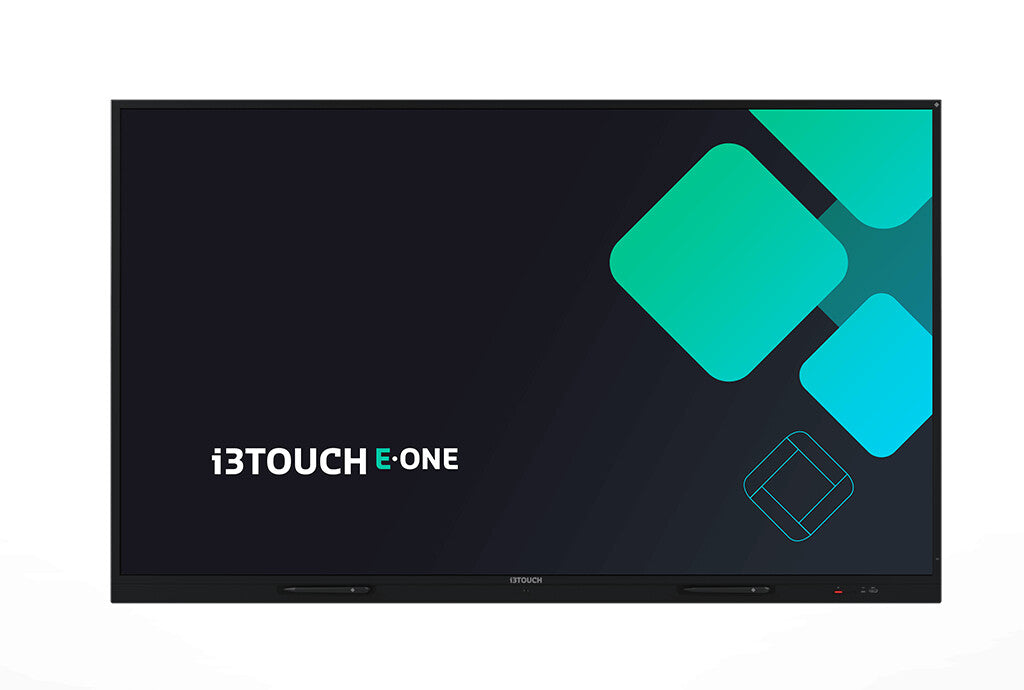

i3-Technologies i3TOUCH E-ONE interactive whiteboard 139.7 cm (55") 3840 x 2160 pixels Touchscreen Black

i3-Technologies  |  Varenummer: 10010450

Vælg størrelse

Beskrivelse

55", 3840 x 2160 4K Ultra HD, IPS, Direct-LED, 16:9, Wi-Fi 6, 2x RJ-45, 2x 16 W speakers, Android 11

The i3TOUCH E-ONE delivers durability, and an all-in-one integrated experience for an incredible value. With high-precision IR technology and zero air gap, the E-ONE gives you an excellent multi-touch experience.

Budget friendly video conferencing solution.
Have a hybrid meeting or lesson? Add a camera to your setup: one of your choosing from our integration partners or an i3CAMERA to achieve a budget-friendly video conferencing solution. Host video conferences or classes with your own software by connecting your laptop to the E-ONE with a USB-C cable. Just one cable for audio, video, power, and touch.

Powered by i3STUDIO software suite
i3STUDIO is a powerful yet refreshingly simple software suite running on the i3TOUCH displays. Use whiteboarding, annotating, presenting, and video conferencing apps to conduct meetings, pitch ideas, lead workshops, teach or interact with your audience - in-person or remote - i3STUDIO covers it all. Developed in co-creation with our end-user community to answer your needs. Smoother, faster, and smarter than ever before, all brought to you in an intuitive and awesome design.

Friendly for the environment and your wallet
The eco-friendly design comes with extremely low power consumption, resulting in a beneficial Energy label. The combination of a motion and light sensor will optimize your viewing experience to all lighting conditions and keep energy consumption balanced.

Specifikationer

Display
Hardness 7H
Working area 1210 x 680 mm
Touch system response time 6 ms
Touch resolution 32768 x 32768 pixels
Number of simultaneous touchpoints 40
Touchscreen type Infrared
Touch technology Multi-touch
Touchscreen Yes
Maximum refresh rate 60 Hz
Response time 8 ms
Contrast ratio (dynamic) 4000:1
Contrast ratio (typical) 1200:1
Native aspect ratio 16:9
LED backlighting type Direct-LED
Panel type IPS
LED backlight Yes
HD type 4K Ultra HD
Anti-glare screen Yes
Display resolution 3840 x 2160 pixels
Display number of colours 1.07 billion colours
Display brightness 450 cd/m²
Display diagonal 139.7 cm (55")
Computer system
Graphics card Mali-G52 MP2
Graphics card family ARM
RAM type DDR4
RAM capacity 4 GB
User memory 32 GB
Processor cores 4
Processor frequency 2.3 GHz
Processor architecture ARM Cortex-A55
Built-in processor Yes
Operating system version 11
Operating system installed Android
Audio
Subwoofer RMS power 16 W
Built-in subwoofer Yes
Speaker power 16 W
Number of built-in speakers 2
Built-in speaker(s) Yes
Projector
Built-in projector No
Network
Ethernet LAN data rates 1000 Mbit/s
Ethernet LAN Yes
Top Wi-Fi standard Wi-Fi 6 (802.11ax)
Wi-Fi Yes
Ports & interfaces
RS-232 ports 1
Audio output 1
Headphone connectivity 3.5 mm
S/PDIF out port Yes
OPS slot 1
VGA (D-Sub) ports quantity 1
Ethernet LAN (RJ-45) ports 2
USB Power Delivery (USB PD) Yes
USB Power Delivery up to 65 W
USB Type-C DisplayPort Alternate Mode Yes
HDMI version 2.0
HDMI output ports quantity 1
HDMI ports quantity 4
USB Type-C ports quantity 2
USB connector type USB Type-A, USB Type-C
USB 2.0 ports quantity 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
Ergonomics
Certification CE, FCC
Mean time between failures (MTBF) 50000 h
Wall mountable Yes
Panel mounting interface 400 x 200 mm
VESA mounting Yes
Product colour Black
Performance
Ambient light sensor Yes
Power
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Power consumption (max) 75 W
Operational conditions
Storage relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -20 - 40 °C
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Weight 28.2 kg
Height 786 mm
Depth 87 mm
Width 1268 mm
Packaging data
Quantity per pack 1 pc(s)
Package weight 39.1 kg
Package height 220 mm
Package depth 859 mm
Package width 1401 mm
Packaging content
Number of stylus pens 2
Stylus pen type Passive
Stylus included Yes
Mounting kit Yes
Remote control included Yes
Quick start guide Yes
Cables included AC, HDMI, USB Type-A to USB Type-B, USB Type-C
