iiyama LH10551UWS-B1AG Signage Display Digital signage flat panel 2.66 m (104.7") LED 500 cd/m² UltraWide Full HD Black 24/7

iiyama  |  Varenummer: LH10551WUS-B1AG
Stregkode: 4948570121977

Beskrivelse

104.7", 265.9cm, 5120 x 2160 @60Hz, 500 cd/m², 8ms, HDMI, DisplayPort, 3.5mm, RJ45, RS-232c, 247W, 2487.4 x 1070.6 x 99.1mm, 60.14 kg

105” Professional 5KUW Display for specialised 21:9 panoramic commercial signage
Experience a true 21:9 Panoramic Ultra-Wide view for all your content with the jaw dropping 105” displays of iiyama. This super sleek thin bezel design display shows vibrant and larger than life imagery and videos using 5KUW resolution to make the difference.

Whether installed in mission critical control room facilities or vibrant digital signage for high end retail spaces, this iiyama 105” large format display offers businesses an easy and effective solution to help capture their audience's attention. Designed to perform in continual, around the clock environments, the LH10551UWS-B1AG can be installed and utilised in landscape and portrait orientation to create the most stimulating imagery in any space.

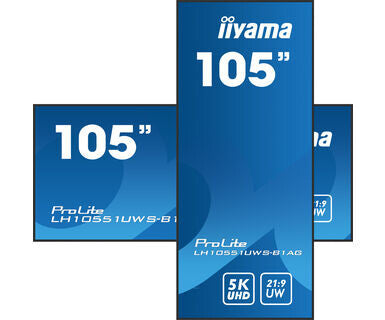

Flexible Orientation
The ability to position the displays in landscape or portrait orientation means you can make the most of any space and bring your messaging, advertisements, videos and safety information to your audience.

21:9 Ultra-Wide Screen
With an ultra-wide aspect ratio, this professional display provides an expansive canvas to accommodate panoramic commercial signage. The 21:9 Ultra Wide format is also the perfect optimisation for your content capabilities, enhancing our messages and simultaneously attracting your audience on a larger scale.

5K - 11 Mega Pixels
Experience stunning visuals on this IPS panel with 5KUW resolution (5120x2160), offering crisp and clear images for a truly immersive viewing experience.

USB-C Connection
Delivers the latest in video, audio and Touch signal, all through one port.

Standalone Solution
Unlock all of the security and flexibility of Windows IoT with the optional OPS Slot PC.

Speakers
The built-in speakers offer high-quality sound, ensuring crystal-clear audio during presentations, video conferences, or multimedia playback.

Specifikationer

Display
Horizontal scan range 30 - 140 kHz
Display diagonal (metric) 265.9 cm
Active display area (W x H) 2450 x 1033.6 mm
Pixel pitch 0.479 x 0.479 mm
Display number of colours 1.07 billion colours
Viewing angle, vertical 178°
Viewing angle, horizontal 178°
Contrast ratio (typical) 1200:1
Response time 8 ms
Native aspect ratio 21:9
HD type UltraWide Full HD
Display brightness 500 cd/m²
Display resolution 5120 x 2160 pixels
Panel type IPS
Display technology LED
Display diagonal 2.66 m (104.7")
Ports & interfaces
OPS module slot Yes
RS-232C Yes
Audio (L/R) out 1
Audio (L/R) in 1
Ethernet LAN (RJ-45) ports 1
Ethernet LAN Yes
USB version 2.0
USB ports quantity 4
USB port Yes
DisplayPorts quantity 1
HDMI input ports quantity 1
HDMI version 2.0
HDMI ports quantity 1
Audio
RMS rated power 20 W
Number of built-in speakers 2
Built-in speaker(s) Yes
Design
Screen shape Flat
Orientation Horizontal/Vertical
Placement supported Indoor
Product colour Black
Product design Digital signage flat panel
Performance
Mean time between failures (MTBF) 50000 h
HDCP Yes
HDCP version 2.2
Operating hours (hours/days) 24/7
On Screen Display (OSD) Yes
On Screen Display (OSD) languages Traditional Chinese, Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Russian
Purpose Universal
Power
Energy efficiency scale A to G
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Energy consumption (SDR) per 1000 hours 247 kWh
Energy efficiency class (SDR) G
Power consumption (off) 0.3 W
Power consumption (standby) 0.5 W
Weight & dimensions
Display weight 60.1 kg
Display height 1070.6 mm
Display depth 99.1 mm
Display width 2487.4 mm
Packaging data
Package weight 88.7 kg
Package height 1407 mm
Package depth 339 mm
Package width 2683 mm
Packaging content
Cables included AC, HDMI
Batteries included Yes
Remote control included Yes
Operational conditions
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) 0 - 40 °C
Technical details
Sustainability certificates ErP
Compliance certificates CB, CE, EAC, REACH, RoHS, UKCA, WEEE
Other features
Plug and Play Yes
Quick start guide Yes
