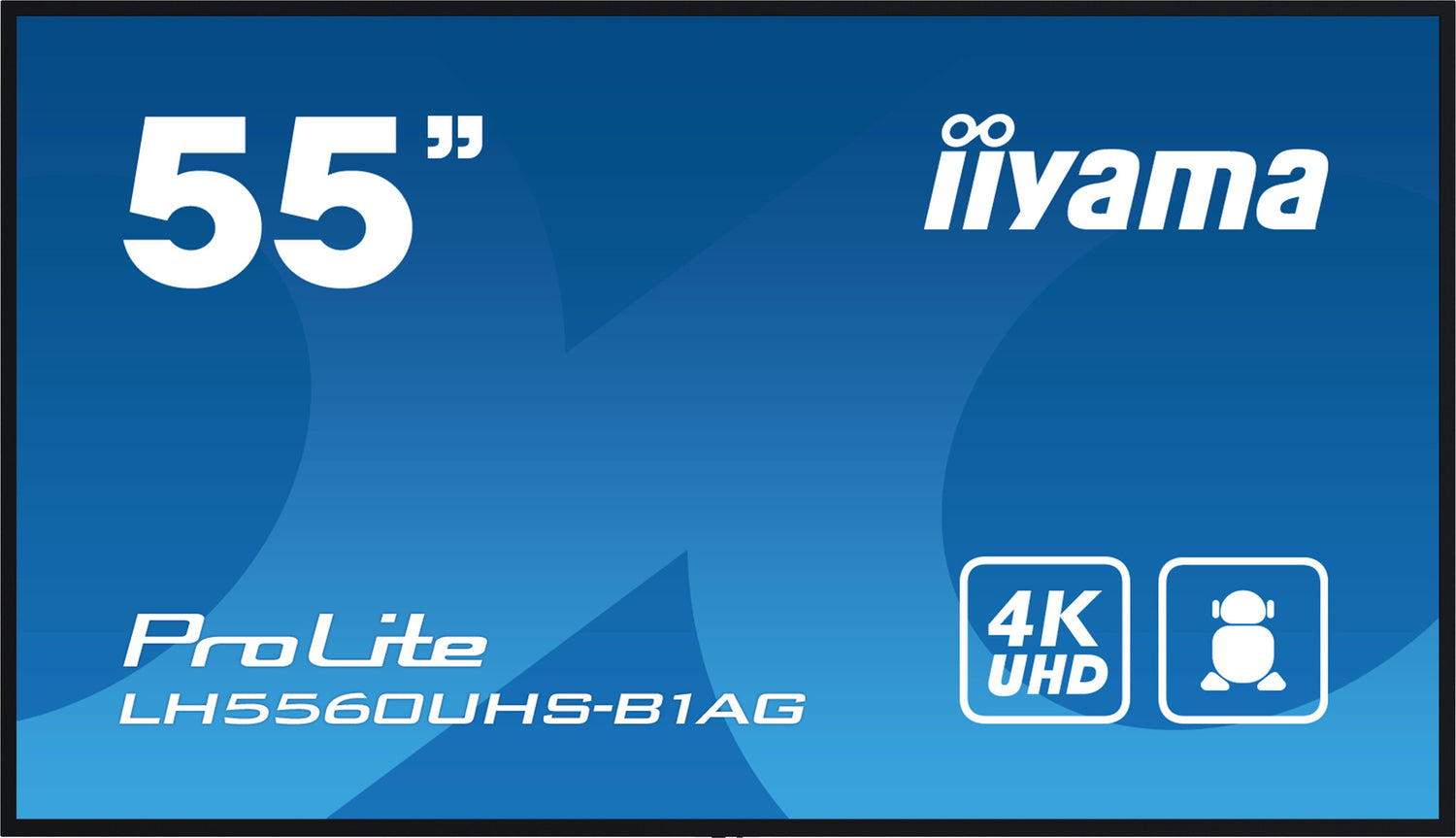

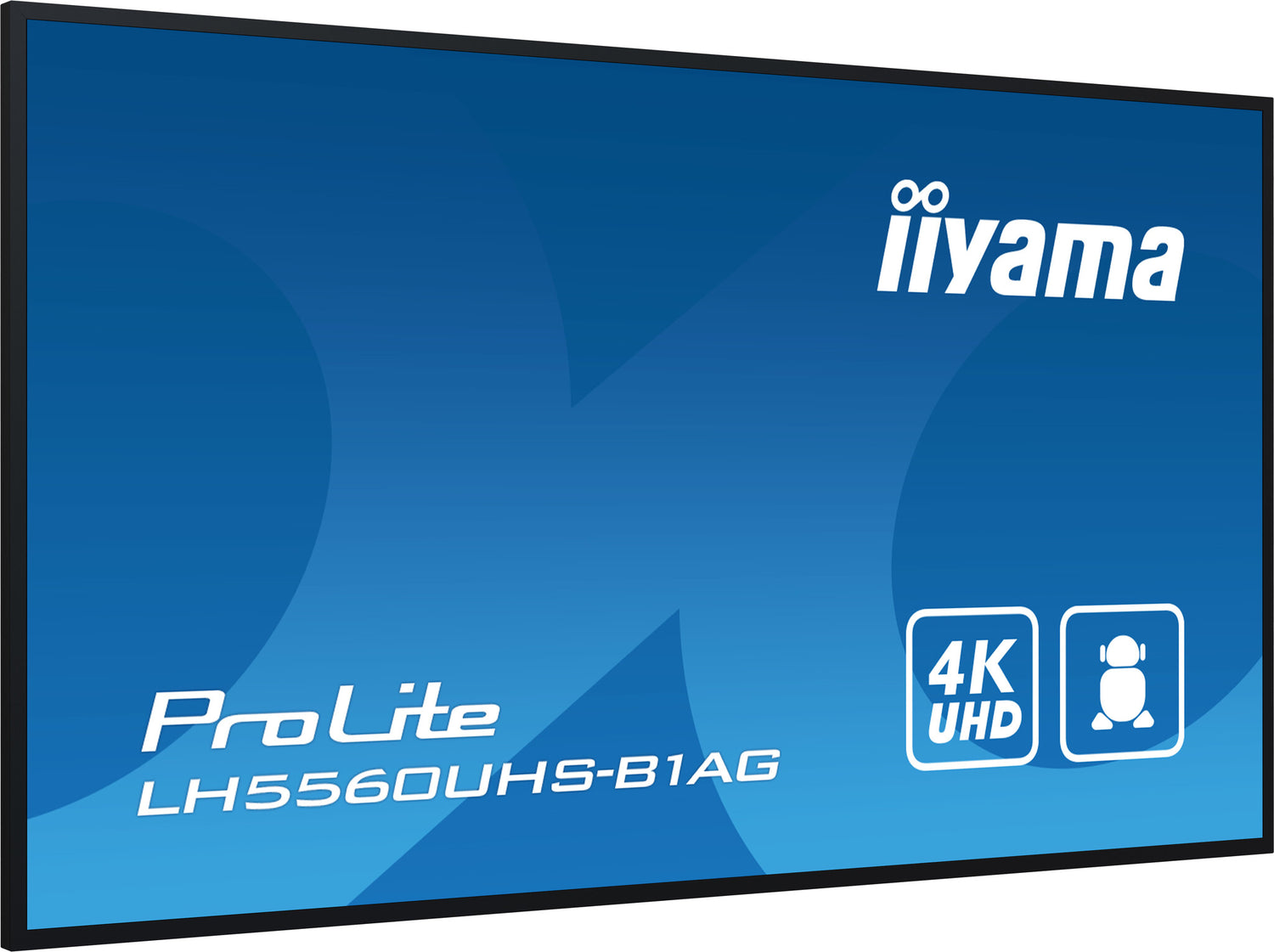

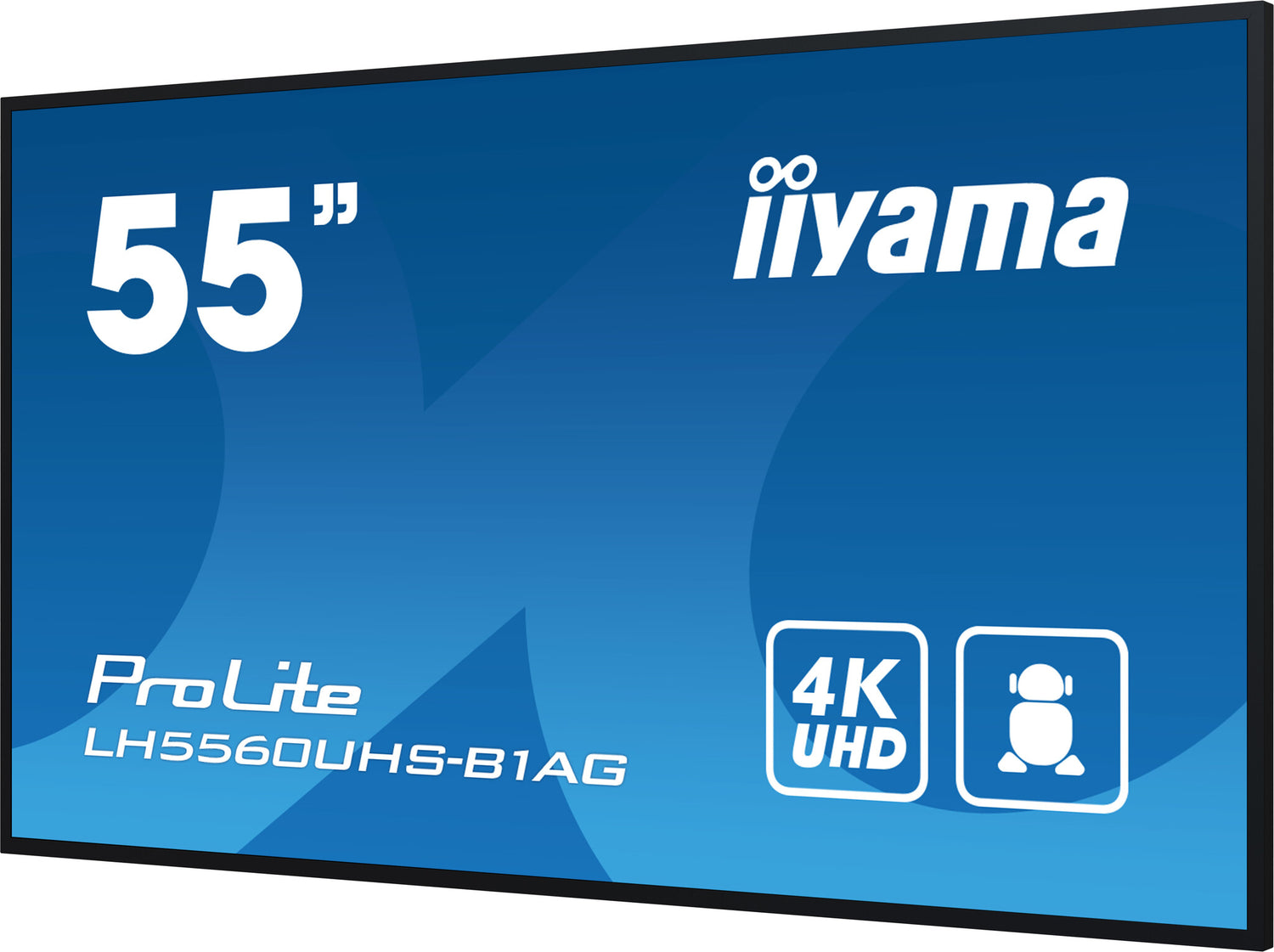

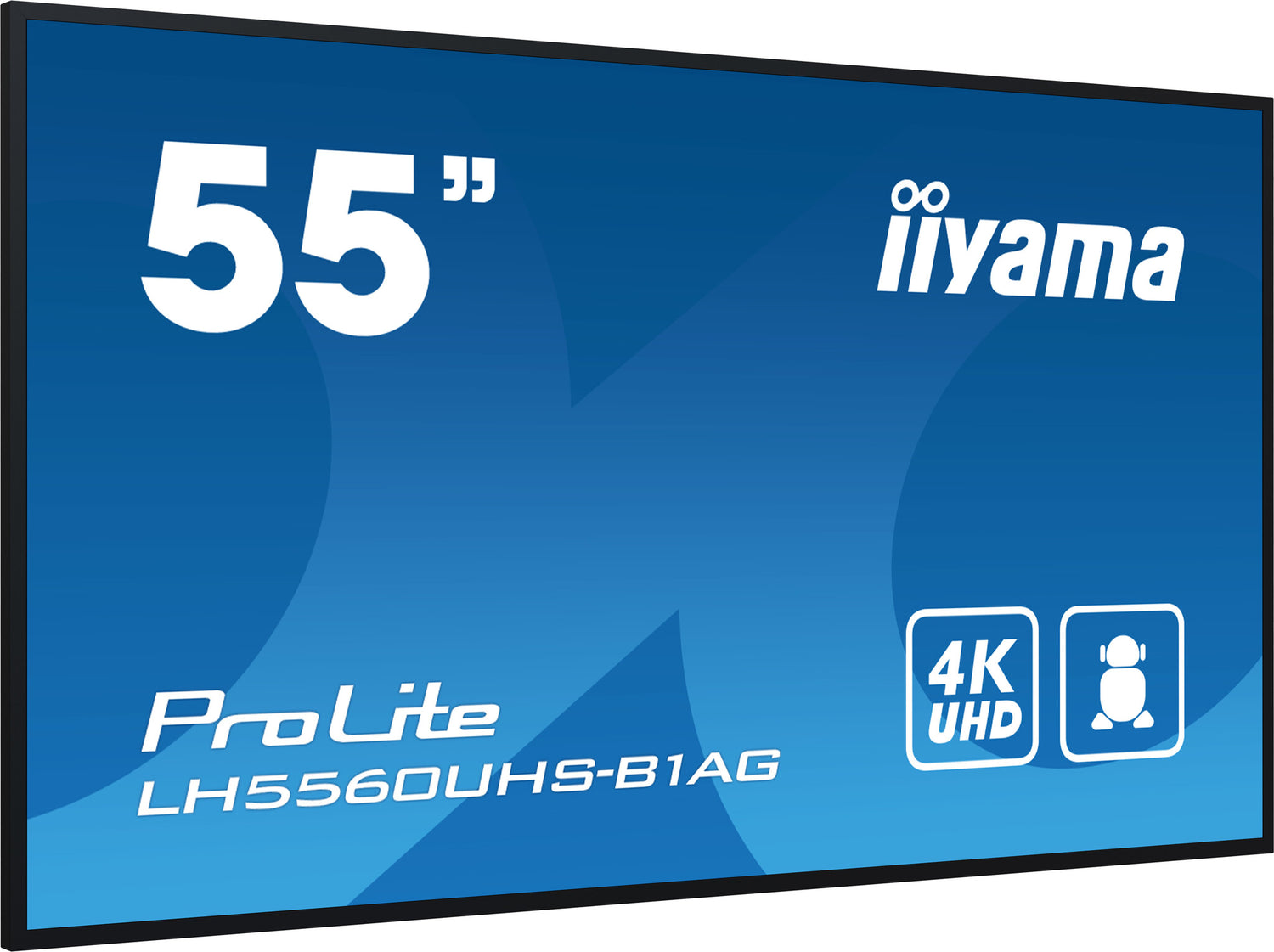

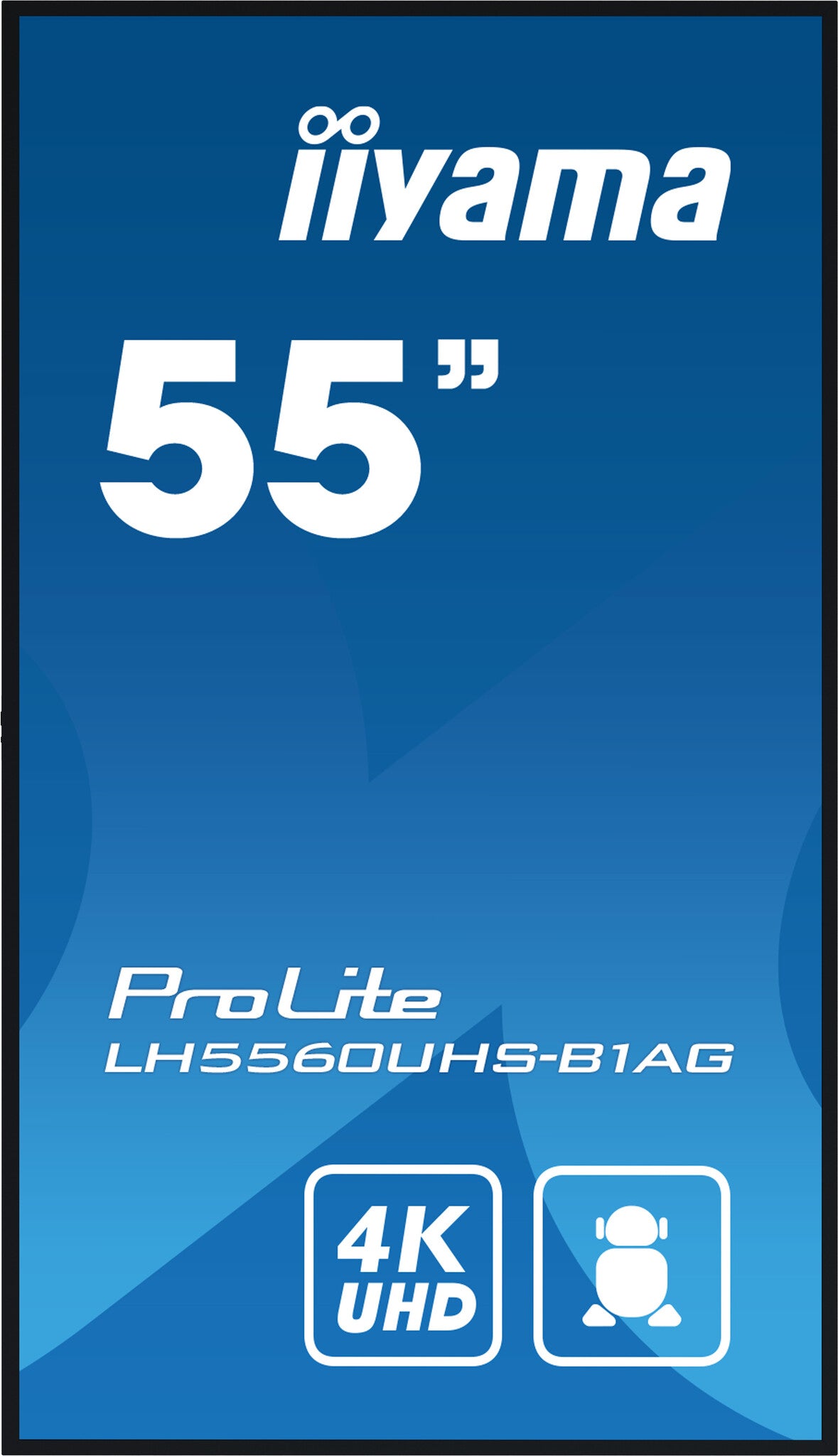

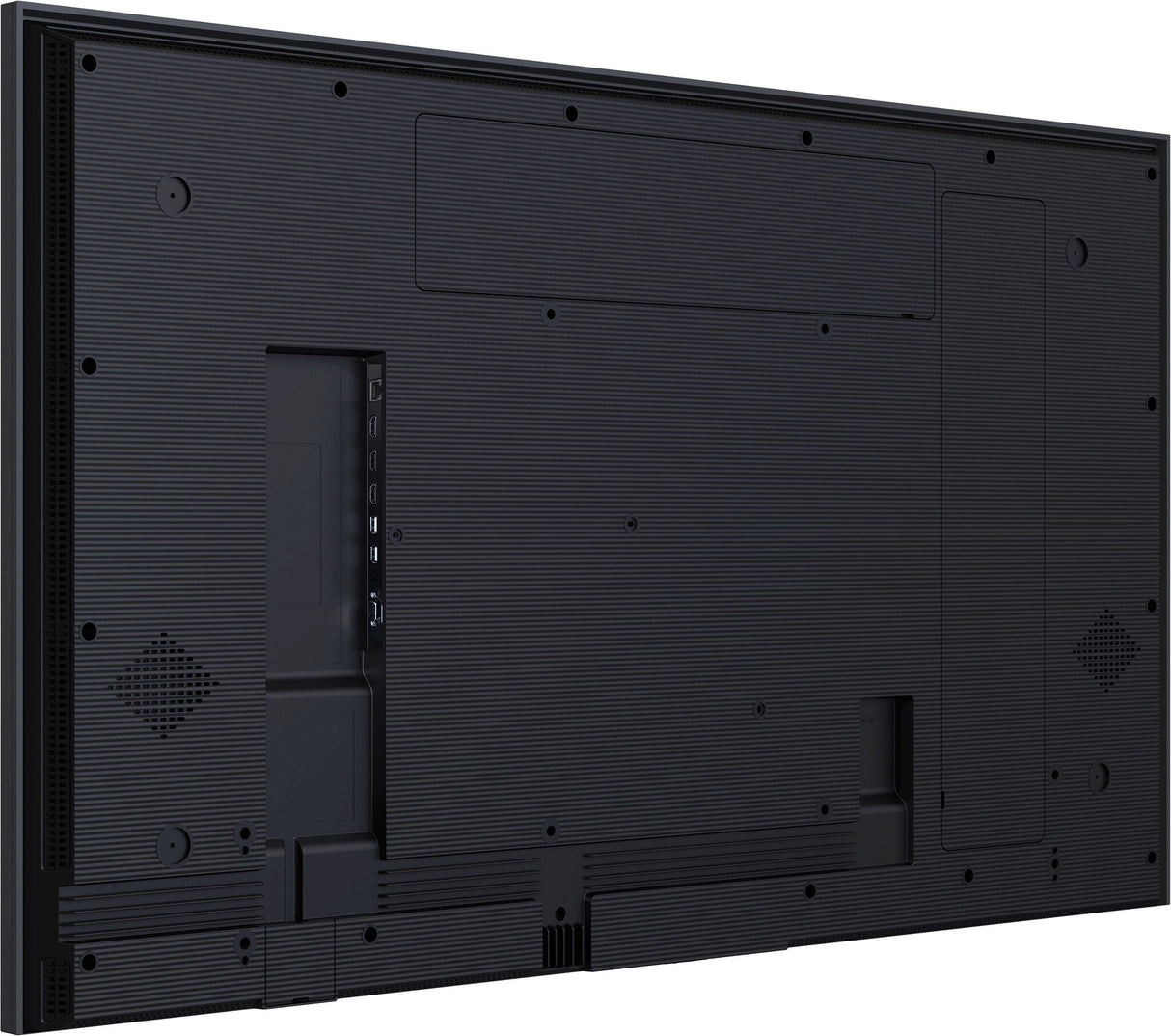

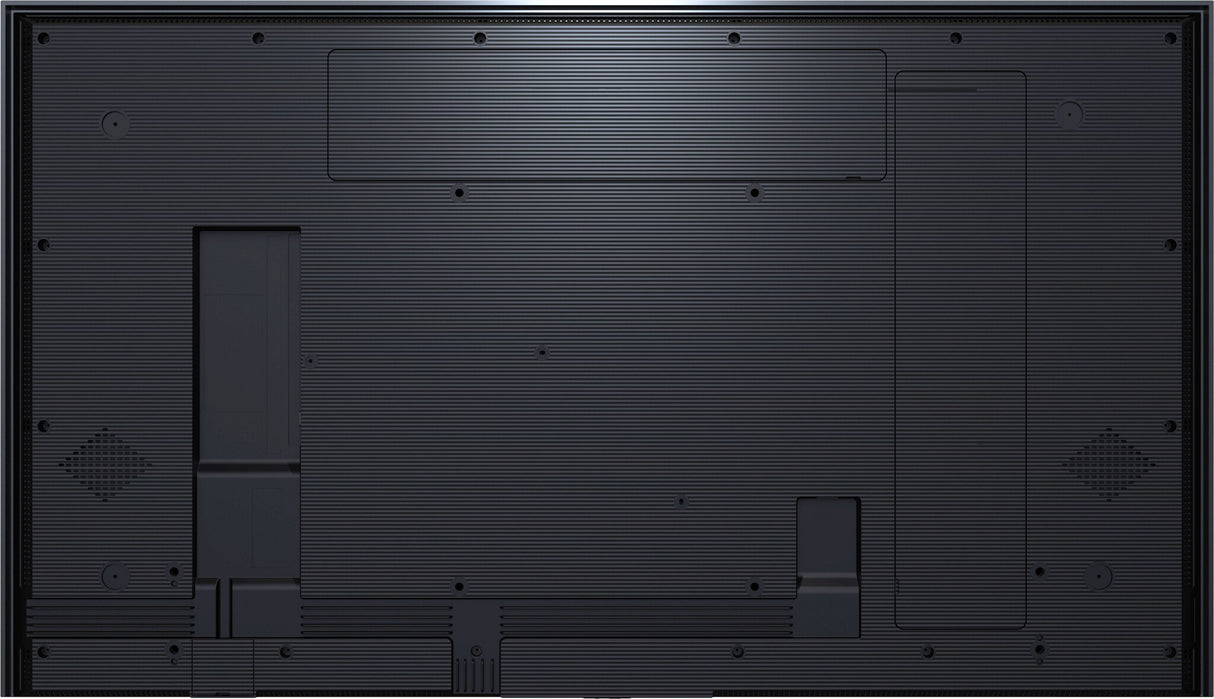

iiyama 55" 4K UHD professional digital signage display with advanced control and connectivity options
Beskrivelse
Beskrivelse
Elevate your visual communication with the LH5560UHS-B1AG and unlock the new possibilities for your business. This 500cd/m² high brightness display is a powerful business tool that takes your marketing and communication efforts to the next level. With its Android 11 OS, iiSignage² (Content Management Software), Signal FailOver and EShare features, this display offers a straightforward user experience, making content creation, management, and sharing a breeze. This ELED VA display consumes significantly less power compared to DLED IPS while maintaining the same level of brightness. Its versatile orientation, sleek design, and 24/7 reliability ensure it seamlessly integrates into any business environment. Whether it's used in retail, corporate, hospitality, or educational settings, the LH5560UHS -B1AG will undoubtedly captivate your audience and leave a lasting impression.
Specifikationer
Specifikationer
| Display | |
|---|---|
| Haze rate | 25% |
| Native refresh rate | 60 Hz |
| Surface hardness | 3H |
| Horizontal scan range | 28 - 160 kHz |
| Display diagonal (metric) | 139 cm |
| Active display area (W x H) | 1209.6 x 680.4 mm |
| Pixel pitch | 0.315 x 0.315 mm |
| Display number of colours | 1.07 billion colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Contrast ratio (typical) | 4000:1 |
| Response time | 6.5 ms |
| Native aspect ratio | 16:9 |
| Touchscreen | No |
| HD type | 4K Ultra HD |
| Display brightness | 500 cd/m² |
| Display resolution | 3840 x 2160 pixels |
| Panel type | VA |
| Display technology | LED |
| Display diagonal | 138.7 cm (54.6") |

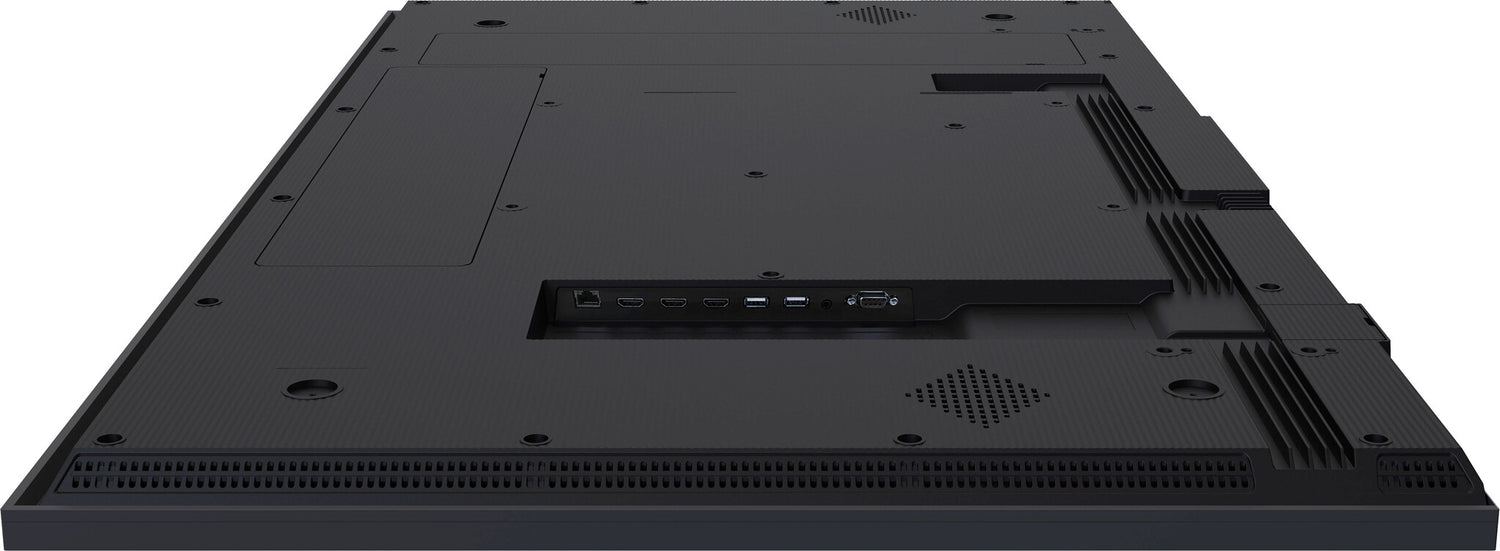

| Ports & interfaces | |
|---|---|
| Remote (IR) input | 1 |
| RS-232C | Yes |
| Audio (L/R) out | 1 |
| Audio (L/R) in | 1 |
| Wi-Fi | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| USB version | 2.0 |
| USB ports quantity | 2 |
| USB port | Yes |
| DVI port | No |
| HDMI version | 2.0 |
| HDMI ports quantity | 3 |
| Audio | |
|---|---|
| RMS rated power | 20 W |
| Number of built-in speakers | 2 |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Anti-glare screen | Yes |
| Bezel colour | Black |
| Bezel width (top) | 1.33 cm |
| Bezel width (side) | 1.33 cm |
| Bezel width (bottom) | 1.53 cm |

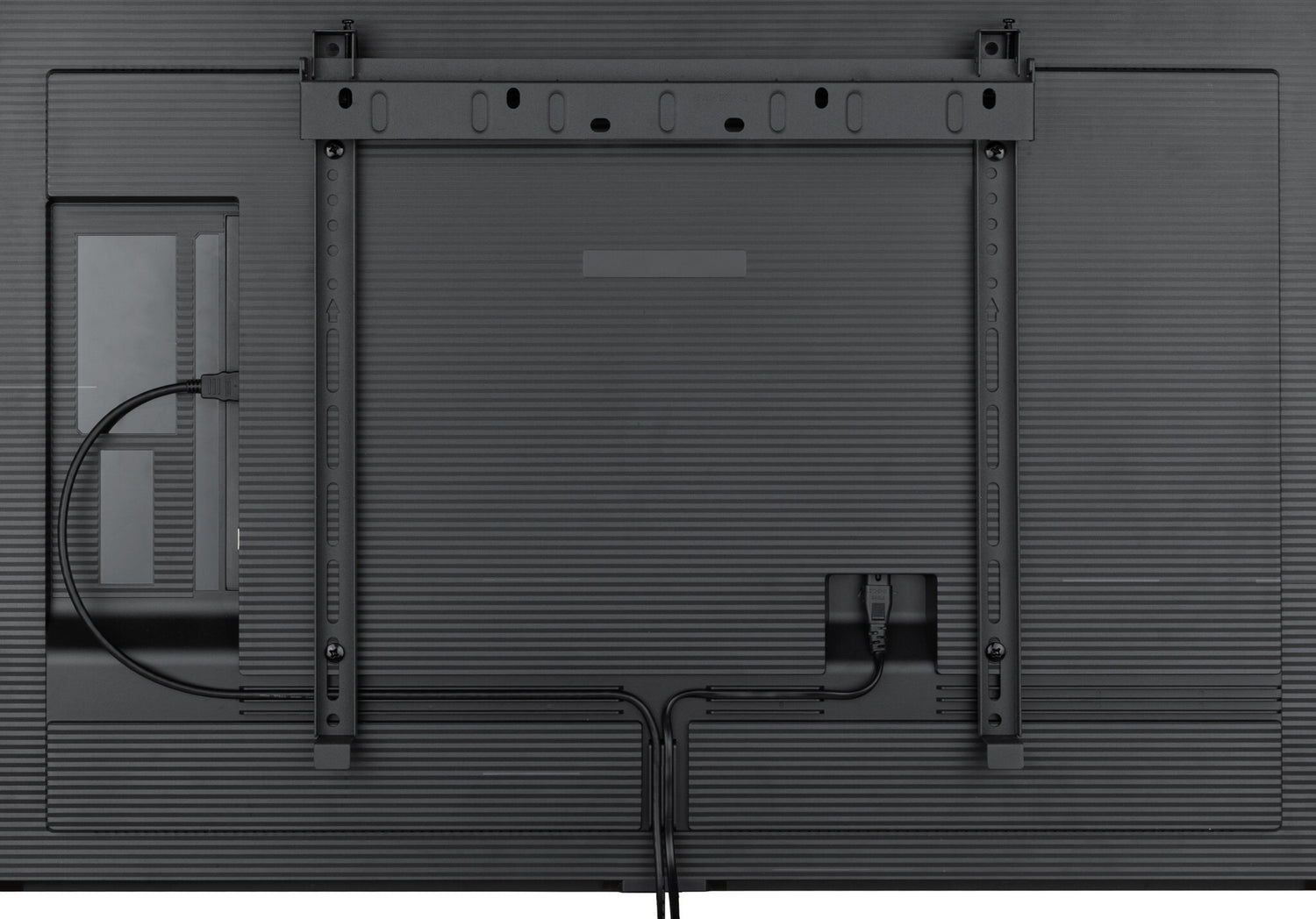

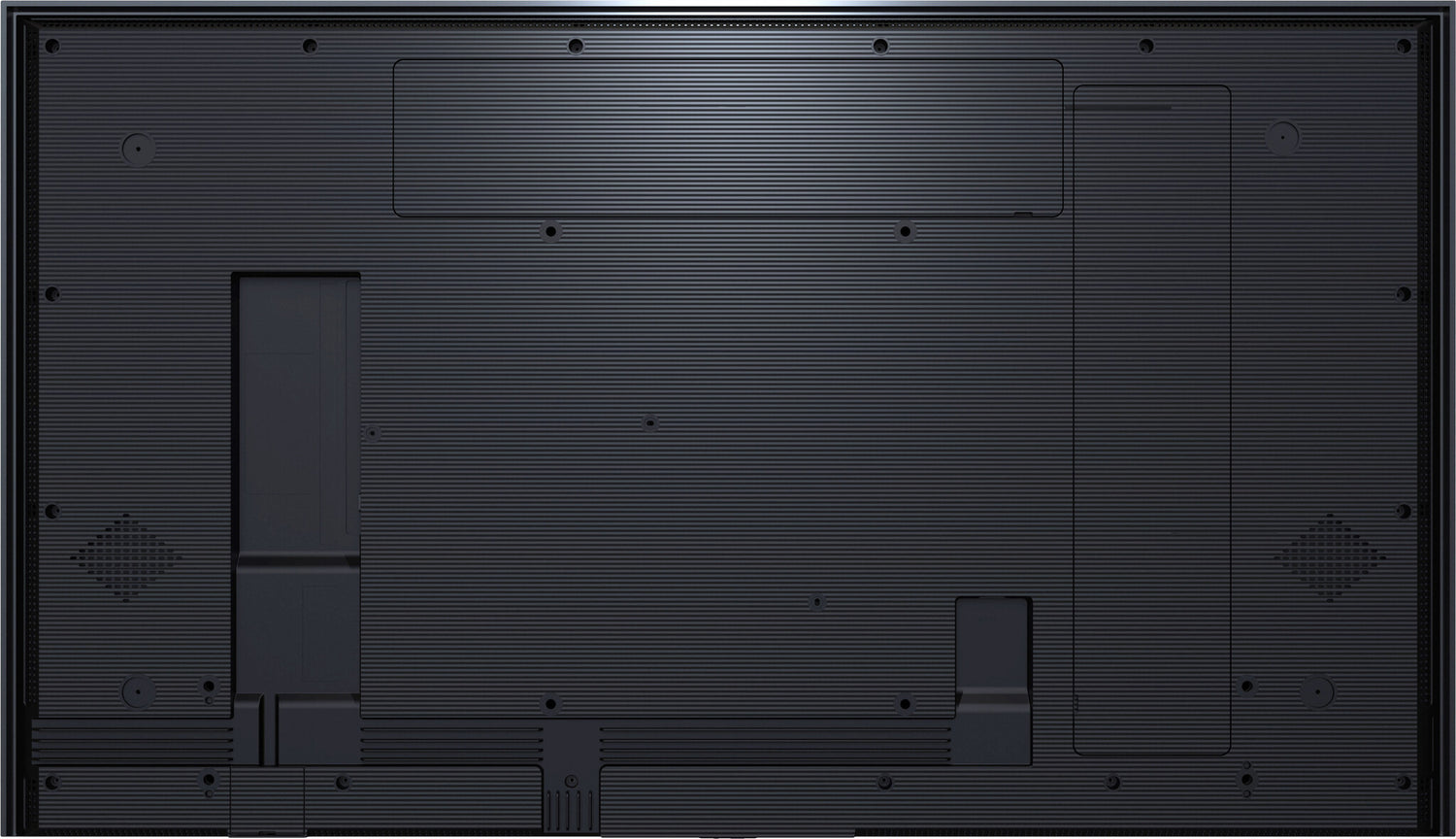

| Panel mounting interface | 300 x 400 mm |
| VESA mounting | Yes |

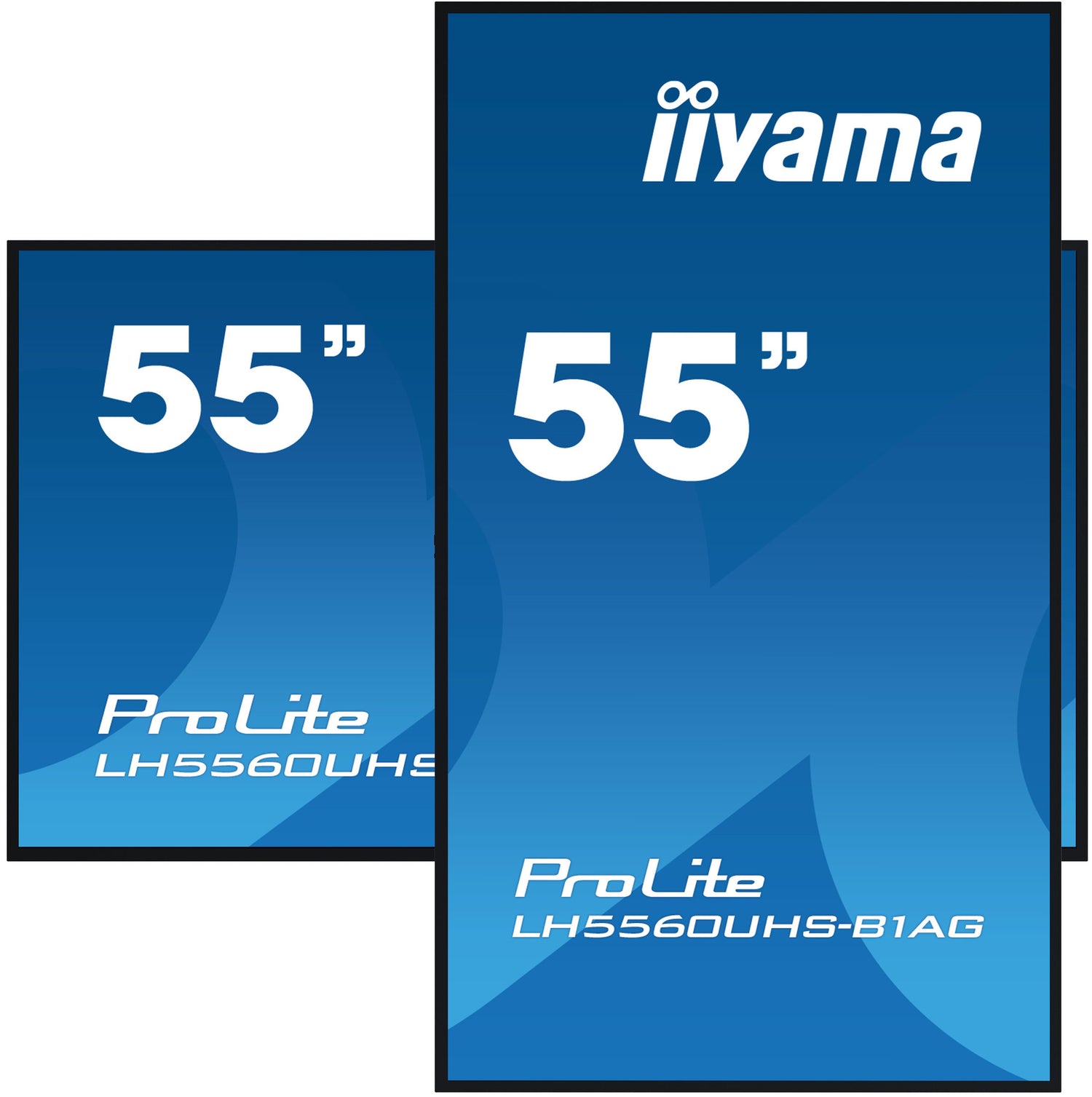

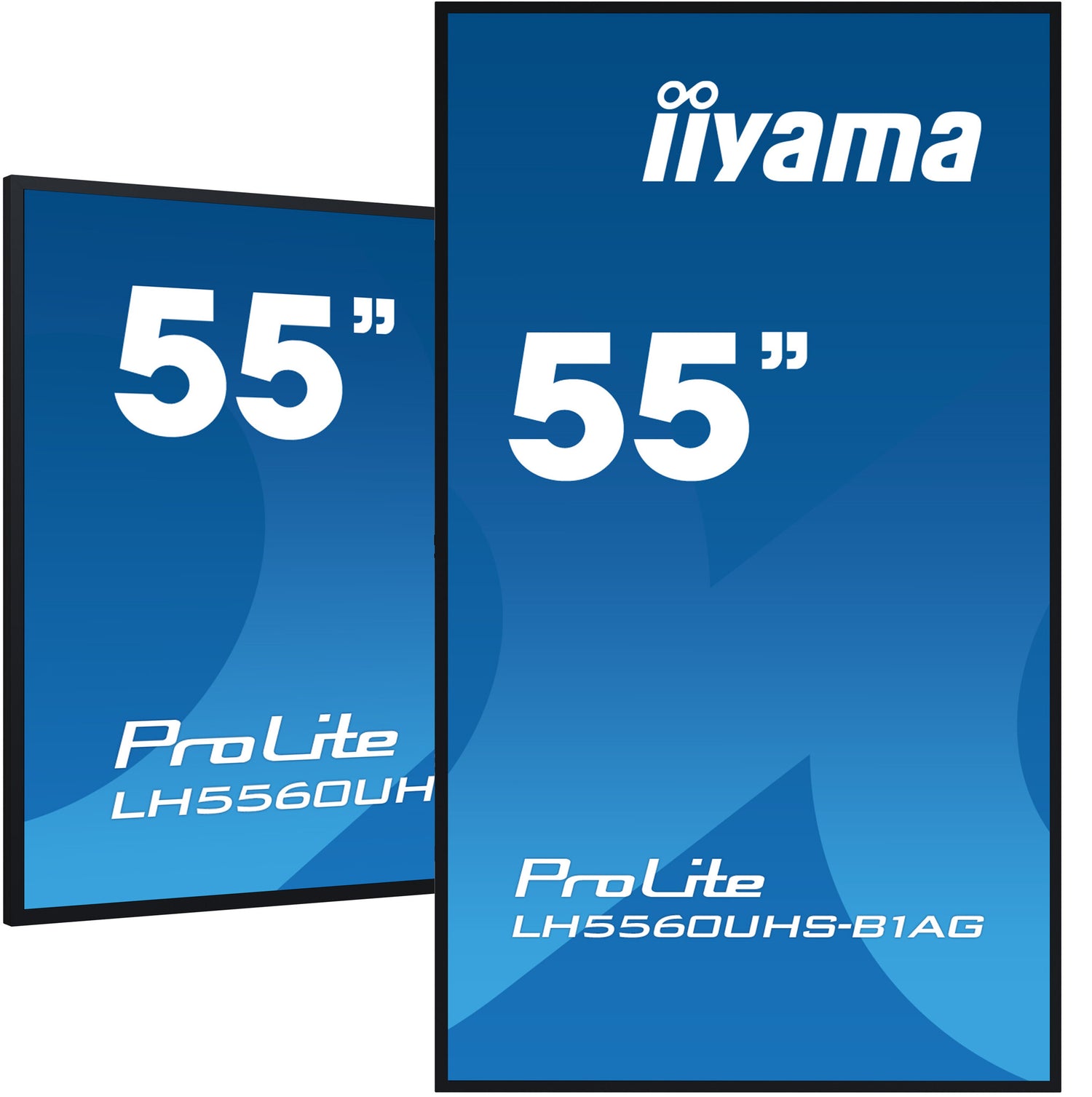

| Orientation | Horizontal/Vertical |
| Placement supported | Indoor |
| Product colour | Black |
| Product design | Digital A-board |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 50000 h |
| HDCP | Yes |
| HDCP version | 1.4/2.2 |
| Operating hours (hours/days) | 24/7 |
| On Screen Display (OSD) languages | Simplified Chinese, Czech, German, English, Spanish, French, Italian, Japanese, Polish, Russian |
| Purpose | Universal |
| Power | |
|---|---|
| Energy efficiency scale | A to G |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Energy consumption (SDR) per 1000 hours | 89 kWh |
| Energy efficiency class (SDR) | G |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 89 W |
| Computer system | |
|---|---|
| Operating system installed | Android 11 |
| Internal storage capacity | 16 GB |
| On-board graphics card model | ARM Mali-G52 |
| Internal memory | 2 GB |
| Processor cores | 4 |
| Processor model | A53 |
| Processor architecture | ARM Cortex-A53 |
| Processor family | ARM Cortex |
| Processor manufacturer | ARM |
| Built-in processor | Yes |
| Computer system | No |
| Weight & dimensions | |
|---|---|
| Display weight | 17.6 kg |
| Display height | 712.5 mm |

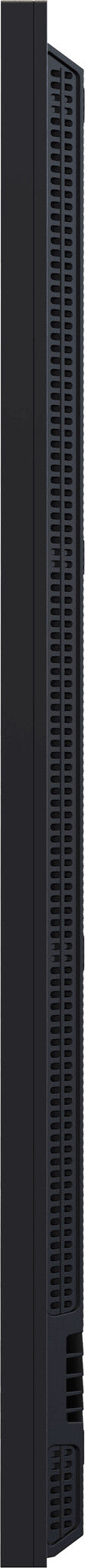

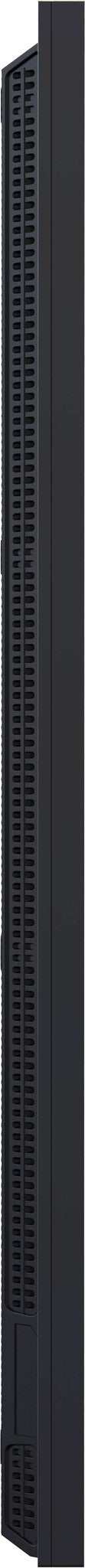

| Display depth | 38.6 mm |
| Display width | 1239.7 mm |
| Packaging data | |
|---|---|
| Package weight | 22.9 kg |
| Package height | 850 mm |
| Package depth | 136 mm |
| Package width | 1390 mm |
| Packaging content | |
|---|---|

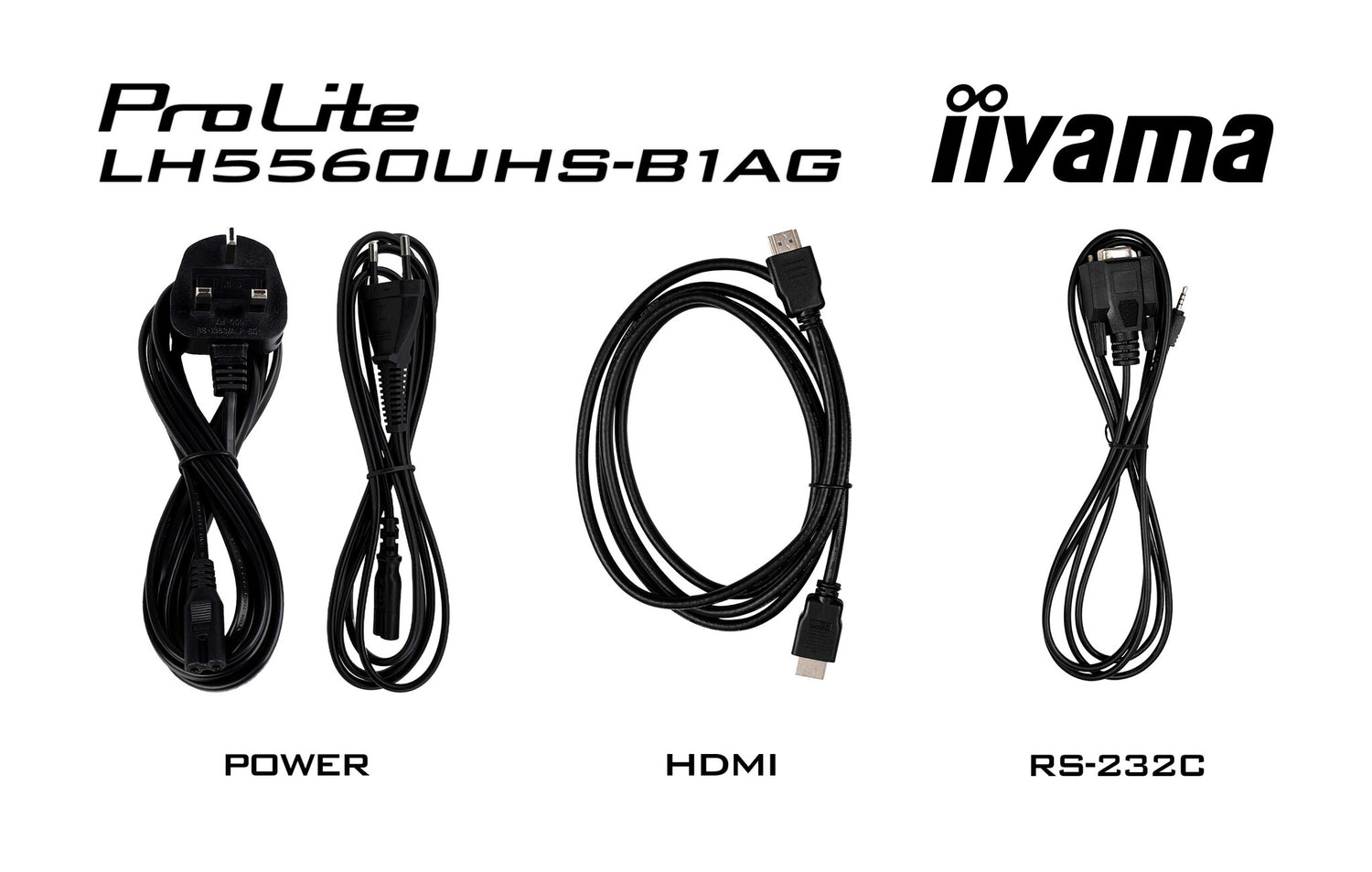

| Cables included | HDMI, Power, RS-232 |
| Mounting kit | Yes |
| Batteries included | Yes |
| Remote control included | Yes |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Certificates | |
|---|---|
| Certification | CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Logistics data | |
|---|---|
| Export Control Classification Number (ECCN) | EAR99 |
