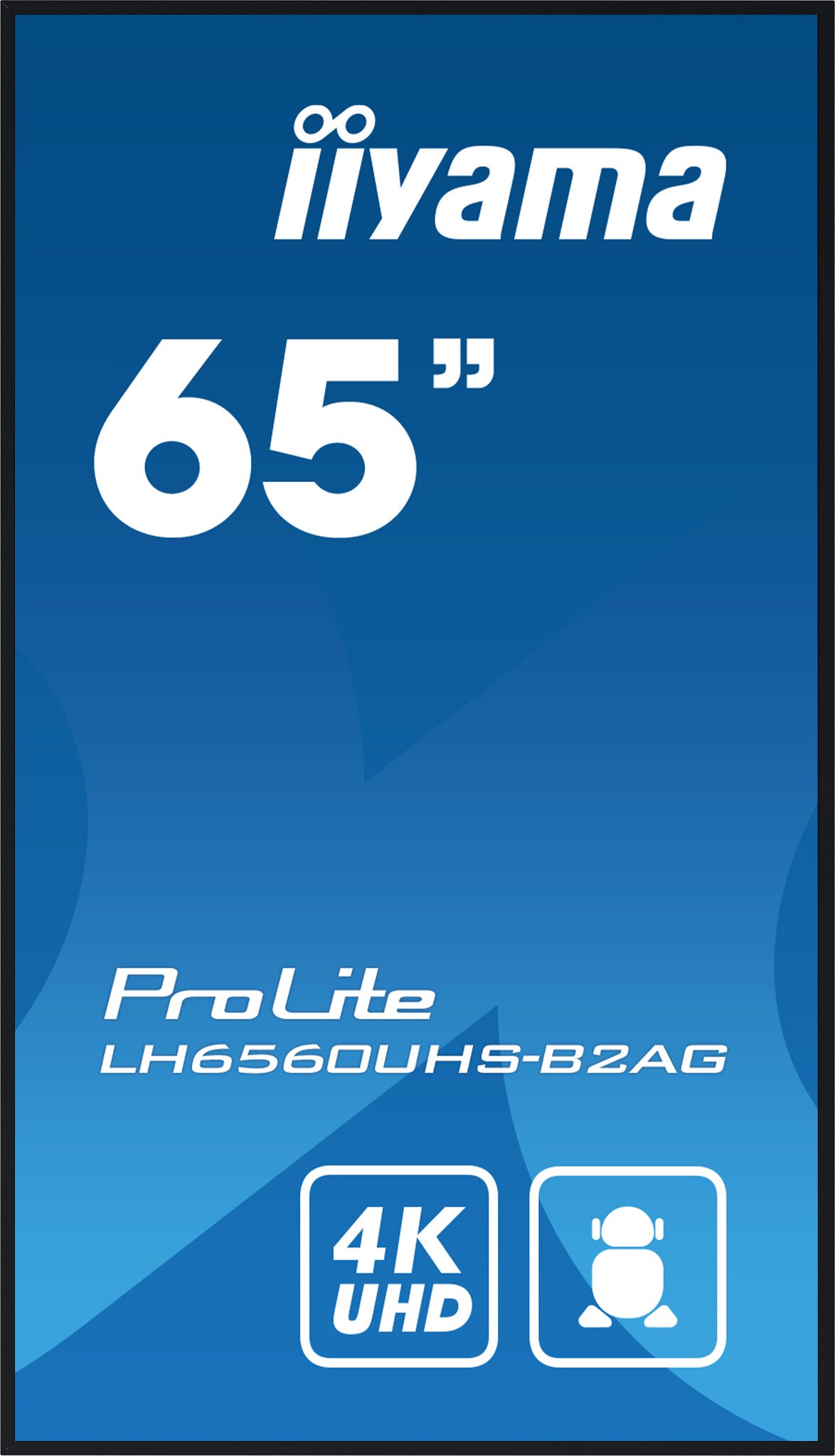

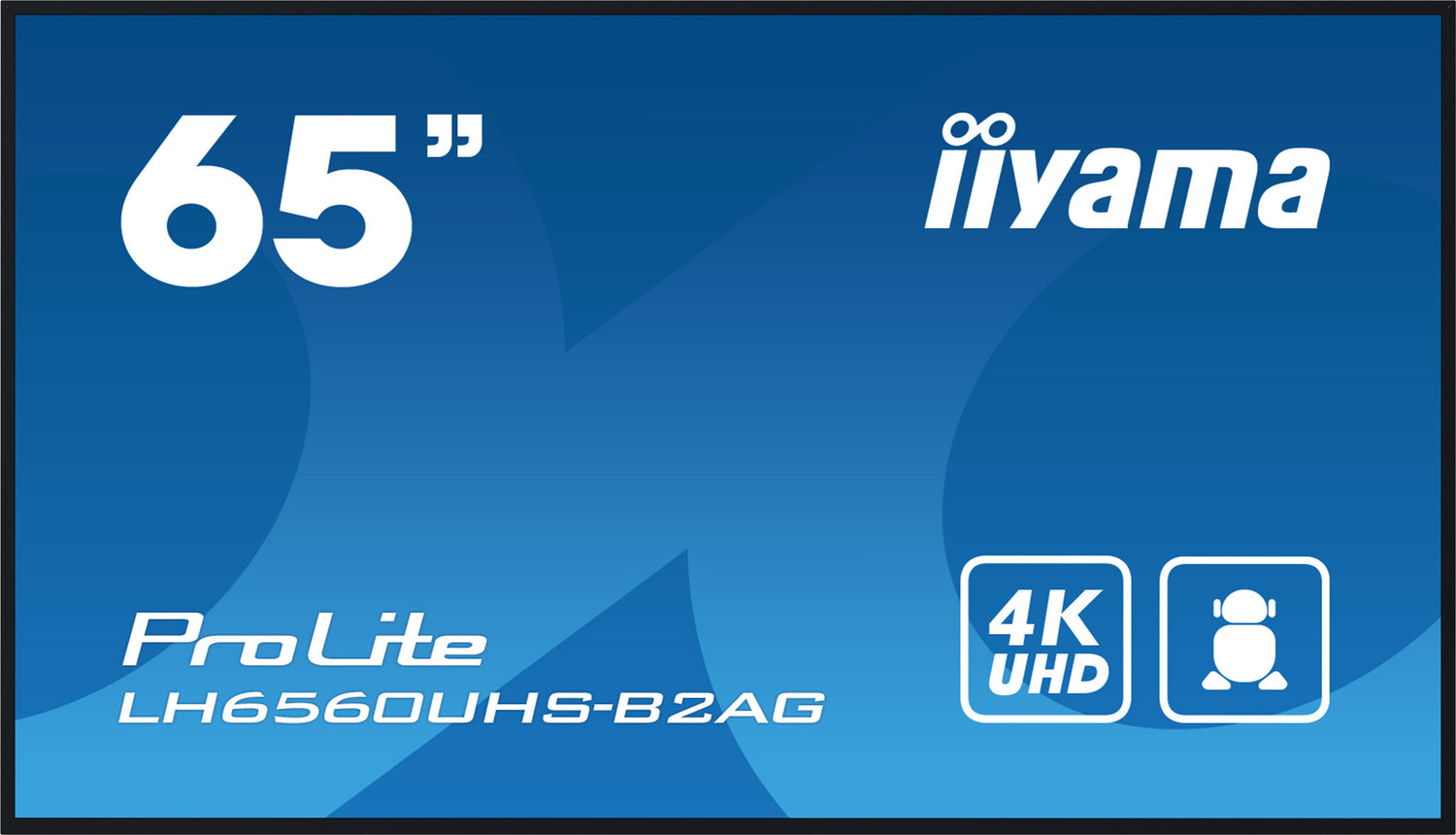

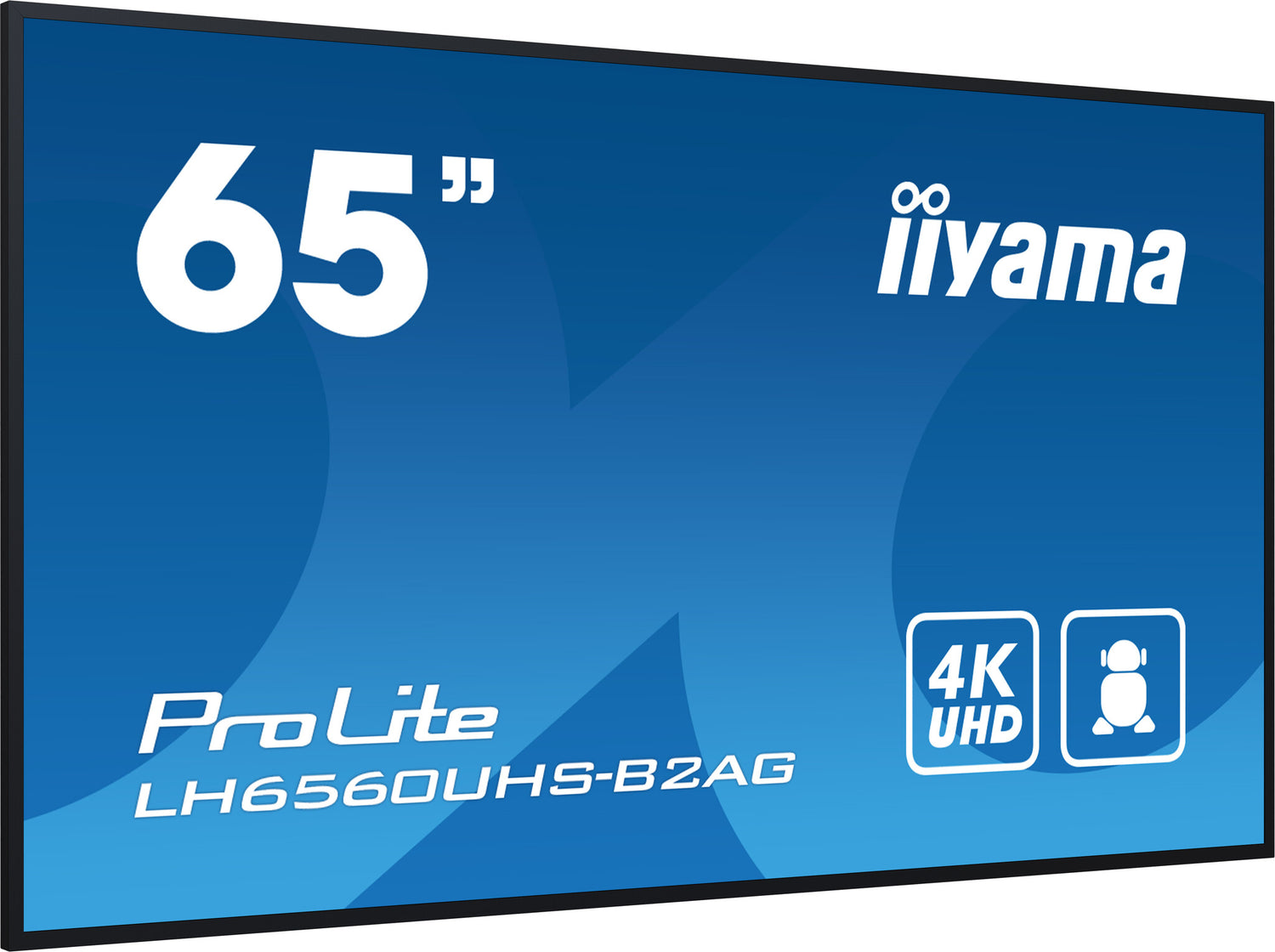

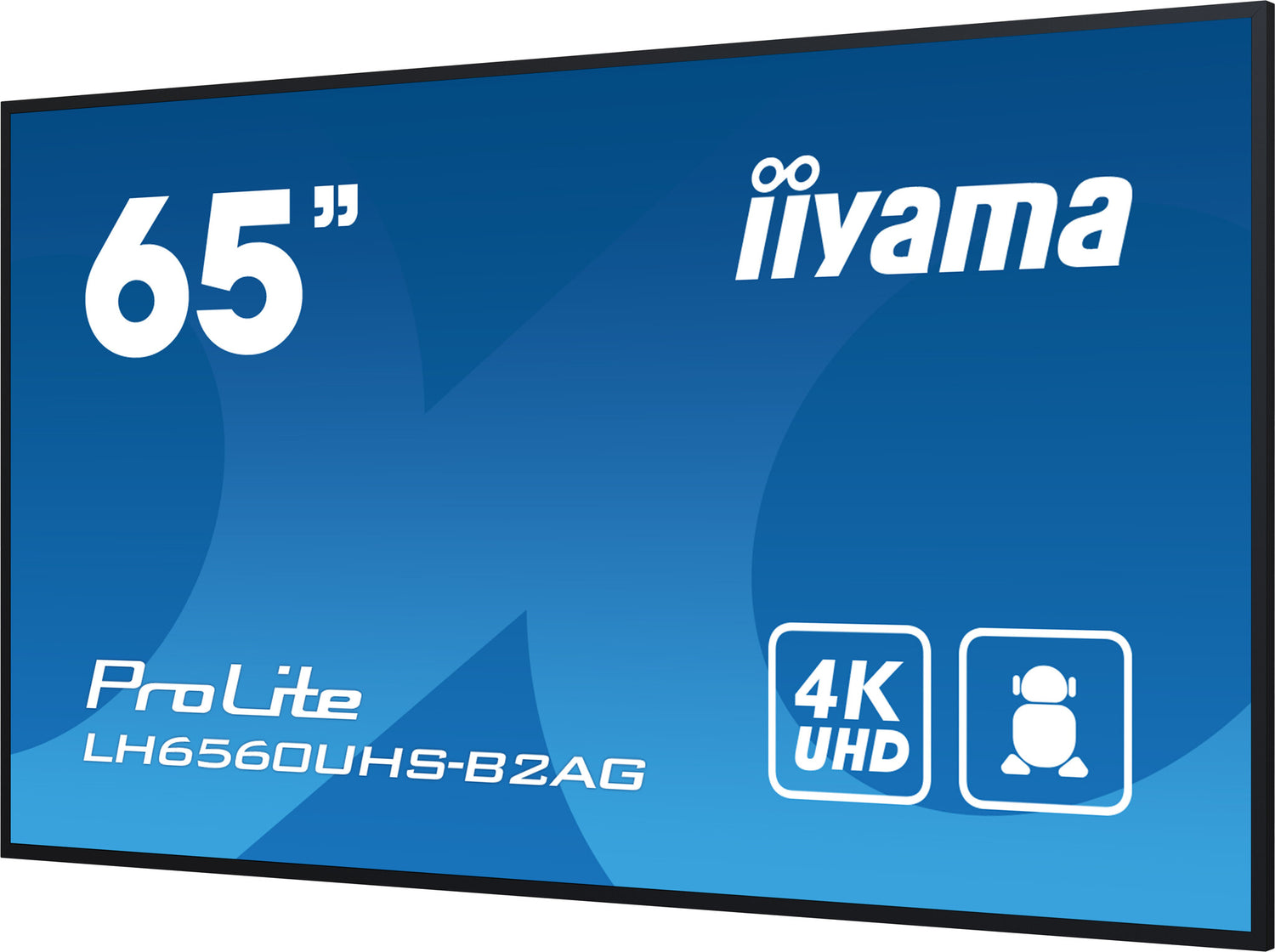

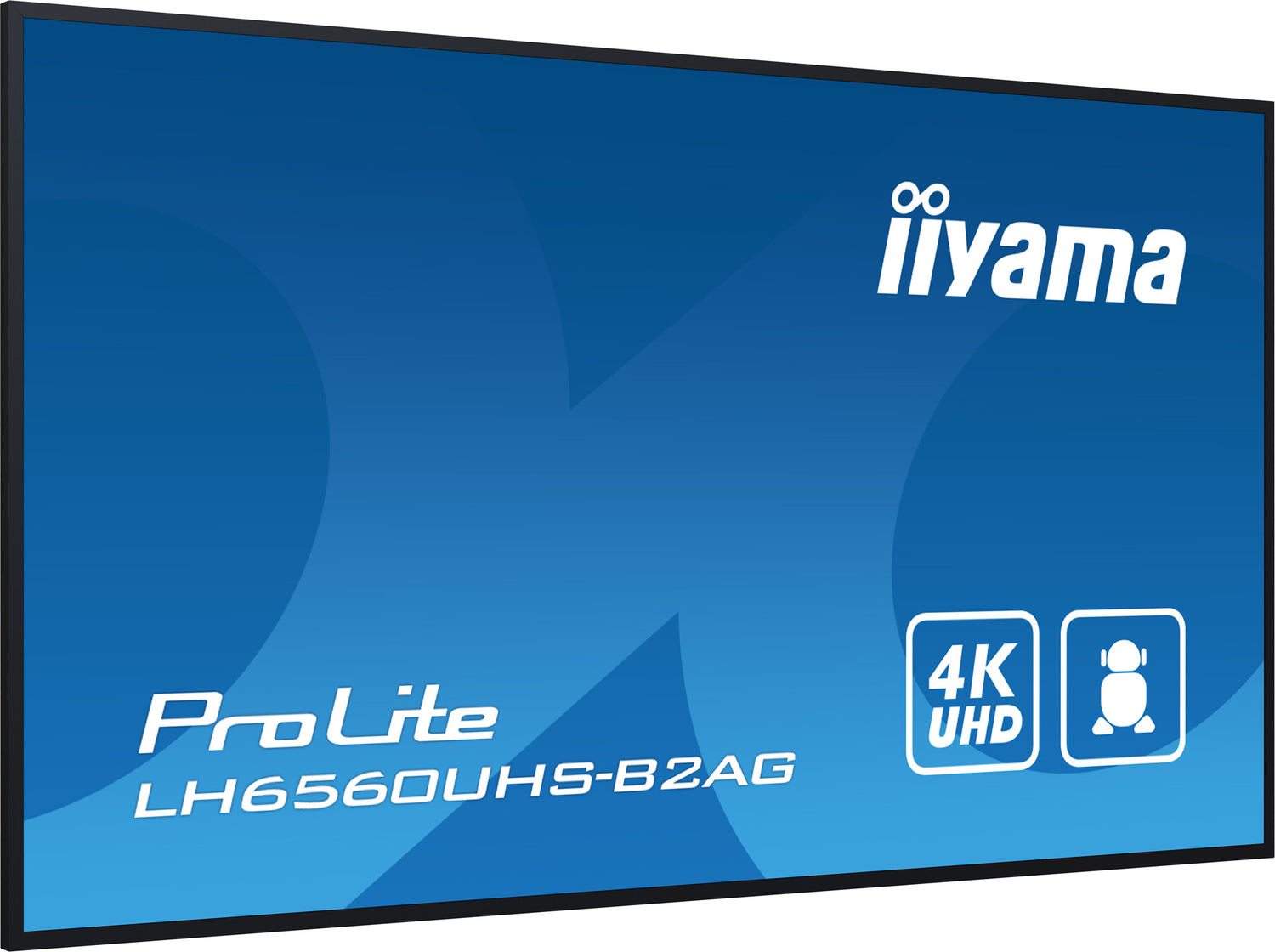

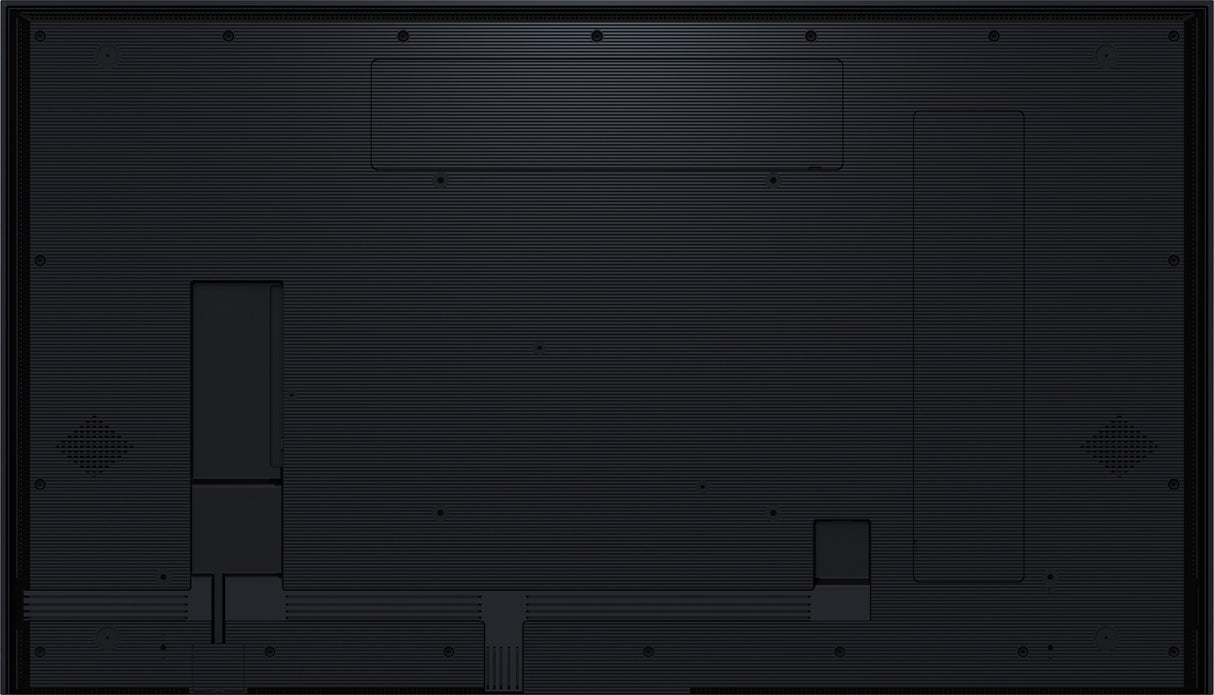

iiyama LH6560UHS-B2AG Signage Display Digital A-board 163.8 cm (64.5") LED Wi-Fi 500 cd/m² 4K Ultra HD Black Built-in processor Android 11 24/7
iiyama | Varenummer:
LH6560UHS-B2AG
Beskrivelse
Beskrivelse

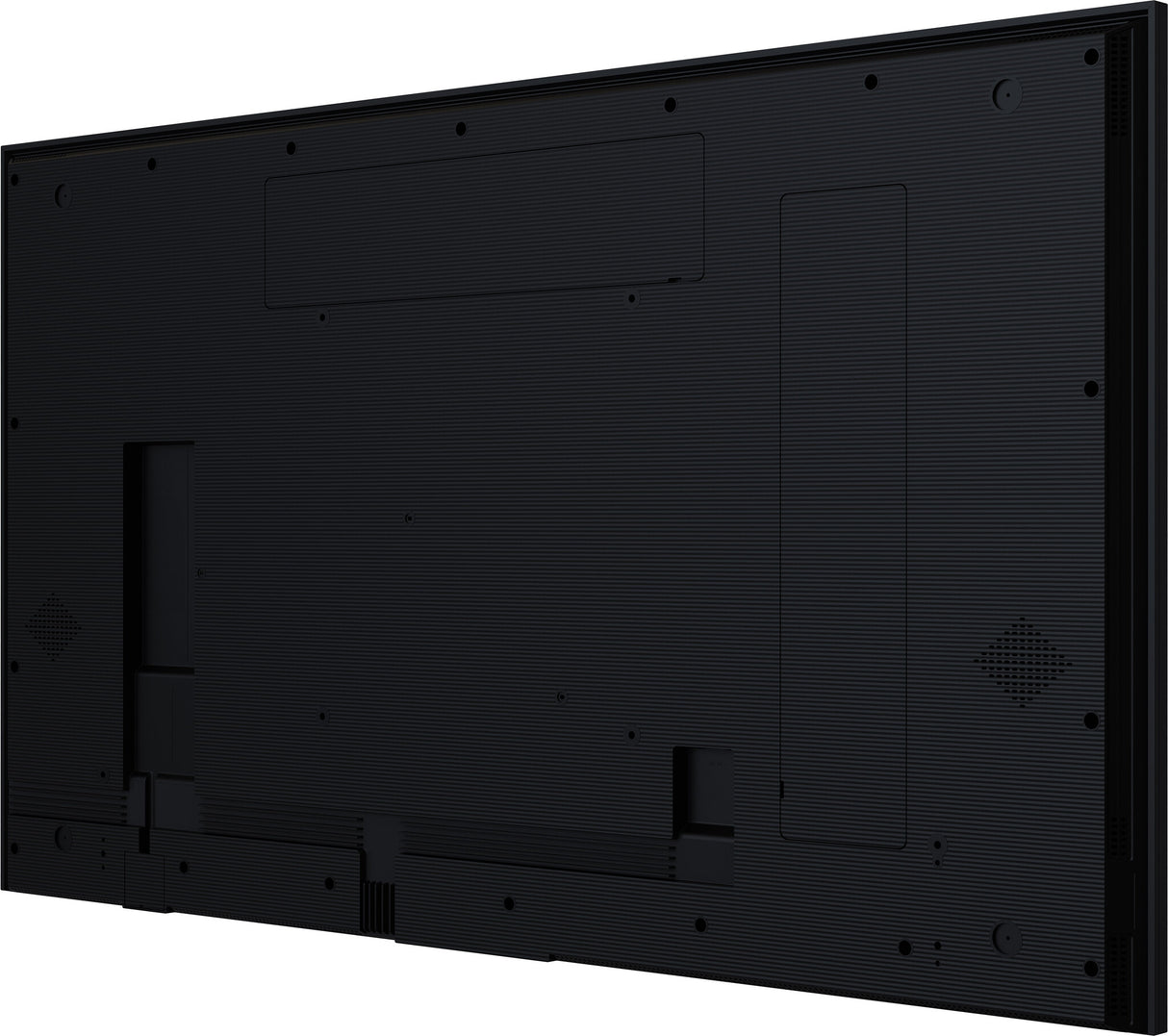

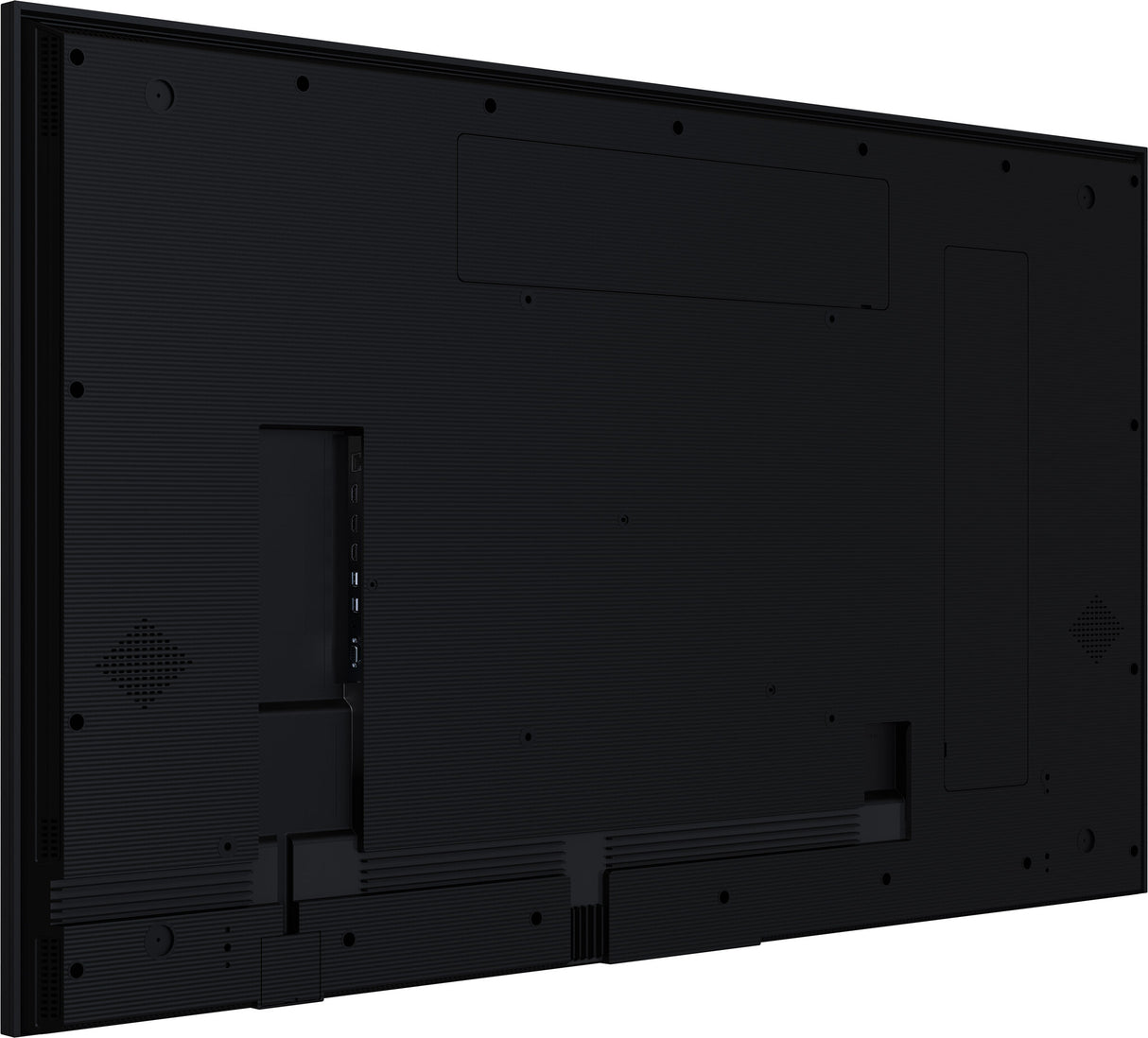

65" 4K UHD professional digital signage display with advanced control and connectivity options
Elevate your visual communication with the LH6560UHS-B2AG and unlock the new possibilities for your business. This 500cd/m² high brightness display is a powerful business tool that takes your marketing and communication efforts to the next level. With its Android 11 OS, iiSignage² (Content Management Software), Signal FailOver and EShare features, this display offers a straightforward user experience, making content creation, management, and sharing a breeze. This ELED VA display consumes significantly less power compared to DLED IPS while maintaining the same level of brightness. Its versatile orientation, sleek design, and 24/7 reliability ensure it seamlessly integrates into any business environment. Whether it's used in retail, corporate, hospitality, or educational settings, the LH6560UHS -B2AG will undoubtedly captivate your audience and leave a lasting impression.
Specifikationer
Specifikationer
| Display | |
|---|---|
| Display diagonal | 163.8 cm (64.5") |
| Display technology | LED |
| Panel type | VA |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | No |
| Native aspect ratio | 16:9 |
| Response time | 6.5 ms |
| Contrast ratio (typical) | 5000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.372 x 0.372 mm |
| Active display area (W x H) | 1428.5 x 803.5 mm |
| Display diagonal (metric) | 164 cm |
| Surface hardness | 3H |
| Native refresh rate | 60 Hz |
| Haze rate | 25% |
| Horizontal scan range | 28 - 160 kHz |
| Ports & interfaces | |
|---|---|
| HDMI ports quantity | 3 |
| HDMI version | 2.0 |
| DVI port | No |
| USB port | Yes |
| USB ports quantity | 2 |
| USB version | 2.0 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| RS-232C | Yes |
| Remote (IR) input | 1 |
| Audio | |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Design | |
|---|---|
| Product design | Digital A-board |
| Product colour | Black |
| Placement supported | Indoor |

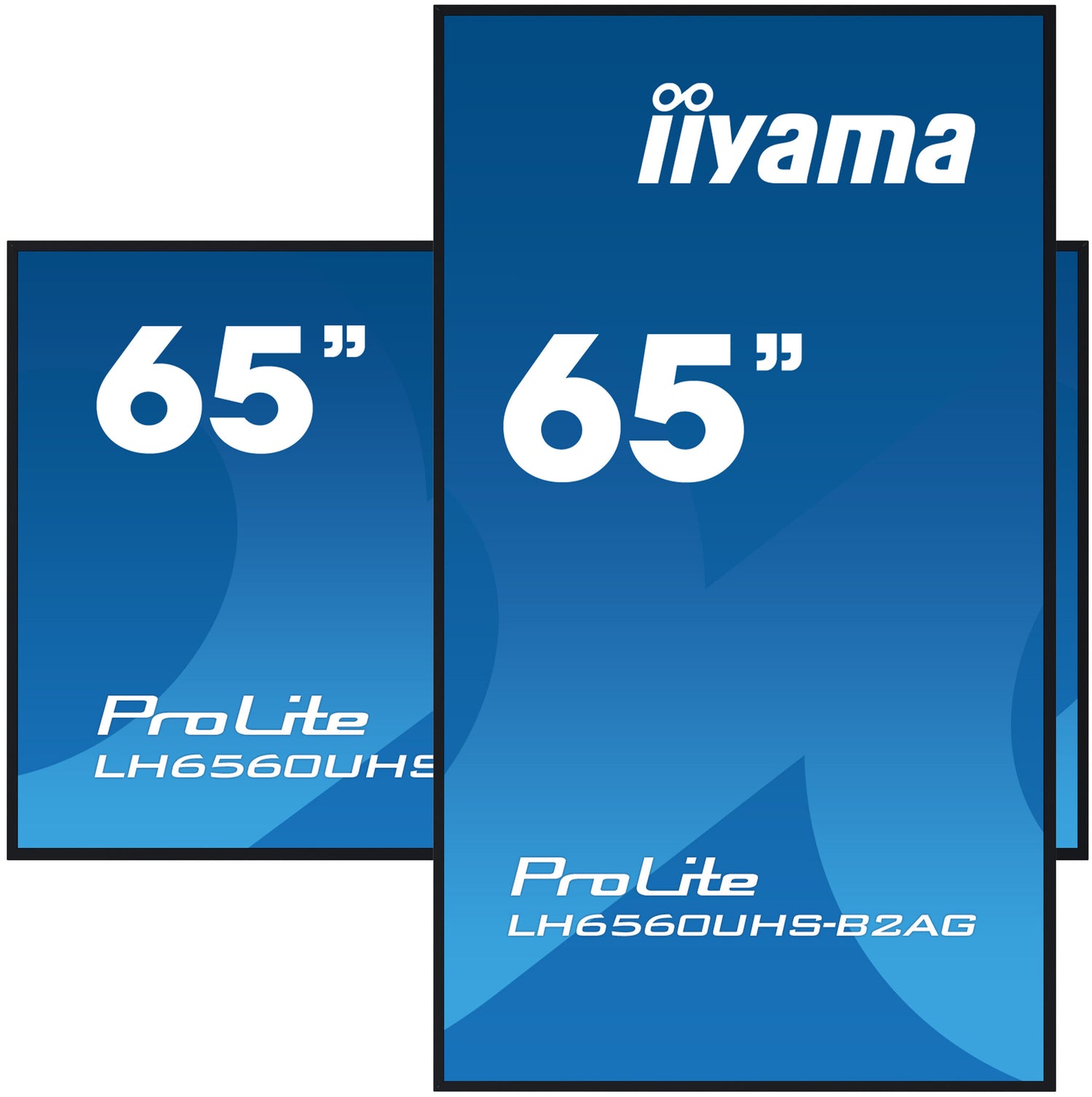

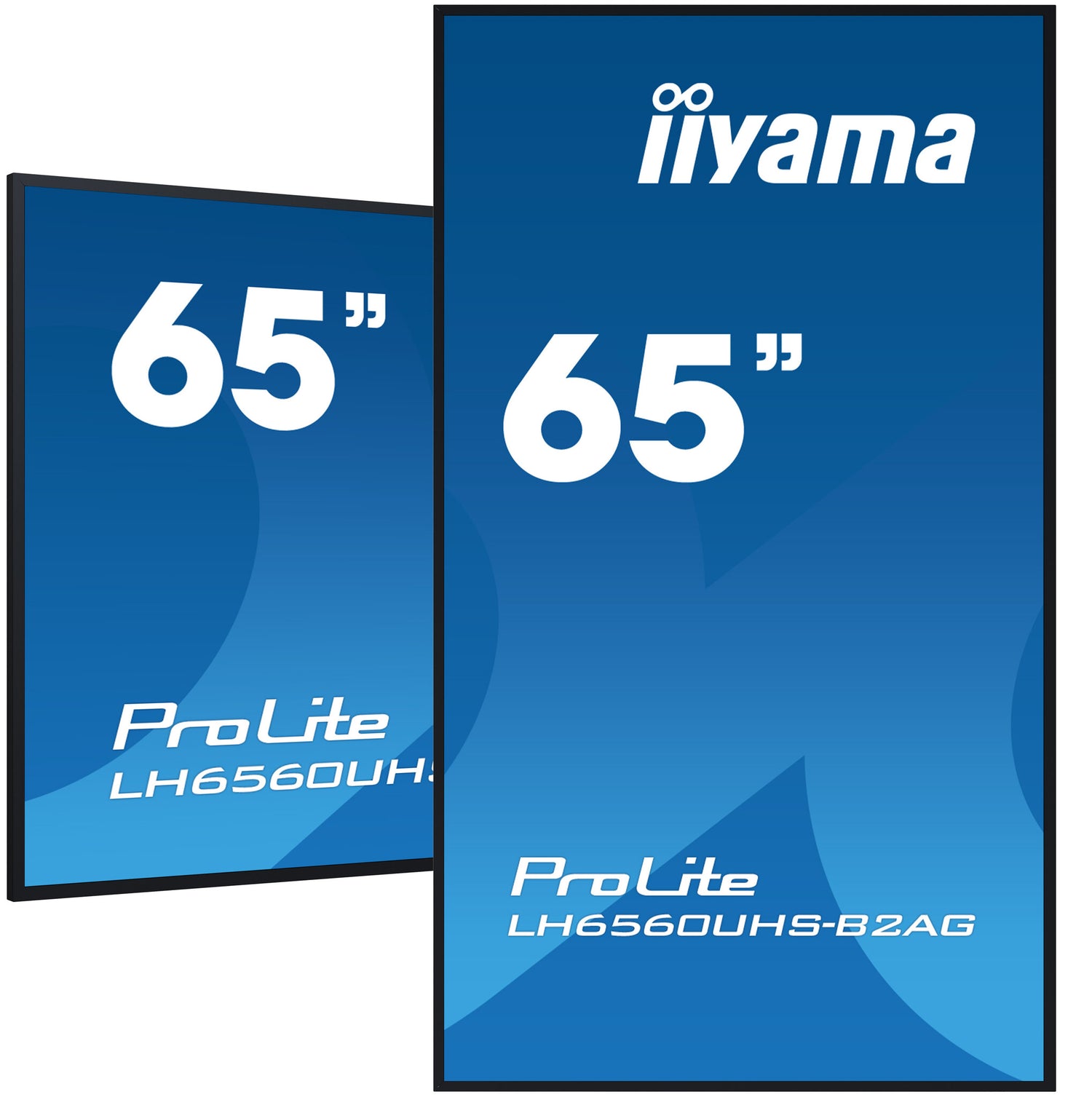

| Orientation | Horizontal/Vertical |
| VESA mounting | Yes |
| Panel mounting interface | 400 x 400 mm |
| Bezel width (bottom) | 1.6 cm |
| Bezel width (side) | 1.4 cm |
| Bezel width (top) | 1.4 cm |
| Bezel colour | Black |
| Anti-glare screen | Yes |
| Performance | |
|---|---|
| Purpose | Universal |
| On Screen Display (OSD) languages | Traditional Chinese, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Dutch, Polish, Russian, Swedish |
| On Screen Display (OSD) | Yes |
| Operating hours (hours/days) | 24/7 |
| HDCP version | 1.4/2.2 |
| HDCP | Yes |
| Mean time between failures (MTBF) | 50000 h |
| Power | |
|---|---|
| Power consumption (typical) | 59 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | C |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 58.9 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Computer system | |
|---|---|
| Computer system | No |
| Built-in processor | Yes |
| Processor manufacturer | ARM |
| Processor family | ARM Cortex |
| Processor architecture | ARM Cortex-A53 |
| Processor model | A53 |
| Processor cores | 4 |
| Internal memory | 2 GB |
| On-board graphics card model | ARM Mali-G52 |
| Internal storage capacity | 16 GB |
| Operating system installed | Android 11 |
| Weight & dimensions | |
|---|---|
| Display width | 1459.2 mm |
| Display depth | 38.9 mm |
| Display height | 837.1 mm |
| Display weight | 25.3 kg |
| Width | 1459.2 mm |
| Depth | 38.9 mm |
| Height | 837.1 mm |
| Weight | 25.3 kg |
| Packaging data | |
|---|---|
| Package width | 1640 mm |
| Package depth | 164 mm |
| Package height | 990 mm |
| Package weight | 36.4 kg |
| Packaging content | |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Mounting kit | Yes |

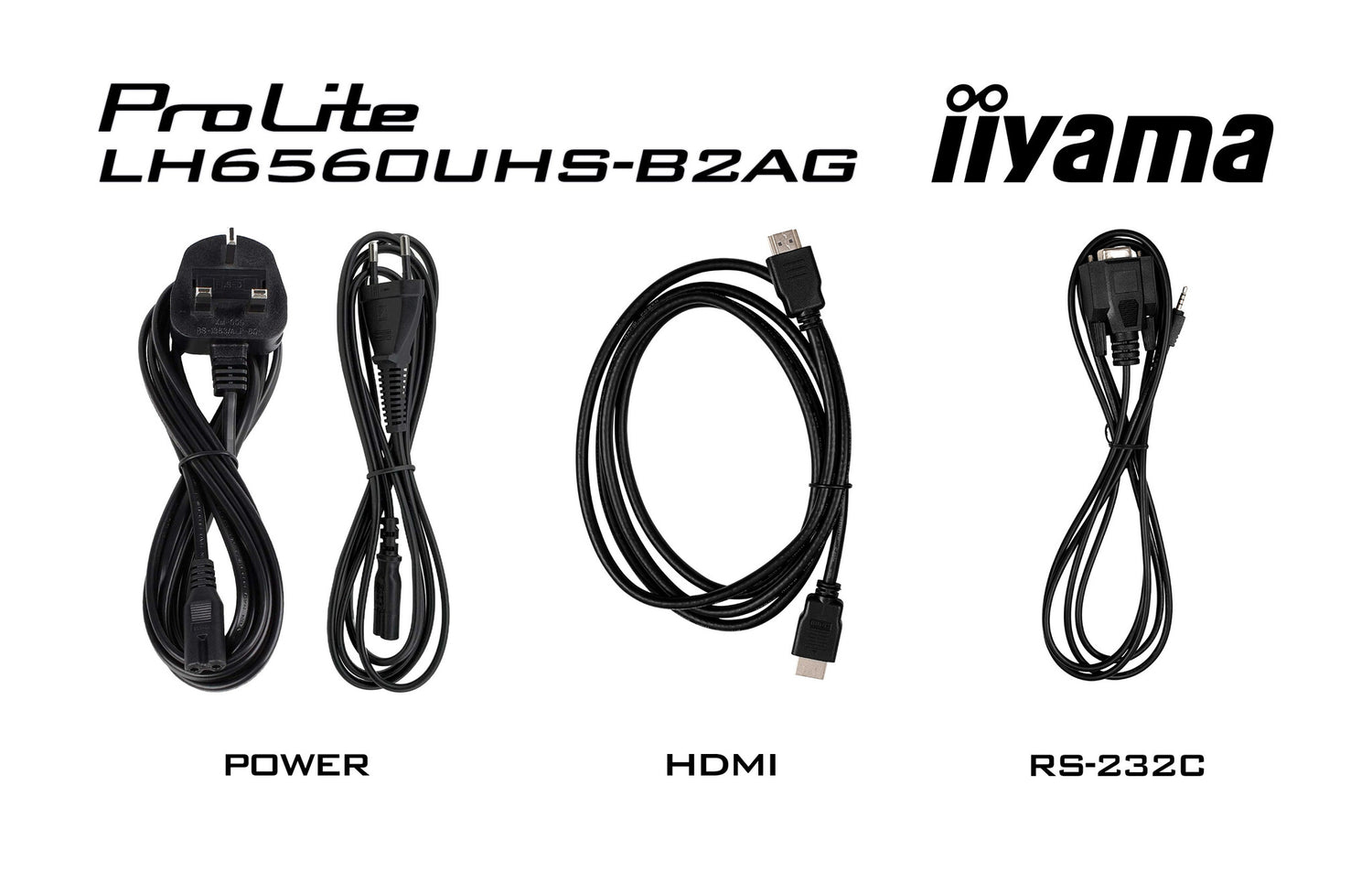

| Cables included | AC, HDMI, RS-232 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Certificates | |
|---|---|
| Certification | CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Technical details | |
|---|---|
| Compliance certificates | CB, CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE |
| Sustainability certificates | ErP |
| User controls | picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temperature, colour control, over scan, picture reset), screen (zoom mode, custom zoom, screen reset), Audio (balance, treble, bass, volume, audio out, maximum volume, minimum volume, mute, audio out sync, speaker setting, audio reset), configuration 1 (switch on state, panel saving, RS232-routing, boot on source, WOL, configuration 1 reset, factory reset), Configuration 2 (OSD timeout, OSD H-Position, OSD V-position, system rotation, information OSD, logo and animation logo setting, animation setting, monitor ID, monitor information, HDMI version, configuration 2 reset), advanced option (IR control, off timer, schedule, HDMI with one wire, HDMI with one wire power off, FailOver, language, OSD transparency, power saving, advanced option reset), Android settings (network & internet, apps & notifications, display, signage display, security, language & input, date & time, about device) |
| Playback media | Y |
| Other features | |
|---|---|
| Power supply type | Internal |
| Quick start guide | Yes |
