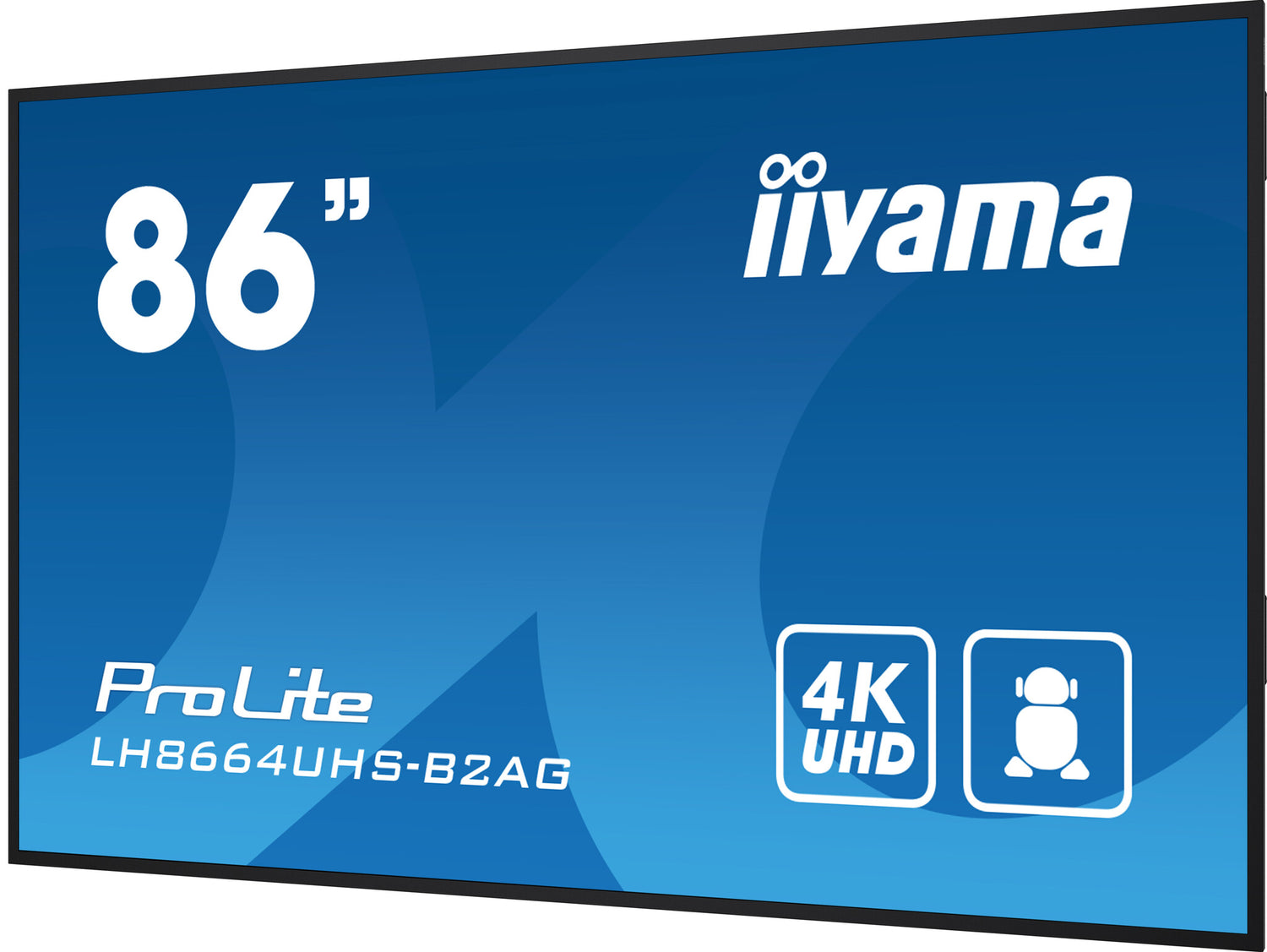

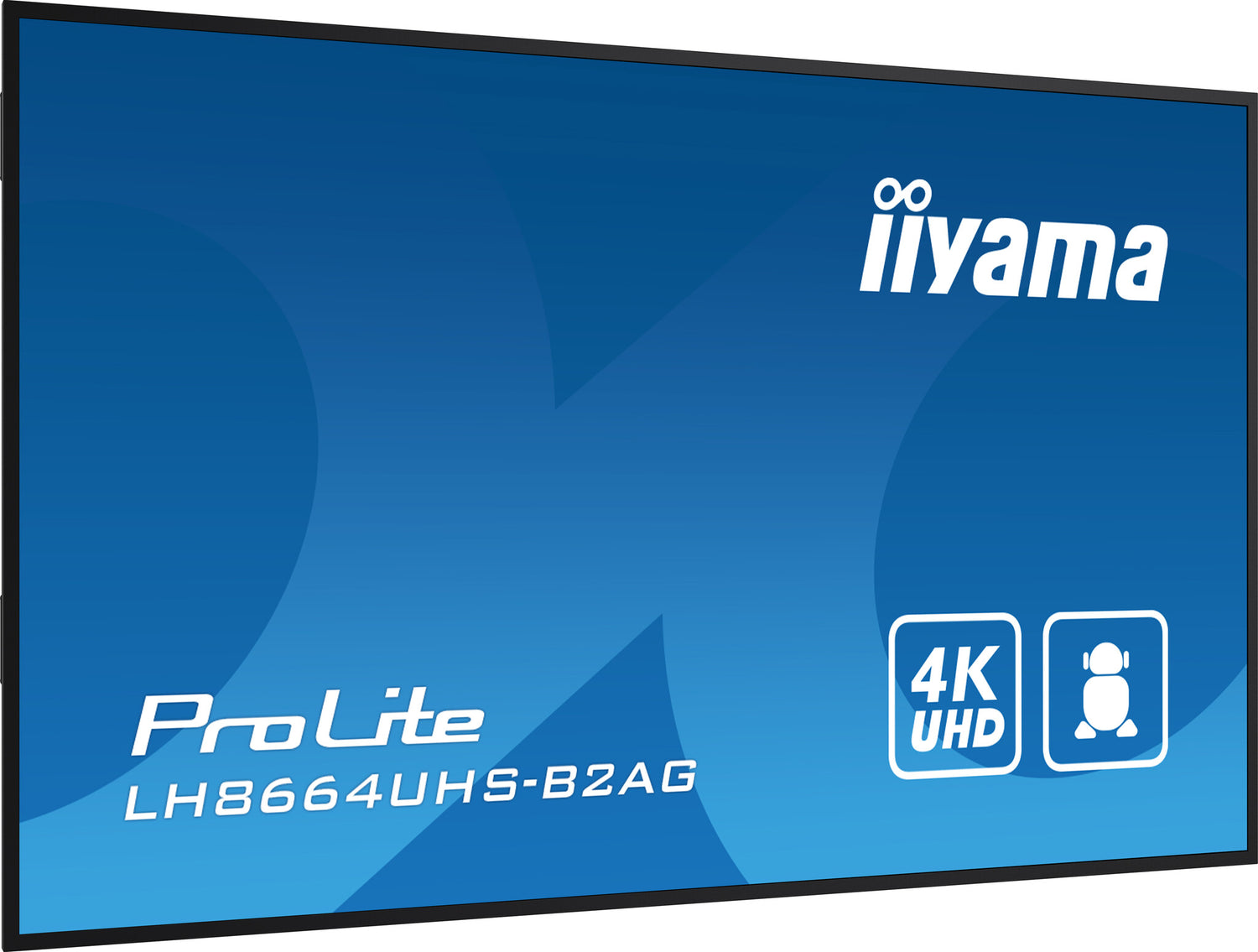

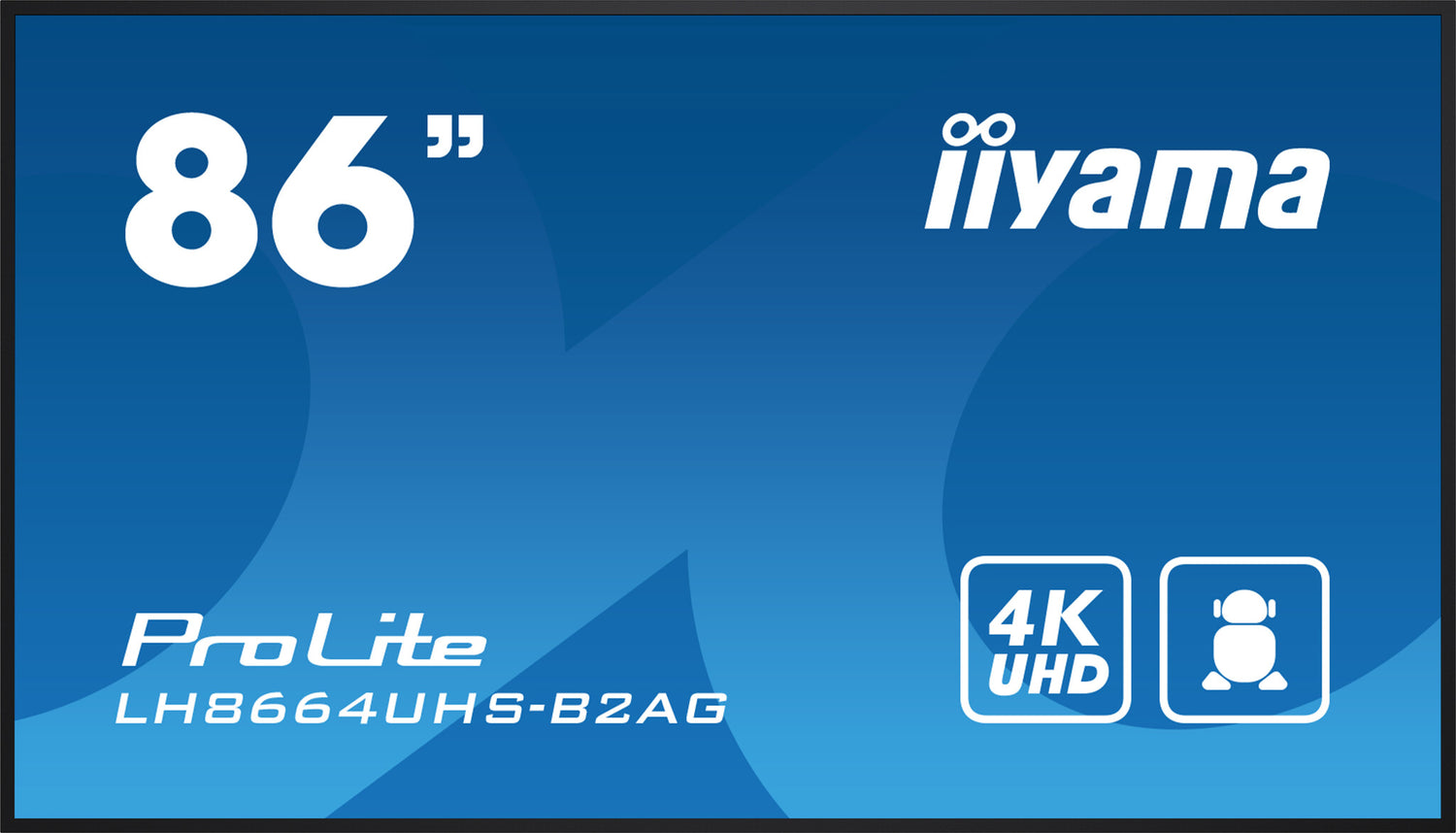

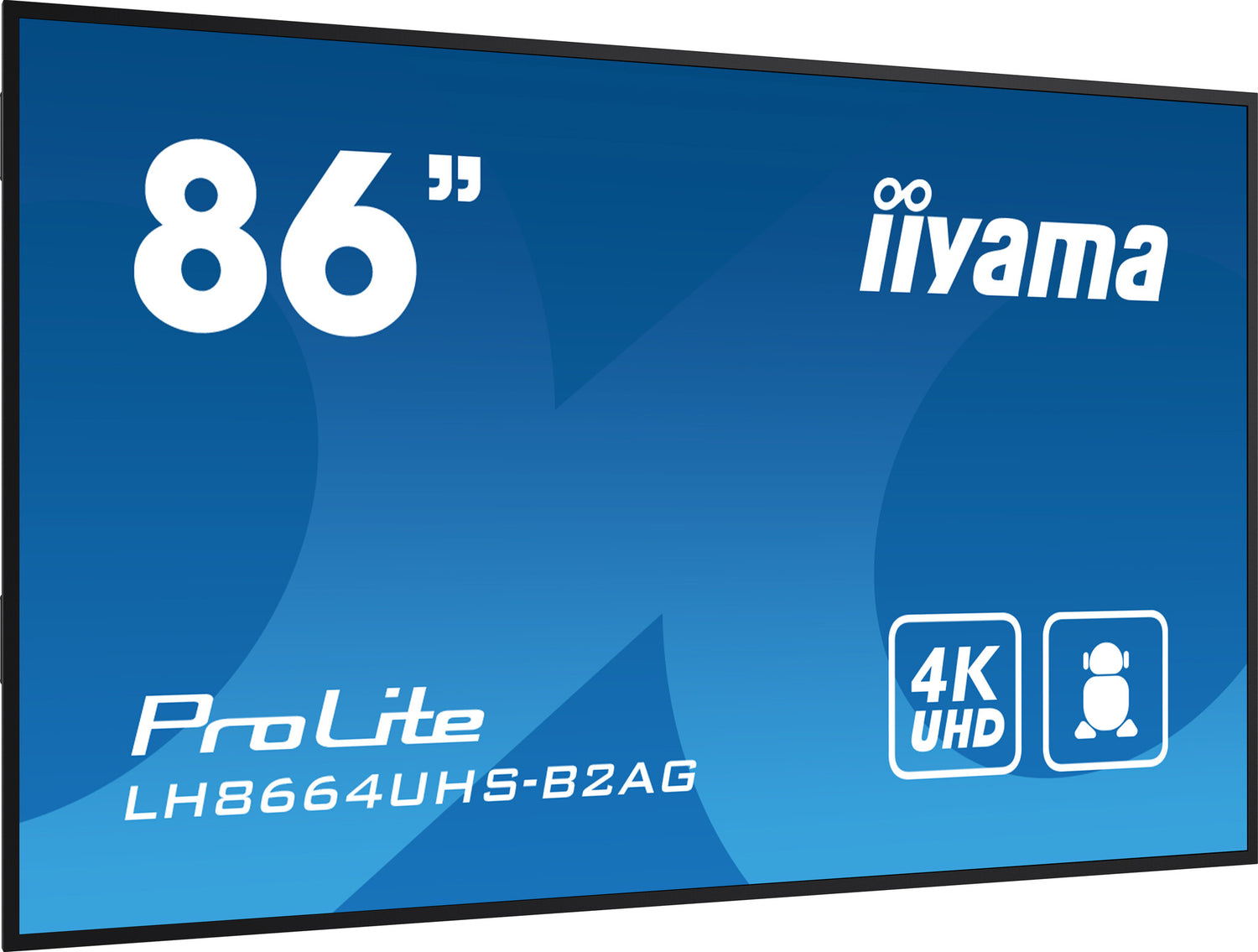

iiyama LH8664UHS-B2AG Signage Display Digital signage flat panel 2.17 m (85.6") Wi-Fi 500 cd/m² 4K Ultra HD Black Built-in processor Android 11 24/7
iiyama | Varenummer:
LH8664UHS-B2AG
Beskrivelse
Beskrivelse
86" 4K UHD professional digital signage display with advanced control and connectivity options
Elevate your visual communication with the LH8664UHS-B2AG and unlock the new possibilities for your business. This 500cd/m² high brightness display is a powerful business tool that takes your marketing and communication efforts to the next level. With its Android 11 OS, iiSignage² (Content Management Software), Signal FailOver and EShare features, this display offers a straightforward user experience, making content creation, management, and sharing a breeze. WiFi enabled, the display is ready for remote content delivery using your network or you can choose to utilise LAN control. Its versatile orientation, sleek design, and 24/7 reliability ensure it seamlessly integrates into any business environment. Whether it's used in retail, corporate, hospitality, or educational settings, the LH8664UHS-B2AG will undoubtedly captivate your audience and leave a lasting impression.
Specifikationer
Specifikationer
| Display | |
|---|---|
| Haze rate | 25% |
| Native refresh rate | 60 Hz |
| Horizontal scan range | 28 - 160 kHz |
| Display diagonal (metric) | 217.4 cm |
| Active display area (W x H) | 1895 x 1066 mm |
| Pixel pitch | 0.493 x 0.493 mm |
| Display number of colours | 1.07 billion colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Contrast ratio (typical) | 1200:1 |
| Response time | 8 ms |
| Native aspect ratio | 16:9 |
| Touchscreen | No |
| HD type | 4K Ultra HD |
| Display brightness | 500 cd/m² |
| Display resolution | 3840 x 2160 pixels |
| Panel type | IPS |
| Display diagonal | 2.17 m (85.6") |

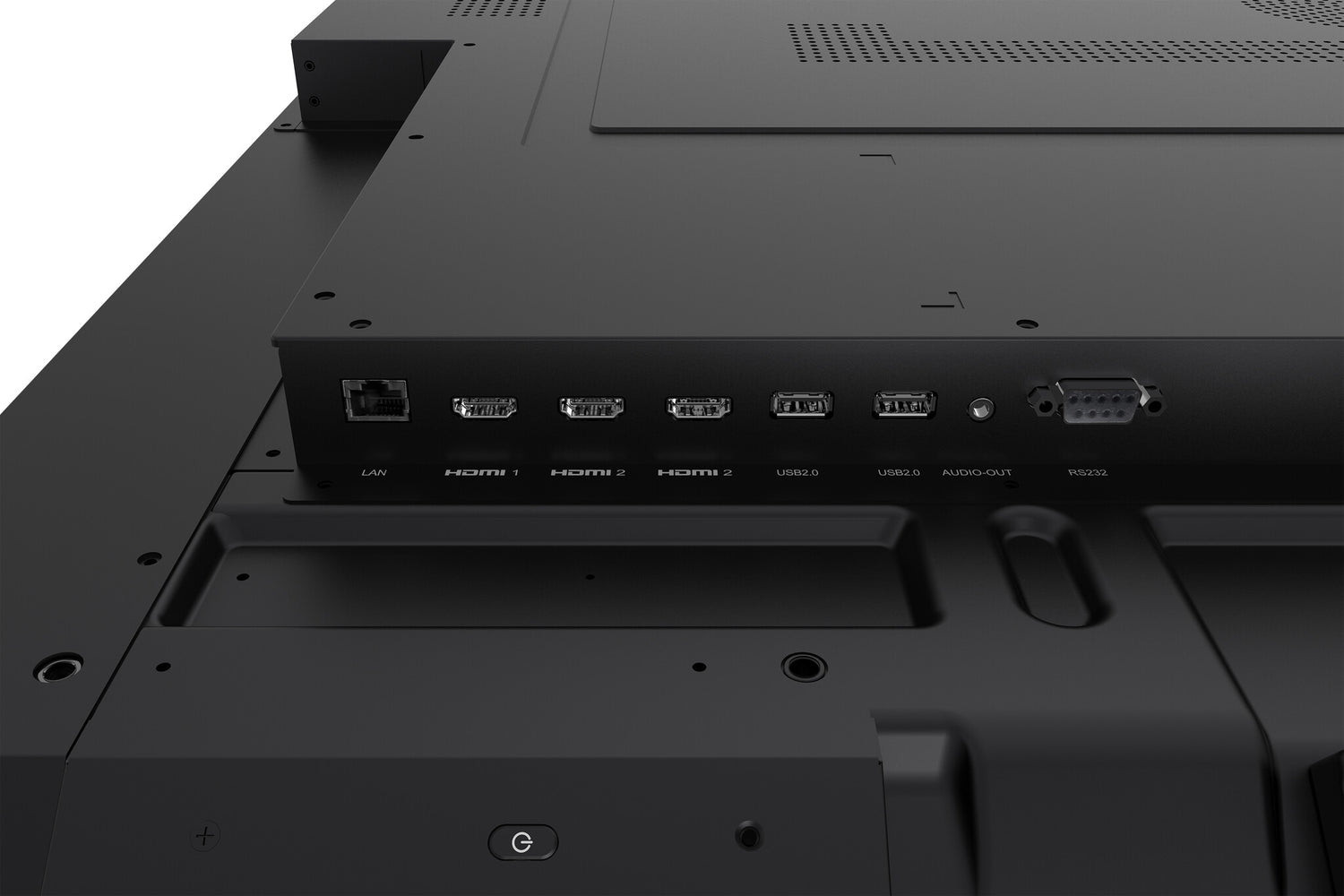

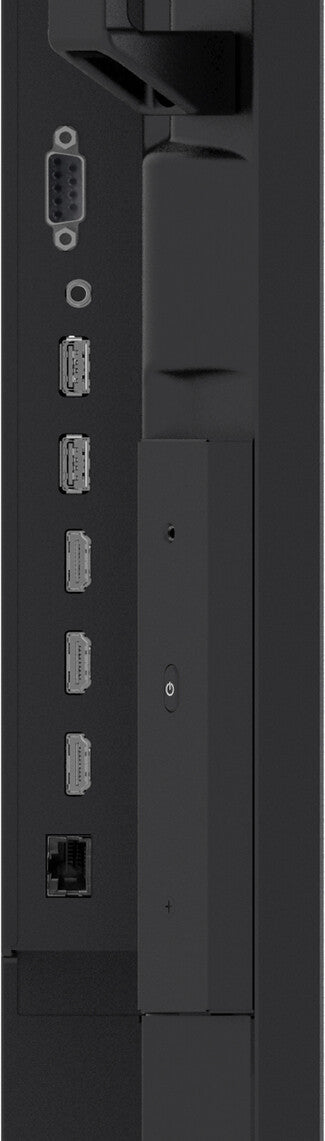

| Ports & interfaces | |
|---|---|
| Remote (IR) input | 1 |
| RS-232C | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| USB version | 2.0 |
| USB ports quantity | 2 |
| USB port | Yes |
| DVI port | No |
| HDMI version | 2.0 |
| HDMI ports quantity | 3 |
| Audio | |
|---|---|
| RMS rated power | 32 W |
| Number of built-in speakers | 2 |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Anti-glare screen | Yes |
| Bezel colour | Black |
| Bezel width (top) | 1.4 cm |
| Bezel width (side) | 1.4 cm |
| Bezel width (bottom) | 1.6 cm |

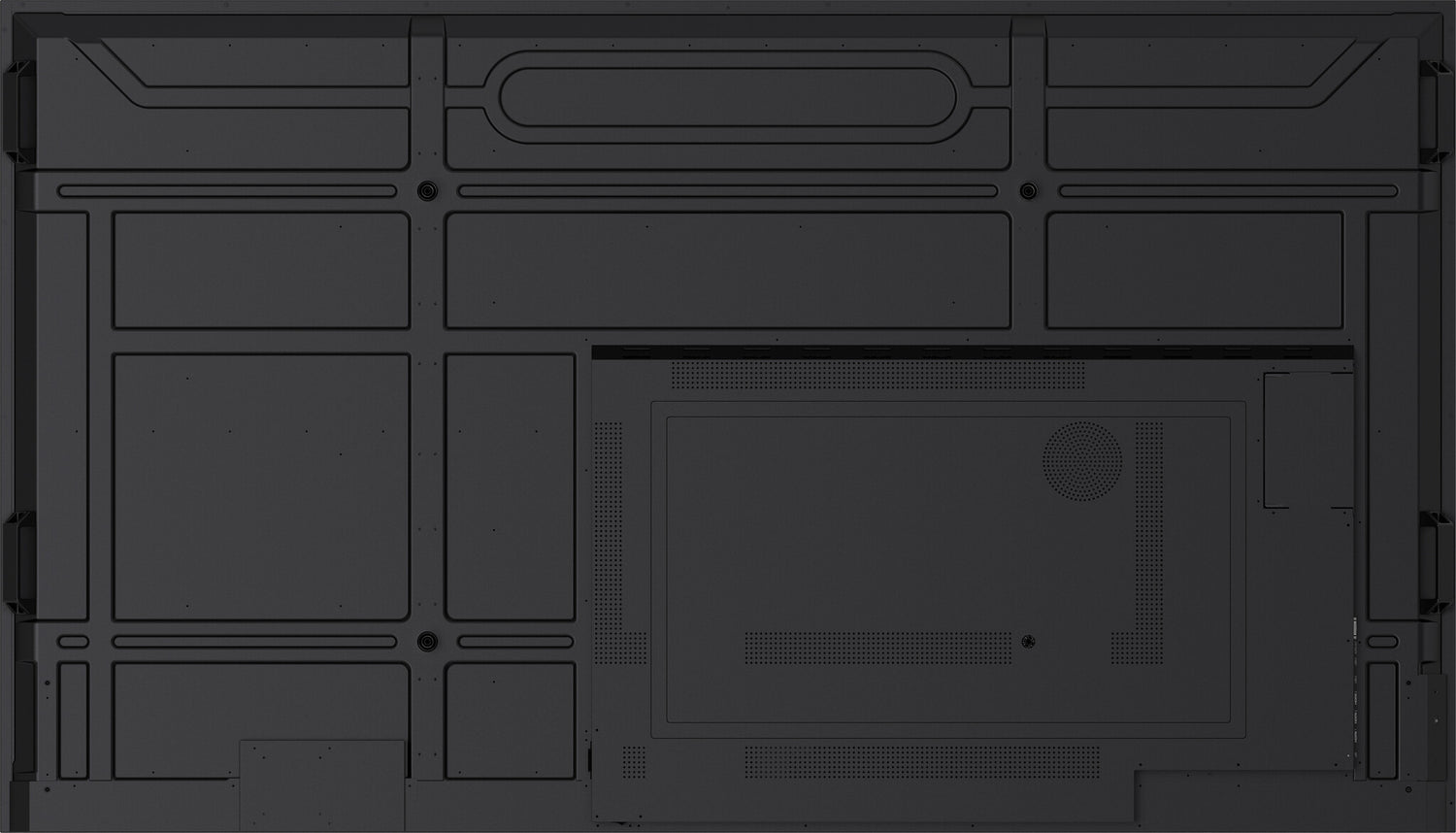

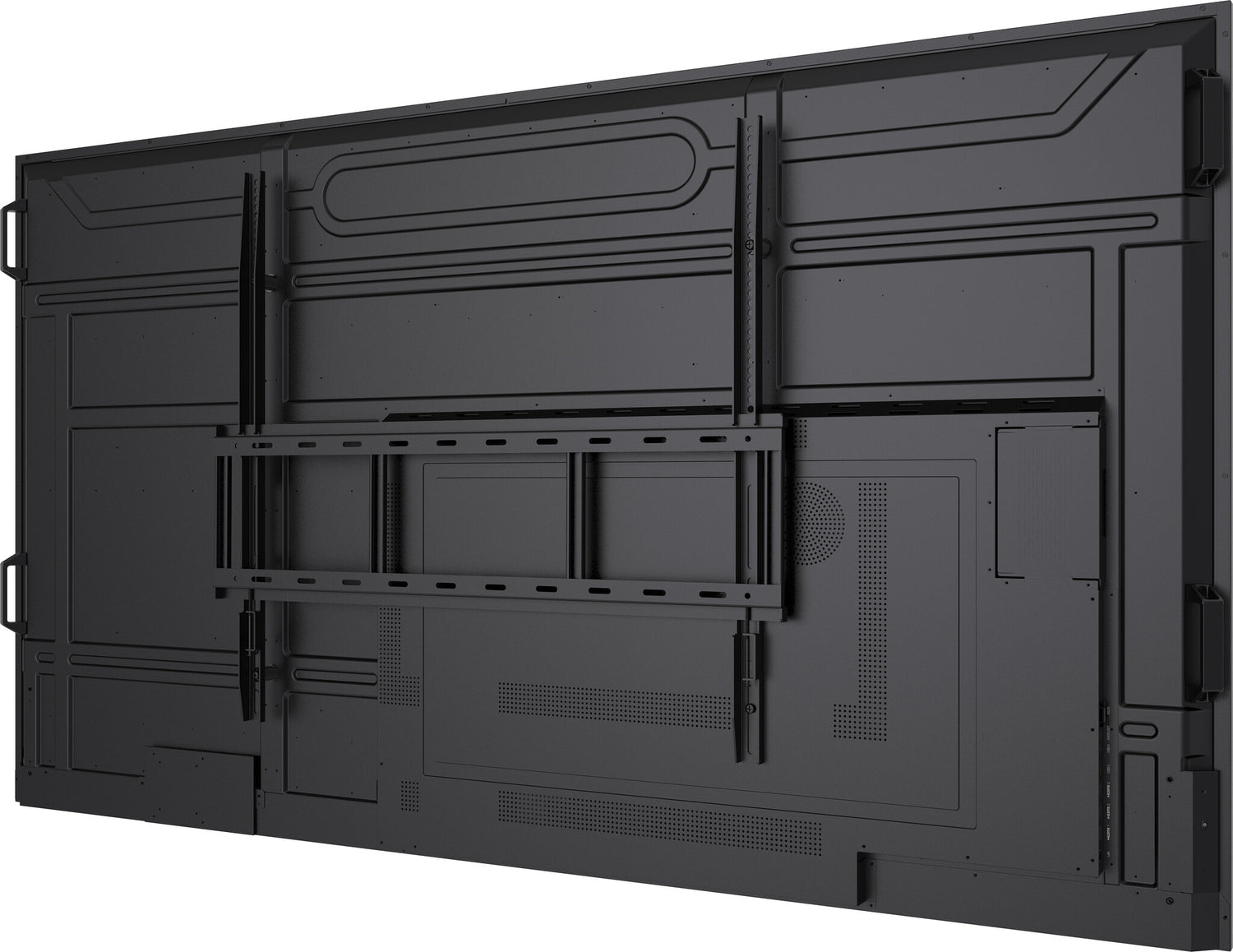

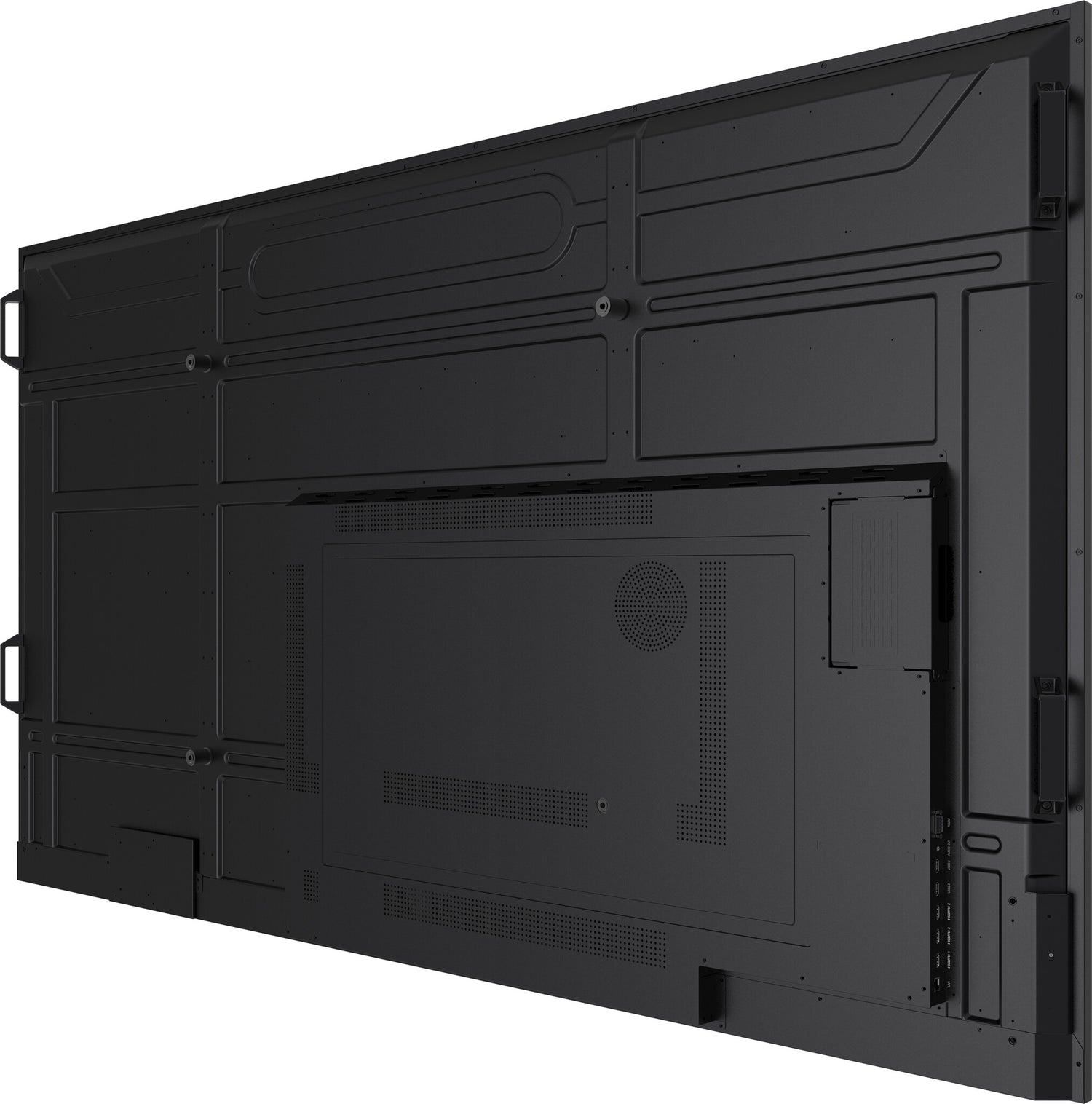

| Panel mounting interface | 800 x 600 mm |
| VESA mounting | Yes |

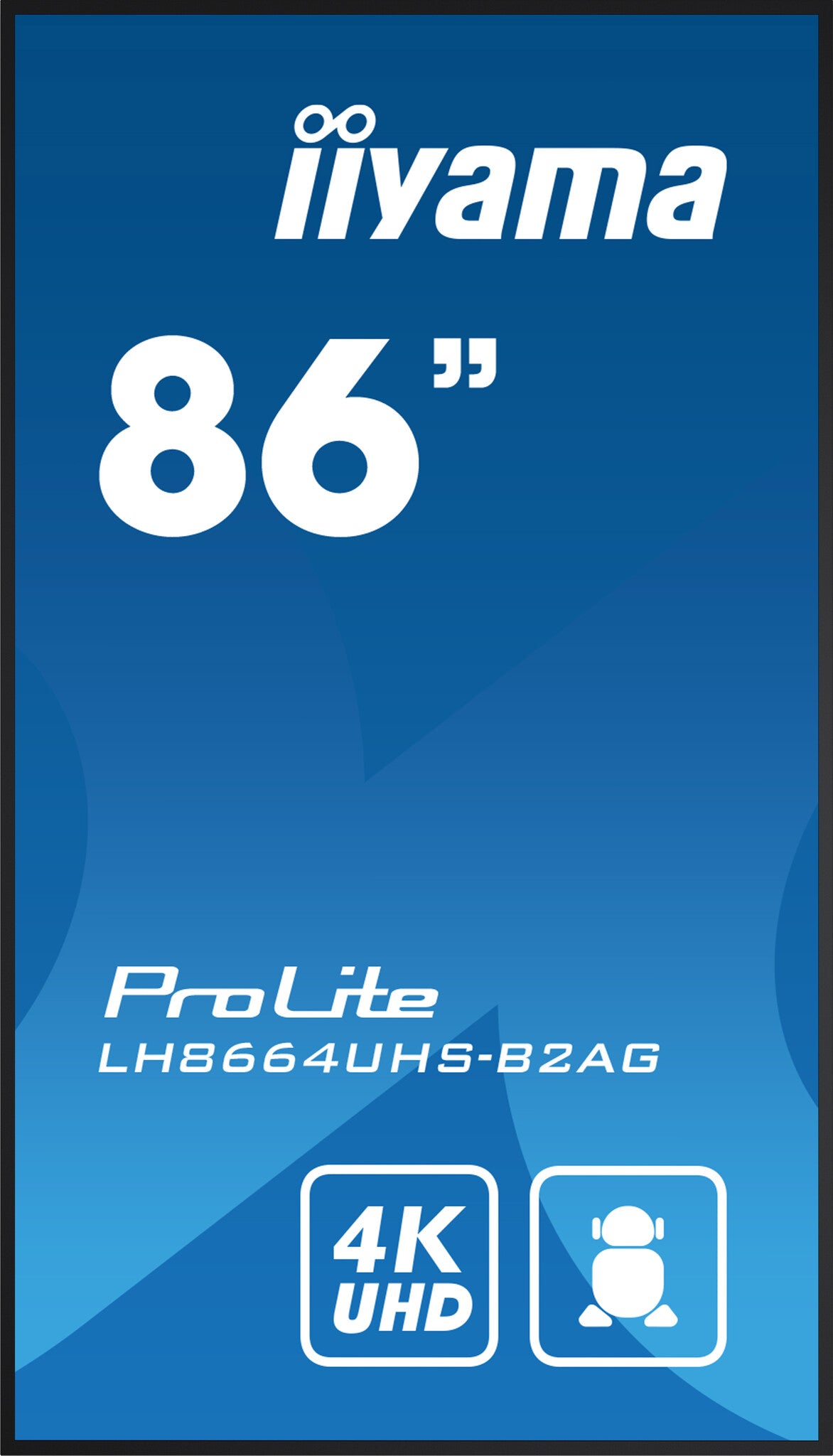

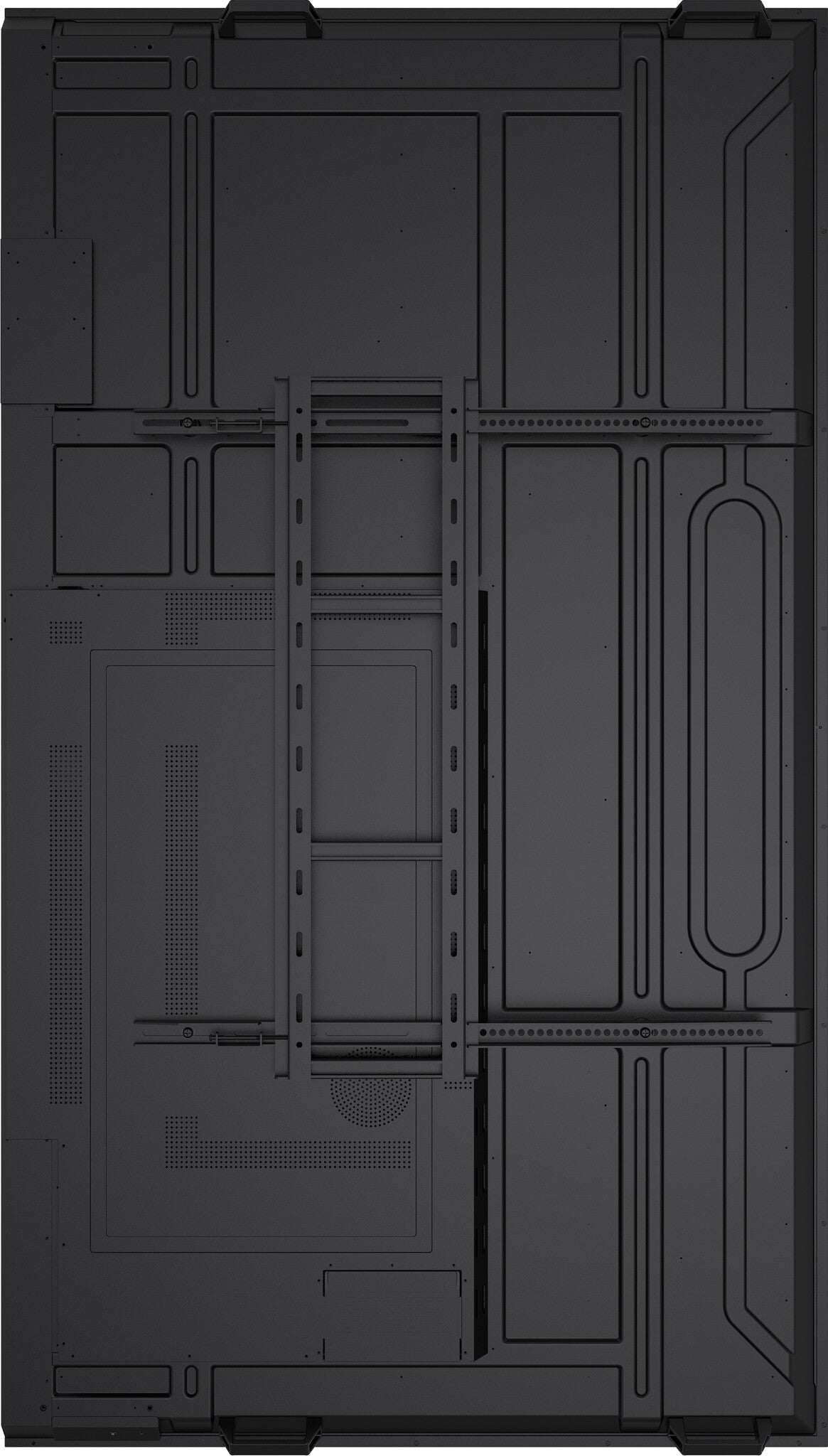

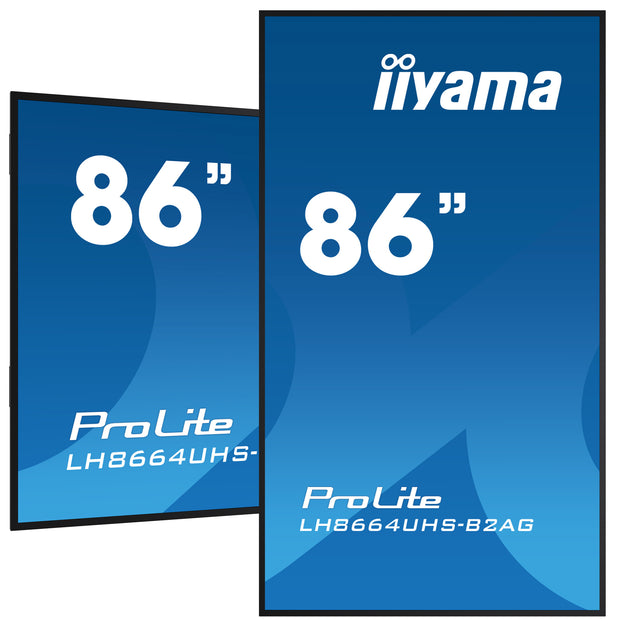

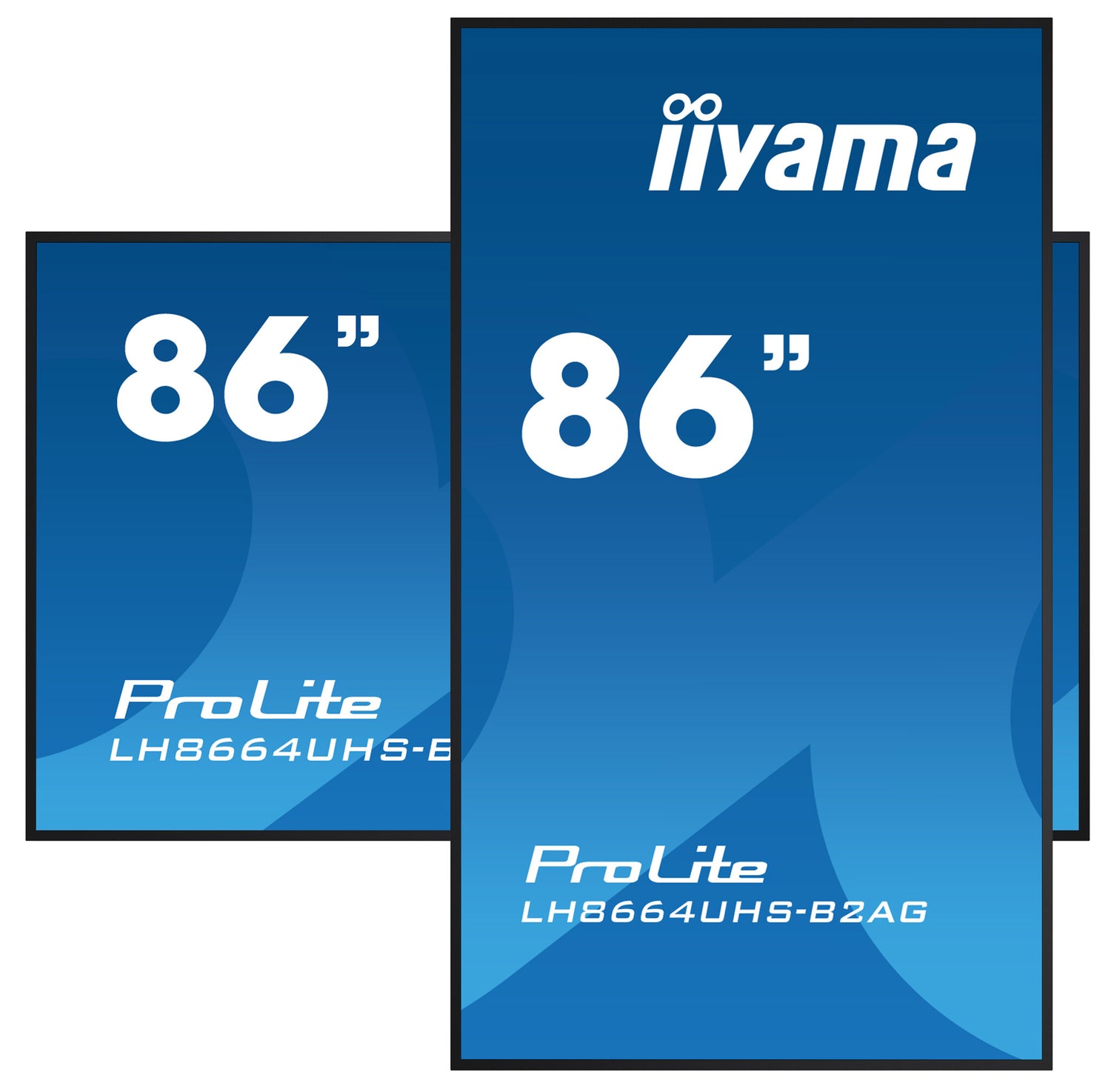

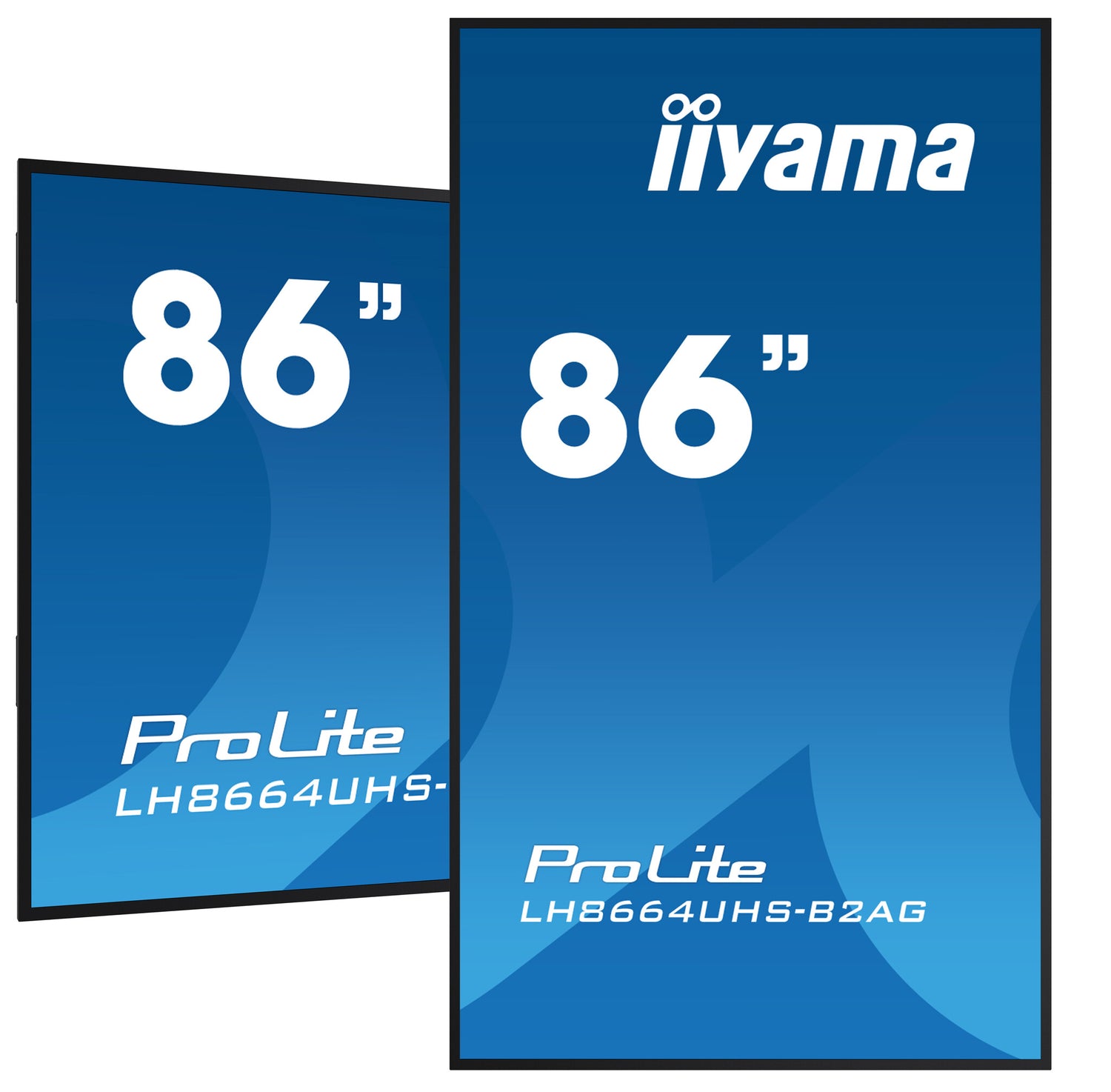

| Orientation | Horizontal/Vertical |
| Placement supported | Indoor |
| Product colour | Black |
| Product design | Digital signage flat panel |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 50000 h |
| HDCP | Yes |
| HDCP version | 1.4/2.2 |
| Operating hours (hours/days) | 24/7 |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 15 |
| On Screen Display (OSD) languages | Traditional Chinese, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Dutch, Polish, Russian, Swedish |
| Purpose | Universal |
| Power | |
|---|---|
| Energy efficiency scale | A to G |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Energy consumption (SDR) per 1000 hours | 145 kWh |
| Energy efficiency class (HDR) | Not available |
| Energy efficiency class (SDR) | F |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 0.4 W |
| Power consumption (typical) | 145 W |
| Computer system | |
|---|---|
| Operating system version | 11 |
| Operating system installed | Android 11 |
| Internal storage capacity | 16 GB |
| On-board graphics card model | ARM Mali-G52 |
| Internal memory | 2 GB |
| Processor cores | 4 |
| Processor model | A53 |
| Processor architecture | ARM Cortex-A73 |
| Built-in processor | Yes |
| Computer system | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 47.9 kg |
| Height | 1109 mm |
| Depth | 79.5 mm |
| Width | 1938 mm |
| Display weight | 47.9 kg |
| Display height | 1109 mm |
| Display depth | 79.5 mm |
| Display width | 1938 mm |
| Packaging data | |
|---|---|
| Package weight | 62.2 kg |
| Package volume | 73700 cm³ |
| Package height | 1275 mm |
| Package depth | 275 mm |
| Package width | 2125 mm |
| Packaging content | |
|---|---|
| Cables included | AC, HDMI, RS-232 |

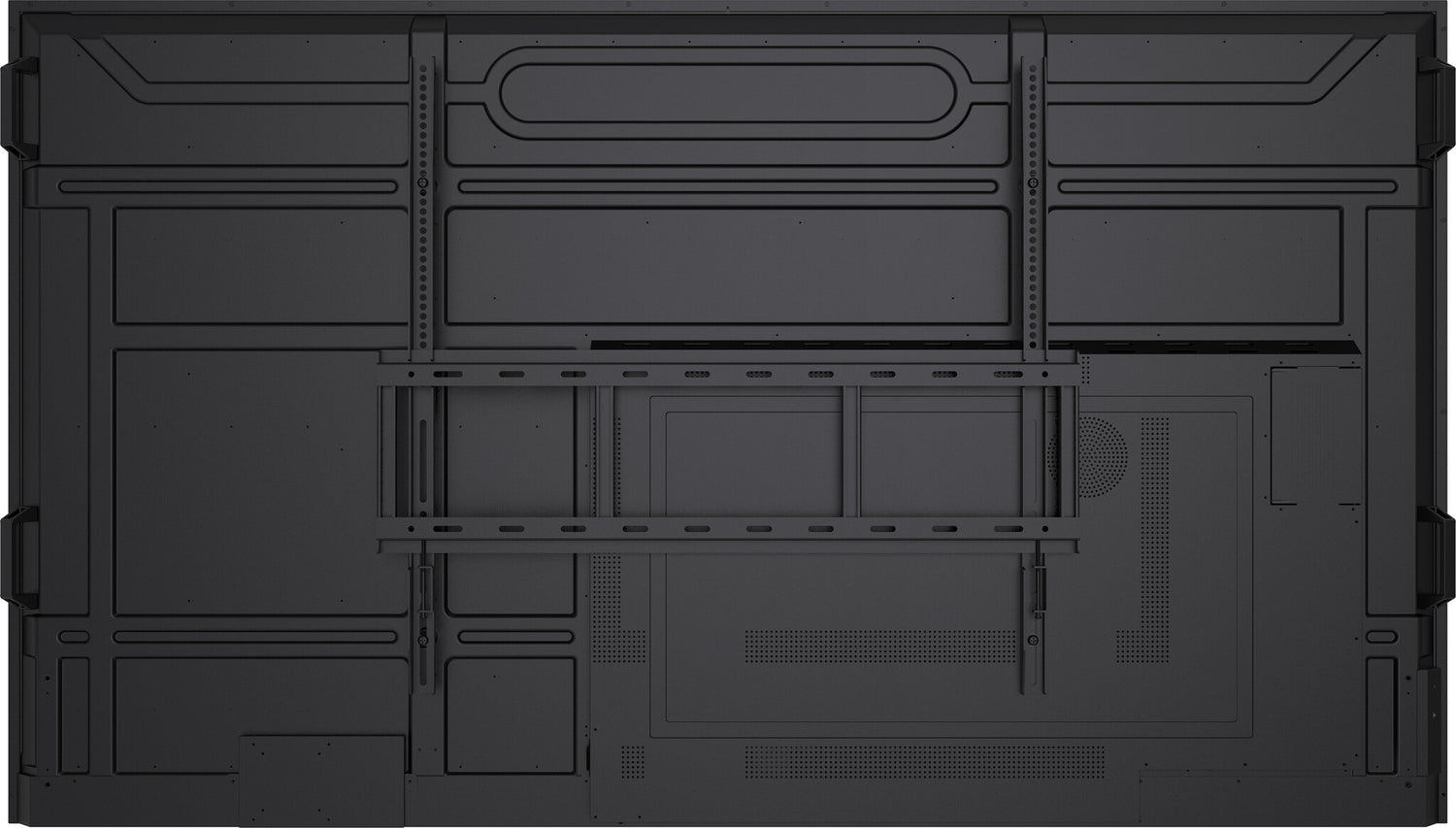

| Mounting kit | Yes |
| Batteries included | Yes |
| Remote control included | Yes |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Certificates | |
|---|---|
| Certification | CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH |
| Technical details | |
|---|---|
| Playback media | Y |
| User controls | picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temperature, colour control, over scan, picture reset), screen (zoom mode, custom zoom, screen reset), audio (balance, treble, bass, volume, audio out, maximum volume, minimum volume, mute, audio out sync, speaker setting, audio reset), configuration 1 (switch on state, panel saving, RS232-routing, boot on source, WOL, configuration 1 reset, factory reset), configuration 2 (OSD timeout, OSD H-Position, OSD V-position, system rotation, information OSD, logo and animation logo setting, animation setting, monitor ID, monitor information, HDMI version, configuration 2 reset), advanced option (IR control, off timer, schedule, HDMI with one wire, HDMI with one wire power off, FailOver, language, OSD transparency, power saving, advanced option reset), Android settings (network & internet, apps & notifications, display, signage display, security, language & input, date & time, about device) |
| Audio in (mini jack) | Yes |
| Sustainability certificates | ErP |
| Compliance certificates | CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE |
| Other features | |
|---|---|
| Power supply type | Internal |
| Quick start guide | Yes |
| Audio output | Mini Jack |
