iiyama TE10518UWI-B1AG Signage Display Kiosk design 2.66 m (104.6") LED Wi-Fi 450 cd/m² 5K Ultra HD Black Touchscreen Built-in processor Android 16/7
iiyama | Varenummer:
TE10518UWI-B1AG
Beskrivelse
Beskrivelse

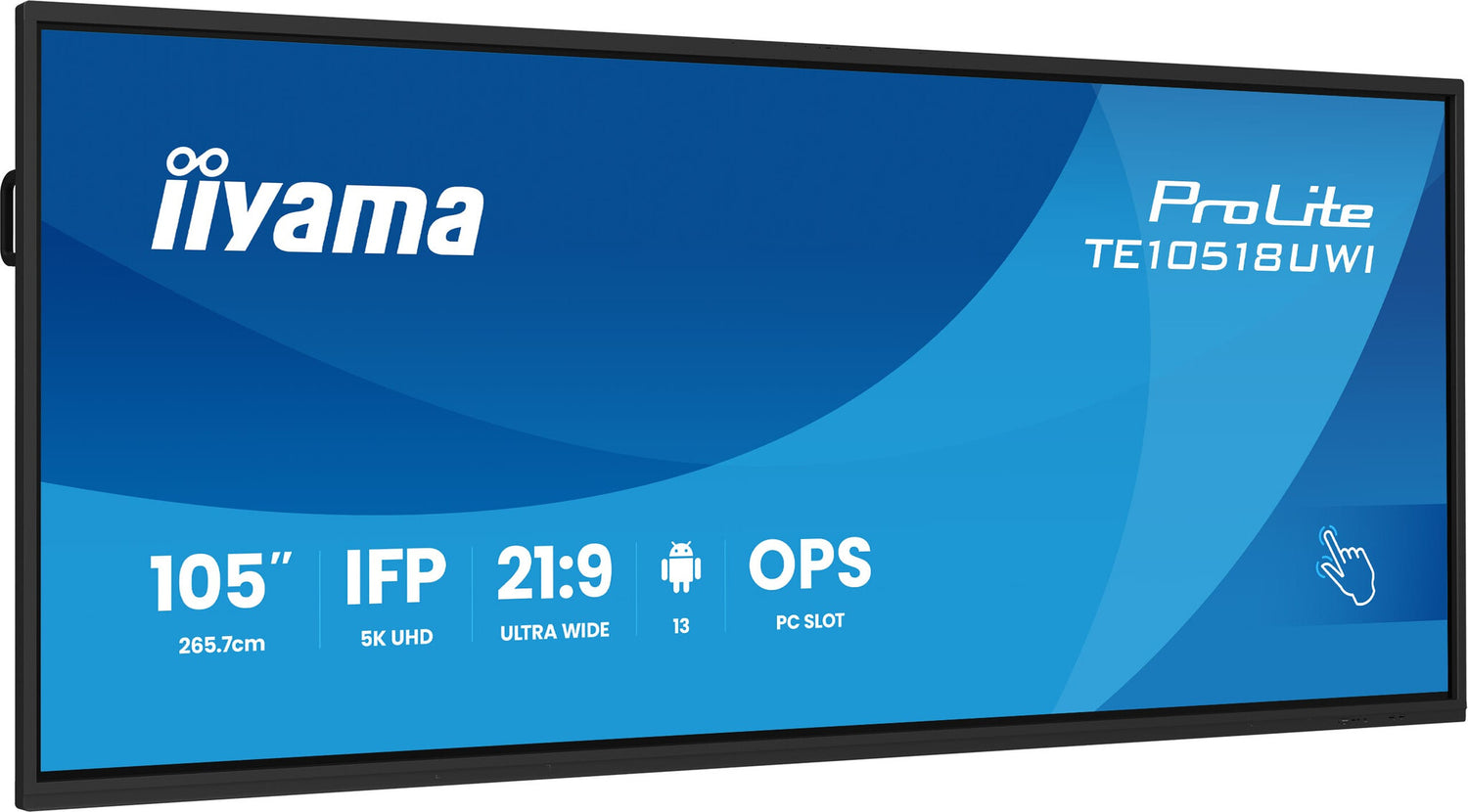

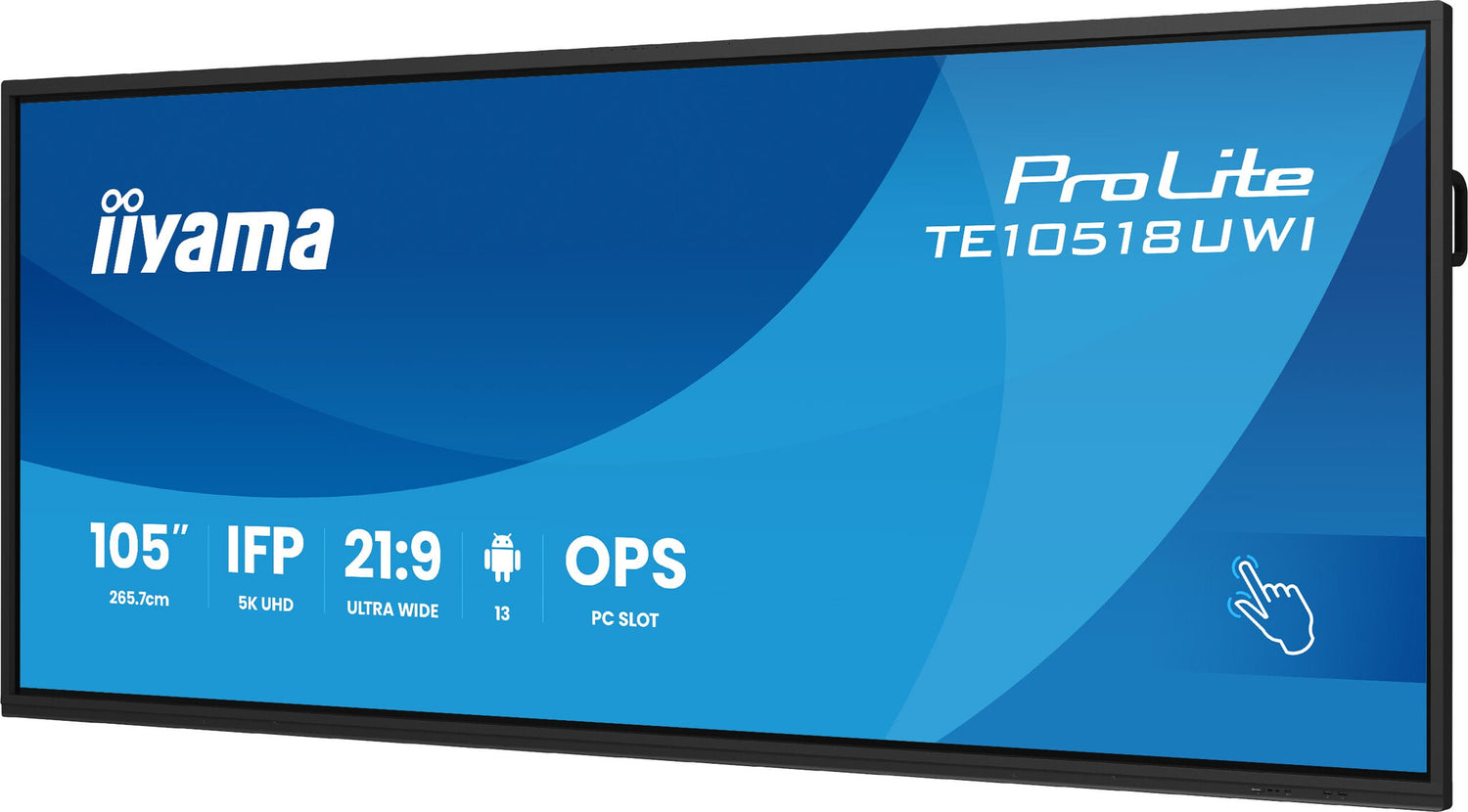

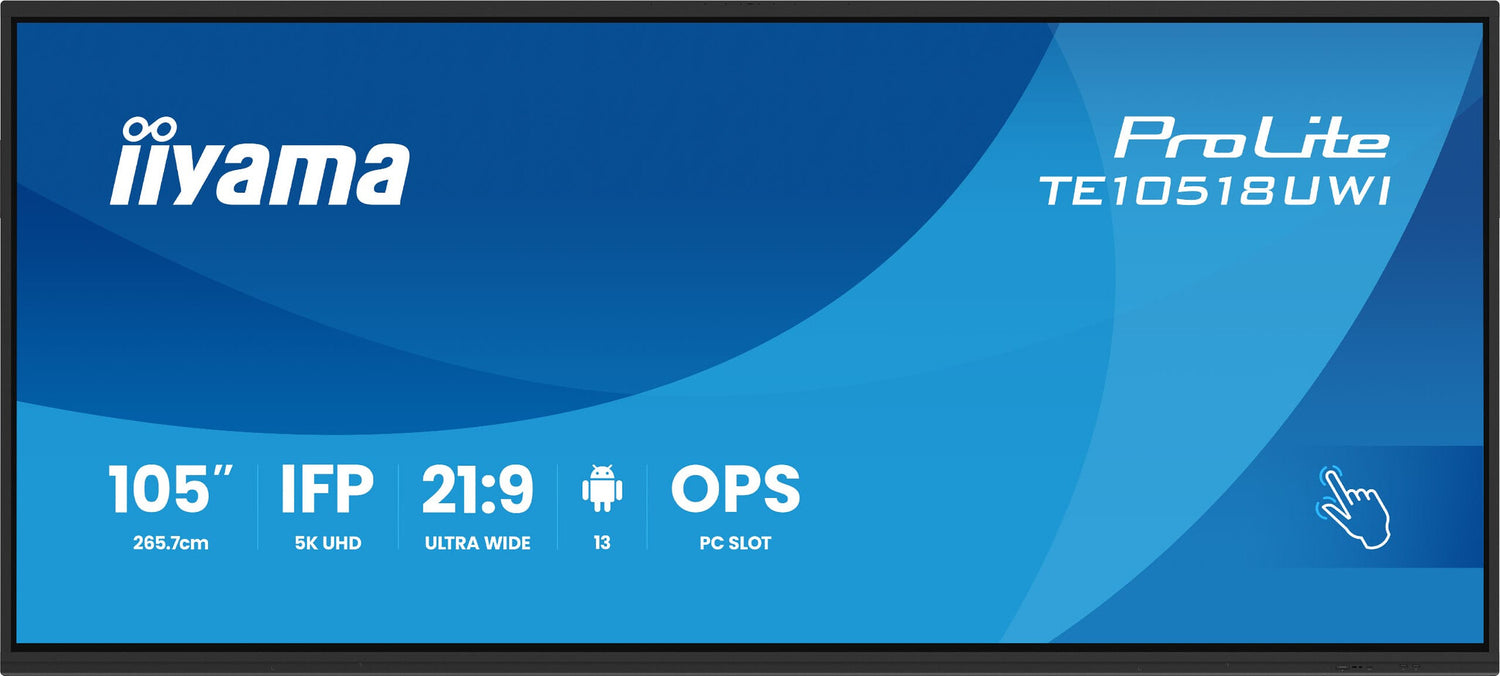

105” Ultra-wide Interactive 5K UHD display with 21:9 panoramic view
The TE10518UWI-B1AG is a revolutionary 105" 5K UHD Interactive Touchscreen that brings a new level of collaboration and engagement to your workspace. Boasting cutting-edge technology and a host of impressive features and functionalities, this interactive display is designed to transform the way you work, communicate, and share ideas. Whether it's for boardrooms, classrooms, or collaborative meeting spaces, this 105" 21:9 Ultra-Wide interactive touchscreen is the ultimate tool to foster creativity, productivity, and seamless communication.
Specifikationer
Specifikationer
| Display | |
|---|---|
| Display diagonal | 2.66 m (104.6") |
| Display technology | LED |
| Panel type | VA |
| Display resolution | 5120 x 2160 pixels |
| Display brightness | 450 cd/m² |
| HD type | 5K Ultra HD |
| Touchscreen | Yes |
| Touchscreen technology | PureTouch-IR |
| Number of simultaneous touchpoints | 40 |
| Native aspect ratio | 21:9 |
| Response time | 6.5 ms |
| Contrast ratio (typical) | 4000:1 |
| Contrast ratio (dynamic) | 5000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.479 x 0.479 mm |
| Active display area (W x H) | 2450 x 1033.6 mm |
| Display diagonal (metric) | 265.7 cm |
| Surface hardness | 7H |
| Glass thickness | 3 mm |
| Native refresh rate | 60 Hz |
| Horizontal scan range | 30 - 135 kHz |

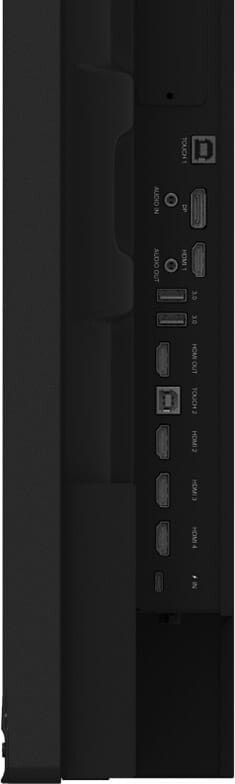

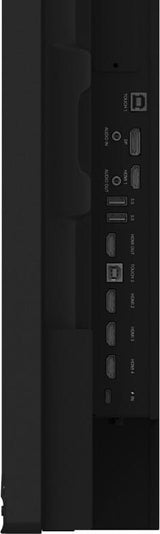

| Ports & interfaces | |
|---|---|
| HDMI ports quantity | 5 |
| HDMI version | 2.0/2.1 |
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 1 |
| DVI port | No |
| DisplayPorts quantity | 1 |
| DisplayPorts in | 1 |
| USB port | Yes |
| USB ports quantity | 8 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | USB Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 16 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet LAN data rates | 1000 Mbit/s |
| Wi-Fi standards | Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b |
| Wi-Fi | Yes |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 4 |
| Microphone in | Yes |
| RS-232C | Yes |
| Audio | |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 48 W |
| Design | |
|---|---|
| Product design | Kiosk design |
| Product colour | Black |
| Placement supported | Indoor |
| Orientation | Horizontal |

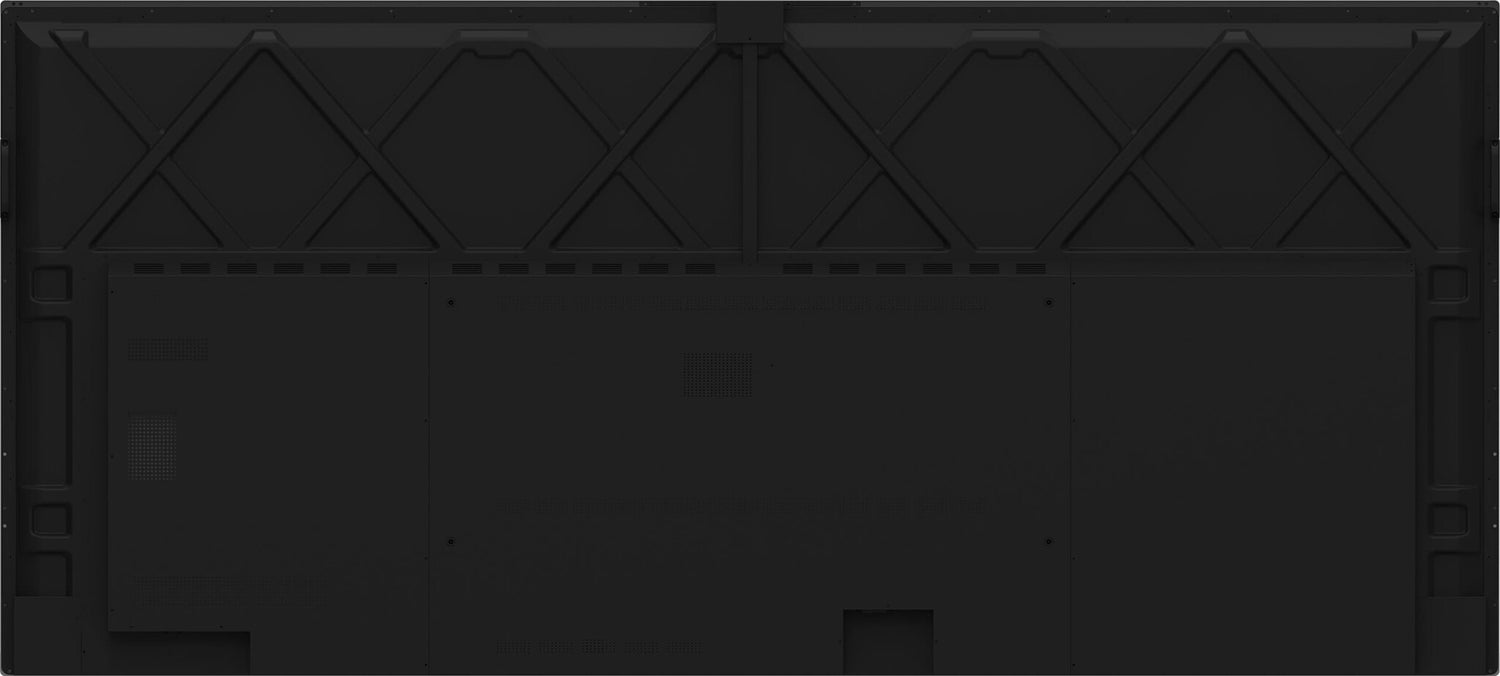

| VESA mounting | Yes |
| Panel mounting interface | 1000 x 400 mm |
| Bezel colour | Black |
| Anti-glare screen | Yes |
| Performance | |
|---|---|
| Purpose | Universal |
| On Screen Display (OSD) languages | CAT, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Norwegian, Dutch, Polish, Russian, Swedish |
| On Screen Display (OSD) | Yes |
| Operating hours (hours/days) | 16/7 |
| HDCP version | 2.3 |
| HDCP | Yes |
| Mean time between failures (MTBF) | 50000 h |
| Power | |
|---|---|
| Power consumption (typical) | 282 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Computer system | |
|---|---|
| Computer system | No |
| Built-in processor | Yes |
| Processor manufacturer | AMD |
| Processor architecture | ARM Cortex-A76+Cortex-A55 |
| Internal memory | 8 GB |
| On-board graphics card model | ARM Mali-G610 MP4 |
| Internal storage capacity | 64 GB |
| Operating system installed | Android |
| Operating system version | 13 |
| Weight & dimensions | |
|---|---|
| Display width | 2507.2 mm |
| Display depth | 103 mm |
| Display height | 1130.1 mm |
| Display weight | 91.4 kg |
| Width | 2507.2 mm |
| Depth | 103 mm |
| Height | 1130.1 mm |
| Weight | 91.4 kg |
| Packaging data | |
|---|---|
| Package width | 2668 mm |
| Package depth | 280 mm |
| Package height | 1305 mm |
| Package weight | 119.5 kg |
| Packaging content | |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |

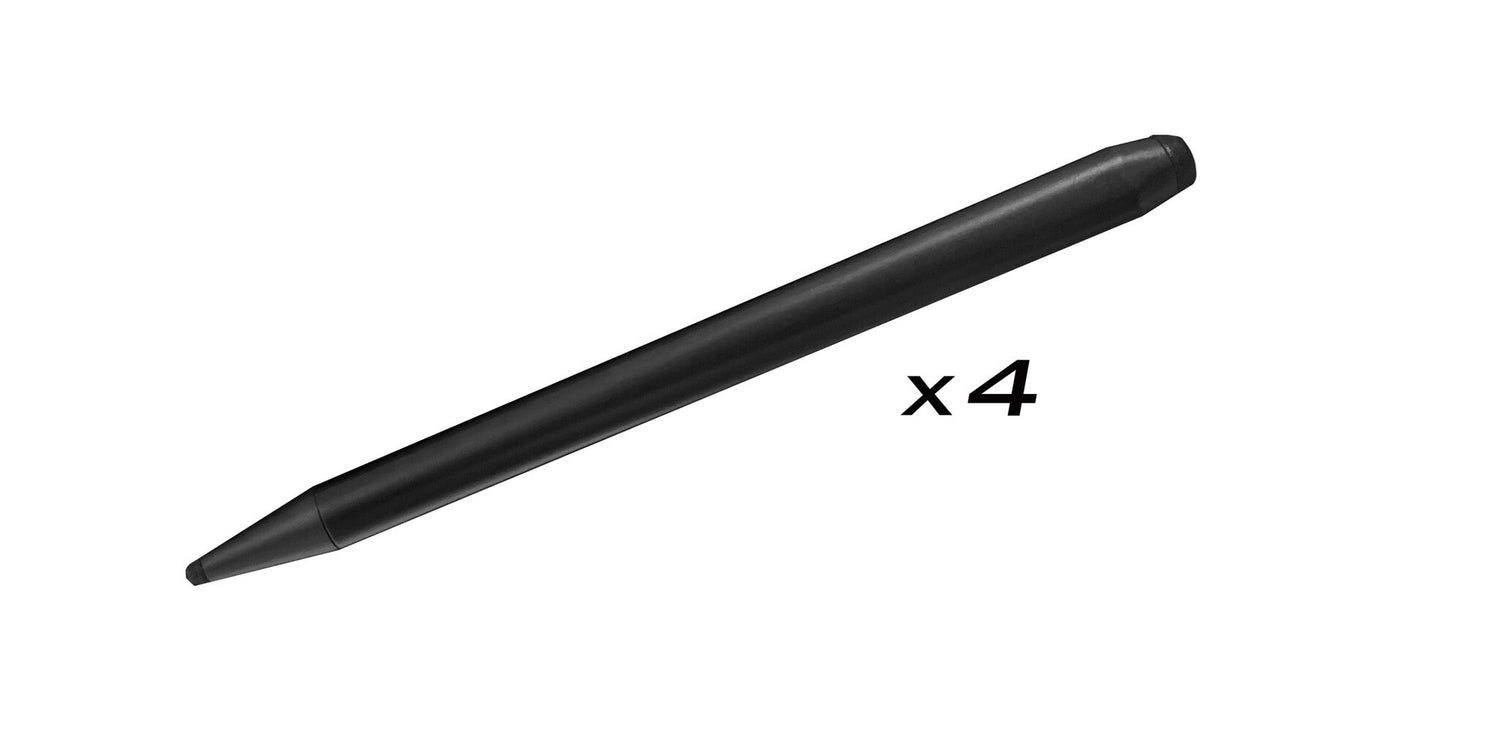

| Number of stylus pens | 4 |
| Stylus pen | Yes |
| Wi-Fi module included | Yes |
| Mounting kit | Yes |

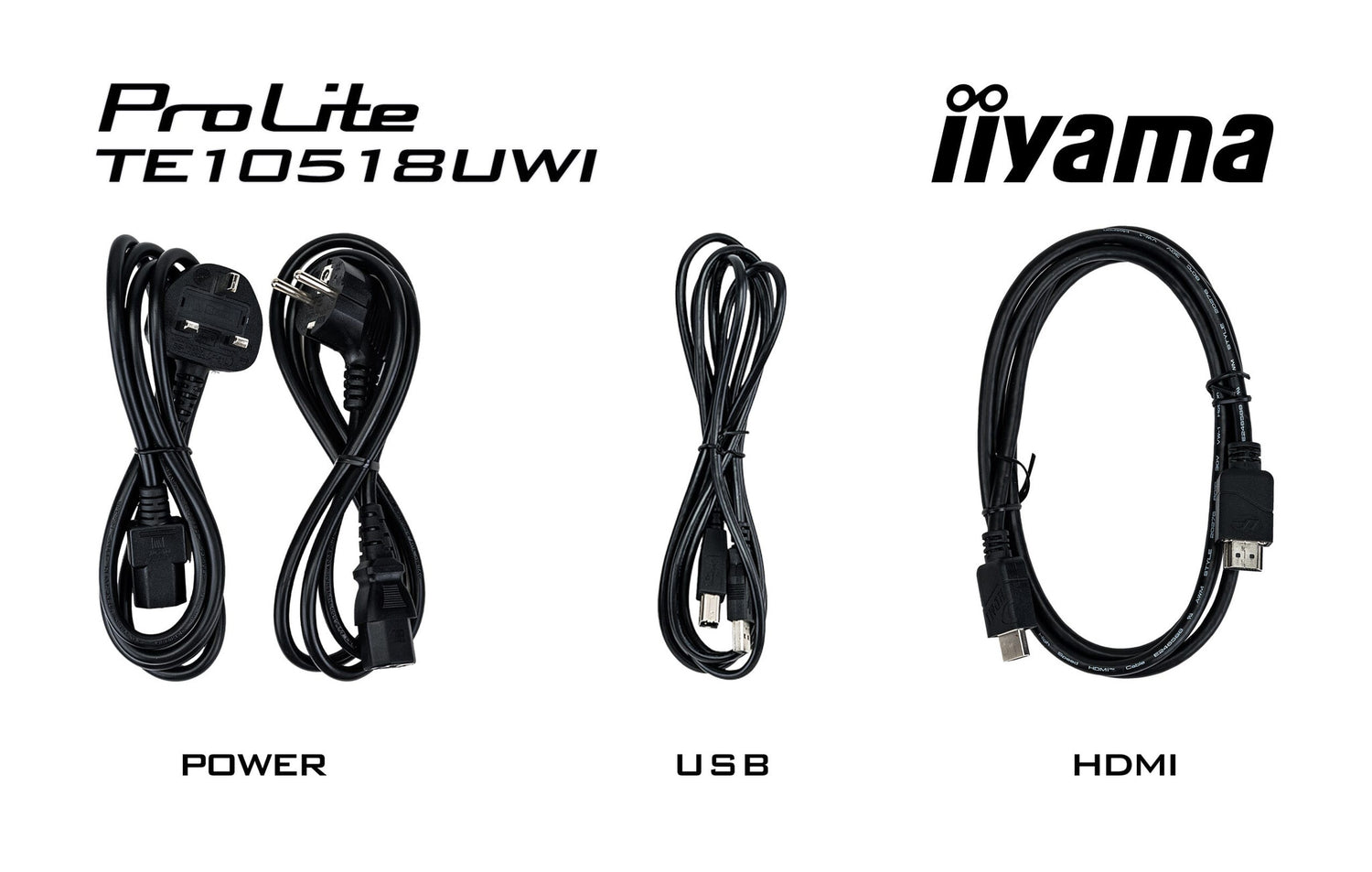

| Cables included | AC, USB, HDMI |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Certificates | |
|---|---|
| Certification | CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH (RoHS) |
| Technical details | |
|---|---|
| Warranty period | 5 year(s) |
| Compliance certificates | CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE |
| Sustainability certificates | ErP |
| User controls | common settings (input, volume, backlight), audio settings (volume, bass, treble, balance, sound mode, mute), screen settings (pixel shift, eye care, auto light, ECO, ECR, auto colour temp.), display settings (brightness, contrast, hue, sharpness, display mode, colour temp.), settings (wireless & networks, personal, input & output, application, system) |
| Playback media | Y |
| Audio in (mini jack) | Yes |
| Other features | |
|---|---|
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Power supply type | Internal |
| Bluetooth version | 5.0 |
| Built-in microphone | Yes |
| Bluetooth | Yes |
| Quick start guide | Yes |
